Sumoylation of p45/NF-E2: Nuclear Positioning and Transcriptional Activation of the Mammalian β-Like Globin Gene Locus

Cell culture.

The human embryonic-fetal erythroleukemia cell line K562 (ATCC accession no. CCL-234) and mouse adult erythroleukemia cell line CB3 (41) were grown in RPMI 1640 medium (Invitrogen) containing 10% fetal bovine serum (HyClone), 50 units/ml of penicillin, and 50 μg/ml of streptomycin (Invitrogen). Cells of the mouse adult erythroleukemia MEL (47), human 293, and HeLa cell lines were cultured in Dulbecco's modified Eagle's medium (Invitrogen). The procedures for the establishment of K562 and CB3 pools stably expressing myc-p45 and myc-p45 (K368R) followed those described in reference 39.

Plasmids and antibodies.

The cDNA encoding human p45 was cloned in pEF-myc (Invitrogen), pEF (Invitrogen), and pGEX-2TK (Amersham Biosciences). The K368R mutation in p45 was generated by PCR-directed mutagenesis. The cDNA encoding human Maf G was cloned in pEF-His (Invitrogen) vector. The DNA inserts of pQE-SUMO-1 (1-97), pCMV-His-SUMO-1, pCMV-SUMO-1 GG, and pCMV-Flag SUMO-1 GG were generated by PCR amplification of pCMV-SUMO-1. pCMV-SUMO-1 AA was generated by PCR amplification of pFlagDsRed2-SUMO-1 AA. pQE-UBC9 was generated by PCR amplification of the insert of pcDNA-UBC9 and cloned into the pQE (QIAGEN) vector. pRBGP2-Luc for transfection was from Masayuki Yamamoto (Tsukuba University, Japan). pFlagDsRed2-SUMO-1 GG and pFlagDsRed2-SUMO-1 AA were provided by B. C. Chung (12). pcDNA-UBC9 was provided by T. P. Yao (Duke University). Polyclonal anti-p45 rabbit antibody was generated in the laboratory. The anti-myc rabbit antibody 9E10, anti-PML mouse antibody PG-M3, anti-NF-E2 rabbit antibody C-19, anti-PML goat antibody A-20, and anti-RNAP II rabbit antibody N20 were purchased from Santa Cruz Inc. Anti-SUMO-1 mouse antibody clone 21C7 and rabbit antibody FL101 were purchased from Zymed Laboratories and Santa Cruz Inc., respectively. Anti-Flag (M2) and anti-tubulin (B-5-1-2) mouse antibodies were purchased from Sigma.

Protein expression.

SUMO-1 and UBC9 were expressed from pQE-SUMO-1 (1-97) and pQE-UBC9, respectively, in Escherichia coli strain XL10-gold and purified by a standard procedure. The recombinant proteins glutathione S-transferase (GST)-p45 and GST-p45 (K368R) were overexpressed in E. coli strain BL21(DE3) pLysS (Novagen) and purified. The two subunits of the sumoylation-activating enzyme E1, SAE1 and SAE2, were coexpressed using a baculovirus expression system. Extracts from cells coinfected with SAE1-carrying and SAE2-carrying viruses were prepared, and the proteins were purified through a Q-Sepharose column (Amersham Pharmacia Biotech). The eluted proteins were dialyzed and concentrated with a Centricon-30 and used in the in vitro sumoylation assay.

In vitro sumoylation and desumoylation assay.

The in vitro SUMO-1 conjugation assay was performed as follows. Briefly, 2 μg of purified GST-p45 or GST-p45 (K368R) protein was incubated with 7.5 μg/ml of SUMO-activating enzyme E1 (SAE1 or SAE2), 50 μg/ml of purified His-SUMO-1, and 50 μg/ml of SUMO-conjugating enzyme His-UBC9 in a 20-μl reaction mixture containing 20 mM HEPES (pH 7.5), 5 mM MgCl₂, and 2 mM ATP. After 30 min at 37°C, the reactions were terminated with sodium dodecyl sulfate (SDS) sample buffer and heated at 100°C for 4 min. The reaction products were analyzed by SDS-polyacrylamide gel electrophoresis followed by immunoblotting. For desumoylation assays, we mixed the sumoylated protein with 10 μg of HeLa nuclear extract and incubated for 30 min at the same temperature as was used for the sumoylation reaction.

DNA transfection and luciferase assay.

DNA transfection of 293 cells was performed by the calcium phosphate-DNA coprecipitation method. The K562 and CB3 cells were transfected by electroporation. The total amount of transfected DNA was kept constant by the addition of the cloning vectors. The transfection data represent the averages of at least three sets of independent experiments. The relative luciferase activities were indicated as average values with the standard deviations.

Purification of His-tagged proteins from cell extracts.

At 36 h after transfection, the cells were lysed in 1 ml of lysis buffer (6 M guanidinium HCl, 100 mM NaH₂PO₄, 10 mM Tris-HCl [pH 7.8]). After sonication, the His-tagged proteins were purified from the lysate with 25 μl of Ni-nitrilotriacetic acid (Ni-NTA) magnetic agarose beads (QIAGEN) following the company's protocol.

Preparation of nuclear extract.

To prepare nuclear extract for analysis of p45 sumoylation in vivo, 10¹⁰ K562 cells were washed with phosphate-buffered saline (PBS) buffer (10 mM phosphate, 0.15 M NaCl [pH 7.4]) and resuspended in 100 ml of ice-cold sucrose buffer I (0.32 M sucrose, 3 mM CaCl₂, 2 mM magnesium acetate, 0.1 mM EDTA, 10 mM Tris-HCl [pH 8.0], 1 mM dithiothreitol [DTT], and 0.5% NP-40) containing a protease inhibitor cocktail (1 mM phenylmethylsulfonyl fluoride [PMSF], 1 μg/ml of leupeptin, and 1 μg/ml of pepstatin). From this step onward, all operations were performed at between 0 and 4°C. The above-described suspension was centrifuged at 500 × g for 10 min. Pellet from the first centrifugation was recovered and resuspended in 100 ml of sucrose buffer I without NP-40. The washing was repeated twice with centrifugation at 500 × g for 10 min. The nuclei pellets were resuspended in 20 ml of a low-salt buffer (20 mM HEPES-NaOH [pH 7.9], 25% glycerol, 1.5 mM MgCl₂, 0.02 M KCl, and 0.5 mM DTT). After the addition of 20 ml of high-salt buffer (20 mM HEPES-NaOH [H 7.9], 25% glycerol, 1.5 mM MgCl₂, 0.8 M KCl, 0.2 mM EDTA, 1% NP-40, and 0.5 mM DTT), the mixture was rotated at 4°C for 20 min. After centrifugation at 12,000 × g for 15 min, 60 ml of 25 mM HEPES-NaOH [pH 7.6]-25% glycerol-0.1 mM EDTA-0.5 mM DTT was added and mixed well.

Ammonium sulfate precipitation.

The K562 nuclear extract prepared as described above was fractionated by stepwise precipitation with 20% to 50% ammonium sulfate, and each fraction was dialyzed in 500 ml of 20 mM HEPES (pH 7.9)-1 mM DTT-30% glycerol. For immunoprecipitation (IP) and Western blot experiments, the dialyzed fractions were each adjusted to 3 volumes of 20 mM HEPES (pH 7.9)-2 mM DTT-45 mM N-ethylmaleimide-30 mM iodoacetamide-3 mM PMSF-3 μg/ml of leupeptin-3 μg/ml of pepstatin.

Analysis of p45 sumoylation in mouse fetal liver.

To detect sumoylation of p45 and NF-E2 in mouse fetal liver, 14 embryonic day 14.5 (E14.5) mouse fetal livers were gently disrupted by repeated pipetting in ice-cold PBS (10 mM phosphate, 0.15 M NaCl [pH 7.4]). The cells were pelleted, washed twice with ice-cold PBS buffer (pH 7.4), and resuspended in 6 M guanidine hydrochloride-0.1 M NaH₂PO₄-0.01 M Tris-HCl (pH 8.0). The lysate was precipitated with 10% trichloroacetic acid, washed with 100% alcohol, and resuspended in an IP buffer (20 mM HEPES [pH 7.9], 2 mM DTT, 45 mM N-ethylmaleimide, 30 mM iodoacetamide, 3 mM PMSF, 3 μg/ml of leupeptin, and 3 μg/ml of pepstatin) for immunoprecipitation analysis or in SDS-polyacrylamide gel electrophoresis sample buffer for Western blotting.

Immunoprecipitation and Western blotting.

Flag-SUMO-1-labeled proteins were isolated from the mammalian cell extracts by use of anti-Flag M2 affinity gel (Sigma) following the company's standard protocol. Rabbit anti-p45 and preimmune serum were also used in immunoprecipitation experiments employing ammonium sulfate-fractionated K562 nuclear extract. Western blotting was performed using an enhanced chemiluminescence (ECL) detection system (Amersham Biosciences), with the primary and secondary antibodies prepared in Tris-buffered saline buffer containing 5% dry milk.

EMSA.

The electrophoretic mobility shift assay (EMSA) procedures followed those of Liu et al. (39). Each DNA binding reaction mixture contained 5 μg of nuclear extracts. The oligonucleotides used are as follows, with the underlined sequences being the NF-E2 binding motifs: PBGD (5′-CCTCCAGTGACTCAGCACAGGTTCC-3′ and 3′-GGAGGTCACTGAGTCGTGTCCAAGG-5′), 3′NA (5′-GATCCAGGACTGCTGAGTCATCCTG-3′ and 3′-GTCCTGACGACTCAGTAGGACCTAG-5′), 5′-NA (5′-GATCCGCCAACCATGACTCAGTGCG-3′ and 3′-GCGGTTGGTACTGAGTCACGCCTAG-5′), and HS2 (5′-AGCAATGCTGAGTCATGATGAGTCATGCTG-3′ and 3′-TCGTTACGACTCAGTACTACTCAGTACGAC-5′). They correspond to the NF-E2/AP-1 binding sites in the human PBGD promoter (43), the HS-40 of α-LCR (5′-NA and 3′-NA) (64), and HS2 of the β-LCR (59). These oligonucleotides were synthesized with 5′ overhangs and end labeled using Klenow enzyme with [α-³²P]dATP. For supershift analysis, the nuclear extract was incubated with 1 μg of the antisera at room temperature for 10 min prior to use in the binding reaction.

Immunostaining.

The cells were fixed in 4% formaldehyde for 20 min, permeabilized with 0.1% Triton X-100-PBS, and blocked in 10% normal donkey serum (Jackson ImmunoResearch). Antigen localization was done by a first incubation with the appropriate antibodies at 4°C overnight. The secondary antibodies conjugated to Alexa Fluor 488, Alexa Fluor 568, or Alexa Fluor 647 (Molecular Probes) were then applied for another 2 h of incubation at 25°C. The DNA staining was carried out using DAPI (4′,6′diamidino-2-phenylindole) (Molecule Probes).

DNA-FISH.

The fluorescence in situ hybridization (FISH) probe for the human β-globin locus was generated by nick translation of the DNA insert of pμLCR/γ, a gift from Q. Li and G. Stamatoyannopoulos (Washington University). The DNA probe was labeled with biotin by PCR. The protocols used for FISH experiments were similar to those described by Li et al. (38). After hybridization, the biotin-labeled probe was detected with Alexa Fluor 546 (Molecular Probes)-conjugated antibody.

Immuno-DNA-FISH.

To check the relative locations of the human β-globin locus and different NBs, immuno-DNA-FISH was carried out (53) by a combination of the procedures of DNA-FISH and immunofluorescent staining described above. The DNA-FISH has been shown not to significantly alter the immunostaining patterns of NBs, including POD and Cajal bodies (references 53, 60, and 63 and Y. C. Shyu and C.-K. J. Shen, unpublished data).

Image analysis.

DNA FISH and immunostaining analyses were carried out with a Zeiss LSM 510 Meta confocal microscope. Each confocal image was from a single optical section(s). For each set of the analyses, three different pools of the cells were collected for immunostaining and/or DNA FISH. The confocal stacks of all the cells in randomly chosen fields were collected and analyzed. The distances between different signals on the three-dimensional (3D) reconstructed image stacks were measured using LSM 5 image analysis software. To assess the associations of signals from DNA FISH and those from immunostaining using anti-p45, anti-SUMO-1, anti-PML, and anti-RNAP II, the image stacks of the nuclei were captured and reconstructed as 3D images, and then the colocalized signals were counted.

ChIP.

NF-E2-binding at specific chromatin regions was analyzed by a mammalian chromatin immunoprecipitation (ChIP) approach described previously (17). The primers for PCR of the four HS sites were as described before. Those for the two intergenic regions were as follows: for intergenic site a, the upstream primer was 5′ (9801)-TCGCTAAGAGCACAGAGAGA-3′ and the downstream primer was 5′ (10400)-CCTATAGCCTAGGCATTGTG-3′, and for intergenic site b, the upstream primer was 5′ (2291)-CAGCCCGAGTGAGTTAATAC-3′ and the downstream primer was 5′ (2740)-TCCAGCATACAGACTGCCAA-3′ (numbers refer to those in the NCBI database [V01317]). In general, confluent cells (2 × 10⁶) were fixed at room temperature in 60 ml of RPMI 1640 medium containing 1% formaldehyde for 10 min. After sonication, the protein-DNA complexes were immunoprecipitated with anti-human p45 and anti-myc antibodies, respectively. The precipitated chromatin DNAs were purified and amplified by PCRs (95°C for 7 min followed by 34 cycles at 94°C for 30 s, 55°C for 40 s, and 72°C for 40 s).

Northern blot analysis.

The Northern blot hybridization procedures essentially followed those of Liu et al. (39). The total RNAs were extracted with commercial TRIzol reagent (Invitrogen). Amounts (5 μg) of each RNA sample were separated on a 1% agarose-6% formaldehyde gel, transferred to a nylon membrane, and hybridized with radioactive DNA probes amplified by PCR. The blots were subjected to autoradiography or direct quantitation in a PhosphorImager (Fuji).

Sumoylation of p45 in vitro.

Inspection of the sequence of human p45 revealed the presence of a tetrapeptide, TKME, around lysine 368 (K368) near the C-terminal bZIP domain. This sequence conforms to ψKXE, the consensus of sumoylation sites found in most sumoylated proteins (Fig. 1A). To test whether p45 is a previously unrecognized substrate for SUMO-1 modification, we carried out in vitro sumoylation assays as described in Materials and Methods. As shown in Fig. 1B, a higher-molecular-weight form of the p45 protein was detected in reaction mixtures containing the substrate and all the components required for the sumoylation (Fig. 1B, lane 2). The apparent molecular weight of the band suggested that a single molecule of His-SUMO-1 was attached to p45 under our in vitro sumoylation conditions. Matrix-assisted laser desorption ionization mass analysis showed that this band indeed contained both SUMO-1 and GST-p45 (data not shown).

To verify that K368 of p45 was indeed the sumoylation site for the conjugating enzyme, we replaced it with an arginine (R) by site-directed mutagenesis and repeated the sumoylation reactions with GST fusions of either wild-type or mutant p45 (K368R) (Fig. 1C). In similarity to the data shown in Fig. 1B, the wild-type p45 fusion protein could be sumoylated in vitro (lane 5, Fig. 1C) and the sumoylated band disappeared upon desumoylation (lane 4, Fig. 1C). In contrast, the mutant form could not be sumoylated (lane 2, Fig. 1C). Taken together, these data suggest that the p45 subunit of human NF-E2 could be sumoylated in vitro and that the major site of its sumoylation is at K368.

Sumoylation of p45 in vivo.

First, we cotransfected K562 cells with pEF-p45 and pCMV-His-SUMO-1. The whole-cell extract was fractionated through Ni-NTA agarose, and the retained fraction containing His-tagged proteins was immunoblotted with anti-p45. As shown in Fig. 2A, a 55-kDa band could be easily detected when both plasmids were used in transfection (lane 1, Fig. 2A). Interestingly, use of pCMV-His-SUMO-1 alone also resulted in a faint 55-kDa band on the blot (lane 2, Fig. 2A), suggesting that some endogenous p45 proteins of K562 were sumoylated with addition of the transfected His-SUMO-1.

The sumoylation in vivo was further studied by cotransfection experiments using 293 cells and one or more of the expression plasmids pEF-myc-p45, pEF-myc-p45 (K368R), pFlagDsRed-SUMO-1 GG, and pFlagDsRed-SUMO-1 AA. At 48 h posttransfection, the extracts were immunoprecipitated with anti-Flag antibody and hybridized with anti-p45 (Fig. 2B). As shown, a band of 75 kDa was specifically detected only when wild-type p45 and tagged SUMO-1GG were coexpressed (lane 1, Fig. 2B). This band corresponds to the combined molecular weight of myc-p45 and FlagDsRed-SUMO-1GG substrate. The FlagDsRed-SUMO-1 AA contains Gly (G)-to-Ala (A) mutation at G97, which is essential for the ability of SUMO-1 to be conjugated to the substrates. Replacement of FlagDsRed-SUMO-1 GG with FlagDsRed-SUMO-1 AA (lane 2, Fig. 2B) or of myc-p45 with myc-p45 (K368R) (lane 4, Fig. 2B) resulted in the loss of the 75-kDa band. This data suggested that in similarity to the in vitro reaction results, sumoylation of p45 in vivo also occurs predominately at the K368 residue. The whole-cell extract was hybridized with anti-SUMO-1 and anti-p45 as controls (middle and lower panels, Fig. 2B).

We have investigated whether the endogenous p45 of the erythroid K562 cells is sumoylated in vivo. First, to increase the signal-to-noise ratio of detection of the endogenous p45 and its modified form in K562 cells, K562 nuclear extract was prepared and fractionated by step-wise precipitation using 20% to 50% ammonium sulfate. These fractions were then analyzed by Western blotting with anti-p45 and anti-SUMO-1 antibodies. As shown in Fig. 2C, a band of 55 kDa, mainly in the 20% and 30% ammonium sulfate fractions, was detected on blots reacted with either antibody. A doublet around the molecular weight of 45 kDa was detected by anti-p45 (left panel, Fig. 2C) but not by anti-SUMO-1 (middle panel, Fig. 2C). The electrophoretic mobility of the 55-kDa species was consistent with the addition of a single SUMO-1 chain to p45. The 20% ammonium sulfate fraction was further immunoprecipitated with rabbit anti-p45 and preimmune serum, respectively, and then reacted with mouse anti-SUMO-1 (right panel, Fig. 2C). As seen, only the sample immunoprecipitated with anti-p45 gave a 55-kDa band on the Western blot (right lane of the right panel, Fig. 2C). The data of Fig. 2C indicated that a subpopulation, albeit minor (5 ∼ 10%), of the endogenous p45 molecules in the human erythroid K562 cells was monosumoylated.

The endogenous p45 of the mouse E14.5 fetal liver also appeared to be sumoylated in vivo. As shown in Fig. 2D, when the whole-cell extract prepared from the fetal liver was probed with anti-p45, both the p45 doublet and a 55-kDa band were seen on the Western blot (lane 1, Fig. 2D). However, only the 55-kDa band was seen when anti-SUMO-1 antibody was used (lane 2, Fig. 2D). When the extract was first IP with rabbit anti-p45 or rabbit preimmune serum and then subjected to Western blotting analysis using mouse anti-SUMO-1 as the probe, only the former IP sample exhibited the 55-kDa band (compare lanes 3 and 4, Fig. 2D). The data of Fig. 2C and 2D have demonstrated that a subpopulation, albeit minor (5 ∼ 10%), of the endogenous p45 molecules in the human erythroid K562 cells and the mouse erythroid fetal liver cells is monosumoylated.

Biological effects of p45 sumoylation.

Next, we examined the possible biological effects of p45 sumoylation on the transactivation capability and DNA binding affinity of NF-E2.

(i) Transactivation.

The transactivation capability of NF-E2 as affected by sumoylation of its p45 subunit was assessed. For this, we used as the reporter a pRBGP2-luciferase (Luc) construct (29), which contains tandemly arranged NF-E2/AP1 binding sites linked to the TATA box of the β-globin promoter (top map, Fig. 3A). Increasing amounts (0.5 to 4 μg) of pEF-myc-p45 or pEF-myc-p45 (K368R) were cotransfected with 2 μg of pBRGB2-Luc into 293 cells. Indeed, as shown previously (29), the exogenous p45 transactivated the promoter up to 7.7-fold (black bars, Fig. 3A). On the other hand, the exogenous p45 (K368R) transactivated the promoter only 1.7-fold (white bars, Fig. 3A). Interestingly, coexpression of the wild-type conjugation enzyme UBC9 with p45 further increased the reporter activity, by as much as 17-fold, in 293 cells (black bars, Fig. 3B). Again, this increase was not observed when the plasmid pEF-myc-p45 (K368R) was used (white bars, Fig. 3B). Furthermore, the inclusion of pCMV-SUMO-1 GG (black bars, Fig. 3C and 3D), but not pCMV-SUMO-1 AA (white bars, Fig. 3C and 3D), in the cotransfection mixture also further increased the transactivation level by twofold to threefold when pEF-myc-p45 (Fig. 3C), but not pEF-myc-p45 (K368R) (Fig. 3D), was used. The above-described up-regulation by UBC9 and SUMO-1 GG was not observed when pEF-myc was used (data not shown). These results demonstrated that sumoylation of p45 significantly enhanced the transactivation capability of NF-E2.

(ii) DNA binding affinity.

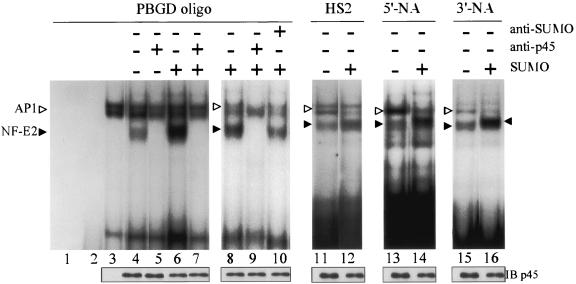

Next, we tested whether sumoylation of p45 would increase the DNA binding affinity of NF-E2 to its cognate binding motifs. To achieve this, we carried out EMSA using specific oligonucleotide probes and nuclear extracts prepared from 293 cells transfected with different combinations of plasmids expressing p45, Maf G, and SUMO-1, respectively. As shown for the oligonucleotide containing the NF-E2 binding site of the PBGD promoter, coexpression of p45 and Maf G resulted in two clusters of complexes (lane 4, Fig. 4). Of the two, the lower one could be abolished with the use of anti-p45 (lane 5, Fig. 4), indicating that it was indeed the NF-E2/DNA complex(es). This pattern is similar to those revealed in many previous studies (for references, see the introduction above), which also showed that the upper band consisted of at least the AP1/DNA complexes. Interestingly, however, additional expression of SUMO-1 in 293 cells resulted in increased levels of the lower NF-E2/DNA complex and often concomitant decreased levels of the upper AP1/DNA complex (for example, compare lane 6 to lane 4 in Fig. 4). A similarly increased level of the NF-E2/DNA complex upon cotransfection with pCMV-Flag-SUMO-1 GG was observed with the use of three other NF-E2/AP1-binding site-containing oligonucleotides (lanes 12, 14, and 16, Fig. 4). Interestingly, the upper portion of the NF-E2/DNA band could be super shifted with the use of anti-SUMO-1 (compare lane 8 to lane 10 in Fig. 4). This is consistent with the notion that the complex contains sumoylated p45/NF-E2. Under the transfection conditions used, the small subunit of NF-E2, MafG, could not be modified by SUMO-1 (M. Yamamoto and H. Motohashi, personal communication). The data of Fig. 4 thus suggest that NF-E2 containing sumoylated p45 has higher DNA binding affinity towards its cognate binding sites than the unmodified form. This is likely one of the reasons that sumoylation enhanced the transactivation capability of NF-E2.

Erythroid cell-specific association of human β-globin locus with PODs containing sumoylated p45/NF-E2 and RNA polymerase II. (i) Costaining of anti-p45, anti-SUMO-1, and anti-PML.

The expression of genes has been linked to their spatial positions in the nucleus relative to the NBs (references 16 and 35 and references therein). We have combined immunofluorescence staining with DNA-FISH to examine whether the regulation of the human β-like globin genes is related to the distributions and spatial arrangements of the locus and specific NBs, in particular in relation to the sumoylation of p45 described above. As seen in Fig. 5A, panel a, the p45 factors in K562 cells are distributed mostly as nuclear dots, in similarity to the p45-staining pattern of the MEL cells (22). However, each K562 cell contains two to more than four p45-containing nuclear substructures that are relatively larger, with the diameters greater than 0.2 μm. We termed them the “p45 bodies.” Depending on the growth conditions, approximately 60 to 90% (n = 94) of these “p45 bodies” are present in the euchromatin regions of the K562 nuclei, as exemplified in Fig. 5A, panel a. Use of anti-SUMO-1 also detected a partially overlapping dotted pattern of K562 nuclear staining (Fig. 5A, panel b) that was revealed by the use of anti-PML (Fig. 5A, panels d and f). These distribution patterns of SUMO-1 and PML are similar to those observed previously by others (21, 26). As with the p45 bodies, we noticed that there also existed 4 to 10 relatively larger SUMO-1-staining nuclear substructures, or SUMO-1 bodies, the diameters of which were larger than 0.5 μm (arrowhead, Fig. 5A, panel b). Interestingly, most if not all (94/94) of the p45 bodies colocalized with the SUMO-1 bodies, as exemplified in Fig. 5A, panel e.

It appeared that only the sumoylatable p45 molecules resided within the p45 bodies. We transfected K562 cells with pEF-myc-p45 and pEF-myc-p45 (K368R), respectively, and analyzed the immunofluorescent staining patterns of the exogenous p45 molecules with the use of anti-myc antibody. As exemplified in Fig. 5B, in similarity to the results seen with endogenous p45 (Fig. 5A), the exogenous myc-p45 molecules were also distributed as nuclear dots and larger bodies (Fig. 5B, panel a). More than 90% (39/43) of the relatively larger, myc-p45 bodies also colocalized with the endogenous SUMO-1 bodies (Fig. 5B, panel c). In contrast, 85% (31/36) or more of the myc-p45 (K368R) bodies were found not to colocalize with the SUMO-1 bodies, as exemplified in Fig. 5B, panels d to f. Thus, an intact sumoylation site of p45 is essential for the nuclear colocalization of the p45 bodies with the SUMO-1 bodies-POD.

(ii) Immuno-DNA-FISH of the human β-like globin locus.

The K562 cell line we used has a modal chromosome number of 67 (range, 64 to 69); three of the chromosomes are chromosome 11. To examine the positioning of the human β-globin locus in the 3D nucleus relative to the above-described NBs, we first validated the DNA-FISH technique by mapping the β-like globin locus on the metaphase chromosomes of K562 cells. Indeed, with use of the μLCR/γ fragments derived from the β-globin locus and WCB11 (Vysis) as the probes, the β-like globin loci could be specifically detected on the three pairs of the metaphase chromosome 11 of K562 (data not shown). In consistency with this, two to three μLCR/γ hybridizing signals could be seen after DNA-FISH of the interphase K562 cells (see below; also data not shown).

DNA-FISH was then combined with the use of different antibodies for immunostaining of the NBs. As exemplified in Fig. 6A, SUMO-1 bodies also existed in nonerythroid cells such as HeLa cells, which did not show significant (<5%; n = 3/53) association with the human β-globin locus identified by DNA-FISH. In interesting contrast, as exemplified in Fig. 6B, more than 95% (72/76) of the human β-globin loci in K562 cells were colocalized with the p45 bodies and consequently the SUMO-1 bodies. In consistency with this, 95% (56/59) of the human β-globin loci were colocalized with the anti-PML-stained substructures or POD (Fig. 6C).

Recently, actively transcribing β-globin loci in the mouse erythroid cells were found to be located in the so-called “RNA polymerase II factories” (48). To see whether the β-globin locus-associated p45/SUMO-1 bodies in human erythroid cells are also enriched with RNAP II, we first carried out immunostaining of K562 cells with the antibody N-20, which recognized predominantly phosphorylated RNAP II but also, to a much less extent, the unphosphorylated RNAP II. As seen in Fig. 6D, panel b, the RNAP II distribution pattern was similar to those previously observed (see references 48, 61, and 65 and references therein), with quite a few relatively large bodies similar to the “RNAP II factories” described in reference 48. Interestingly, the human β-globin loci of K562 (Fig. 6D, panel a) colocalized significantly (42/55) with the RNAP II bodies as well (Fig. 6D, panel d). Consistent with this, most of the β-globin locus-associated RNAP II bodies also significantly colocalized or were in close proximity with POD (Fig. 6D, panels c and d). Use of 8WG16, which recognized mainly the unphosphorylated form of RNAP II, gave similar colocalization patterns of POD, p45 bodies, and the β-globin locus with RNAP II, suggesting that both RNAP IIo and RNAP IIa were concentrated in the β-globin locus-associated POD in K562 cells (data not shown). On the basis of the data of Fig. 5 and 6, we conclude that in the globin-expressing K562 cells, but not in the inactive nonerythroid cells, there is a significant one-to-one relationship of colocalization of the human β-globin locus, the SUMO-1-concentrated POD, the p45 bodies, and the RNAP II factories.

Binding in vivo of wild-type p45, but not p45 (K368R), to the β-LCR in K562 cells.

In view of the data of Fig. 4, 5, and 6, it is interesting, and important as well, to check whether the mutant p45 (K368R)/NF-E2 could be recruited to the β-LCR of K562 and bind to the different HS sites, as previously shown for the wild-type or endogenous p45/NF-E2. For this, the ChIP method (17) was used.

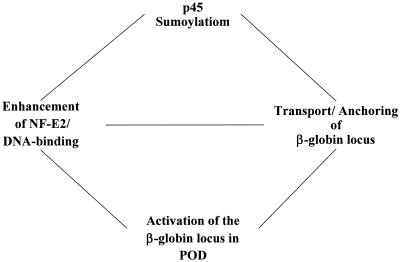

K562 cells were transfected with pEF-myc, pEF-myc-p45, or pEF-myc-p45 (K368R) and then subjected to analysis by ChIP. As seen in Fig. 7, binding of the endogenous p45 at HS1-HS4 sites of the β-LCR, but not at the intergenic regions (regions a and b), could be detected in K562 cells transfected with pEF-myc (K562-myc lanes, Fig. 7B to G). Interestingly, the exogenous myc-p45 molecules were also associated with the four HS sites of β-LCR in K562 cells transfected with pEF-myc-p45 (K562-myc-p45 lanes, Fig. 7B to E). In contrast, few or no PCR signals could be seen in the ChIP samples prepared from K562 cells transfected with pEF-myc-p45 (K368R) and precipitated with anti-myc [see K562-myc-p45 (K368R) lanes, Fig. 7B to E]. Thus, together with the data of Fig. 4 to 6, the ChIP analysis of Fig. 7 strongly supports the scenario that an intact sumoylation site at K368 of p45/NF-E2, which confers stronger DNA binding affinity of NF-E2 than the K368R mutant, is a priori for the association among NF-E2, the SUMO-1 body/POD, and the human β-like globin locus in the erythroid K562 cells.

Rescue of β-globin gene expression in CB3 cells by wild-type p45 but not by p45 (K368R).

The physiological function of p45 sumoylation in the transactivation of the endogenous β-like globin locus in erythroid cells was directly tested by the use of CB3 cells. CB3 is a derivative of the mouse adult erythroleukemic cell line MEL. Due to a proviral integration event, CB3 does not express p45. This has led to the little expression of β^major-globin and α-globin genes in CB3, even with dimethyl sulfoxide (DMSO) induction. Interestingly, the β^major-globin and α-globin expression in CB3 cells could be partially restored upon expression of exogenous p45/NF-E2 (7, 34, 41).

CB3 cells were stably transfected with pEF-p45 or with pEF-p45 (K368R). Pools from independent transfections were selected, and the expression levels of the exogenous p45, the endogenous globin genes, and two housekeeping genes in these cell pools were analyzed by Northern or Western blotting. As shown in Fig. 8, expression of the adult β^major-globin and α-globin genes, but not embryonic ε-globin genes, was inducible by DMSO in MEL cells (lanes 1 and 2, Fig. 8) but not in CB3 cells (lanes 7 and 8, Fig. 8). Stable transfection with pEF-p45/NF-E2 rescued the expression of the adult globin genes, as exemplified for two independent CB3 (p45) pools (lanes 3 to 6). In contrast, the mutant p45 (K368R) could not rescue the globin gene expression, as exemplified by analysis of two independent CB3 [p45 (K368R)] pools (lanes 9 to 12). The data of Fig. 8 demonstrated that an intact K368 site of p45, and by implication the sumoylation of p45, is essential for transactivation of the endogenous globin genes in erythroid cells by NF-E2.
