. 1975 Oct;251(2):395–407. doi: 10.1113/jphysiol.1975.sp011100

Localization and electrical characteristics of a giant synapse in the spinal cord of the lamprey.

G L Ringham
PMCID: PMC1348435  PMID: 1185671

Abstract

1. Physiological and morphological experiments were carried out to determine the characteristics of a giant synapse in the lamprey spinal cord. The presynaptic element is a Müller fibre, running the length of the spinal cord, and the post-synaptic element is a lateral interneurone. 2. Injection of the interneurone with fluorescent dye revealed several dendritic processes extending into the region of the Müller fibres and spreading over a longitudinal distance of about 150 mum. Electron microscopic examination of the Müller fibres confirmed that they do not send out processes to form synapses. Thus, the synapse is between the cylindrical fibre and one or more dendritic branches of the interneurone. 3. Measurements with intracellular electrodes showed the Müller fibres to have input resistances of about 1 Momega and space constants of 1-0-1-7 mm. The space constant was larger for hyperpolarizing pulses than for depolarizing pulses because of delayed recitification. The interneurones had input resistances of about 6 Momega. 4. The neurones were electrically as well as chemically coupled. When a current-passing electrode was placed in the fibre and hyperpolarizing pulses applied, the amplitude of the electrical coupling potential recorded from the interneurone was maximal at one position of the current-passing electrode and decreased as the electrode was moved away from the optimal position. The decrease in amplitude with electrode displacement indicated that the region of synaptic contact was very restricted. 5. The electrical synapse was highly rectifying, the forward resistance being about nine-times smaller than the backward resistance.

Full text

PDF
395

Images in this article

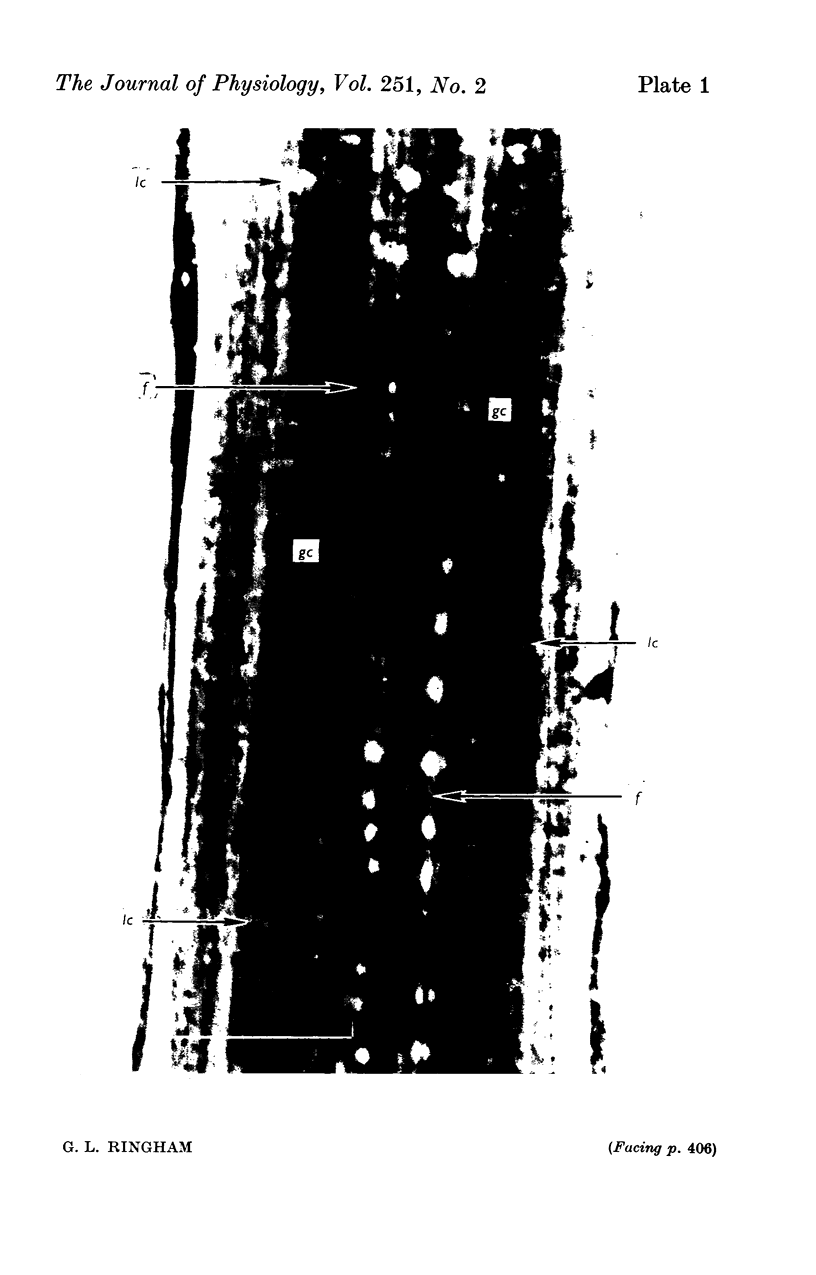

406-1Plate 1
on p.406-1
406-2A
on p.406-2
406-2B
on p.406-2
406-3A
on p.406-3
406-3B
on p.406-3

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Auerbach A. A., Bennett M. V. A rectifying electrotonic synapse in the central nervous system of a vertebrate. J Gen Physiol. 1969 Feb;53(2):211–237. doi: 10.1085/jgp.53.2.211. [DOI] [PMC free article] [PubMed] [Google Scholar]
  2. BERTOLINI B. ULTRASTRUCTURE OF THE SPINAL CORD OF THE LAMPREY. J Ultrastruct Res. 1964 Aug;11:1–24. doi: 10.1016/s0022-5320(64)80089-7. [DOI] [PubMed] [Google Scholar]
  3. BOYD I. A., MARTIN A. R. Membrane constants of mammalian muscle fibres. J Physiol. 1959 Oct;147:450–457. doi: 10.1113/jphysiol.1959.sp006255. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. FURSHPAN E. J., POTTER D. D. Transmission at the giant motor synapses of the crayfish. J Physiol. 1959 Mar 3;145(2):289–325. doi: 10.1113/jphysiol.1959.sp006143. [DOI] [PMC free article] [PubMed] [Google Scholar]
  5. Fein H. Passing current through recording glass micro-pipette electrodes. IEEE Trans Biomed Eng. 1966 Oct;13(4):211–212. [PubMed] [Google Scholar]
  6. Martin A. R., Ringham G. L. Synaptic transfer at a vertebrate central nervous system synapse. J Physiol. 1975 Oct;251(2):409–426. doi: 10.1113/jphysiol.1975.sp011101. [DOI] [PMC free article] [PubMed] [Google Scholar]
  7. Martin A. R., Wickelgren W. O., Ber1anek R. Effects of iontophoretically applied drugs on spinal interneurons of the lamprey. J Physiol. 1970 May;207(3):653–665. doi: 10.1113/jphysiol.1970.sp009086. [DOI] [PMC free article] [PubMed] [Google Scholar]
  8. NARAHASHI T., DEGUCHI T., URAKAWA N., OHKUBO Y. Stabilization and rectification of muscle fiber membrane by tetrodotoxin. Am J Physiol. 1960 May;198:934–938. doi: 10.1152/ajplegacy.1960.198.5.934. [DOI] [PubMed] [Google Scholar]
  9. Rovainen C. M., Johnson P. A., Roach E. A., Mankovsky J. A. Projections of individual axons in lamprey spinal cord determined by tracings through serial sections. J Comp Neurol. 1973 May 15;149(2):193–202. doi: 10.1002/cne.901490205. [DOI] [PubMed] [Google Scholar]
  10. Rovainen C. M. Physiological and anatomical studies on large neurons of central nervous system of the sea lamprey (Petromyzon marinus). I. Müller and Mauthner cells. J Neurophysiol. 1967 Sep;30(5):1000–1023. doi: 10.1152/jn.1967.30.5.1000. [DOI] [PubMed] [Google Scholar]
  11. Rovainen C. M. Physiological and anatomical studies on large neurons of central nervous system of the sea lamprey (Petromyzon marinus). II. Dorsal cells and giant interneurons. J Neurophysiol. 1967 Sep;30(5):1024–1042. doi: 10.1152/jn.1967.30.5.1024. [DOI] [PubMed] [Google Scholar]
  12. Rovainen C. M. Synaptic interactions of identified nerve cells in the spinal cord of the sea lamprey. J Comp Neurol. 1974 Mar 15;154(2):189–206. doi: 10.1002/cne.901540206. [DOI] [PubMed] [Google Scholar]
  13. Rovainen C. M. Synaptic interactions of reticulospinal neurons and nerve cells in the spinal cord of the sea lamprey. J Comp Neurol. 1974 Mar 15;154(2):207–223. doi: 10.1002/cne.901540207. [DOI] [PubMed] [Google Scholar]
  14. Smith D. S., Järlfors U., Beránek R. The organization of synaptic axcplasm in the lamprey (petromyzon marinus) central nervous system. J Cell Biol. 1970 Aug;46(2):199–219. doi: 10.1083/jcb.46.2.199. [DOI] [PMC free article] [PubMed] [Google Scholar]
  15. Stretton A. O., Kravitz E. A. Neuronal geometry: determination with a technique of intracellular dye injection. Science. 1968 Oct 4;162(3849):132–134. doi: 10.1126/science.162.3849.132. [DOI] [PubMed] [Google Scholar]
