Structural Similarities between Glutamate Receptor Channels and K⁺ Channels Examined by Scanning Mutagenesis

Molecular Biology

Site-directed mutagenesis by PCR, preparation of RNA for injection in Xenopus oocytes, and preparation of DNA for transfection of HEK293 cells were performed as described previously (Panchenko et al. 1999). Silent NheI, MluI and BglII restriction sites in wild-type GluR6(Q) were designed to define the boundaries of 196 and 193 base pair cassettes surrounding the pore region. After generation of individual mutants, these cassettes were sequenced in their entirety and subcloned before use in electrophysiological experiments. Alanine (Ala), Tryptophan (Trp), glutamate (Glu), and truncation mutants were generated by introducing the required codons as appropriate, with valine introduced at positions with a wild-type alanine, and phenylalanine at positions with a wild-type tryptophan.

Oocyte and HEK Cell Preparation

Oocytes were surgically removed from Xenopus laevis (Xenopus One) using aseptic techniques after induction of anesthesia by immersion for 15 min in water containing 3 g/liter tricaine, a protocol approved by the NICHD Animal Care and Use Committee. Animals were killed after a maximum of up to six surgeries. Oocytes were defolliculated by incubation of ovarian fragments for 60–90 min with 1.5 mg/ml collagenase dissolved in Ca²⁺-free solution containing (in mM): 83 NaCl, 2 KCl, 1 MgCl₂, 5 HEPES, pH 7.5. The preparation was thoroughly rinsed with solution containing (in mM): 88 NaCl, 2.5 NaHCO₃, 1.1 KCl, 0.4 CaCl_2, 0.3 Ca(NO₃)₂, 0.8 MgCl₂, 2.5 mM sodium pyruvate, 10 HEPES, pH 7.3, and 5 μg/ml gentamicin; and stored overnight. Dumont stage V–VI oocytes were individually selected and injected with 40 pg to 50 ng of cRNA, as required, and stored at 18°C for 2–3 d before recording. Intervals of up to 10 d between mRNA injection and recording were used only for mutants that were nonfunctional or expressed low amplitude responses after an initial assay at 2–3 d.

HEK 293 cells (CRL 1573; American Type Culture Collection) were maintained at a confluency of 70–80% in MEM with Earle's salts, 2 mM glutamine, and 10% fetal bovine serum. 24 h after plating at low density (2 × 10⁴ cells/ml) onto the center of 35-mm petri dishes, cells were transfected using the calcium phosphate technique; cotransfection with the cDNA for green fluorescent protein (S65T mutation) helped to identify transfected cells during experiments as described previously (Bowie and Mayer 1995). Cells were washed with PBS and then MEM 12–18 h after transfection and used for electrophysiological recordings after another 24–48 h.

Recording Conditions and Solutions

Two-electrode voltage clamp recording for Xenopus oocytes was performed using 3 M KCl filled agarose cushion microelectrodes of resistance 0.5–1.2 MΩ (Schreibmayer et al. 1994) and an amplifier (Axoclamp-2B; Axon Instruments) with an extracellular microelectrode used as the input for a virtual ground bath clamp. The recording chamber had a volume of 5 μl; solutions were applied at 250 μl min⁻¹. The extracellular solution contained (in mM): 100 NaCl, 1 KCl, 0.7 BaCl₂, 0.8 MgCl₂, and 5 HEPES, pH 7.3 with NaOH. GluR6 responses were activated using 100 μM kainate, a concentration >100 times the EC₅₀. 0.3–1 mg ml⁻¹ concanavalin A (Sigma type IV) was applied for 4–16 min to reduce desensitization (Partin et al. 1993; Everts et al. 1999). The length of application of concanavalin A was adjusted for individual recordings to give current amplitudes of 1–5 μA at −60 mV. Current-voltage (I-V) plots from −100 to 100 mV were generated with ramp protocols (0.11–2.7 Vs⁻¹). For mutants that did not give functional responses at −60 mV after application of 1 mg ml⁻¹ concanavalin A for 8–10 min the voltage range was extended to −200 mV to test for high affinity polyamine block (Panchenko et al. 1999).

Outside-out patches were excised from HEK cells using fire-polished, thin-walled borosilicate glass pipets (2–5 MΩ) coated with dental wax to reduce electrical noise. Experiments were performed in an external solution containing (in mM): 150 NaCl, 1 KCl, 0.7 BaCl₂, 0.8 MgCl₂, and 5 HEPES, pH 7.3; and the osmolarity was adjusted to 295 mOsm with sucrose. GluR6 responses were evoked using 50 μM domoic acid, a weakly desensitizing agonist, applied via a stepper motor-based fast perfusion system (Vyklicky et al. 1990). In some experiments, patches were treated with concanavalin A (0.3 mg/ml for 1–1.5 min) to further reduce desensitization. The internal solution contained (mM): 110 NaCl, 10 NaF, 10 mM Na₂ATP, 5 HEPES, 0.5 CaCl₂, and 5 Na₄BAPTA. Currents were recorded with an amplifier (Axopatch-200; Axon Instruments), filtered with an 8-pole Bessel filter, and stored on a Power Macintosh G3 computer using a 16-bit A/D converter (model ITC-16; Instrutech) under control of the program Synapse (Synergy Research Incorporated).

Data Analysis

Procedures in the Igor program (Wavemetrics) were used to generate and analyze conductance-voltage (G-V) plots. First, the reversal potential (V_rev) was estimated using a fifth order polynomial fit to I-V plots for either single (oocytes) or the average of five (HEK cells) leak-subtracted responses. G-V plots were generated from the relationship G = I/(V − V_rev) and used to measure the conductance at +80 and −80 mV. A fit of the following Boltzmann function over the range −100 to +20 mV was used to obtain an initial estimate of the voltage dependence of block by polyamines

where G _max is the conductance at a sufficiently hyperpolarized potential to produce full relief from block by polyamines, V_m is the membrane potential, V_b the potential at which 50% block occurs, and k _b is a slope factor describing the voltage dependence of block. To analyze block over a wider range of membrane potentials for mutants with a low affinity for polyamines, it was necessary to correct for rectification that occurs in polyamine-free conditions (Bähring et al. 1997; Bowie et al. 1998). To do this, pooled responses recorded in separate experiments in the presence and absence of polyamines were normalized to have a value of 1 at −100 mV. Corrected G-V plots were generated by dividing responses recorded in the presence of polyamines by those recorded in polyamine-free conditions. The resulting plots were fit with a function describing the behavior of the two barrier one- site (2B1S) model for a permeant blocker:

where G _max, V_m, V_b, and k_b have the same meaning as described above, V_p is the half unblock potential for the second Boltzmann function describing the permeation of polyamines on strong depolarization, and k_p is the slope factor describing the voltage dependence of relief from block. A voltage-independent dissociation constant for polyamine block, K _d(0), was calculated from the following relationship:

assuming a cytoplasmic concentration of spermine, spermidine, and possibly other polyamines functionally equivalent to the block produced by 20 μM spermine [Spm] alone (Panchenko et al. 1999).

Numerical values in the text and error bars in graphs indicate mean ± SD, unless noted differently. Unpaired t tests were used to test for significant differences where required.

Immunohistochemistry

4 d after injection with 10 ng cRNA, oocytes were fixed overnight by immersion in 100 mM PBS, pH 7.4, containing 4% paraformaldehyde and 15% of a saturated solution of picric acid; uninjected oocytes from the same preparations were processed identically. The oocytes were cryoprotected by overnight immersion in a solution containing 10 mM PBS, 10% glycerol, 0.008% NaN₃, and 25 g/100 ml sucrose. 100-μM sections were cut on a freezing microtome, incubated with 2% Triton in PBS, blocked with 10% goat serum in 0.2% Triton for 2 h, and reacted overnight at 4°C with 1 μg/ml rabbit anti–GluR6 antibody (Wenthold et al. 1994) in PBS containing 10% goat serum and 0.2% Triton. Sections were incubated at room temperature for 60 min with FITC-conjugated goat anti–rabbit serum (1/200). An Olympus AX70 microscope and Optronics Magnafire digital camera was used for imaging.

Online Supplemental Material

A PDB file for the model shown in Fig. 8 (below) is available online at: http://www.jgp.org/cgi/content/full/117/4/345/DC1.

GluR6 Sequence Mapped onto the KcsA Crystal Structure

The amino acid sequence conservation shown in Fig. 1 suggests that GluRs and KcsA might have a similar structure in the pore helix and pore loop (Wo and Oswald 1995; Wood et al. 1995), a hypothesis reinforced by the recent discovery of a K⁺ selective prokaryotic glutamate receptor ion channel GluR0 (Chen et al. 1999). To test whether KcsA can be used to accurately predict secondary structure in the pore of GluRs we performed scanning mutagenesis for GluR6 with substitution of small and large side chains to look for patterns in changes of polyamine block. We limited our scan to the pore helix and pore loop because eukaryotic GluRs have an additional membrane spanning segment (M3) that most likely packs against M1 and M2. As a result, in eukaryotic GluRs, the outer faces of the helices equivalent to M1 and M2 in KcsA will most likely make both protein–protein contacts with M3 as well as protein–lipid interactions and require a different amino acid side chain chemistry from that in KcsA. To allow for uncertainty in the length of the pore helix in GluR6 resulting from variability in the number of residues between the end of M1 and the predicted start of the pore helix, a region which is also of variable length in K⁺ channels and which in KcsA forms turret protruding beyond the mouth of the pore, we designed our Ala scan to start at D567 well before the likely start of a pore loop in GluR6 (Fig. 1).

Alanine Scanning Mutagenesis in the Pore Region of GluR6

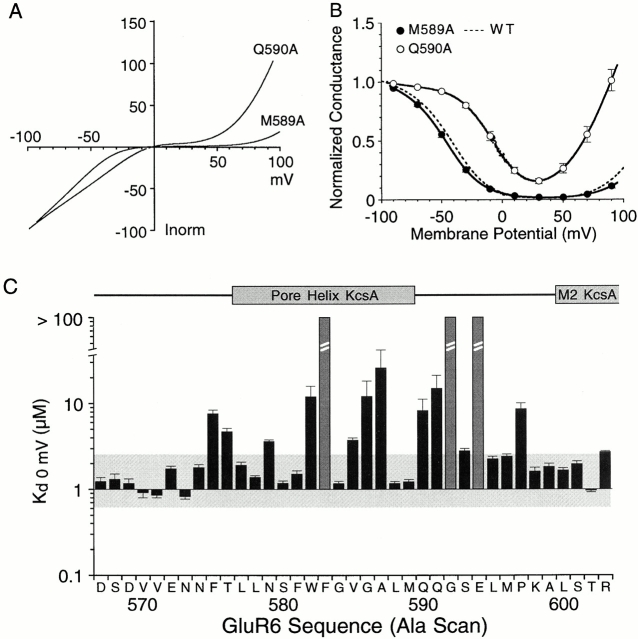

Wild-type GluR6 responses show such strong biphasic rectification due to permeable block by cytoplasmic polyamines that there is nearly complete attenuation of outward current flow between 10 and 50 mV (Bowie and Mayer 1995). In previous experiments for which wild-type GluR6 responses were recorded from >100 oocytes, we estimated that cytoplasmic polyamine concentrations varied at most twofold between oocytes (Panchenko et al. 1999). At 0 mV membrane potential K _d(0), the equilibrium dissociation constant of wild-type GluR6 for spermine, was 1.25 μM at 100 mM [Na⁺]_o and decreased e-fold per 15-mV depolarization over the range −100 to +50 mV (Panchenko et al. 1999). GluR6 mutants with alanine substituted from D567 to R603 showed a complete loss of polyamine block for 3 out of the 37 positions tested, F583A, G592A, and E594A. For the other 34 mutants tested, we recorded biphasic rectification with strong voltage dependence, and for some mutants, shifts in the half block potential. Analysis of I-V and G-V plots for two typical examples (Q590A and M589A) are shown in Fig. 2. For Q590A, the block of outward current by polyamines was reduced compared with wild type (Fig. 2 A). Analysis of G-V plots revealed a rightward parallel shift compared with responses for wild-type GluR6 with V_b and k _b values of −12.0 ± 4.1 mV and 13.4 ± 0.9 mV⁻¹ (n = 6) and a K _d(0) of 8.3 ± 2.9 μM (Fig. 2 B). For wild-type GluR6, the corresponding values for V_b and k _b were −43.6 ± 3.1 mV and 15 ± 1.0 mV⁻¹ (n = 9). In contrast, responses for M589A were indistinguishable from those for wild-type GluR6. I-V plots for M589A showed nearly complete attenuation of outward current flow between 10 and 50 mV (Fig. 2 A), and analysis of G-V plots gave values of −44.6 ± 1.6 mV and 15.9 ± 0.8 mV⁻¹ (n = 6) for V_b and k _b, respectively, with a K _d(0) for spermine of 1.2 ± 0.1 μM (Fig. 2 B).

For the 34 Ala mutants with measurable biphasic rectification because of polyamine block, the mean value for k _b was 16.4 ± 1.94 mV⁻¹, with values for V_b ranging from −47.9 to 3.9 mV and K _d(0) values from 0.8 to 26 μM (Table ). The similar values for k_b for these mutants indicate changes in affinity for polyamines but not the electrical location of the binding site(s) (Panchenko et al. 1999). We did not attempt to analyze the weak rectification observed for F583A, G592A, and E594A, for which polyamines bind with too low an affinity to allow accurate estimation of K _d(0) at the concentrations present in the cytoplasm of Xenopus oocytes. Because we were interested primarily in the pattern of changes produced by scanning mutagenesis, we simply note for these mutants that K _d(0) is likely to be >100 μM. Plots of the value for K _d(0) versus amino acid sequence for GluR6 Ala scan mutants revealed a cluster of amino acid residues sensitive to alanine substitution located close to position 590, the Q/R site at which RNA editing regulates polyamine block (Fig. 2 C). When mapped to the sequence alignment with KcsA, these positions correspond to the selectivity filter (Fig. 1). Alanine substitutions within the preceding region corresponding to the pore helix produced a periodic pattern of changes in polyamine affinity which, as discussed later, map to those faces of the pore helix in KcsA that interact with the surrounding pore loop and membrane spanning helices. Ala mutations in the sequence preceding the pore helix, corresponding to the turret in KcsA, and mutations corresponding to the start of M2 (the inner helix) had no effect. The reduction of polyamine block by mutation of amino acid side chains to alanine most likely results from either a change in structure of the pore region due to altered packing of the pore-forming segments, or possibly a specific contribution of individual solvent accessible amino acid side chains to polyamine binding sites. To distinguish between these possibilities, we performed a 37-residue tryptophan scan over the same region (from D567 to R603), allowing us to compare the effects of introducing small and large hydrophobic chains at the same positions. Our expectation was that introduction of tryptophan would produce large structural perturbations in the pore and, hence, change polyamine block for residues making protein–protein contacts, whereas for solvent-exposed residues, an increase in affinity was possible because of a larger surface for hydrophobic interactions. Such a mechanism has been shown to play a major role in the mechanism of binding of polyamines to both GluR6 and K⁺ channels (Cui et al. 1998; Guo and Lu 2000b; Pearson and Nichols 1998).

Tryptophan Scanning Mutagenesis Reveals Disruption of a Pore Helix

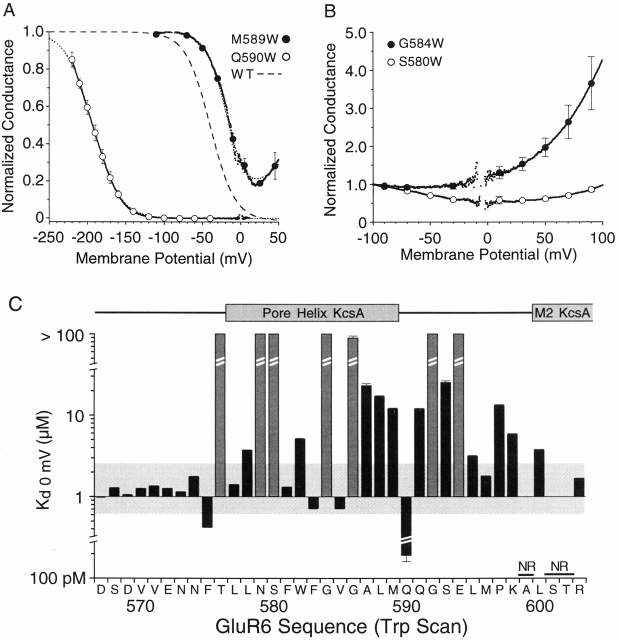

Substitution of tryptophan from D567 to R603 produced both increases and decreases in polyamine block as well as three nonfunctional mutants. Changes in polyamine block were quantified by analysis of G-V plots as described for results of the alanine scan. Although tryptophan mutants showed much larger changes in polyamine block than observed for alanine substitution, these effects also showed strong positional dependence and, for 14 mutants, K _d(0) values for spermine were within twofold of the wild type (Table ). For two positions, tryptophan mutants showed stronger block than for wild-type GluR6, an effect not observed for any of the alanine mutants. As reported previously, this effect was dramatic for the mutant Q590W for which the affinity for spermine increased 6.6 × 10³-fold (Panchenko et al. 1999). In our previous study, which focused only on mutations at Q590 and E594, we did not identify the structural basis for this striking effect or determine whether introduction of tryptophan at positions other than Q590 or E594 would increase polyamine affinity. The Trp scan performed in the present study revealed that a high affinity for spermine, K _d(0) = 190 ± 29 pM (n = 6), was unique for the Q590W mutant (Fig. 3). A much smaller threefold decrease in K _d(0) to 0.42 ± 0.01 μM (n = 5) was observed for the mutant F575W, whereas for F583W and V585W, although K _d(0) values were below 1 μM, they were less than twofold different from wild type (Table ). Since the F583W mutation slightly increased polyamine block, whereas the F583A mutation was highly disruptive (Fig. 2), we tested additional mutations with side chain volumes between those for Ala and Trp. This revealed intermediate effects on polyamine block for the F583L and F583H mutants for which we obtained K _d(0) values of 18.9 ± 0.3 μM (n = 4) and 18.1 ± 0.3 μM (n = 4), respectively.

Similar to the results of the alanine scan, a reduction in polyamine block was the more typical effect recorded for 18 positions substituted with tryptophan. As for the Ala scan mutants, these responses fell into two classes. For 11 positions, there were parallel rightward shifts in G-V plots compared with responses for wild-type GluR6, reflecting a decrease in affinity for spermine with little change in the voltage dependence of block (Fig. 3). For these mutants, the mean value for k _b was 23.5 ± 5.8 mV⁻¹ with values for V_b ranging from −48.2 to 9.8 mV and K _d(0) values of 3.2 to 25.6 μM (Table ). Responses for a typical example (M589W), with k _b = 18.3 ± 0.5 mV⁻¹, V_b = −8.4 ± 1.3 mV, and K _d(0) = 12.2 ± 0.2 μM (n = 3), are shown in Fig. 3 A. For 7 other positions, polyamine block was much more strongly disrupted. This prevented an accurate estimation of K _d(0) at the physiological concentrations of spermine present in the cytoplasm of Xenopus oocytes. G-V plots for mutants at these positions were either outward-rectifying with conductance ratios at +80/−80 mV of 327 ± 57% for G584W (n = 4), 195 ± 7% for G592W (n = 4), and 264 ± 7% for E594W (n = 5), or showed very weak voltage dependence with conductance ratios at +80/−80 mV of 96 ± 2% for T576W (n = 4), 75 ± 5% for N579W (n = 3), 88 ± 4% for S580W (n = 4), and 109 ± 2% for G586W (n = 3). Typical examples are shown in Fig. 3 B for S580W and G584W. For these and other mutants with low sensitivity to polyamines, we again note that the K _d(0) is likely to be >100 μM. Since our goal was to measure the pattern of changes produced by scanning mutagenesis with tryptophan, rather than individual K _d(0) values for mutants with very low affinity for polyamines, we did not attempt to characterize these mutants further.

For three mutants, A599W, S601W, and T602W, we were unable to evoke functional responses even though the corresponding Ala mutants for these positions expressed well and had K _d(0) values within twofold of the wild type. In an attempt to maximize expression for these nonfunctional mutants, we used an interval of 10 d between recording and injection of 50 ng mRNA with incubation of 10 μM concanavalin A for 14–16 min before application of agonist. For wild-type GluR6, these conditions typically gave responses that were in excess of 20 μA at −60 mV after only 4-min application of concanavalin A and saturated the amplifier with longer applications of lectin. The threshold for detection of agonist responses was typically 1–2 nA at −60 mV. Ramps to −200 mV to check for high affinity polyamine block like that seen for Q590W also failed to reveal latent responses. To distinguish between the possibility that these nonfunctional responses were due to gating mutants, or simply reflected a lack of cell surface expression, oocytes were injected with mRNA for A599W and S601W (T602W was not tested) and stained by indirect immunofluorescence with an antibody directed against the COOH terminus of GluR6. Staining was indistinguishable from that for uninjected oocytes, whereas positive controls with wild-type GluR6 showed intense cell-surface expression as described previously (Panchenko et al. 1999). Thus, the lack of functional responses for these mutants reflects the absence of cell-surface expression due to either instability, misfolding, or accumulation of protein in intracellular compartments, and not a disruption of gating.

Ala and Trp Mutants that Reduce Polyamine Block Cluster on One Face of the KcsA Pore Helix

When the results of the Ala and Trp scans were compared (Fig. 2 and Fig. 3) it was obvious that the most sensitive regions aligned with the pore helix and selectivity filter of KcsA. When results for the GluR6 sequence from T576 to M589 (which aligns with the pore helix in KcsA) were mapped onto a helical wheel, we found that those mutants which disrupted polyamine block showed a clustered distribution (Fig. 4 A). Using this sequence alignment and the KcsA atomic coordinates, we asked where are residues that disrupted polyamine block in GluR6 located in the KcsA structure. This analysis showed that, in the pore helix, the side chains of residues for which Ala and Trp substitution disrupted polyamine block projected either towards the membrane spanning helices and selectivity filter within the same subunit, or towards the selectivity filter of an adjacent subunit (Fig. 4 B). In contrast, the amino acid side chains of positions insensitive to substitution with either Ala or Trp projected away from both the selectivity filter and M1 or M2 and likely face lipid. A detailed discussion of results for some individual positions is given later. The other mutants that strongly disrupted polyamine block were either within sequences corresponding to the selectivity filter in KcsA or neutralized the negative charge at E594.

Neutralization of Charged Residues in the Cytoplasmic Linkers between M1 and M2

The results of the Ala and Trp scans revealed strong disruption of polyamine block for mutation of E594 to either alanine or tryptophan. This residue aligns with D80 in KcsA and is located immediately after the selectivity filter near the entrance to the channel (Fig. 1). Of note, in cyclic nucleotide–gated channels, the mutation E363G, which aligns with E594 and D80, also reduces block by polyamines (Guo and Lu 2000a). Together, these results suggest that it is the loss of charge resulting from mutations at E594 and not changes in side chain volume that abolishes high affinity polyamine block in GluR6. There are an additional four glutamate and aspartate residues in the linker between the first membrane spanning segment and the pore helix of GluR6, whereas, in the 68–amino acid COOH terminus of GluR6, there are an additional eight negatively charged side chains (Fig. 5). Any of these could potentially contribute to polyamine binding sites in conjunction with E594. This was tested by constructing a series of seven point mutations changing Glu to Gln or Asp to Asn, and three COOH-terminal truncation mutants at M862, K839, and M830, each of which progressively removed sets of two negative charges as shown in Fig. 5. Measurements of G₊₈₀/G₋₈₀ revealed only small changes in rectification for each of these charge neutralization mutants except for E594Q for which the ratio G₊₈₀/G₋₈₀, 198 ± 7% (n = 4), was similar to the values for values for the E594A and E594W mutants, indicating that the negative charge at this position is indeed the major determinant of polyamine block (Fig. 5). These experiments also reveal that 48 amino acids at the COOH terminus are not required for assembly, gating, or normal function of GluR6. Adjacent to E594 is a lysine at position 598; there are two other positively charged side chains at the cytoplasmic ends of the first two transmembrane segments: arginines at positions 552 near the end of M1 and 603 near the start of M2. We neutralized these residues by mutation to Gln or Asn to test whether removal of positively charged side chains would increase polyamine affinity because of decreased shielding of E594 or removal of a local positive surface charge that could repel polyamines. Although a small decrease in the ratio G₊₈₀/G₋₈₀ was recorded for K598N, 5.0 ± 1.6% vs. 9.0 ± 1.3% for wild-type GluR6, analysis of G-V plots suggested a slightly lower affinity of K598N for spermine, K _d(0) 1.5 ± 0.1 μM (n = 17) vs. 1.3 ± 0.02 μM (n = 9) for wild-type GluR6, reflecting a small rightward shift observed in G-V plots for K598N, V_b −40.2 ± 0.8 mV vs. −43.6 ± 1.0 mV (P < 0.05), with no change in slope, k _b 15.0 ± 0.3 vs. 15.5 ± 0.2 (mean ± SEM, P > 0.25). Clearly, despite the proximity of these two residues the positive charge of K598 does not interfere with binding of polyamines to the negative charge of E594.

A Glu Scan Maps the Limits of Surface-exposed Residues in the Linker between the Pore Loop and M2

In a sequence alignment of GluR6 and KcsA, E594 corresponds to D80 (Fig. 1). In K⁺ channels, the sequence after D80 links the selectivity filter with the NH₂ terminus of the last membrane spanning helix and forms a surface that contributes to the binding site for K⁺ channel toxins (MacKinnon et al. 1998). Thus, if the pore surfaces of GluR6 and KcsA have similar structures, then E594 should be located in a loop that contains multiple solvent-exposed amino side chains facing the cytoplasm (Fig. 1). Such an arrangement suggests that it might be possible to maintain high affinity polyamine block while moving the glutamate at E594 to adjacent positions. However, for side chains normally facing the protein interior, introduction of glutamate would be expected to disrupt normal function because of structural perturbations resulting from the energetic cost of burying charged residues. Implicit in this hypothesis is the assumption that E594 functions via a through space electrostatic mechanism rather than by creating a specific polyamine binding site in conjunction with surrounding residues. To test this hypothesis, we performed a glutamate scan in the E594Q mutant background. The scan ranged over 14 residues, from Q590 to R603; in KcsA, this corresponds to a region starting in the pore cavity, proceeding through the selectivity filter and entrance of the channel and extending into M2 (Fig. 1 and Fig. 8).

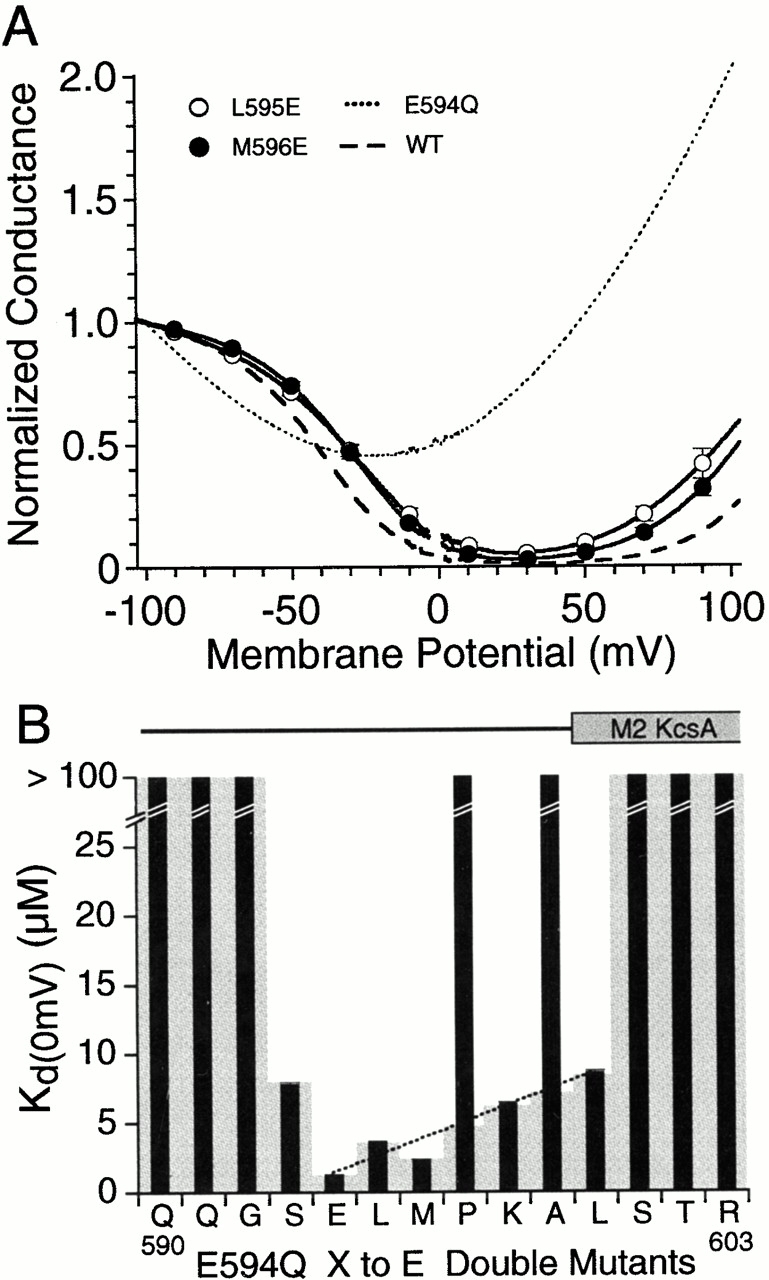

These experiments revealed three effects of introducing glutamate in GluR6. First, at six positions in the extracellular surface, a glutamate was able to restore high affinity polyamine block in the E594Q mutant background (Fig. 6). Second, in polyamine-free conditions, the weak biphasic rectification produced by the E594Q mutation over the range −100 to −25 mV was also attenuated, such that G-V plots for S593E and K598E recorded in outside-out patches were weakly outward rectifying like those for wild-type GluR6 (not shown). Third, at two positions (P597E and A599E) for which there was no restoration of polyamine block in the E594Q background, the introduction of glutamate in a wild-type background disrupted normal polyamine block (Fig. 7).

To obtain a quantitative estimate of changes in the affinity for polyamines resulting from introduction of glutamate at positions surrounding E594, G-V plots were analyzed using a two barrier one site model for permeable block. This revealed that for two positions (L595E and M596E) polyamine block occurred with an affinity only two- to threefold lower than for wild-type GluR6. The K _d(0) values were 3.66 ± 0.04 μM (n = 4) for L595E and 2.39 ± 0.03 μM (n = 7) for M596E versus 1.25 ± 0.02 μM (n = 9) for wild-type GluR6. In previous work with E594Q, in which outside-out patch recording with 1 mM spermine added to the pipet solution was used to increase block and allow estimation of K _d(0) for mutants with low affinity for spermine, we obtained an estimate of 1,020 ± 391 μM (n = 5; Panchenko et al. 1999), indicating a >250-fold increase in affinity produced by the L595E and M596E mutations in the E594Q background. At positions further removed from E594Q, the effectiveness of reintroducing glutamate faded out (Fig. 5). The loss of effect was steep on moving towards the NH₂ terminus and into the pore loop, with S593E, K _d(0) 7.80 ± 0.16 μM (n = 5), producing a 130-fold increase in affinity compared with E594Q and no effect for preceding residues. Moving away from E594 and towards M2, there was a more graded effect with a 160-fold increase in affinity compared with E594Q for K598E and a 120-fold increase for L600E, for which we measured K _d(0) values of 6.38 ± 0.09 μM (n = 5) and 8.60 ± 0.14 μM (n = 4), respectively. However, the effect of reintroducing glutamate in this region was not continuous since for P597E and A599E G-V plots showed weak rectification, indicating little or no restoration of polyamine block. For the remaining positions, the G-V plots were similar in shape to responses for E594Q, suggesting no change in the K _d(0) for polyamines.

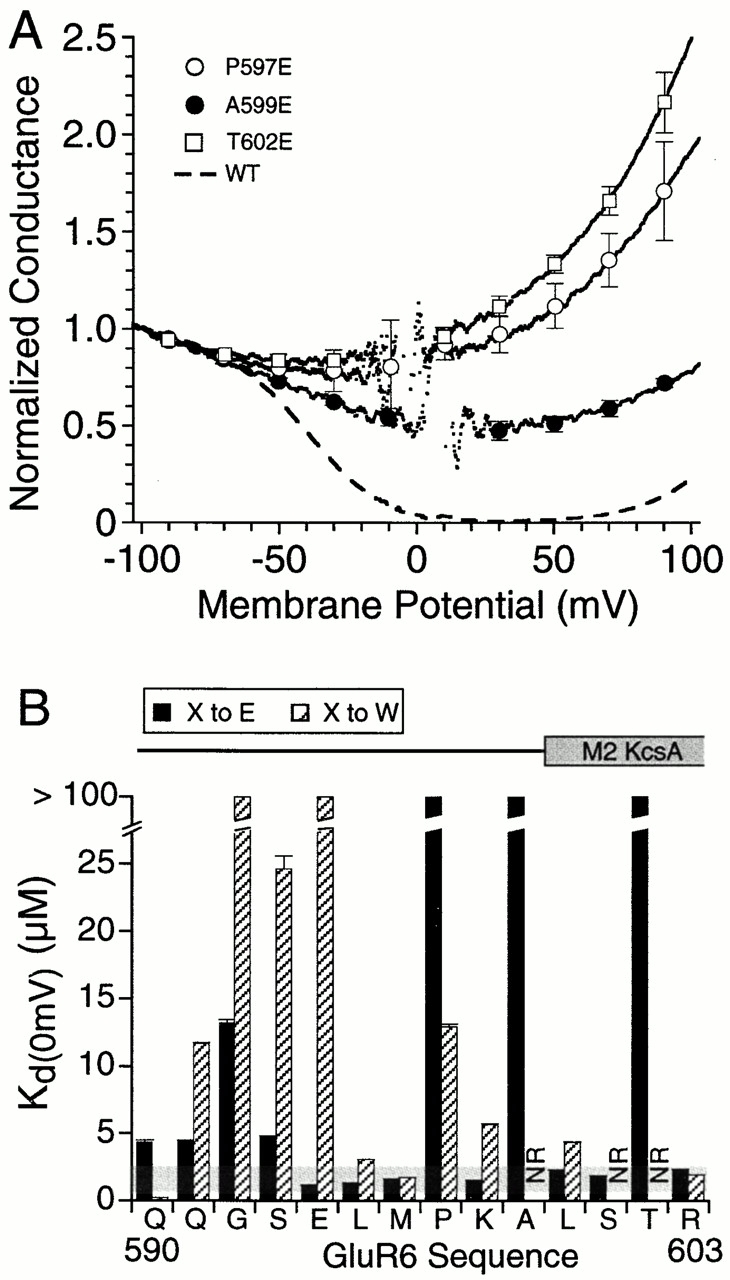

To explore why in the E594Q background, the insertion of glutamate at P597 and A599 failed to restore polyamine block even though the mutation of the surrounding positions to glutamate produced at least a 100-fold increase in polyamine affinity, we repeated the Glu scan in the wild-type background. These experiments also acted as controls for Q590E, Q591E, G592E, S601E, T602E, and R603E, positions for which introduction of glutamate in the E594Q background also failed to restore polyamine block. We found that introduction of glutamate in the wild-type GluR6 background strongly disrupted polyamine block at three of these positions, with little effect at other positions. The mutants showing disruption were P597E, A599E, and T602E (Fig. 7). Analysis of G-V plots gave G₊₈₀/G₋₈₀ ratios of 206 ± 10% (n = 5) for P597E, 75 ± 2.5% (n = 5) for A599E and 206 ± 9.9% (n = 5) for T602E. A comparison of the effects of introducing glutamate in the wild-type and E594Q backgrounds with the results of the Trp scan (Fig. 3, Fig. 6, and Fig. 7) reveals that introduction of Glu and Trp were disruptive at common positions. At A599 and T602, for which the Trp mutants are nonfunctional, introduction of glutamate in the wild-type background disrupted polyamine block. As would be expected, in the E594Q background, introduction of glutamate A599 and T602 failed to restore polyamine block. At P597 the effect of introducing glutamate followed the same qualitative pattern as for A599 and T602; however, the P597W mutant was functional, albeit with a reduction in affinity for spermine (Fig. 6). For positions Q590 and Q591, the introduction of glutamate fails to restore polyamine block in the E594Q background (Fig. 6) and produces only a small increase in K _d(0) in the wild-type background (Fig. 7), indicating that glutamate at these positions does not disrupt channel function.

Interpretation of Mutations in the Pore Helix of K⁺ Channels and GluRs

Our hypothesis was that the experiments reported here can be interpreted by analogy to previous work on K channels, for which mutations of side chains that are not solvent exposed and that do not directly contact K⁺ ions were found to disrupt ion selectivity (Doyle et al. 1998; Gross and MacKinnon 1996; Heginbotham et al. 1994; Lü and Miller 1995; Ogielska and Aldrich 1998). Thus, before the determination of the structure of KcsA numerous studies had used mutagenesis in the pore region of K⁺ channels in attempts to identify amino acid side chains forming the lining of the ion channel. In retrospect, although these pioneering studies clearly identified the location of the selectivity filter, it was not possible to accurately predict secondary structure or the role of individual amino acid side chains because the presence and role of the pore helix was not yet understood. Taking one example, when tryptophan residues in Shaker K⁺ channels equivalent to W67 and W68 in KcsA were substituted with cysteine, labeling by silver ions was interpreted as indicating that these side chains were solvent-exposed and in the lumen of the pore (Lü and Miller 1995). However, the structure of KcsA reveals that these side chains are in the pore helix and project to the interior of the protein and not to the lumen of the pore (Doyle et al. 1998). This effect suggests that mutations of amino acid side chains within the pore helix, but which are not solvent-exposed, can have major effects on channel function if changes in side chain volume and chemistry disrupt packing of the adjacent selectivity filter.

Comparable to results for Shaker K⁺ channels we found that for GluR6 mutation to alanine of W582 and F583 (equivalent to W67 and W68 in KcsA) strongly decreased polyamine block, whereas the mutation F581A had no effect. The aromatic side chains equivalent to W67 and W68 are highly conserved both in other K⁺ channels and in GluRs, which is consistent with their known structural role in KcsA. Previous work on NMDA receptors had revealed that the mutation W607L in NR2B (equivalent to W67 in KcsA) disrupts Mg²⁺ block. This effect was interpreted as reflecting a direct interaction of the indole ring with Mg²⁺ ions via cation-π bonding (Williams et al. 1998). The same mutation also reduced block by and increased the permeability of the large organic cation N¹-dansyl-spermine; this led to the proposal that W607 was solvent-exposed and contributed to the narrowest constriction of the pore (Kashiwagi et al. 1997). Based on the structure of KcsA, it seems more likely that, similar to K⁺ channels, the tryptophan at position 607 in NR2B forms a sheet of aromatic amino acids surrounding structures that form the pore, and that mutations that decrease W607 side chain volume perturb the packing of adjacent residues which interact directly with blockers and permeant ions.

The identification of channel lining residues in the NMDA receptor NR1 and NR2 subunits (Kuner et al. 1996) and the AMPA receptor GluRD subunit (Kuner et al. 1999) has also been proposed from the results of substituted cysteine accessibility analysis. These landmark studies clearly revealed a periodic pattern of labeling consistent with an α-helical structure followed by a stretch of consecutively labeled residues. However, when mapped by amino acid sequence alignment to the KcsA structure, this pattern matches extremely well the location of the pore helix and selectivity filter. Thus, just as in the case of cysteine-substituted Shaker K⁺ channels for which labeling with Ag⁺ incorrectly assigned pore lining roles to buried aromatic residues (Lü and Miller 1995), in both NMDA and AMPA receptors side chains equivalent to W582, F583, and G586 in GluR6, which we propose play key structural roles in the pore helix, were assigned as solvent exposed residues lining the lumen of the pore (Kuner et al. 1996, Kuner et al. 1999).

Molecular Modeling Based on KcsA Coordinates

In the present experiments, particularly in the case of highly disruptive Trp mutations, we observed periodic patterns of changes in polyamine affinity for sequences that aligned with the pore helix of KcsA. When mapped to the structure of KcsA, the sensitive residues face either the selectivity filter or adjacent membrane spanning helices (Fig. 4). Using the program O (Jones and Kjeldgaard 1997) to display and manipulate KcsA coordinates, we examined the effect of introducing tryptophan (in each of the common conformers found in proteins) into sites equivalent to the 37 positions used for scanning mutagenesis in GluR6. The goal was to identify positions that had bad contacts with surrounding residues and those that tolerated introduction of Trp without collisions with adjacent residues, and to note any correlation with the experimentally observed effects on polyamine block (Table ). The results obtained must be interpreted with caution, yet, on a residue-by-residue basis, we found that with few exceptions the coordinates of KcsA predicted remarkably well the qualitative pattern of responses observed for GluR6 scanning mutagenesis in the pore helix (Table ). For example, A65W (equivalent to S580W in GluR6) produced extremely bad contacts with both M1 and M2; polyamine block was highly disrupted for S580W. The adjacent residue, L66 (equivalent to F581 in GluR6 which was insensitive to substitution with either Ala or Trp) projects into lipid in the KcsA structure. Further into the pore helix, introduction of Trp at S69 (equivalent to G584 in GluR6) also produced bad contacts with M1 within the same subunit, whereas for E71W (equivalent to G586 in GluR6), bad contacts occurred with the selectivity filter within the same subunit as well as with M2 of an adjacent subunit. In GluR6 Trp mutations at the equivalent positions abolished polyamine block consistent with major structural perturbations. In contrast, for V70 the residue flanked by these positions, the valine side chain in KcsA projects into a deep groove between subunits and probably faces lipid; there are no bad contacts when Trp is introduced at this position, and in GluR6 polyamine block for is not altered for V585W.

A more complex result aided by comparison with the KcsA structure was residue F575 for which mutation to Ala produced a sixfold increase in K _d(0), with a threefold decrease in K _d(0) for the Trp mutant, indicating this position was unlikely to play any major structural role. In KcsA, the equivalent residue I60 is located at the NH₂ terminus of the pore helix and contributes to a solvent-exposed surface that binds K⁺ channel toxins. Consistent with the predicted solvent accessibility of F575 in GluR6, introduction of glutamate was also well tolerated, with a K _d(0) of 0.54 ± 0.01 μM, twofold lower than wild type. In KcsA, the terminal COOH group of a Glu side chain introduced at I60 could be positioned within 12 Å of the COOH group of D80, the equivalent of which in GluR6 is a major determinant of polyamine binding. Perhaps coincidentally, a spermine molecule of length 17 Å could easily span this distance.

We continued using the KcsA structure to help interpret the results obtained for the glutamate scan. As for Trp mutations individual side chains in KcsA were changed to glutamate and a full range of conformers examined. This revealed that side chains that are solvent-exposed and on the surface of KcsA precisely corresponded to positions in GluR6 for which introduction of glutamate was effective in restoring polyamine block in the E594Q background. The Cα atoms of effective positions were separated by a distance exceeding 17 Å, indicating little positional requirement for negative surface charge (Fig. 8). At positions where glutamate was ineffective we observed either of two patterns in the KcsA structure, which corresponded to two distinct patterns for GluR6 responses. For those positions at which introduction of glutamate both failed to restore polyamine block in the E594Q background and was disruptive in the wild-type background, molecular modeling with KcsA revealed that the Glu side chain was not solvent exposed but buried in the protein (Fig. 8). This was observed for G77, P83, and T85 in KcsA, which correspond to G592E, P597E, and A599E in GluR6. For T602E, the model was not informative since this side chain (G88 in KcsA), when mutated to Glu, would project into the groove between the outer helix and pore helix, possibly disrupting the packing of M3. For positions where introduction of glutamate failed to restore polyamine block in the E594Q background but was not disruptive in the wild-type background, the mutated side chain was solvent-exposed but either projected towards the inner cavity (Q590E) or was located on the far side of the turret and shielded from the entrance of the pore by surrounding residues (S601E and R603E).

Location and Function of the RNA Editing Site in Glutamate Receptors

The high affinity for polyamines created by the Q590W mutant suggests an unusual molecular mechanism that might give insight into the normal role of the RNA editing site side chain in glutamate receptors. To address this we changed the T75 side chain, which aligns with Q590 in GluR6 to tryptophan. The W75 side chains of individual subunits in the KcsA model were rotated around the Cα–Cβ–Cγ bonds to minimize bad contacts with other residues. In the resulting structure, shown in Fig. 8, the Trp side chains point upwards and away from the selectivity filter and into the central cavity. Remarkably, in the KcsA T75W model, there are relatively few bad contacts between the Trp side chains of adjacent residues provided that they point into the central cavity. Instead, the faces of opposite pairs of indole rings are separated by 8.5 Å, and form a cage that we propose binds aliphatic cation polyamine molecules with high affinity after they pass through the sequence corresponding to the selectivity filter. A related mechanism has been proposed to create the high affinity external TEA binding site in K⁺ channels (Heginbotham and MacKinnon 1992). The aromatic cage shown in Fig. 8 suggests a plausible structure for creation of a high affinity spermine binding site and, in addition, gives clues as to the normal orientation and action of the Q/R site side chains in the genomically encoded and RNA-edited versions of glutamate receptors. It seems likely that in the genomically encoded and edited forms of GluR6, the Gln and Arg side chains will also point up into the central cavity. Shortening of the Gln side chains to Asn could prevent the ability of all four subunits to simultaneously bind polyamine molecules as they pass through the pore, thus, reducing block and increasing the rate of permeation and relief from block (Panchenko et al. 1999). Introduction of arginine side chains via RNA editing is not energetically prohibitive due to the presence of solvent in the pore cavity, but likely makes energetically unfavorable entry of polyamines into the pore and causes the channel to lose selectivity for cations versus anions (Burnashev et al. 1996).

The results of our study suggest conservation of the pore helix and associated cavity in K⁺ channels, GluRs and other members of this super family of ion channels. That these channels all have similar structures almost certainly reflects the energetic advantage that this architecture confers when moving ions across the lipid bilayer (Parsegian 1969; Roux and MacKinnon 1999) and would be consistent with evolution of an ancestral channel into a vast multigene family.
