Phosphatidylinositol-4-Kinase Type II Alpha Contains an AP-3–sorting Motif and a Kinase Domain That Are Both Required for Endosome Traffic

Antibodies and Reagents

The following antibodies were used: early endosome antigen 1 (EEA1), anti-syntaxin 8, anti-Vti1b, and clathrin heavy chain, (BD Biosciences, Franklin Lakes, NJ); anti-transferrin receptor (H68.4; Zymed Laboratories, South San Francisco, CA); and anti-hemagglutinin (HA; 12CA5; Roche Molecular Biochemicals, Indianapolis, IN). Anti-clathrin heavy-chain mouse mAb (X22) was from Calbiochem (La Jolla, CA). Anti-GFP mAb 3E6 was from Molecular Probes (Eugene, OR). Anti-SV2 (10H4), anti-δ (SA4), and anti-LAMP-1 (1DCB and H4A3) were from the Developmental Studies Hybridoma Bank (University of Iowa, Iowa City, IA). anti-μ3 and -β3 AP-3 polyclonal antibodies have already been described (Salem et al., 1998; Faundez and Kelly, 2000; Salazar et al., 2004). KF4 mAb against AP-3 δ was a gift from Andrew Peden (Department of Clinical Biochemistry, University of Cambridge, London, England). Mouse anti-VAMP-7 (Advani et al., 1999) and affinity-purified polyclonal antibodies against phosphatidylinositol-4-kinase type IIα were reported previously (Guo et al., 2003).

Cell Culture

PC12 cells and stably transfected PC12 ZnT3 clone 4 cell lines were cultured as described previously (Salazar et al., 2004). HEK293T cells were maintained in DMEM + 10% FBS + 100 U/ml penicillin and 100 μg/ml streptomycin (Mediatech, Herndon, VA).

Plasmids and Transfections

HA- and green fluorescent protein (GFP)-tagged human wild-type (WT) and kinase inactive PI4KII type IIα constructs were gifts from Tamas Balla (Section on Molecular Signal Transduction, National Institute of Child Health and Human Development, National Institutes of Health, Bethesda, MD; Balla et al., 2002). GST-tagged rat PI4KIIα was a gift from Pietro de Camilli (Department of Cell Biology, Yale University, New Haven, CT; Guo et al., 2003). All mutants were created by QuickChange mutagenesis kit (Stratagene, La Jolla, CA) except the rat L60A L61A mutant created by synthesizing (IDT Technologies, Coralville, IA) an oligo corresponding to PI4KIIα base pairs 79–193 with the sequence 5′CACTTTCCACAAGTACCAGGAGGAGCAGTAGCAGCAGCAGGATCAGGACCATCACCACCATGTTCTCCAGGACATGATCGTGAACGACAACCAGCAGCAGATCGAGCC-3′. The reverse complement oligo was also synthesized, and the two oligos were annealed and ligated into the SacI and SmaI sites in rat PI4KII. WT and L60A L61A mutant rat PI4KIIα was then subcloned into pEGFP-C2 using the EcoRI and SalI restriction sites. PC12 cells were transfected as described previously (Salazar et al., 2005). HEK293T cells were seeded in six-well plates and transfected with 200 ng of plasmid DNA in 1 ml of OPTI-MEM media (Invitrogen, Carlsbad, CA). After 4 h the medium was replaced with 2 ml DMEM + 10% FBS, and cells were assayed the following day.

RNA Interference

Double-stranded RNA oligos corresponding to nucleotides 888–908 of human PI4K type IIα (NM_018425; Wang et al., 2003) and siCONTROL nontargeting small interfering RNA (siRNA) 2 (5′-UAAGGCUAUGAAGAGAUAC-3′) control siRNA oligos were obtained from Dharmacon (Lafayette, CO). HEK293T cells, 5 × 10⁵, were seeded in six-well plates and transfected on day 2 with 100 nmol of siRNA in 1 ml OPTI-MEM. After 4 h, 1 ml of DMEM + 10% FBS was added to each well. On day 3 the medium was replaced with 2 ml DMEM + 10% FBS. On day 4 the cells were trypsinized with 1 ml of 0.05% trypsin in PBS for 1 min and then 1 ml of DMEM + 10% FBS was added to each well. After 2 h the cells were washed and transfected again with siRNA as described above. On day 5 the media was replaced as above, and cells were either left alone or passaged in order to seed coverslips. On day 6 the cells were either left alone or transfected with plasmid DNA as described above, and cells were processed for immunoblot and immunofluorescence on day 7.

Dithiobis(succinimidylpropionate) Cross-linking of Intact Cells and Immunoprecipitation of Cross-linked Protein Complexes

To assess low-affinity interactions between AP-3 and cargoes, we performed cross-linking in whole cells with DSP [dithiobis(succinimidylpropionate)]. Cross-linking by DSP can be reverted by reducing agents allowing the identification of individual proteins in SDS-PAGE. Cross-linked complexes were immunoprecipitated with AP-3 antibodies, cross-linking was reversed by reducing agents and precipitated proteins were analyzed by SDS-PAGE and immunoblot. Briefly, 5 × 10⁵ cells were plated in six-well plates and on the day of confluence were placed on ice, rinsed twice with PBS, and incubated with 1 mM DSP (Pierce, Rockford, IL) or vehicle diluted in PBS for 2 h on ice. Tris, pH 7.4, was added to 25 mM and incubated for 15 min to quench the DSP reaction. The cells were then rinsed twice with PBS and lysed in buffer A (150 mM NaCl, 10 mM HEPES, 1 mM EGTA, and 0.1 mM MgCl₂, pH 7.4) + 0.5% TX-100 by incubation for 30 min on ice. The cells were then scraped from the dish, and cell homogenates were centrifuged at 16,100 × g for 10 min. The supernatant was recovered, diluted to 1 mg/ml in 0.5 ml of buffer A + 0.5% TX-100, applied to Dynal magnetic beads (Invitrogen) coated with antibody, and incubated overnight at 4°C. The beads were then washed 4 times with buffer A + 0.1% TX-100, eluted by 5 min of incubation at 75°C with SDS-PAGE sample buffer, and immunoprecipitated material was analyzed by SDS-PAGE and immunoblot.

To quantify the extent of PI4KIIα association with AP-3 in the presence of DSP, HA-tagged versions of WT PI4KIIα were used as a reference point to which compare mutant PI4KIIα versions. The percent of association was estimated as [(AP-3–bound mutant PI4KIIα-HA/Mutant PI4KIIα-HA expression) × (AP-3–bound PI4KIIα-HA/PI4KIIα-HA expression)⁻¹] × 100.

Membrane and cytosol fractions were prepared after cross-linking as described above. HEK293 cells were washed in PBS and homogenized in buffer A containing Complete antiprotease cocktail, by 18 passages in a cell cracker. Homogenate was sedimented at 27,000 × g for 40 min to generate a P1 membrane fraction and a S1 supernatant. Cytosol-free of membranes was obtained by centrifugation of S1 at 210,000 × g for 30 min in a Beckman Coulter TLA120.2 rotor. Membrane fractions and cytosol were dissolved in buffer A 0.5% Triton X-100 (TX-100) during 30 min on ice. Cell fractions were clarified by centrifugation, and Triton-soluble supernatants were immunoprecipitated as described above.

AP-3 Immunoaffinity Chromatography and In Vitro Binding Assay

Magnetic beads coated with anti AP-3 δ antibodies or control beads, either coated with an irrelevant antibody (SV2) or lacking antibodies, were preincubated overnight with 500 μg of rat brain cytosol diluted in buffer A + 3% BSA + 0.1% TX-100, washed five times with the same buffer, and then incubated with 125 nM glutathione S-transferase (GST) or GST-PI4KIIα diluted in the same buffer for 2 h at 4°C. The beads were then washed four times with the same buffer and then once with buffer A + 0.1% TX-100. The beads were eluted by incubating with SDS-PAGE sample buffer at 75°C for 5 min, and bound material was analyzed by SDS-PAGE and immunoblot. The sequence of the peptide corresponding to the epitope recognized by the anti-δ SA4 mAb was AQQVDIVTEEMPENALPSDEDDKDPNDPYRA corresponding to the amino acids 680–710 of human δ adaptin (AAD03777; GI:1923266).

Microscopy

Immunofluorescence was performed as described previously (Salazar et al., 2004). All cells were seeded on coverslips coated with Matrigel (BD Biosciences). Images were acquired either by confocal microscopy (detailed in Salazar et al., 2004) or with a scientific-grade cooled charge-coupled device (Cool-Snap HQ with ORCA-ER chip) on a multiwavelength, wide-field, three-dimensional microscopy system (Intelligent Imaging Innovations, Denver, CO), based on a 200M inverted microscope using a 63× NA 1.4 lens (Carl Zeiss, Thornwood, NY). Immunofluorescent samples were imaged at room temperature using a Sedat filter set (Chroma Technology, Rockingham, VT), in successive 0.20-μm focal planes. Out-of-focus light was removed with a constrained iterative deconvolution algorithm (Swedlow et al., 1997). Images were processed and analyzed using Metamorph software Version 3.0 (Universal Imaging, West Chester, PA). All images were thresholded to similar levels. Fluorescent signal colocalization or overlapping was determined as follows. For each cell, an optical section obtained through the nuclear equator was analyzed. Pixels containing both fluorescent signals were considered colocalized or overlapped. This value was expressed as a percent of the total number of pixels positive for just one fluorochrome. Endosomal colocalization was quantified by creating a region of interest surrounding a single enlarged endosome, and only the pixels included in that region of interest were measured for colocalization. Penetrance of siRNA phenotypes was determined by counting the number of cells displaying or not displaying a given phenotype and dividing the number of cells displaying the phenotype by the number of total cells, yielding the percentage of cells displaying the phenotype.

Statistical Analysis

All data are expressed as average ± SE. Experimental conditions were compared with the one-way ANOVA followed by Student-Newman-Keuls Multiple Comparison as a post hoc test using Synergy KaleidaGraph v3.6.2 (Reading, PA).

PI4KIIα Colocalizes Specifically with AP-3 and AP-3 Cargoes on the Limiting Membrane of Early Endosomes

PI4KIIα specifically colocalizes with AP-3 and AP-3 cargoes in neuronal and nonneuronal cells (Salazar et al., 2005, 2006) and is present in AP-3–derived microvesicles and synaptic vesicles (Guo et al., 2003; Salazar et al., 2005; Takamori et al., 2006). The localization of PI4KIIα to these compartments requires AP-3 (Salazar et al., 2005, 2006), suggesting that PI4KIIα is targeted by interacting with AP-3. If the kinase is indeed targeted by AP-3, a prediction arising from this hypothesis is that PI4KIIα, AP-3, and other AP-3 cargo molecules should colocalize on the limiting membrane of early endosomes, a donor compartment where AP-3 vesicles are formed (Faundez et al., 1998; Peden et al., 2004). We tested this hypothesis using high-resolution deconvolution immunofluorescence microscopy of PC12 cells transfected with constitutively active Rab5a (Rab5Q79L, Figure 1). Rab5Q79L causes the formation of enlarged early endosomes (Stenmark et al., 1994) that allow the visualization of presumptive sorting microdomains on their limiting membrane at the light microscopy level (Raiborg et al., 2002, 2006).

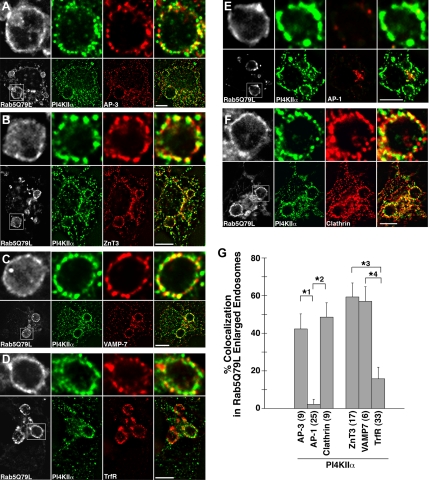

PC12 cells expressing GFP-Rab5Q79L were fixed and stained for PI4KIIα, AP-3, clathrin, and two well-defined AP-3 cargo molecules, ZnT3 (Salazar et al., 2004, 2005) and VAMP-7 (Martinez-Arca et al., 2003; Salazar et al., 2006; Scheuber et al., 2006). Approximately 50% of the PI4KIIα on the membrane of these enlarged endosomes was found to coexist with AP-3 (Figure 1A) and the AP-3 cargoes ZnT3 and VAMP-7 (Figure 1, B and C) as well as clathrin (Figure 1F) in discrete microdomains. The extent of colocalization between PI4KIIα and either AP-3, ZnT3, or VAMP7-TI are in agreement with those obtained from quantification of whole cell colocalization in untransfected PC12 cells and mouse skin fibroblasts (Salazar et al., 2005, 2006). To test if this colocalization was specific to AP-3 and AP-3 cargoes, we stained enlarged endosomes with antibodies to the adaptor AP-1 and transferrin receptor (TrfR, Figure 1, D and E), a transmembrane protein that traffics independently of AP-3 (Dell'Angelica et al., 1999; Janvier and Bonifacino, 2005). We observed only minimal amounts of AP-1 on enlarged endosomes (Figure 1G), and a perinuclear pool of AP-1 that partially colocalized with PI4KIIα (Figure 1E). Furthermore, the colocalization between PI4KIIα and TrfR on these endosomes was 2.7-fold lower than that of PI4KIIα and AP-3, and 3.8-fold lower than that of PI4KIIα and ZnT3 (Figure 1G). These results indicate that PI4KIIα, AP-3, AP-3 cargoes, and clathrin are specifically enriched in early endosome microdomains that are mostly devoid of TrfR and AP-1.

PI4-Kinase Interacts with AP-3 In Vitro and In Vivo

The enrichment of PI4KIIα and AP-3 in endosomal microdomains, combined with the observations that AP-3 is required to target PI4KIIα to postendocytic compartments (Salazar et al., 2005) suggest that the kinase and AP-3 could interact. To test this hypothesis, we developed an in vitro binding assay using affinity-purified AP-3 complexes and purified recombinant PI4KIIα. AP-3 complexes were isolated from rat brain cytosol by immunoaffinity chromatography using magnetic beads decorated with a mAb directed against the ear domain of the δ subunit of AP-3 (Figure 2A, KF4, lanes 9 and 10). Beads decorated with AP-3 complexes were washed and challenged with purified GST (Figure 2A, lane 9) or GST-tagged PI4KIIα (Figure 2A, lane 10). In contrast with GST, which failed to bind to AP-3–containing beads (Figure 2A, lane 9), GST-PI4KIIα specifically bound to beads carrying immobilized AP-3 complexes (Figure 2A, lane 10). Furthermore, GST-PI4KIIα did not bind to beads lacking antibodies (Figure 2A, lanes 4 and 5) or to beads coated with an irrelevant antibody directed against SV2, a multispanning membrane protein (Bajjalieh et al., 1992; Figure 2A, lanes 6 and 7). These results were recapitulated using a different mAb whose antigenic peptide epitope in the δ subunit of AP-3 has been identified (anti-δ SA4, Figure 2B, δ). To further test the selectivity of the AP-3/PI4KIIα interaction, we performed competition experiments using a synthetic peptide corresponding to the epitope recognized by anti-δ SA4 mAb. Inclusion of the peptide during the AP-3 immunoprecipitation completely out-competed the interaction between the δ antibody and AP-3 and prevented the subsequent binding of GST-PI4KIIα to beads (Figure 2B, lanes 9 and 10). These in vitro data provide evidence of an interaction between AP-3 and PI4KIIα.

We hypothesized that a sorting motif in PI4KIIα was required for the interaction between the kinase and AP-3. This hypothesis was founded on the observation that sorting motifs interact directly with AP-1 or AP-3 (Janvier et al., 2003; Doray et al., 2007). Computational analysis of rat PI4KIIα amino acid sequence revealed the presence of three putative dileucine motifs that conform to the canonical dileucine sorting signal {DER}XXXL{LVI}: ₃ETSPLV₈, ₅₆ERQPLL₆₁, and ₃₇₈EIKDLI₃₈₃; the latter contained in the kinase domain of PI4KIIα. We focused on putative sorting signals present outside the kinase domain. Among these, ₅₆ERQPLL₆₁ was conserved in all vertebrate PI4KIIα isoforms. The conservation of ₅₆ERQPLL₆₁ suggests that this motif may play a central role in PI4KIIα interaction with AP-3 and targeting. In fact, this motif is identical to the AP-3–interacting motif (ERQPLL) found in tyrosinase, a well-characterized membrane protein that depends on AP-3 for sorting (Honing et al., 1998; Blagoveshchenskaya et al., 1999; Huizing et al., 2001; Theos et al., 2005). To test this hypothesis, we first developed a strategy to analyze adaptor-cargo interactions on membranes in vivo using whole-cell cross-linking. We chose DSP, a homobifunctional cell-permeable cross-linker with a 12-Å spacer arm that contains a disulfide bond that allows the cleavage of cross-linked products (Lomant and Fairbanks, 1976; Alloza et al., 2004; Xiang et al., 2004). Adaptor complexes bound to cargoes were immunoprecipitated, and their molecular composition was analyzed by reducing SDS-PAGE and immunoblot. Immunoprecipitation of AP-3 from cells treated with DSP resulted in coprecipitation of PI4KIIα (Figure 3A, lane 8). The complex between AP-3 and PI4KIIα was observed even though DSP treatment decreased the immunoreactivity of the AP-3 δ subunit, as revealed by the decreased precipitation of AP-3 subunits (Figure 3A, μ3 and β3 blots, compare lanes 7 and 8). Control immunoprecipitations using beads without antibody (Figure 3A, lanes 3 and 4) or immunoprecipitation of transferrin receptor (TrfR, Figure 3A, lanes 5 and 6) failed to coprecipitate PI4KIIα, indicating a specific interaction between PI4KIIα and AP-3. We predicted that AP-3 cargo proteins colocalizing with AP-3 and PI4KIIα in Rab5Q79L-enlarged endosomes (Figure 1) would also be found cross-linked to PI4KIIα-AP-3 complexes. In fact, PI4KIIα was present in a complex containing AP-3 subunits, the AP-3 cargo ZnT3, and clathrin (Figure 3B, lanes 5 and 6). Similarly, PI4KIIα-AP-3 and clathrin were immunoprecipitated as a complex from cross-linked PC12 cells using X22 clathrin antibodies (data not shown). The presence of PI4KIIα and ZnT3 in AP-3 cross-linked complexes is selective because minimal or undetectable levels of PI4KIIα or ZnT3, respectively, were found in cross-linked AP-1 complexes immunoprecipitated with γ adaptin antibodies (Figure 3B, compare lanes 2 and 6). The efficient cross-linking of clathrin to AP-1 excludes the possibility that AP-1 and its interactors are refractory to DSP treatment. These data demonstrate that PI4KIIα can be cross-linked and selectively coimmunoprecipitated with AP-3. Furthermore, these findings are consistent with a model in which PI4KIIα behaves as a cargo that binds to AP-3.

PI4KIIα binding to AP-3 could be mediated by the conserved ₅₆ERQPLL₆₁ dileucine motif in PI4KIIα. To test this prediction, we mutated the critical leucine residues (Bonifacino and Traub, 2003) in this motif to alanines and expressed WT and dileucine mutant (L60A L61A) GFP-tagged rat PI4KIIα in HEK293 cells (Figure 3C) and PC12 cells (data not shown). Cells were cross-linked with DSP, and immunoprecipitations were performed using lysates from each of these cell lines. Immunoprecipitation of AP-3 coprecipitated GFP-PI4KIIα (Figure 3C, lane 10), whereas no detectable dileucine mutant GFP-PI4KIIα coprecipitated with AP-3 (Figure 3C, compare lanes 10 and 12). Similar results were obtained using WT and dileucine mutant HA-tagged PI4KIIα (see Figure 9). Control immunoprecipitations using beads without antibody failed to coprecipitate all but background levels of the kinase (Figure 3C, lanes 5–8). These immunoprecipitations were repeated using PC12 cells and yielded similar results (data not shown). Collectively our results indicate that the ₅₆ERQPLL₆₁ motif is necessary for the PI4KIIα/AP-3 interaction in vivo.

PI4-Kinase siRNA Knockdown Selectively Redistributes AP-3 Complexes from Membranes to Cytosol

If cargo possesses catalytic activity capable of selectively regulating adaptor recruitment to membranes, then depletion of such a molecule should lead to adaptor redistribution to cytosolic compartments. To test this hypothesis, we performed siRNA-mediated PI4KIIα knockdown in HEK293 cells (Figure 4A, compare lanes 2 and 3, and Figure 9A, compare lanes 1 and 2). We analyzed AP-3 and -1 adaptor membrane localization both by confocal immunofluorescence microscopy (Figure 4, B and C) as well as subcellular fractionation of control or PI4KIIα siRNA-treated cells (Figure 4D). As previously reported by us in other cell types (see Figure 1; Salazar et al., 2005, 2006), PI4KIIα preferentially colocalizes with AP-3, mostly in the perinuclear area, but minimally with AP-1 complexes (data not shown and Figure 5C, ■). Consistent with these findings, PI4KIIα down-regulation selectively affected AP-3 but not AP-1 adaptor subcellular localization (Figure 4, compare B and C). Reduced PI4KIIα levels induced a redistribution of AP-3 from a perinuclear cap into a disperse pattern throughout the cytoplasm. To confirm these observations, we performed subcellular fractionation of HEK293 cells either treated with control or PI4KIIα siRNA oligonucleotides (Figure 4D). siRNA-treated cells were incubated in the absence (Figure 4D, odd lanes) or presence of DSP (Figure 4D, even lanes), as previously described (Figure 3), homogenized, and fractionated into cytosol and membrane fractions. Detergent-solubilized subcellular fractions were immunoprecipitated with antibodies against AP-3 δ or AP-1 γ adaptins. Cytosolic fractions were mostly devoid of contaminant membrane proteins as determined by the absence of PI4KIIα (Figure 4D, compare lanes 9 and 11) and TrfR (not shown). Antibodies against AP-3 δ adaptin effectively precipitated PI4KIIα and associated clathrin from membranes isolated from control siRNA and cross-linker–treated cells (Figure 4D, compare lanes 3 and 4, top panels). However, under identical conditions, AP-1 γ adaptin antibodies failed to precipitate detectable PI4KIIα. Despite this, clathrin coprecipitating with AP-1 was readily detectable (Figure 4D, compare lanes 3 and 4, bottom panels). PI4KIIα down-regulation (Figure 4D, lanes 5–8) drastically decreased the amount of AP-3 and associated clathrin present in cross-linked membrane fractions (Figure 4D, compare lanes 4 and 8, top panels). We observed a similar reduction of AP-3 on non-cross-linked membranes isolated from PI4KIIα-deficient cells (Figure 4D, compare lanes 3 and 7, top panels). Concomitantly, AP-3 content increased in the soluble fraction of PI4KIIα siRNA-treated cells (Figure 4D, compare lanes 2 and 6, top panels). In contrast, neither the membrane content of AP-1 and coprecipitated clathrin (Figure 4D, compare lanes 4 and 8, bottom panels) nor the soluble AP-1 content (Figure 4D, compare lanes 2 and 6, bottom panels), were modified by the decreased levels of PI4KIIα. These results demonstrate that PI4KIIα stabilizes AP-3 on membranes and suggest that the adaptor complex AP-1 is regulated by a lipid kinase other than PI4KIIα.

PI4KIIα Kinase Activity and Sorting Motif Are Required for PI4KIIα Endosomal Localization

The hypothesis that PI4KIIα is an enzymatic cargo/regulator of a transport pathway predicts that mutants in its sorting motif or kinase domain should similarly affect PI4KIIα endosomal distribution, generate similar endosomal phenotypes, and similarly affect PI4KIIα interaction with AP-3. To explore these predictions, we ablated the PI4KIIα-sorting motif (₅₆ERQPLL₆₁ in rat or ₅₇ERQPLL₆₂ in human) and its kinase activity by site-directed mutagenesis. PI4KIIα mutants lacking the first 92 amino acids, a domain where the dileucine motif resides, display WT levels of kinase activity when expressed in HEK293 cells (Barylko et al., 2002). Because the ERQPLL sorting motif and kinase activity reside in independent PI4KIIα domains, we used this to our advantage.

We first sought to determine if PI4KIIα enzymatic activity and/or sorting motif would be required to properly localize PI4KIIα with the adaptor complex AP-3 and endocytic compartments. Human PI4KIIα tagged with HA as well as mutants in the kinase catalytic aspartate (D308A; Barylko et al., 2002) or its dileucine-sorting motif (L61-62A) were expressed in HEK293 cells and analyzed by immunofluorescence. Transfected cells were double-labeled with antibodies against AP-3 δ or AP-1 γ adaptins (Figure 5) with one of the following antibodies against: the HA epitope (Figures 5 and 6) as well as antigens from either early stages of the endocytic route (TrfR) or late endosome/lysosomes (LAMP-1, Figure 6). Half of WT PI4KIIα-HA containing organelles were also positive for AP-3 (Figures 5,A and C, ▩, 52.6 ± 2.8, n = 13, p < 0.0001). Importantly, the extent of colocalization between AP-3 and PI4KIIα-HA was significantly reduced to 28 and 36% in PI4KIIα-HA mutants lacking either its sorting motif (Figure 5, A and C, L61-62A PI4KIIα-HA) or its kinase activity (Figure 5, A and C, D308A PI4KIIα-HA, p = 0.0002), respectively. In contrast, AP-1 colocalized poorly with either endogenous (Figure 5C, nontransfected, NT, ■) or exogenously expressed WT PI4KIIα-HA (Figure 5B-C, PI4KIIα-HA, ▩). Furthermore, ablation of the PI4KIIα-HA–sorting motif minimally affected PI4KIIα-HA colocalization with AP-1 (Figure 5, B and C, L61-62A PI4KIIα-HA). Curiously, and in stark contrast with AP-3, the colocalization of the kinase-deficient D308A PI4KIIα-HA mutant with AP-1 increased twofold when compared with WT PI4KIIα-HA (Figure 5, B and C, D308A PI4KIIα-HA, p < 0.0001). These results support the hypothesis that PI4KIIα preferentially associates with AP-3–positive compartments by a mechanism that requires PI4KIIα enzymatic activity and sorting motif.

The decreased colocalization of mutant forms of PI4KIIα-HA with AP-3 occurred concomitantly with a change of the kinase subcellular localization along the endocytic route. Wild-type PI4KIIα-HA colocalized with LAMP-1 and minimally with TrfR (Figure 6). These findings recapitulate the subcellular distribution of endogenous PI4KIIα in neuronal and nonneuronal cell types (Salazar et al., 2005, 2006; Minogue et al., 2006). In contrast, D308A PI4KIIα-HA and L61-62A PI4KIIα-HA displayed identical phenotypes characterized by colocalization with TrfR, yet minimal colocalization with LAMP-1 (Figure 6). These results demonstrate that both PI4KIIα kinase activity and dileucine-based sorting information are required to target the kinase to its proper subcellular localization.

PI4KIIα Kinase Activity and Sorting Motif Are Required to Rescue PI4KIIα Loss-of-Function Endocytic Mutant Phenotypes

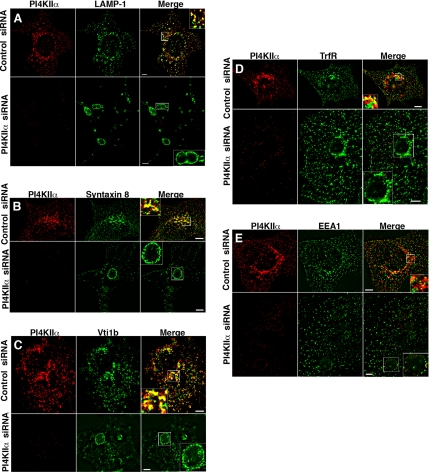

PI4KIIα lacking either its kinase activity or its sorting motif display a similarly abnormal subcellular distribution. This observation is consistent with a model wherein PI4KIIα behaves both as a cargo and a regulator of a transport route. To further test this model, we determined whether kinase activity and the ₅₇ERQPLL₆₂ motif are required to rescue PI4KIIα loss-of-function endosomal mutant phenotypes. The cellular levels of PI4KIIα were reduced in HEK293 cells using siRNA. Immunofluorescence microscopy was performed to assess hypomorphic phenotypes on AP-3 cargoes and membrane proteins found in the transition between early and late endosome/lysosomes. Significant reduction of PI4KIIα by siRNA was observed both by immunoblot (Figures 4A, lane 3, and 9A, lane 2) and immunofluorescence (Figure 7, A–E). Immunostaining for the AP-3 cargo LAMP-1 in PI4KIIα siRNA-treated cells revealed a dramatic impact on LAMP-1–positive organelles. In contrast to control siRNA-treated cells in which LAMP-1 displays punctate localization throughout the cytoplasm (Figure 7A), PI4KIIα siRNA treatment induced a phenotype characterized by 1) the formation of large (1–7 μm) circular organelles that contained LAMP-1 and 2) a reduction in the punctate pattern of LAMP-1 seen in control siRNA-treated cells (Figure 7A). Quantification of the enlarged organelle phenotype revealed a penetrance of ∼5% in control siRNA-treated cells. In contrast, ∼50% of PI4KIIα siRNA-treated cells displayed this phenotype (44.5 ± 8.1%, n = 3, Figure 8). We analyzed whether membrane proteins that reside in the interface between early and late endosomes were also accumulated on similar large circular organelles in PI4KIIα siRNA-treated cells. We focused on syntaxin 8 and Vti1b, Q-t-SNAREs involved in fusion steps between early and late endosomes (Mullock et al., 2000; Ward et al., 2000; Bogdanovic et al., 2002; Pryor et al., 2004). Much like LAMP-1, these SNAREs accumulated in enlarged endosomes. Furthermore, there was a reduction of puncta positive for Vti1b and syntaxin 8 in the cytoplasm in PI4KIIα siRNA-treated cells (Figure 7, B and C). TrfR and to a much lesser extent EEA1 were also observed on enlarged endosomal compartments yet without altering TrfR or EEA1-positive puncta in the cytoplasm (Figure 7, D and E). Enlarged organelles were negative for TGN46, a marker for the trans-Golgi network (data not shown). Together these results suggest that down-regulation of PI4KIIα results in mis-targeting of an AP-3 cargo (LAMP-1) and alters the distribution of Q-t-SNARES (syntaxin 8 and Vti1b) involved in early to late endosomal fusion events.

We utilized the PI4KIIα siRNA-induced LAMP-1 enlarged organelle phenotype to test whether PI4KIIα kinase activity and its sorting motif were required to rescue this phenotype (Figure 8). For this purpose, we used a sequential protocol of PI4KIIα siRNA followed by re-expression of WT and mutant versions of human HA-tagged PI4KIIα driven from a CMV promoter. This allowed us to express HA-PI4KIIα without the need to create siRNA-resistant PI4KIIα constructs (see Figure 9). Reexpression of WT PI4KIIα-HA reduced the penetrance of the enlarged endosome phenotype from 44.5 ± 8.1% (n = 3, Figure 8) to 24.7 ± 2% (n = 3, Figure 8). This partial rescue may be related to the expression levels of HA-PI4KIIα, because overexpression of the kinase also induced enlarged endosomal vesicles (Balla et al., 2002). In contrast, re-expression of the kinase-inactive D308A PI4KIIα-HA (49.5 ± 2.5%, n = 3, Figure 8) or the L61-62A PI4KIIα-HA mutant lacking its sorting motif (60.1 ± 4%, n = 3, Figure 8) failed to rescue the enlarged endosome phenotype, indicating a requirement for both PI4KIIα kinase activity and the dileucine-sorting motif for proper PI4KIIα function.

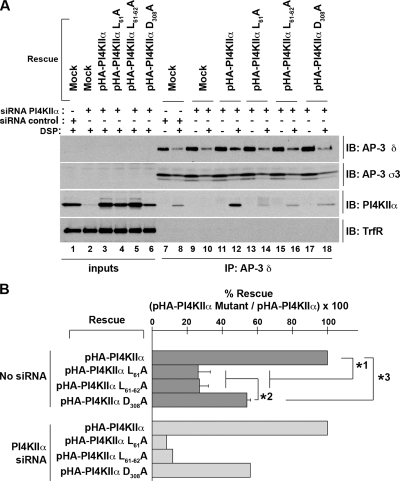

The phenotypic similarities between PI4KIIα mutants lacking kinase activity or AP-3–sorting information in their colocalization with AP-3, their subcellular localization, as well as their inability to rescue PI4KIIα loss-of-function could be ascribed to a similar failure of both PI4KIIα mutants to form complexes with AP-3 on membranes. We explored this hypothesis by performing cross-linking and AP-3 immunoprecipitations using HEK293 cells expressing either WT kinase, kinase-inactive D308A, or the dileucine mutants L61A or L61-62A PI4KIIα-HA (Figure 9). To exclude the contribution of endogenous PI4KIIα, similar experiments were performed in which the levels of endogenous PI4KIIα were reduced using siRNA. In each case, comparable results were obtained (Figure 9, A and B). PI4KIIα siRNA effectively and selectively abrogated the expression of PI4KIIα (Figure 9A, compare lanes 1 and 2). We used PI4KIIα siRNA-treated cells and rescued with PI4KIIα-HA as a reference (Figure 9A, lanes 3, 11, and 12) to assess the consequences of mutations either in the dileucine-sorting motif (Figure 9A, lanes 4, 5, and 13–16) or the kinase domain (Figure 9A, lanes 6, 17, and 18). Wild-type or mutant PI4KIIα-HA were expressed to levels similar to those found in control siRNA-treated cells (Figure 9A, compare lanes 1 and 3–6). As previously described (Figure 3C) mutants lacking either one or two leucines of the ₅₇ERQPLL₆₂-sorting motif (Figure 9A, lanes 13–16) failed to interact with AP-3. In fact, only ∼25% of dileucine mutant PI4KIIα-HA formed a cross-linkable complex with AP-3 in non-siRNA-treated HEK293 cells (Figure 9B, dark gray bars, n = 3). Similarly, only ∼10% of the dileucine mutant PI4KIIα-HA formed a cross-linkable complex with AP-3 in PI4KIIα-siRNA–treated cells (Figure 9B, light gray bars, n = 1). The D308A PI4KIIα-HA mutant lacking kinase activity formed a cross-linkable complex with AP-3, with half of the efficiency displayed by WT PI4KIIα-HA (Figure 9A, lanes 17 and 18). The association of D308A PI4KIIα-HA with AP-3 was identical whether cross-linking and AP-3 immunoprecipitations were performed in nontreated (54.1 ± 2.1%, n = 3, Figure 9B) or PI4KIIα-siRNA-treated cells (56%, n = 1, Figure 9, A and B). These results indicate that PI4KIIα kinase activity and the dileucine-sorting motif facilitate PI4KIIα interaction with AP-3 on membranes. Moreover, the decreased interaction of PI4KIIα mutants with AP-3 correlates with the inability of these mutants to rescue PI4KIIα hypomorph endosome phenotypes. Because the ablation of the PI4KIIα dileucine motif produces more pronounced phenotypes that those observed in kinase deficient PI4KIIα, these results suggest that the dileucine motif acts upstream of the kinase activity in facilitating adaptor recruitment.
