Cis-regulatory modules in the mammalian liver: composition depends on strength of Foxa2 consensus site

Chromatin immunoprecipitation (ChIP)

ChIPs were performed as described previously (5).

Mouse livers were minced finely in cold phosphate-buffered saline (PBS) and cross-linked in 1% formaldehyde for 10 min while rotating. Cross-linking was quenched by adding glycine to a final concentration of 0.125 M for 5 min while rotating. The tissue was rinsed in cold PBS and homogenized with a Dounce homogenizer in cold cell lysis buffer (10 mM Tris–Cl, pH 8.0, 10 mM NaCl, 3 mM MgCl₂, 0.5% NP-40) and protease inhibitors. Cells were incubated at 4°C for 5 min to release nuclei. Nuclei were centrifuged at 13 000 g for 5 min to form a pellet. The pellet was resuspended in nuclear lysis buffer [1% sodium dodecyl sulfate (SDS), 5 mM EDTA, 50 mM Tris–Cl, pH 8.1) and protease inhibitors and sonicated using the Diagenode Bioruptor for 10 min on high, using 30 s intervals. Debris were removed by centrifugation at 13 000 g for 10 min, and the supernatant was collected and snap frozen in liquid nitrogen. A 10 μl aliquot was reversed by the addition of NaCl to a final concentration of 192 mM, overnight incubation at 65°C, and purification using a PCR purification kit (Qiagen, CA, USA). The chromatin concentration was determined using a NanoDrop 3.1.0 nucleic acid assay (Agilent Technologies, Santa Clara, CA, USA).

Ten micrograms of chromatin per sample was precleared by adding 90 μl of protein G-agarose in 1 ml of ChIP dilution buffer (0.01% SDS, 1.1% Triton X-100, 167 mM NaCl, 16.7 mM Tris–Cl, pH 8.1) and rotating the sample for 1 h at 4°C. Protein G-agarose was sedimented by centrifugation at 3000 g for 30 s. Two micrograms of rabbit anti-Foxa2 serum (provided by J.A. Whitsett), was added to the supernatant and incubated overnight at 4°C. Protein G-agarose was blocked overnight at 4°C with 1 mg/ml bovine serum albumin and 0.1 mg/ml herring sperm DNA in ChIP dilution buffer, added to the chromatin, and rotated for 1 h at 4°C. Following three consecutive washes of 5 min each with TSE I (0.1% SDS, 1% Triton X-100, 2 mM EDTA, 20 mM Tris–Cl, pH 8.1, 150 mM NaCl), TSE II (0.1% SDS, 1% Triton X-100, 2 mM EDTA, 20 mM Tris–Cl, pH 8.1, 500 mM NaCl) and ChIP buffer III (0.25 M LiCl, 1% NP-40, 1% deoxycholate, 1 mM EDTA, 10 mM Tris–Cl, pH 8.1), chromatin was eluted by adding 100 μl of freshly made ChIP elution buffer (1% SDS, 0.1 M NHCO₃) to the pellet and rotating the sample for 10 min. Elution was repeated with an additional 100 μl of ChIP elution buffer, and the eluates were combined. Cross-linking was reversed by the addition of NaCl to a final concentration of 192 mM and overnight incubation at 65°C.

Ligation-mediated PCR (LM-PCR)

DNA blunting, linker ligation and amplification were carried out following the Agilent Mammalian ChIP-on-chip Protocol (http://www.chem.agilent.com/scripts/LiteraturePDF.asp?iWHID=42637).

Labeling and hybridization to mouse promoter chip BCBC-5A

LM-PCR amplified ChIP DNA was labeled using the BioPrime® Array CGH Genomic Labeling System (Invitrogen Life Technologies, CA, USA) as per manufacturer's instructions. Briefly, 1 μg of DNA was mixed with random primers and denatured at 95°C for 5 min, then cooled briefly on ice. Next, the appropriate Cyanine dUTP fluorescent nucleotides (PerkinElmer Life And Analytical Sciences, Inc., MA, USA) were added, along with the nucleotide mix and Exo Klenow fragment. This was gently mixed and incubated at 37°C for 2 h. The Cy3 and Cy5 labeled samples were purified using the MinElute PCR Purification Kit (Qiagen), and the efficiency of dye incorporation and yield was determined using the NanoDrop® ND-1000 UV-Vis Spectrophotometer. The Cy5 and Cy3 labeled samples were combined and 1 μg of Mouse Cot1 DNA (Invitrogen Life Technologies) was added to each sample and denatured at 95°C for 5 min. The samples were then cooled to 42°C and an equal volume of 2 × hybridization buffer (50% formamide, 10 × SSC and 0.2% SDS) was added, mixed and applied to the array.

The BCBC-5A chip contains over 18 000 proximal and distal promoter regions. Promoter regions were determined from full-length cDNA libraries and Reference Sequences (RefSeqs). Over 12 000 well-characterized genes were chosen and are represented by either a 1- or 2-kb tile, PCR amplified from genomic material. Microarray slides were hybridized overnight, then washed and scanned with Agilent G2565BA Microarray Scanner. Images were analyzed with GenePix 5.0 software (Axon Instruments, Molecular Devices, Union City, CA, USA).

Data processing and analysis

Median foreground intensities were obtained for each spot and imported into the mathematical software package ‘R’ (http://www.r-project.org/), which is used for all data input, diagnostic plots, normalization and quality checking steps of the analysis process using scripts developed in-house. The ratio of expression for each element on the array was calculated in terms of M [log2(Red/Green)] and A [(log2(Red) + log2(Green))/2)]. The dataset was filtered to remove positive control elements (Cy3 anchors and SpotReport elements) and any elements that had been manually flagged as poor quality. The M-values were then normalized by the print tip loess method using the ‘marray’ microarray processing package in ‘R’. Statistical analysis was performed in ‘R’ using both the LIMMA and SAM packages. Foxa2 targets were defined as elements that had an expression ratio greater than 1.3 and a false discovery rate (calculated by SAM) of less than 10%.

Identification of enriched binding sites

Position weight matrices (PWMs) from the TRANSFAC database were scanned across target (bound) sequences, and 1000 random sequences from the Promoter Chip BCBC 5A (unbound) sequences, which were used as background. All Promoter Chip tile sequences were padded by 300 bp on each end. Only the top scoring match to the PWM for each sequence was analyzed further. For several score cutoffs, the number of true positives (target sequences with a score above the cutoff), and the number of false positives (background sequences with a score above the cutoff) were calculated. Plotting the true positive fraction versus the false positive fraction produces a receiver operating characteristic curve (ROC curve). ROC curves were generated for all PWMs, and then the area under the curve (AUC) was calculated. The 100 permutations were carried out by combining target sequences and background sequences into one set, and then randomly selecting 107 sequences from the set. This set was treated as the ‘target’ set, while the remaining sequences were used as background. The P-value was then calculated by counting the number of times the AUC in the random target sets exceeded the real AUC, divided by 100. A PWM was considered to be enriched if the AUC was >0.5, and the P-value was ≤0.01.

Quantitative RT–PCR

Real-time PCRs were assembled using SYBR GreenER (Invitrogen). Reactions were performed in triplicate using the Mx3000 PCR System (Stratagene, La Jolla, CA, USA). The enrichment of target genes was calculated using the 28S rRNA locus as a reference for nonspecific DNA, and was calculated by comparing input (sheared genomic DNA) to ChIP material. Primer sequences are provided in Supplementary Table 7.

Genome-wide location analysis

We carried out ChIP with five biological replicates of adult mouse liver using a specific Foxa2 antibody as described previously (18). We validated the specificity of this antibody by confirming that the Foxa2 promoter, which Foxa2 itself is normally bound to, is no longer occupied when ChIP is carried out using the livers of Foxa2^loxP/loxP Alfp.Cre mice, which lack Foxa2 in hepatocytes (2,19,20) (Figure 1A and B). ChIP samples from the wild-type mice were amplified, labeled and hybridized to the Mouse Promoter Chip 5A, which contains over 18 000 promoter and enhancer elements. Using the computational tools and statistical methods described in ‘Materials and methods’ section, we identified 107 Foxa2 target sites in the liver (Figure 1C, Supplementary Table 1). We used the hypergeometric distribution to show that this set of targets overlaps significantly with the genes identified in a prior location analysis of human primary hepatocytes (2) (Supplementary Table 2).

Scanning of PWMs

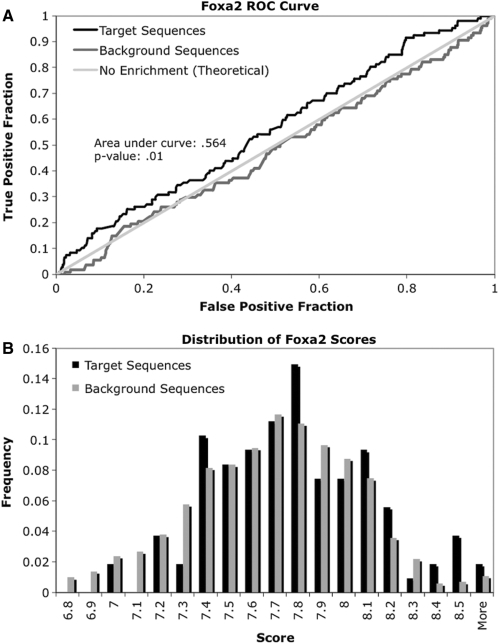

To identify potential interacting partners of Foxa2, we used the transcription factor binding site (TFBS) module in Bioperl (21) in order to identify overrepresented cis-regulatory elements. After scanning all of the vertebrate PWMs contained in the TRANSFAC database on both Foxa2 target sequences and unbound background sequences, we generated ROC curves to quantify enrichment of binding sites for each DNA-binding protein. The AUC calculated from the ROC curve of Foxa2 (Figure 2A) was >0.5, confirming that the PWM for Foxa2 is a reasonable approximation of the preferred in vivo contact site. Because 300 of the 524 PWMs scanned had an AUC >0.5, we performed 100 permutations of the data to obtain a reference distribution, which we employed to calculate an approximate P-value for each ROC curve. Interestingly, the ROC curve shows that the likelihood of finding the Foxa2 consensus sequence (PWM) in the target sequences is only slightly above that of finding it in the background sequences, no matter what cutoff score for the PWM is chosen. The score distribution for Foxa2 in target sequences and background sequences shows that the consensus sequence is frequently found throughout the genome (Figure 2B). In other words, the Foxa2 consensus sequence does not contain sufficient information to predict real in vivo occupancy among the background of thousands of unbound promoters with similar sequences, similar to what has been observed previously for other transcription factors (22,23). This finding suggests that Foxa2 in vivo binding might be determined by additional sequences elements.

Foxa2 consensus strength and enrichment of other transcription factor binding sites

Enhancers are often composed of binding sites for multiple transcription factors. In the liver, these might include sites for the HNFs, nuclear hormone receptors and others (2,3,9,10). Thus, ‘liver-modules’ can be made up of binding sites for HNF6, HNF4-α, HNF-1α, Foxa2 etc. In principle, a given enhancer strength of a liver-module could be achieved by combinations of various strong and weak binding sites for multiple factors. We have shown that Foxa2 can bind to sequences that either strongly match the existing consensus or are a weak match. Therefore, we investigated whether the role of additional factors between these strong and weak cases is different. To this end, we compared the enrichment of cis-regulatory elements in sequences that have a weak match to the Foxa2 consensus to those sequences that have a strong match by first ordering the Foxa2 target sequences by decreasing Foxa2 PWM score. Starting with the first 10 sequences, which have the highest Foxa2 PWM score, we calculated the AUC for other transcription factor PWMs of interest, focusing on those PWMs that had an AUC >0.5, and a P-value ≤0.01 when all target sequences were scanned (Supplementary Table 3). We then iteratively added in the remaining Foxa2 target sequences, one by one, while recalculating the AUC after each addition (Figure 3A). As shown in Figure 3B, the AUC of Foxa2 steadily decreases as sequences with weaker binding sites are added, as expected. Plotting the AUC for other transcription factors against the number of sequences gives us the ‘AUC path’. The AUC paths for each of the other transcription factors indicates which TF-binding sites are either enriched more or less as the strength of the Foxa2-binding site decreases. If a particular factor is not dependent on the match to the Foxa2 PWM, its AUC path should remain constant as Foxa2 target sequences are added (Figure 3B). In order to identify factors that show a dependence to the match to the Foxa2 PWM, we calculated the area between the AUC path of each other factor and the AUC path for Foxa2 itself (Figure 3C). The binding sites that are more enriched in the presence of a close match to the Foxa2 consensus have the smallest area between the AUC paths, whereas the factors that are less enriched in the presence of a strong Foxa2 site have the largest area between AUC paths. Strikingly, several of the PWMs analyzed show a relationship between their own enrichment and the PWM score for Foxa2, suggesting that in the liver, Foxa2 containing cis-regulatory modules are not assembled at random (Supplementary Table 4). The binding sites for two factors, HNF-1α (Transfac ID: M00132, HNF1_01), which has an important role in hepatic and intestinal gene regulation, and Jun (Transfac ID: M00036, VJUN_01), which is involved in hepatocyte proliferation, showed the strongest dependence on the Foxa2 PWM score (Figure 3C) (24,25). The enrichment of the HNF-1α PWM decreases as the Foxa2 PWM score decreases, while the enrichment of the Jun PWM increases (Figure 4A and B). To evaluate the significance of this dependence, we permuted the sequence order 100 times, so that it was no longer indicative of the match to the Foxa2 consensus, and repeated the method for calculating the AUC path of the other TFs and the area between AUC paths described earlier. Calculating the area between AUC paths for Foxa2 and all of the permutations for HNF-1α and Jun shows that the observed value obtained when using the actual ordering of sequences by Foxa2 binding site strength is not random (Figure 4C and D). To further validate the dependence of HNF-1α and Jun PWM enrichment on Foxa2 PWM score, we selected background (unbound) sequences that contain the same distribution of Foxa2 PWM scores as the target sequences. As expected, the AUC path for HNF-1α and Jun remains constant as sequences are added, confirming that the dependence of PWM enrichment we see in our target set is not simply the result of sequence composition bias (Figure 4E and F). We also permuted the background sequence order to show that unlike what is seen in the target sequences, when background sequences are ordered by decreasing Foxa2 score the AUC path does not lie on the edges of the permuted AUC paths (Figure 4E and F). While the AUC for Jun calculated using background sequences has an overall similar AUC to that calculated using target sequences, the AUC path is not steadily increasing in the background sequences as it is in the true target sequences (Figure 4F). However, we note that the relationship between the Foxa2 PWM score and the Jun PWM enrichment among the Foxa2 targets determined from genome-wide location analysis is not as strong as the relationship seen with HNF-1α. Interestingly, the de-enrichment of some factors is most dependent on Foxa2 sequences of medium strength (Figure 4G). One such factor is PPAR-γ (Transfac ID: M00512, PPARG_01), which is involved in lipid metabolism and differentiation of adipocytes (26,27). As shown in Figure 4H, when sequences that have the strongest Foxa2 binding sites are removed from analysis, the PPAR-γ enrichment follows a pattern similar to Jun.

Identifying additional TFBS's related to Foxa2 consensus strength

In the previous section, we only investigated the relationship of PWM scores for Foxa2 and the 70 factors that had an AUC of >0.5, and a P-value ≤0.01 when using all 107 Foxa2 targets. It is possible that additional binding sites are dependent on the match to the Foxa2 consensus, but did not have a high AUC when all Foxa2 sites were considered previously. To identify these other factors, we split the Foxa2 target sequences into two groups—those that have a strong Foxa2 consensus, and those that have a medium to weak Foxa2 consensus. We explored four possible splits of the data, where the group that was considered to have strong match to the Foxa2 consensus consisted of the top 30, 40, 50 or 60 sequences, and the group with medium/weak binding sites consisted of the remaining sequences for each split. Because we have already demonstrated that HNF-1α is strongly associated with strong Foxa2 binding sites, we chose the grouping of sequences that gave the most dramatic difference in the AUC for HNF-1α, which gave us a grouping of the first 40 sequences as the strong Foxa2-binding sites, and the remaining 67 sequences as the medium/weak Foxa2 binding sites (Supplementary Table 5). These groups of sequences contained a similar overall CG bias and percentage of CpG islands, which was determined using a CpG island searcher, CpGIE (28). Of the sequences with a medium/weak match to the Foxa2 consensus, the average CG bias was 0.021% and 28% of the sequences contained one CpG island. Of the sequences with a strong match to the Foxa2 consensus, the average CG bias was 0.022% and 22.5% contained one CpG island. The difference in CpG island content in the two groups was not significant, as determined using the test of equal proportions. We then scanned all of the vertebrate PWMs in TRANSFAC on both of these sets, again using ‘unbound’ sequences as background, and found that a different group of transcription factors were enriched in each set. Foxa2 targets closely matching the Foxa2 PWM preferentially contained binding sites for factors such as HNF-1α, HNF6 and CEBP, while the targets matching the Foxa2 consensus only weakly were associated with PPAR-γ, HNF4-α CREB, Jun and also USF, which regulates genes involved in glucose and lipid metabolism (Supplementary Table 6) (29).

Confirmation of medium/weak Foxa2 targets

Since the match to the Foxa2 consensus sequence in our medium/weak group was relatively poor, we wanted to ensure that these sites were not false positives from our genome-wide location analysis. Therefore, we designed primers around the computationally predicted binding sites for five of these target genes, including Serpinf2, which has the weakest scoring Foxa2 site, and showed by quantitative RT–PCR that these targets were indeed enriched in Foxa2 ChIP samples (Figure 5A). Additionally, we show that neither the predicted binding site score nor the GOMER score, which was calculated using the model that takes potential homotypic interactions into account (30), are related to the fold-change determined from genome-wide location analysis, indicating that the fold-change cutoff chosen does not have any impact on the binding site strength (Figure 5B and C).

Varying expression patterns between groups with strong and medium/weak match to the Foxa2 consensus

Because there are different sets of TFBS enriched in sequences with strong Foxa2 PWM match versus those with medium/weak Foxa2 PWM scores, we investigated potential differences in expression patterns between the genes in the two groups. To study gene-expression patterns, we used the Novartis mouse dataset, which profiles gene expression across 91 tissues (31). First, we identified which tissue had the highest expression for each target gene in both the strong and medium/weak Foxa2 consensus groups. In the group with a medium/weak Foxa2 consensus, 34% of the genes are most abundantly expressed in the liver, whereas in the group with a strong Foxa2 consensus, only 14% of the genes are activated most strongly in the liver (Figure 6A and B).

We next investigated the tissue specificity of those genes that are highly expressed in the liver, by first calculating the median expression of each gene across all tissues. We focused on genes that had high expression in the liver, with an expression value more than three times the median. Almost half of the genes in both groups (37% of the genes that have a strong Foxa2 consensus and 45% of the genes that have a medium/weak Foxa2 consensus) were determined to have high expression in the liver. Of these genes, we determined the number of other tissues that also have expression greater than three times the median expression (Figure 6C and D). It is clear from Figure 6C and D that the genes which have high expression in the liver and a medium/weak Foxa2 site are more tissue specific, while the genes that have high expression in the liver and a strong Foxa2 site have high expression in several other tissues.
