. 2008 Aug 18;1(2):145–152. doi: 10.1159/000151481

Anthrax Edema Toxin Inhibits Nox1-Mediated Formation of Reactive Oxygen Species by Colon Epithelial Cells

Jun-Sub Kim 1, Gary M Bokoch 1,*
PMCID: PMC2631933  NIHMSID: NIHMS62154  PMID: 20046221

Abstract

One major route of intoxication by Bacillus anthracis (anthrax) spores is via their ingestion and subsequent uptake by the intestinal epithelium. Anthrax edema toxin (ETx) is an adenylate cyclase that causes persistent elevation of cAMP in intoxicated cells. NADPH oxidase enzymes (Nox1–Nox5, Duox1 and 2) generate reactive oxygen species (ROS) as components of the host innate immune response to bacteria, including Nox1 in gastrointestinal epithelial tissues. We show that ETx effectively inhibits ROS formation by Nox1 in HT-29 colon epithelial cells. This inhibition requires the PKA-mediated phosphorylation of the Nox1-regulatory component, NoxA1, and the subsequent binding of 14-3-3ζ. Inhibition of Nox1-mediated ROS formation in the gut epithelium may be a mechanism used by B. anthracis to circumvent the innate immune response.

Key Words: Protein kinase A, 14-3-3 proteins, Reactive oxygen species, Anthrax, cAMP-dependent protein kinase, Colon epithelium, Edema toxin, Innate immunity, NADPH oxidase, Phosphorylation

Introduction

The gastrointestinal epithelium serves a primary protective role against food irritants and commensal or pathogenic microbes. Disruption of innate immune responses in the gut causes persistent, chronic inflammatory disease. Often, this can result in the development of inflammation-associated gastrointestinal tumors [1]. Both the development of inflammation and tumor formation have been linked to the formation of reactive oxygen species (ROS) in diseased tissues [2]. NADPH oxidases, particularly Nox1, appear to be the most likely sources for the generation of these oxidants.

The recently described NADPH oxidase (Nox) enzyme family, composed of Nox1, Nox2, Nox3, Nox4, Nox5, Duox1, and Duox2, generate ROS as their primary reaction product [2]. Several of these enzymes, including Nox1, localize to epithelial barrier tissues, where they participate in the innate immune response to microbial infection [1, 2, 3]. Nox1 is highly expressed in gastric [4] and colon epithelium and in the colon tumor cell lines Caco-2, DLD-1, and HT-29 [5, 6, 7], as well as to a lesser extent in a variety of other cell types [2]. It has been shown that lipopolysaccharides from pathogenic Helicobacter pylori strains cause enhanced ROS release by guinea pig gastric pit cells [8], while in a human colon cancer line, T-84, recombinant flagellin from Salmonella enteritidis stimulated ROS-dependent release of IL-8 [9]. Szanto et al. [7] detected high Nox1 mRNA levels in interstitial lymphoid cells of the colon, particularly within inflammatory lesions of ulcerative colitis and Crohn's disease patients.

Structurally, Nox1 is most closely related to Nox2 of phagocytic leukocytes and, as with the phagocyte NADPH oxidase, superoxide generation by Nox1 requires the membrane co-subunit p22phox [10, 11]. Nox1 activation also depends on interactions with cytosolic regulatory subunits, including NoxO1, which is a homologue of the phagocyte oxidase p47phox adapter protein, and NoxA1, a homologue of the Nox2 p67phox ‘activator protein’ [12, 13]. Finally, as with Nox2, full Nox1 activity is dependent on the Rac1 GTPase [14, 15, 16]. We recently demonstrated the inhibition of Nox1 activity in response to elevation of intracellular cAMP and the resulting activation of cAMP-dependent protein kinase [17]. This resulted in the phosphorylation of NoxA1 at Ser172 and Ser461 and induced the binding of 14-3-3ζ protein. 14-3-3 proteins form homo- and heterodimers that can interact with a wide variety of cellular proteins through specific phosphoserine/phosphothreonine-binding motifs (RSXpSXP or RXXpSXP) [18, 19, 20]. The effects of 14-3-3 proteins on their targets include inducing conformational changes in the target protein, masking specific region(s) on the target, and acting as a scaffold to regulate localization and/or substrate activity [21].

Bacillus anthracis, the causative agent of anthrax, is a Gram-positive bacterium whose endospores enter the body through skin abrasions, inhalation, or ingestion [22]. Once the host is infected, the B. anthracis spores germinate into vegetative bacilli and secrete multiple virulence factors, including a toxin and an anti-phagocytic poly-D-glutamic acid capsule. The action of the toxin is thought to play a critical role in the pathogenesis of anthrax. Anthrax toxin is a classic ‘AB’ toxin, composed of three polypeptides. The B component, protective antigen (PA), binds to two alternative A components, lethal factor (LF) and edema factor (EF), to produce lethal toxin (LTx) and edema toxin (ETx), respectively [reviewed in ref. 22, 23]. For these toxins to gain entry into cells, PA binds to the cell surface receptor tumor endothelial marker-8 (ATR/TEM8) [24] and capillary morphogenesis protein 2 (CMG2) [25]. While CMG2 is widely expressed at low levels [26], ATR/TEM8 is highly expressed in the vasculature of tumors, as well as on epithelial cells in the gastrointestinal tract [27]. Receptor-bound PA is then cleaved by cell surface proteases, leaving a 63-kDa fragment which assembles into a heptameric prepore complex. Up to three molecules of LF and/or EF bind to the prepore complex and the entire toxin complex undergoes receptor-mediated endocytosis. As the complex traffics through the endocytic pathway, it is exposed to increasingly acidic pH which initiates pore formation by the PA heptamer, ultimately enabling EF and LF to translocate into the cytosol.

LF is a zinc-dependent metalloprotease that cleaves and inactivates six of the seven mitogen-activated protein kinase (MAPK) kinases (MEKs) [23]. These enzymes are direct activators of the MAPK pathways, which include extracellular-regulated kinase (ERK), p38, and c-Jun amino-terminal protein kinase (JNK). In contrast, EF is a calcium- and calmodulin-dependent adenylyl cyclase that causes persistent increases in intracellular levels of cAMP [28], subsequently causing the activation of cAMP-dependent protein kinase, also known as protein kinase A (PKA) [29].

Clinical findings in individuals infected with B. anthracis suggest an early inhibition of the innate immune system [30, 31]. While considerable research has centered on the effects of anthrax toxin on macrophages, which are clearly critical in the etiology of anthrax, there is little information on the effects of the B. anthracis toxins on other components of the innate immune system, particularly in humans. The formation of ROS by phagocytic leukocytes is important in human host resistance and bacterial killing [32], and both LTx and ETx have been shown to inhibit chemoattractant-induced superoxide production in human neutrophils [33, 34]. Whether B. anthracis is able to antagonize the action of other, non-phagocytic Nox enzymes at sites of intoxication has not been investigated.

In the present study, we show that B. anthracis ETx induces the down-regulation of ROS production by Nox1 activity in intestinal epithelial cells. We establish that the mechanism for this inhibitory effect of ETx is the PKA-induced phosphorylation of the Nox1-regulatory component, NoxA1, and the subsequent induction of 14-3-3ζ binding to phosphorylated NoxA1. These findings identify a mechanism by which ingested B. anthracis may avoid the Nox1-mediated component of the innate immune response of gastrointestinal epithelia.

Materials and Methods

Cell Culture and Reagents

Human HEK293 cells, human CCD841T colon epithelial cells, and HT-29 colon adenocarcinoma cells were maintained in Dulbecco's modified Eagle's medium (Invitrogen, Carlsbad, Calif., USA) containing 10% heat-inactivated fetal bovine serum (Invitrogen), 1 mM sodium pyruvate, 100 µM nonessential amino acids, and antibiotics (100 units/ml penicillin and 100 µg/ml streptomycin) at 37°C in 5% CO2. The CCD841T cell line was derived from normal human colon epithelia and exhibits a normal epithelial cell (non-transformed) phenotype under the culture conditions utilized (see ATCC catalog). H89, horseradish peroxidase, luminol, and monoclonal anti-Myc antibody were purchased from Sigma. Polyclonal anti-NoxA1 antibody was generated in-house as part of the Centers for Disease Control Program PO1 CI000095. Anti-14-3-3ζ antibody was from Santa Cruz Biotechnology (Santa Cruz, Calif., USA), anti-PKA-specific Ser/Thr antibody was from Cell Signaling Technology (Beverly, Mass., USA). ECL reagents were from Pierce, and protein A- or G-Sepharose beads were from Amersham Biosciences (Piscataway, N.J., USA). Anthrax toxins were from Beiresources (Manassas, Va., USA) or were generated in-house.

Plasmids

pRK5-myc-NoxA1, -NoxA1 mutants (S172A, S461A, or S172/461A), pcDNA3.1-HA-PKA-CA, -KD, pcDNA3.1-HA-14-3-3ζ or −14-3-3ζ-K49E were described previously [17].

Transient Transfections

HEK293 cells or HT-29 cells were plated at 4 × 105 cells/well in 6-well plates and grown overnight in Dulbecco's modified Eagle's medium with 10% fetal bovine serum, 100 units/ml penicillin, and 100 µg/ml streptomycin to 40–50% confluence. Cells were transfected with vectors harboring the inserted gene using Lipofectamine 2000, according to the manufacturer's instructions. In all experiments where activity was determined, the expression levels of each transfected protein component were verified to be unaffected under each condition by immunoblot [17].

Measurement of ROS

ROS were determined using luminol chemiluminescence, as described previously [17]. Cells cultured in six-well plates were harvested by incubation with trypsin/EDTA for 1 min at 37°C. After being washed with phosphate-buffered saline (without MgCl2 and CaCl2), the cells were removed from the well, washed twice with cold Hanks’ balanced salt solution containing calcium and magnesium, then pelleted at 1,000 g for 5 min and resuspended in Hanks’ balanced salt solution. Chemiluminescence was measured for 30 min at 37°C.

Membrane and Cytosol Fractionation

Cells grown in 10-cm dishes were washed with cold 1× phosphate-buffered saline, and extracted in ice-cold lysis buffer (100 mM Pipes, pH 7.3, 100 mM KCl, 3.5 mM MgCl2, 3 mM NaCl, 1 mM ATP supplemented with 1 mM phenylmethylsulfonyl fluoride, 1 µg/ml aprotinin, 1 µg/ml leupeptin, 1 µg/ml pepstatin, and 1 mM vanadate) for 5 min. Cells were collected by scraping, and cell lysates prepared by sonication four times for 30 s. The resulting homogenates were centrifuged at 3,000 rpm for 10 min to pellet nuclei and intact cells, and supernatants were then centrifuged at 45,000 rpm at 4°C for 60 min in a refrigerated ultracentrifuge (TL100, Beckman) to sediment plasma membranes. The cytosol-containing supernatant was removed, and the crude membrane pellet was gently washed with lysis buffer. Membrane fractions were resuspended in lysis buffer, sonicated three times for 30 s, then centrifuged at 45,000 rpm at 4°C for 60 min. Membrane and cytosol fractions were then assayed for total protein, and equal amounts (30 µg) analyzed by Western blotting. For protein immunoprecipitation experiments, cells were solubilized with sonication in standard radioimmune precipitation assay buffer with 1% Nonidet P-40 and 0.1% SDS containing a protease inhibitor mixture for 1 h at 4°C, and then centrifuged at 45,000 rpm at 4°C for 45 min. Individual proteins were immunoprecipitated using appropriate antibodies and analyzed by Western blotting, as indicated in the figure legends.

Results

Anthrax ETx Inhibits Nox1 Activity

ETx was reported to inhibit ROS formation by neutrophils, and these studies implicated the action of cAMP-induced PKA activation in the inhibitory mechanism [29, 33, 34]. Recently, we reported that Nox1 activity, which is abundant in colon epithelium, can also be regulated by the action of PKA and 14-3-3 proteins [17]. As the gastrointestinal tract is a major mode of entry of B. anthracis endospores, we hypothesized that ETx might inhibit ROS formation in colon epithelial cells as a means to escape host innate immunity. To determine whether ETx influences Nox1 activity, we measured Nox1-dependent ROS production in the HT-29 colon carcinoma cell line, which expresses endogenous Nox1 and Nox1-regulatory components (NoxA1 and NoxO1) [12, 13, 35, 36]. In HT-29 cells, the addition of PA or EF alone had no significant effect on Nox1 activity. In contrast, ETx significantly inhibited Nox1 activity (fig. 1a) in a time- (fig. 1b) or concentration-dependent manner (fig. 1c). Both the timing of ETx action and the concentration-response relationship observed are consistent with the results obtained previously for inhibition of the neutrophil Nox2 system [34]. The lack of effect of either PA or EF alone indicates that the action of ETx to inhibit Nox1 activity requires intracellular activity of EF as an adenylate cyclase.

Fig. 1.

Fig. 1

Open in a new tab

Anthrax ETx inhibits Nox1 activity in HT-29 cells. a HT-29 cells were treated with or without 1 µg/ml PA, 0.5 µg/ml EF, or ETx (1 µg/ml PA plus 0.5 µg/ml EF) for 3 h. b Cells were exposed to ETx (1 µg/ml PA plus 0.5 µg/ml EF) for the indicated time periods. c Cells were treated with various doses of ETx (1 µg/ml PA plus indicated concentration of EF) for 3 h. Nox1 activity was then determined by chemiluminescence assay. Representative experiments from three separate experiments are shown. RLU = Relative light units.

PKA Activity Is Required for Inhibition of Nox1 by ETx

Since activation of the cAMP/PKA pathway is a well-established component of ETx-mediated cellular responses, we sought to determine whether PKA activity was necessary for inhibition of Nox1 activity by ETx. In the presence of the PKA inhibitor H89, the effect of ETx to inhibit HT-29 cell Nox1 activity was attenuated (fig. 2a). Similarly, overexpression of a catalytically inactive PKA catalytic subunit (PKA-KD) decreased the action of ETx, while an active PKA catalytic subunit (PKA-CA) inhibited Nox1 activity in a synergistic fashion with ETx (fig. 2b). These results establish that Nox1 activity is negatively regulated by ETx, most likely through its ability to induce PKA activation.

Fig. 2.

Fig. 2

Open in a new tab

Inhibition of Nox1 activity by ETx is mediated via the activation of PKA. a HT-29 cells were pretreated with or without 0.1 µM H89 for 30 min before treatment with ETx (1 µg/ml PA plus 0.5 µg/ml EF) for 3 h, and then Nox1 activity was determined. b pcDNA3-HA-PKA-CA or -PKA-KD were transiently transfected into HT-29 cells for 48 h, and then the cells were treated with or without ETx (1 µg/ml PA plus 0.5 µg/ml EF) for 3 h before Nox1 activity was measured. c The cytosol and membrane protein levels of endogenous NoxA1 were examined after treatment with ETx (a) by cell fractionation and immunoblot analysis. Representative experiments from three separate experiments are shown. RLU = Relative light units.

ETx Regulates NoxA1 Localization

Several prior studies have established that the plasma membrane localization of NoxA1 is critical for Nox1 activity, and that membrane localization of NoxA1 is dependent on NoxO1 and/or active Rac1 GTPase [14, 15, 16]. We recently showed that the membrane localization of NoxA1 was disrupted by PKA activation [17]. Therefore, we examined whether ETx regulates the subcellular localization of NoxA1 through a similar mechanism. Under the basal condition or upon H89 treatment, endogenous NoxA1 was found to be localized in the HT-29 membrane fraction. In contrast, treatment of the cells with ETx increased the appearance of NoxA1 protein in the cytosolic fraction, and this effect of ETx was reduced in the presence of H89 (fig. 2c).

ETx Mediates Phosphorylation of NoxA1 via PKA

Our previous results showed that the relocalization of NoxA1 induced by PKA resulted from the phosphorylation of NoxA1 at two specific sites, Ser172 and Ser461 [17]. We therefore examined whether ETx induced the phosphorylation of NoxA1 at these same positions. HEK293 cells were transiently transfected with NoxA1 wild type for 16 h, and treated with or without PA, EF, or ETx. NoxA1 protein was immunoprecipitated, and its phosphorylation state determined by immunoblotting with an anti-phosphoSer/Thr PKA-specific antibody. Phosphorylation of NoxA1 was substantially increased by ETx compared with controls or cells treated with PA or EF alone (fig. 3a). We next confirmed the ETx-induced phosphorylation sites of NoxA1 and the PKA dependency of NoxA1 phosphorylation. HEK293 cells were transiently transfected with NoxA1 wild type or its phosphorylation site mutants for 16 h, and treated with or without ETx in the presence or absence of the PKA inhibitor H89. As expected, ETx phosphorylation of NoxA1 was lost when both Ser172 and Ser461 were mutated to Ala (fig. 3b). NoxA1 phosphorylation was also inhibited by H89 treatment, in both the wild-type protein and the individual phosphorylation site mutants (fig. 3b). These results indicate that ETx induces the phosphorylation of NoxA1 in a PKA-dependent manner at Ser172 and Ser461.

Fig. 3.

Fig. 3

Open in a new tab

ETx phosphorylates NoxA1 at Ser172 and Ser461. HEK293 cells were transiently transfected with pRK5-myc-NoxA1 for 16 h before treatment with or without 1 µg/ml PA, 0.5 µg/ml EF, or ETx (1 µg/ml PA plus 0.5 µg/ml EF) for 3 h (a), or transiently transfected with myc-NoxA1-WT, -NoxA1(S172A), -NoxA1(S461A), or -NoxA1(S172/461A) for 16 h, then preincubated with or without 0.1 µM H89 for 30 min before treatment with ETx (1 µg/ml PA plus 0.5 µg/ml EF) for 3 h (b). Immunoprecipitation was carried out using antibody directed against Myc (NoxA1 epitope), and the presence of the phosphorylated NoxA1 and total immunoprecipitated NoxA1 was detected using anti-phospho-PKA-specific Ser/Thr (S/T) antibody and anti-Myc antibody, respectively. Representative experiments of two separate experiments are shown.

ETx Induced Phosphorylation of NoxA1 Recruits 14-3-3ζ for Inhibition

We had previously observed that the phosphorylation of NoxA1 by PKA at Ser172 and Ser461 led to the binding of 14-3-3 proteins with NoxA1, resulting in inhibition of NoxA1 membrane translocation and overall Nox1 activity [17]. Similarly, we were able to observe the interaction of NoxA1 and 14-3-3ζ with endogenous phosphorylated NoxA1 in HT-29 cells treated with ETx (fig. 4a). While the presence of H89 did not affect basal 14-3-3ζ binding to NoxA1, H89 treatment substantially reduced ETx-induced 14-3-3ζ binding to NoxA1, concomitant with inhibition of NoxA1 phosphorylation (fig. 4a). Consistent with these findings, ETx more effectively inhibited Nox1 activity when co-expressed with wild-type 14-3-3ζ than in the basal condition (fig. 4b). In contrast, overexpression of 14-3-3ζ-K49E, a mutant that no longer binds to phosphorylated substrates, dramatically reduced the inhibitory effects of ETx (fig. 4b), suggesting that PKA and 14-3-3 proteins were utilized for inhibition of Nox1 activity by ETx.

Fig. 4.

Fig. 4

Open in a new tab

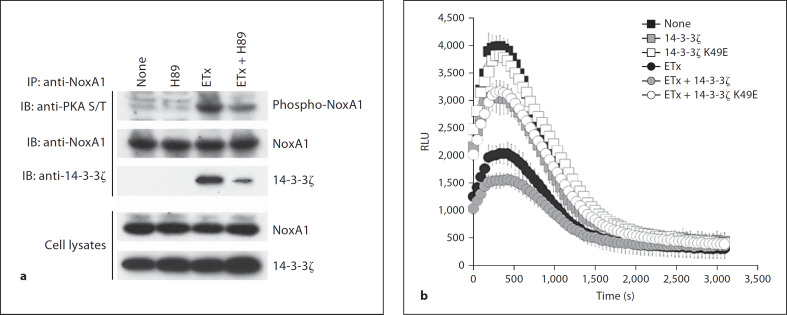

ETx inhibits Nox1 activity by the PKA-mediated recruitment of 14-3-3ζ. HT-29 cells were preincubated with or without 0.1 µM H89 for 30 min before treatment with ETx (1 µg/ml PA plus 0.5 µg/ml EF) for 3 h. Cell lysates were immunoprecipitated with anti-NoxA1 antibody, and phosphorylated NoxA1 and bound 14-3-3ζ were detected using anti-phospho-PKA-specific Ser/Thr (S/T) antibody and anti-14-3-3ζ antibody, respectively (a), b HT-29 cells were transiently transfected with or without 14-3-3ζ WT or 14-3-3ζ K49E for 48 h, and then treated with or without ETx (1 µg/ml PA plus 0.5 µg/ml EF) for 3 h before determining Nox1 activity. Representative experiments from two or three separate experiments are shown. RLU = Relative light units.

Discussion

Despite the advances in understanding the structure and mode of action of anthrax LTx and ETx in recent years, the intracellular mechanisms modulated by these toxins to regulate innate immune responses have not been fully determined. ETx has been shown to be a highly active Ca2+-calmodulin-regulated adenylate cyclase [28]. The levels of ETx-induced increases in cAMP differ between cell types, but may reach 500–1,000-fold values, representing conversion of 20–50% of the cellular ATP stores [28, 29, 37]. The contribution of EF to systemic anthrax is debated, as isogenic EF knockout B. anthracis strains are attenuated only 10-fold in the mouse model for systemic anthrax [38]. The major function of ETx appears to be the suppression of the host innate immune response, thus contributing to the establishment of the infection. Increases in cAMP concentration have many effects on cellular metabolism, most of which are thought to be mediated through PKA. ETx blocks priming of PMNs by muramyl dipeptide or lipopolysaccharide, decreasing the release of superoxide anion caused by subsequent stimulation with chemotactic peptide [33]. We previously showed that ETx inhibited the chemoattractant-stimulated formation of ROS by the human neutrophil Nox2 system through the action of PKA [34]. Therefore, ETx has the potential to disrupt the phagocytic antibacterial responses at several key levels.

There is increasing evidence that Nox1 activity and its formation of ROS contributes to the innate immune response to bacterial infection in the gastrointestinal tract [1]. We have recently identified a mechanism for the inhibitory regulation of stimulated Nox1-dependent ROS formation that is mediated via the cAMP → PKA-mediated phosphorylation of the Nox1-regulatory component NoxA1 [17]. We showed that this pathway was activated by toxin produced by Vibrio cholerae, a Gram-negative bacterium known to enter the host through the gut epithelium. Here we extend this bacterial immune avoidance mechanism to B. anthracis. We show now that Nox1 activity is decreased by ETx in HT-29 colon adenocarcinoma cells (fig. 1), and that this effect is dependent on the stimulation of PKA activity by ETx action (fig. 2). Nox1 inhibition requires the phosphorylation of the Nox1-regulatory protein, NoxA1, at the Ser172 and Ser461 sites (fig. 3b), and this induces the tight binding of 14-3-3ζ to NoxA1 (fig. 4), resulting in its sequestration in the cytosol (fig. 2c), where it is unable to support the activity of the membrane-localized Nox1 complex. We observed essentially similar results when we examined the effects of ETx on Nox1 function in CCD841 ‘normal’ (non-transformed) colon epithelial cells (data not shown). We conclude that the suppression of ROS formation in the gut epithelium by secreted ETx may be an important mechanism used by B. anthracis to avoid this component of innate immune defense during the infectious process.

Acknowledgments

We acknowledge the technical assistance of Bruce Fowler, and the advice in use of ETx from Dr. Aimee Decathelineau. This work was supported by Centers for Disease Control grant CI000095 and NIH grant HL48008 (to G.M.B.).
