Direction-Dependent Control of Balance During Walking and Standing

INTRODUCTION

The CNS uses integrative sensory feedback to control balance and compensate for instabilities. The upright human body, for example, is unstable and its balance is continuously stabilized through the integration of visual, vestibular, proprioceptive, and other sensory inputs. Other tasks may use sensory information in a discrete rather than continuous manner. In particular, walking has periodic dynamics, in which the discrete step-by-step stability may be quite different from posture. This may therefore dictate differences in active control, as well as how sensory information is integrated and used for step-by-step stabilization. An implication of these differences is that clinical tests of standing balance may not capture some aspects of gait stability. Here we present an experimental study of the role of vision in the control of balance during walking, contrasted with its role in upright standing. We propose that the dynamics of walking may provide a degree of passive, step-by-step stability that is not present in standing.

The inverted pendulum dynamics of the upright body make posture unstable if not for CNS control. The CNS actively balances the head, trunk, and legs on the ground with corrective torques based on sensory feedback (Horak and Macpherson 1996; Johansson and Magnusson 1991). This control relies on both local spinal reflexes (Allum 1983; Carpenter et al. 1999) and higher level integration of visual, vestibular, and other inputs (e.g., Nashner et al. 1982). Reduction of sensory information typically degrades posture control and the combined loss of both visual and vestibular inputs makes posture considerably less stable despite the remaining presence of proprioceptive inputs (Black et al. 1983). Integrative feedback control is demonstrated even more directly by active body sway, which can be induced simply from experimental perturbations of the sensory inputs. For example, vision can be driven by an artificial visual field (e.g., Keshner and Kenyon 2000; Mahboobin et al. 2005; Peterka 2002) and vestibular inputs can be manipulated by galvanic stimulation (e. g., Fitzpatrick et al. 1994; Inglis et al. 1995). The instability induced by multisensory loss demonstrates the necessity of integrative feedback and the sensitivity of posture to driven inputs quantifies the contributions of sensory inputs to that integration.

Walking also requires CNS control, but in different ways. As in posture, the upright head and trunk are continuously balanced through integrative feedback (Keshner et al. 1988), demonstrated for example by their real-time sensitivity to sinusoidal visual perturbations (Keshner and Kenyon 2000; Warren et al. 1996). Unlike posture, however, walking also cyclically places the body center of mass beyond the base of support, interpreted by some as “controlled falling” (Perry 1992). Continuous-time stability therefore appears not to be strictly required for the body as a whole, as long as the periodic gait is stable. Stability usually requires CNS control, but it is possible that some degree of step-to-step stability may be afforded through passive dynamics. Passive dynamic walking machines, for example, can walk stably with no feedback control whatsoever (McGeer 1990). The difference between continuous and step-to-step stability is demonstrated by a passive dynamic walking toy that is unable to stand up, but can walk stably down a ramp (Coleman and Ruina 1998). In a three-dimensional computational model of dynamic walking (Kuo 1999), we found fore–aft motion to exhibit passive dynamic stability and the lateral motion a high degree of instability. The lateral instability is easily controlled through active adjustment of lateral foot placement with each step, driven by sensory feedback, although no feedback is necessary for the model's step-to-step stability in the fore–aft direction.

If such stability applies to human walking, only the lateral component of active, step-to-step control would be expected to require higher-level integrative feedback. This feedback would provide sensing of body orientation and motion similar to that used for continuous-time control of posture; however, there would be little need for integrative feedback for the fore–aft motion because lower-level propriospinal feedback may be sufficient for the legs to support body weight and behave like pendulums. Indirect evidence for direction-dependent stability is given by previous observations that human subjects walk with greater lateral than fore–aft step variability (Bauby and Kuo 2000). Moreover, removal of visual feedback results in a much larger increase in the lateral variability. If step-to-step stability is indeed different from postural stability, the difference might help to explain why clinical tests of posture do not always predict gait ability (Shimada et al. 2003; Visser et al. 2008). The contribution of vision to step-by-step walking stability has yet to be quantified, but could be assessed by perturbing the visual field along multiple directions, as has been demonstrated in posture (Streepey et al. 2007).

The purpose of the present study was to evaluate the sensitivity of step-to-step foot placement to perturbations of the visual field. We hypothesized that walking is dynamically unstable in the mediolateral (ML) direction and therefore actively stabilized through integrative feedback control of foot placement. In contrast, walking might be passively stable in the anteroposterior (AP) direction, so that little control is needed for AP foot placement. Here we use “passive” to refer to the dynamics of limbs whose behavior may be regulated by propriospinal control, but with little integrative control directly influencing foot placement. We expected that ML foot placement would be highly sensitive to ML perturbations to the visual field, but that AP foot placement would be relatively insensitive to AP perturbations. To control for the possibility that observed sensitivities are simply due to direction dependencies in visual processing rather than the task dynamics, we also compared walking to an analogous set of continuous balance tasks. During standing, we expected the degree of instability, and thus sensitivity to visual perturbations, to depend on the base of support and therefore the type of stance. For both step-to-step balance during walking and continuous balance during standing, we hypothesized that the visual contribution to active control increases with the degree of passive instability.

METHODS

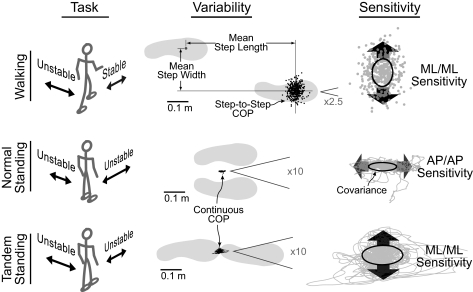

We measured the effect of visual perturbations on center-of-pressure (COP) variability as an indicator of the degree of integrative control during both walking and standing (Fig. 1). For walking, COP variability quantified contributions of discrete, step-to-step foot placement to active control (Bauby and Kuo 2000). For standing, it quantified the continuous application of balancing torque against the ground. Given ideal sensors and no disturbances, both walking and standing would be expected to exhibit no variability. More realistically, however, internal and external perturbations and imperfect sensors could contribute to variability of discrete (foot placement) COP during walking and continuous COP during standing. We induced visual sensory perturbations with a virtual reality environment and quantified both types of variability with the root-mean-square (RMS) variability in the ML and AP directions. During walking, these correspond to RMS variability in step width and step length, respectively. Variabilities were recorded as a function of visual field perturbations, yielding direction-dependent sensitivity measures. We applied oscillatory perturbations to the visual field during walking and two types of standing, with the feet placed side by side (“normal”) or heel to toe (“tandem”). Sensitivities to perturbations were quantified as the change in RMS variability per unit change in perturbation amplitude.

From our computational models of walking, we expected greater instability in the lateral direction. This would be manifested as a high sensitivity of ML variability to ML perturbations, referred to as “ML/ML sensitivity,” and a lower AP/AP sensitivity (Fig. 1, right column). In contrast, we expected standing to be generally unstable, perhaps with the degree of instability depending on direction. Empirical observations suggest that normal stance is more unstable in the AP direction (Marigold and Eng 2006; Paulus et al. 1984) and tandem stance in the ML direction (Hong et al. 2007), perhaps due to differences in the base of support (Day et al. 1993; Henry et al. 2001; Horak et al. 2005). This leads to expectations of greater AP/AP sensitivity during normal stance and greater ML/ML sensitivity during tandem stance.

RESULTS

Perturbations of the visual scene induced increases in variability during both walking and standing. The sensitivity to perturbation amplitude depended on both the task (walking vs. standing) and the direction of perturbation (ML vs. AP). For all tasks, subjects showed the greatest sensitivity in the direction of predicted instability: ML/ML sensitivity was greatest for walking and tandem standing and AP/AP sensitivity was greatest for normal standing. Details of these results and additional within-task comparisons are reported in the following text, beginning with results for control conditions to facilitate comparisons. (See Supplemental Table S1 for summary statistics.1)

During the walking control condition, subjects walked at 1.25 m/s with an average step length 0.683 ± 0.033 m (values reported as means ± SD) and step width of 0.159 ± 0.041 m. Step length (or AP) variability was 0.019 ± 0.008 m and step width (or ML) variability was 0.025 ± 0.007 m, both expressed as root-mean-square (RMS) deviations of discrete, step-to-step COP. Step width variability was 31% greater than step length variability (P = 0.024, paired t-test). During the normal standing condition, AP variability was 0.0025 ± 0.0009 m and ML variability was 0.0011 ± 0.0004 m, both expressed as RMS deviations of continuous COP. AP variability was 2.3-fold greater than ML variability (P = 8.7e-5) in this case. During the tandem standing condition, subjects exhibited AP variability of 0.0050 ± 0.0034 m and ML variability of 0.0043 ± 0.0014 m. Compared with normal standing, AP variability was twofold greater (P = 0.060) and ML variability was 3.9-fold greater (P = 6.6e-5) during tandem standing.

Visual perturbations had little effect on mean step parameters. Mean step length varied by at most 1.2% across perturbation directions (P = 0.0014, repeated-measures ANOVA) and 2.6% across perturbation amplitudes (P = 0.010). Mean step width varied by insignificant amounts, 0.8% across direction (P = 0.63) and 7.4% across amplitude (P = 0.51). There was no evidence of significant amplitude–direction interaction (P = 0.057).

Visual perturbations had much greater effect on step variabilities, which varied approximately linearly with perturbation amplitude depending on perturbation direction (Fig. 3). For example, the slope of ML variability attributed to ML perturbations (i.e., the ML/ML sensitivity) was 0.123 ± 0.075, with a significant amplitude dependence (P = 5.7e-4), with R² = 0.81. Not only did ML perturbations affect step width variability, but they also caused an increase in step length variability, with AP/ML sensitivity of 0.017 ± 0.014 (P = 0.0047), with R² = 0.82. In contrast, AP perturbations had little effect at all; the sensitivities were much smaller < = 0.013 and not significantly different from zero (P = 0.34 for ML/AP sensitivity; P = 0.12 for AP/AP sensitivity).

Variability during both types of standing also increased with perturbation amplitude (Fig. 4), depending on the direction of perturbation. In normal standing, AP COP variability increased with both perturbation directions: AP/AP sensitivity was 0.040 ± 0.031 (P = 0.0044), with R² = 0.83, and the AP/ML sensitivity was a small but significant 0.024 ± 0.013 (P = 0.0005), with R² = 0.94. In contrast, ML variability was relatively insensitive; the ML/ML sensitivity (P = 0.20) and ML/AP sensitivity (P = 0.30) were not significantly different from zero. During tandem standing, the ML/ML sensitivity was 0.032 ± 0.014 (P = 4.2e-5), with R² = 0.95. The other sensitivities were not significantly different from zero (AP/ML sensitivity, P = 0.87; AP/AP sensitivity P = 0.26; ML/AP, P = 0.20).

Perturbation sensitivities followed the trends predicted by task dynamics (Fig. 5). During walking, the ML/ML sensitivity was about 9.4 times greater than the AP/AP sensitivity (P = 0.0005, repeated-measures ANCOVA). However, variabilities during normal standing exhibited an opposite trend, with an AP/AP sensitivity about 2.3 times greater than ML/ML sensitivity (P = 0.039, repeated-measures ANCOVA). During tandem standing, the main sensitivity was ML/ML, which was 3.0 times greater than the AP/AP sensitivity (P = 0.0051). Even though variability was measured in different ways for walking and standing (continuous COP vs. discrete steps), the sensitivities to visual perturbations were of roughly the same order of magnitude. The most important comparison is therefore between sensitivities for each task, showing walking to be relatively far more sensitive in the ML than that in the AP direction and standing to have the converse effect, to a somewhat lesser degree.

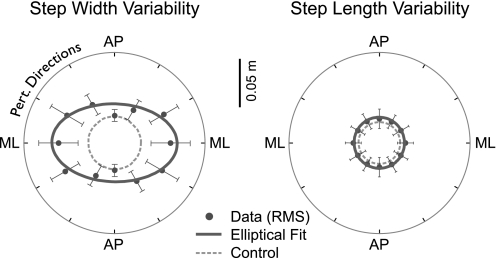

Step variabilities also varied with perturbation direction intermediate to AP and ML (Fig. 6). Perturbations in 30° increments resulted in variabilities that changed relatively smoothly between the two extremes. These increments also demonstrate how ML perturbations affected both step width and length variabilities, through the eccentricity of ellipses fitted to polar plots of variability as a function of perturbation direction. For step-width variability, the ellipse demonstrated significantly greater variability in the ML direction (P = 1.1e-10), corresponding to an eccentricity of 0.78. For step-length variability, the eccentricity of the ellipse was 0.17 and not significantly different from that of a circle (P = 0.64).

The effect of visual perturbations on walking was similar even with the nominally stationary visual field (see Fig. 5, No Flow condition). In fact, the visual-field condition had no significant effect on the primary sensitivities (normal flow vs. no flow: ML/ML, P = 0.18; AP/AP, P = 0.50). Importantly, ML/ML sensitivity was significantly greater than AP/AP sensitivity (by a factor of 3.58, P = 0.0079), even when the average speed of the visual field was zero relative to the subject.

DISCUSSION

This study was designed to determine whether human walking has passive dynamic stability in the AP direction, but not in the ML direction. We had hypothesized that ML instability would require integrative control of foot placement in that direction. We applied visual field perturbations in a variety of directions and amplitudes and measured their effect on foot placement variability. For comparison, we also tested the effect of visual perturbations on normal and tandem standing, hypothesizing that the base of support would determine directions of greatest instability. Our results revealed an amplitude and direction dependence of visual perturbations on step length and width variability during walking. During standing, COP variability was also sensitive to visual perturbations. The direction dependencies were consistent with our hypotheses: low sensitivity of step length to AP perturbations, high sensitivity of step width to ML perturbations, high sensitivity of the AP component of normal standing, and high sensitivity in the ML direction during tandem standing. These findings have a number of implications for the control of walking and standing and, in general, the role of integrative feedback in motor control.

Our results suggest that integrative visual feedback is used more for controlling lateral than fore–aft balance during walking. Direction-dependent sensitivity was predicted from the unstable lateral balance of dynamic walking models, which require active feedback only in the lateral direction (Kuo 1999). The observed high sensitivity of ML foot placement to ML visual perturbations suggests that vision is used to drive lateral foot placement. In contrast, there was no significant sensitivity of foot placement to AP perturbations, indicating little use of vision in that direction for balance. In dynamic walking models and machines, passive stability is afforded by the pendulum-like motion of the legs and the step-to-step transition, in which the heelstrike collisions dissipate more or less energy when perturbations respectively add or subtract energy (Kuo 2002; Wisse et al. 2005). This results in a motion that is stable over discrete steps (also referred to as “limit cycle” stability), despite having inverted-pendulum instability in continuous time. Interestingly, we found ML perturbations to also affect step-length variability, as indicated by significant AP/ML sensitivity. This may be explained by dynamic coupling between step width and step length, as observed in our computational models (Bauby and Kuo 2000). Passive dynamics may afford walking a degree of limit cycle stability in the AP direction without need for integrative control; however, stability in the ML direction appears to depend on the integration of sensory feedback regarding ML motion of the body, for adjusting lateral foot placement.

We also observed direction dependence in the continuous-time control of standing. The higher sensitivity to AP than to ML visual perturbations suggests that AP balance may be actively and integratively controlled to a greater extent than ML balance. This direction dependence may be due to the configuration of the lower extremity, which in the sagittal plane resembles a multisegment inverted pendulum. In the frontal plane (ML direction), however, the two legs, pelvis, and ground form a four-bar linkage, which might be passively less unstable than an inverted pendulum. This may explain why subjects were quite insensitive to ML visual perturbations during normal standing. Others have also observed that increased stance width allows subjects to respond with smaller active postural responses, when perturbed either physically (Henry et al. 2001) or visually (Day et al. 1993; Hong et al. 2007) in the ML direction. The configuration is quite different in tandem standing, where the base of support is much reduced in the ML direction. Subjects weighted vision differently in that condition, consistent with how stability is expected to vary with configuration.

A potential concern regarding these results is that direction-dependent visual sensitivity might be an artifact of physiological limitations in visual processing. The low AP/AP sensitivity during walking might then be explained by poor ability to detect motion in that direction. This appears unlikely, however, because subjects exhibited high AP/AP sensitivity during standing. Another concern is that the AP flow of the visual field during walking might reduce visual sensitivity to perturbations in the AP direction compared with standing, although this appears not to be the case—because walking sensitivity was similar even when perturbations were added to a stationary hallway (see Fig. 5, No Flow condition), even though the visual field was identical to that of standing. Other evidence suggests that the CNS can indeed sense perturbations to a moving visual field because AP visual motion is still sensed and used for continuous-time stabilization of the head and trunk during walking (Keshner and Kenyon 2000) and bulk flow has little effect on this control (Warren 1996). Another possible issue is that visual perturbations in AP and ML directions might simply be fundamentally different. Irrespective of whether this is the case, self-motion perception will generally depend on visual-field motion in multiple directions. Our data revealed continuously varying responses as a function of perturbation direction (Fig. 6), suggesting that the CNS can integrate multidirectional information even if AP and ML directions are sensed differently. It appears that the CNS does detect and respond to AP visual information during walking, but uses it selectively for continuous-time postural stabilization and very little for step-to-step, limit-cycle stabilization.

Our findings are subject to several limitations. The visual perturbations produced only an imperfect illusion of self-motion, due to the limited resolution and fidelity of the computer projected display, such as lack of stereoscopic head tracking in the virtual reality system. These limitations may have reduced the ability to detect significant sensitivities. Perturbations were also restricted to relatively low frequencies, where vestibular organs have low sensitivity, to avoid large conflicts between visual and vestibular input. Higher perturbation frequencies (and perhaps amplitudes) may induce greater conflict, which might produce different effects, as has been observed with sensory perturbations to posture (Peterka 2002). We did not test low or high enough amplitudes to detect such effects. In our tests, the sensation of self-motion could be considered relatively strong because all subjects were generally sensitive to perturbations and none was excluded from the analysis, as is necessary in some other studies (Warren et al. 1996). Our estimates of COP during treadmill walking were also of limited precision in the AP direction, due to imperfect estimation of AP COP from a moving treadmill belt (Donelan et al. 2004). This may have introduced a constant offset in estimates of AP step variability, although this would have little effect on sensitivity measures, which were based on the slope of that variability. Finally, our measures of perturbation sensitivity were based on aggregate step variability rather than a correlation between individual perturbations and succeeding steps. We consider aggregate sensitivity to perturbations to provide better evidence of active control than previous studies using removal of vision (Bauby and Kuo 2000). However, it would be more direct to detect active foot placement control on a step-by-step basis.

A general theme of this study is that sensory feedback should be weighted based on stability requirements. Inherently unstable motor tasks require active feedback control for stability. Tasks or task directions with the greatest instability require more feedback, while others may require little feedback. Moreover, such feedback requirements should not be specific to vision. For example, proprioceptive perturbations have been applied using vibration of lower limb muscles, resulting in large effects on standing posture in the AP direction but small effects on walking (Courtine et al. 2007), consistent with the hypothesized direction of passive stability. Another example is aging, which has been associated with greater increases in ML than in AP step variability (Dean et al. 2007; Owings and Grabiner 2004a,b). This may arise from age-related deficits affecting not just vision but also a variety of other modalities. Another approach to the same theme is to perturb stability rather than sensory input. Accordingly, we have previously applied external lateral stabilizers to artificially improve lateral stability of human subjects, with the result of reduced ML step variability (Donelan et al. 2004).

Another theme is that discrete, step-to-step stability may be quite different from continuous-time stability. Our three-dimensional model of walking is unstable in the ML direction but stable in the AP direction (Kuo 1999). That same model, placed in the normal standing posture, is stable in the ML direction but unstable in the AP direction. It is, in fact, typical for dynamic walking robots to be designed solely for step-by-step, limited-cycle stability, with little or no regard for standing stability (Coleman and Ruina 1998; Collins et al. 2005). Standing posture is characterized by continuous feedback control, much of it homonymous. For example, perturbations to the ankle trigger feedback torques at the ankle (Park et al. 2004). There are also significant heteronymous contributions, but even these may be attributed directly to keeping the body upright. In contrast, step-by-step control of walking appears much more indirect and heteronymous. The hip torque that adjusts lateral foot placement is apparently triggered not by hip proprioceptors but by integrative information from the preceding step. The effect of that adjustment is to change body orientation, not directly, but through the dynamics of the subsequent step-to-step transition.

Our findings may also have implications for the neural control of walking. Multiple levels of hierarchical feedback contribute to control and are coupled through shared muscle groups, body dynamics, and interaction with environment. Neuronal circuits within the spinal cord produce a variety of short-latency reflexes and behaviors driven by proprioceptive and other local sensory feedback. These circuits are sufficient to produce walking in spinalized cats (Grillner and Wallén 1985), by supporting body weight and producing the basic stepping pattern. It is unclear whether humans have a similar degree of spinal control, but our results are consistent with other indirect observations that suggest this possibility (Duysens and Van de Crommert 1998; MacKay-Lyons 2002). Dynamic walking models indicate that pendulum dynamics can account for much (if not all) of the stepping pattern and interaction with step-to-step transitions can passively produce AP adjustment of foot placement with no need for active control. Humans may use spinal reflexes to produce low-level behaviors similar to the passive dynamics of models, making little use of integrative (e.g., visual and vestibular) feedback simply because it is not necessary. Higher level feedback, however, may be necessary for lateral stability. Even though spinalized cats can walk, they also tend to have poor lateral stability (e.g., Belanger et al. 1996; Brustein and Rossignol 1998), evidently lacking active, step-to-step foot placement control. These components rely more heavily on visual, vestibular, and other feedback, integrated at the level of the brain stem and cerebellum. Hierarchical organization would allow spinal control to regulate most of the fore–aft walking motion and higher levels of the CNS to integrate multisensory feedback for balance.

We have thus far assumed that vision is used integratively for walking balance, as it is for posture. An alternative possibility is that CNS performs directional weighting of vision separate from other inputs. Extrastriate areas, particularly the V5–medial temporal (MT) region, are responsive to patterns of movement across many directions and are organized into columns that are sensitive to specific directions of motion (Kandel and Wurtz 2000). The anatomical arrangement of the MT and medial superior temporal regions of the visual cortex, in direction-specific columns, provides a convenient means to weight particular directions of sensed motion. It is conceivable that task- and direction-dependent weighting is performed through selection and gating of these columns, perhaps contributing to cortical control of foot placement. Our preferred hypothesis, however, is that lateral foot placement control is a more automatic (and less cortical) response, sharing similar sensory integration circuitry to that of posture. Visual information might then contribute continuously to sensory integration in the brain stem and cerebellum (which also receive input from V5–MT). This could yield a single, model-based estimate of body state used to drive continuous-time posture control during standing and walking (e.g., Kuo 2005; Maurer et al. 2006) and also sampled step-to-step for driving discrete foot placement. This estimate might then be selectively weighted more for ML than for AP control, without necessarily adjusting visual weighting at the cortical level. Although the present experiment uses vision for perturbations, a more general hypothesis is that multiple other sensors also contribute to state estimation and balance control, similarly weighted as a function of task dynamics. Just as we have assumed that the passive dynamics of our computational model can be realized by local reflexes in the human, these are mere working hypotheses that remain to be tested experimentally.

A potential application of this work is a new means to quantify balance during walking. Quantitative clinical assessments of posture such as computerized dynamic posturography (NeuroCom International, Clackamas, OR) typically apply sagittal-plane perturbations, either by translating the body directly or by perturbing visual or somatosensory inputs during quiet standing. Although some tests appear related to fall risk, many do not assess nonsagittal motions, which are also considered clinically relevant to balance during walking (e.g., Marchetti and Whitney 2006; Schrager et al. 2008) and also predict fall risk well (Maki et al. 1994; Piirtola and Era 2006). Lateral COP variability during tandem stance and lateral step variability during walking may be useful indicators of balance and lateral perturbations to vision appear to reveal how visual information is integrated for this control. The influence of other inputs might be emphasized by artificially removing normal visual cues, akin to the “visual sway-referencing” used in dynamic posturography (Nashner et al. 1982). Virtual reality environments have previously proven useful for assessment of posture control (Keshner and Kenyon 2000; Streepey et al. 2007). They could potentially also be used to selectively render ML or other visual cues inaccurate and, perhaps, reveal poor integration of vestibular and other sensory information. Such perturbations or sway-referencing could then be applied to both walking and tandem stance, to provide data complementary to normal dynamic posturography.

Walking and tandem balance both appear to have inherent instabilities in the lateral direction. We have shown that visual perturbations induce substantial lateral variability in discrete foot placement during walking and continuous COP variability during standing. These two measures serve as indicators of active balance control and their sensitivity to perturbations quantifies the degree to which an input such as vision contributes to that control. In contrast to lateral balance, the fore–aft component of walking has little dependence on vision. The dynamics of the legs may afford passive, step-by-step stability to this component, so that the CNS has little need to control it with integrative feedback. The importance of dynamics is further highlighted by the visual dependence of standing, which can be reversed by changing the configuration of the legs and thereby the base of support. The CNS can selectively and flexibly weight sensory information for feedback control, both for continuous-time control of balance and step-by-step control of walking. It may also harness the self-stabilizing aspects of dynamic walking, in which a series of uncontrolled falls can nonetheless be stable on a step-by-step basis.
