Linking H3K79 trimethylation to Wnt signaling through a novel Dot1-containing complex (DotCom)

Identification of Dot1 in a 2-MDa-containing complex

Previous studies have identified several MLL fusion partners—AF10, AF9, and ENL—as interaction partners of Dot1 (Okada et al. 2005; Zhang et al. 2006; Bitoun et al. 2007; Mueller et al. 2007). However, many of these interactions were never confirmed in an in vivo system, and very little is known about the core complexes containing Dot1. To gain a better understanding of the factors that interact directly with Dot1, we generated a HEK293T cell line harboring a Tet-inducible Flag epitope-tagged Dot1 construct. We performed a Flag affinity purification and confirmed the expression of Flag-Dot1 by Western blotting (Fig. 1A–C) and demonstrated DotCom to be active as an H3K79 HMTase. As expected, Flag-Dot1 runs at an estimated 170 kDa. In order to investigate the composition of the purified Flag-DotCom, we subjected the immunoprecipitated complex to Multidimensional Protein Identification Technology (MudPIT), and reproducibly found a statistically significant amount of peptides each for AF10, AF9, ENL, AF17, Skp1, and TRRAP (Fig. 1D). We tested the H3K79 methylase activity associated with the peak fraction containing the DotCom, and demonstrated that this complex is active as an H3K79 di- and trimethylase (Fig. 1E). This is contrary to the previously published studies suggesting that, unlike the yeast enzyme, human Dot1 is not capable of trimethylating H3K79 (McGinty et al. 2008).

Monoubiquitinated H2B is a better substrate for the human DotCom in H3K79 trimethylation

Previous studies in yeast demonstrated that monoubiquitination of histone H2B is required for proper H3K4 and H3K79 methylation (Briggs et al. 2002; Dover et al. 2002; Ng et al. 2002b; Sun and Allis 2002). Recent studies implemented with recombinant human Dot1 polypeptide demonstrated that human Dot1 was capable of producing mono- and dimethylated H3K79; however, no trimethylation was detected in these enzymatic studies (McGinty et al. 2008). Furthermore, McGinty et al. (2008) demonstrated that nucleosomes containing monoubiquitinated H2B were a better substrate for human Dot1 in H3K79 dimethylation; however, trimethylated products were not detected. These observations are in stark contradiction with observations made with yeast Dot1. To determine whether the purified human DotCom is capable of trimethylating H3K79 when nucleosomes are monoubiquitinated on H2B, we tested H3K79 HMTase activity of the purified DotCom toward monoubiquitinated nucleosomal substrates. Our studies demonstrate that purified human DotCom trimethylates H3K79 much more effectively when nucleosomal substrates are monoubiquitinated on H2B (Fig. 2A). We also observed an increase in dimethylation of H3K79 in the presence of monoubiquitinated H2B, which is very similar to the data reported by McGinty et al. (2008). From our studies, we do not detect any difference between the levels of H3K79 monomethylation catalyzed by the purified human DotCom when using either monoubiquitinated or nonubiquitinated nucleosomal substrates (Fig. 2A).

These enzymatic observations with the purified human DotCom are very similar to the yeast studies, indicating that the pattern of H2B monoubiquitination implemented by the Rad6/Bre1 complex could dictate the pattern of H3K79 trimethylation on chromatin (Schulze et al. 2009). To make sure that our observation regarding the capability of the human DotCom to trimethylate H3K79 is not an artifact of cross-reactivity of antibodies generated toward di- and/or trimethylated H3K79, we generated recombinant nucleosomal substrates, methylated them using human Dot1 in vitro, and tested the products for the presence of H3K79 trimethylation via mass spectrometric (MS) analyses (Fig. 2B–E). Briefly, nucleosomes were incubated with purified human Dot1 with or without S-adenosyl methionine (SAM), and a small portion of the products was analyzed by SDS-PAGE followed by Western analysis using H3K79-specific antibodies (Fig. 2B). The post-translational modifications of histone peptides resulting from this enzymatic study were then analyzed by MudPIT. We observed MS data corresponding to mostly trimethylated histone H3 peptides in multiple spectra only in the presence of SAM, confirming our Western studies that human Dot1 is capable of trimethylating its nucleosomal substrate (Fig. 2C–E). Small but significant amounts of the monomethylated form of H3K79 were seen in the (−) SAM control, likely due to a small amount of SAM that was purified along with Dot1 (Fig. 2C, bottom panel).

Biochemical analysis of the association of several of the DotCom components with Dot1

Since we demonstrated that the human DotCom is capable of trimethylating its nucleosomal substrate in an H2B monoubiquitination-dependent manner, we wanted to better understand the nature of DotCom. We therefore subjected the purified human DotCom to analytical size exclusion chromatography (Fig. 1D). Silver staining and Western blotting with Flag and Dot1 antibodies revealed a 2-MDa peak (fraction 10). Cofractionation of ENL at this peak supported the finding that ENL exists in DotCom. To identify all of the constituent proteins of the 2-MDa complex, we analyzed fraction 10 by MudPIT and found similar amounts of AF10, AF9, ENL, AF17, and Skp1. TRRAP peptides were also detected at low but significant amounts in this fraction (Fig. 1D).

To better characterize DotCom and the nature of its components, we generated stable HEK293T cell lines bearing Tet-inducible Flag epitope-tagged AF10, AF9, and ENL constructs. Flag affinity purification followed by Western blot analysis with Dot1 antibody confirmed the presence of Dot1 in all three purifications (Fig. 3A,B). MudPIT on the Flag eluates revealed the presence of most of the components of DotCom (Fig. 3E). Using yeast two-hybrid studies, it was proposed previously that Dot1 interacts with AF10 (Okada et al. 2005); however, such interactions were never confirmed with the endogenously expressed proteins in vivo. Our studies confirm this observation and also provide the identification of the other components of DotCom. In our ENL preparation, AF9 was not found, while in the AF9 preparation, we found very low amounts of ENL, supporting the idea that one or the other, but not both of these highly related proteins, may interact with one Dot1 molecule at the same time (Fig. 3). The AF10 purification does not yield any peptides for ENL, although we find significant amounts of AF9, suggesting that the Dot1–AF10 complex contains AF9 as well. We also could confirm AF17 in all of our Flag eluates of AF10, ENL, and AF9 (Fig. 3E), as well as in fraction 10 of our Dot1 size fractionations (Fig. 3D), indicating that AF17 is present in the 2-MDa DotCom, together with its paralog, AF10. Notably absent from Dot1 and AF10 complexes is AF4, the most frequent translocation partner of MLL in infant leukemias and proposed previously to participate in complexes containing Dot1 (Bitoun et al. 2007; Mueller et al. 2007, 2009). However, AF4 was found in our Flag-ENL preparations (data not shown), suggesting that earlier reports of associations between AF4 and Dot1 were due to tagging a common subunit of two distinct complexes. To demonstrate that the purified DotComs obtained by tagging its other subunits are active in H3K79 methylation, we performed HMTase assays with ³H-labeled SAM and found enzymatic activity with the Flag-AF9 complex on recombinant nucleosomes, indicating that Dot1 in the Dot1–AF9 complex is active (Fig. 3C).

The role of the DotCom components in regulating its enzymatic activity toward H3K79

In order to determine the role of the DotCom components in regulating its enzymatic activity, we performed siRNA-mediated knockdown of the core components in HeLa cells (Fig. 4A,B). We observed a dramatic reduction of H3K79me2 and H3K79me3 in Dot1 and AF10 knockdowns (Fig. 4A). These observations support the findings of a previous study in which AF10 was found to help target Dot1 to chromatin (Lin et al. 2009). Mouse AF9 has been reported to interact directly with mouse Dot1a (Zhang et al. 2006) and to form a nuclear repressor complex, which in turn regulates histone H3K79 methylation at the ENaCα promoter. We also observed a modest reduction of H3K79me2 and H3K79me3 in AF9 knockdown cell extracts (Fig. 4A). However, ENL knockdown resulted in a very subtle effect on bulk H3K79 trimethylation and no substantial change in H3K79 dimethylation (Fig. 4A), although it is possible that AF9 and ENL are partially redundant with each other in forming Dot1 complexes. These observations suggest that AF10 plays an important role in Dot1’s HMTase activity through either DotCom stability, catalytic activity, or the recruitment of the complex to chromatin.

Skp1 is a component of the Skp1–Cullin–F-box (SCF) E3 ubiquitin ligase (Cardozo and Pagano 2004) complex and promotes ubiquitination of its target substrates.

TRRAP has been identified as a subunit common to the p300/CBP-associated factor complex (PCAF), Tip60, TATA-binding protein-free TAFII-containing complex, novel SAGA-related complex, and SAGA-like complexes (Carrozza et al. 2003; Murr et al. 2007). TRRAP has been implicated in transcription and DNA repair through its interaction between several transcriptional activators and the SAGA/GCN5/PCAF and NuA4/Tip60 complexes (Carrozza et al. 2003; Peterson and Cote 2004). It was also reported that the TRRAP–TIP60 complex interacts directly with β-catenin (Sierra et al. 2006), a key mediator of the Wnt signaling pathway. Recently, TRRAP was shown to interact with Skp1, and it was proposed that, by interacting with the SCF complex, TRRAP mediates ubiquitination of β-catenin in the nucleus and leads to its degradation (Finkbeiner et al. 2008). Based on these results, we asked whether DotCom interacts with β-catenin. Flag affinity immunoprecipitation of Flag-Dot1 and Flag-AF10 from HEK293T cells leads to significantly high enrichment of β-catenin (Fig. 4C). This interaction did not depend on DNA, as digestion of nucleic acids with Benzonase did not affect the enrichment. Taken together, our data suggest that DotCom interacts with β-catenin and might have a role in the regulation of Wnt target genes.

The Drosophila DotCom regulates expression of the Wingless target senseless

To investigate the role of DotCom in the regulation of Wnt signaling, we used the more genetically amenable system of Drosophila in which we could address the role of the components of DotCom in a developmental context in a living organism. In Drosophila, Wnt signaling, known as Wingless signaling, has been studied extensively. Wingless signaling is required for growth and morphogenesis in wing imaginal discs, which constitute the primordia in larval stages that later give rise to the adult wings. Wingless (Wg), the eponymous ligand for Wingless signaling, is expressed along the dorsal/ventral (D/V) boundary. The ability of Wg to act as a morphogen allows the formation of a Wg gradient with high levels of Wg at the D/V boundary and decreasing levels toward the periphery of the wing pouch. The establishment of this Wg gradient is crucial for the activation of various Wg target genes in adjacent cells (Zecca et al. 1996; Strigini and Cohen 1997).

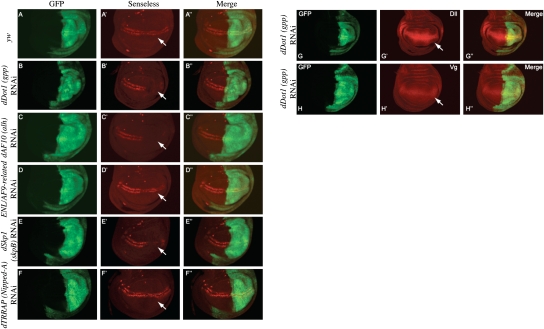

In order to test the role of dDot1 in wingless signaling, we down-regulated dDot1 expression by RNAi. dDot1 shares significant homology at the catalytic domain with yeast Dot1 and hDot1 (Min et al. 2003), and is functionally capable of methylating H3K79 (Shanower et al. 2005). Ubiquitous knockdown of dDot1 with two independent RNAi lines at 25°C resulted in either early larval lethality before the third instar stage (line v16001) or lethality in the pupal stages (line v47199). This confirms previous findings that dDot1 is an essential gene required for viability of the organism. We then proceeded to use the engrailed-GAL4 driver to knock down dDot1 (en-Gal4:dDot1-RNAi-v16001) in the posterior compartment of wing imaginal discs. In these imaginal discs, the anterior compartment serves as the wild-type control. We monitored the expression of the high-threshold Wg target senseless, which is expressed in two stripes flanking the Wg expression domain at the D/V boundary (Fig. 5A′; Nolo et al. 2000; Johnston and Sanders 2003), and two low-threshold Wg target genes, Distalless (Dll) (Fig. 5G′) and Vestigial (Vg) (Fig. 5H′), which are expressed throughout the wing pouch anlage in a graded manner with peak levels at the D/V boundary (Zecca et al. 1996; Strigini and Cohen 1997). We observed a robust reduction of senseless expression in the posterior compartment of the wing discs where dDot1 RNAi was expressed (Fig. 5B–B″, white arrow). However, we could not find any detectable change in the expression level of dll and vg (Fig. 5G–H″) These observations show that dDot1’s function is essential for the expression of senseless, and suggest that dDot1 is needed for the expression of genes that require high levels of Wg signaling.

To establish the possible function of a putative dDotCom in flies, we proceeded to test several Drosophila homologs for similar effects on Wg target genes in vivo. Alhambra was identified as the Drosophila homolog of AF10 and AF17, and was shown to inhibit Polycomb response element (PRE)-mediated repression (Perrin et al. 2003). We used two different UAS-RNAi constructs targeting Alhambra (dAF10) and observed a strong reduction in senseless expression in the wing imaginal discs (Fig. 5C–C″, arrow), suggesting that dDot1 and dAF10 are in a complex and regulate the expression of Wg target genes.

ENL and AF9 are very similar proteins and are represented by a single protein in Drosophila, aptly named EAR (ENL/AF9-related). Knockdown of AF9 and ENL in HeLa cells leads to only a moderate loss of H3K79 methylation (Fig. 4A). RNAi against EAR in wing discs resulted in a very weak but reproducible loss of senseless expression (Fig. 5D–D″, white arrow).

The Drosophila genome contains six Skp1-related genes (Murphy 2003). We tested the involvement of one of these, SkpB, for involvement in Wg signaling. Knockdown of SkpB resulted in a decreased expression of senseless, suggesting that SkpB regulates the expression of wingless target genes similar to Dot1. Nipped-A is the Drosophila homolog of the yeast Tra1 and human TRRAP proteins and is a key component of both the SAGA and Tip60 (NuA4) chromatin-modifying complexes (Allard et al. 1999; McMahon et al. 2000). Nipped-A (dTRRAP) is an essential gene and has also been implicated in Notch signaling. Reducing the gene dosage of dTRRAP by half reduces both the mastermind and Notch activities during wing development (Gause et al. 2006). Ubiquitous expression of different dTRRAP RNAi constructs leads to pupal lethality in all cases (Supplemental Table 1). Quantitative RT–PCR (qRT–PCR) of the dTRRAP RNAi larvae (line v40789) showed only a small reduction in the transcript level, suggesting that even a small reduction of dTRRAP is detrimental to the fly viability. Two of the stronger RNAi lines (v40789 and 2905R-3), when crossed to en-GAL4, did not result in any significant reduction in senseless (Fig. 5F, white arrow). As this might be due to low efficiency of the RNAi, we enhanced the RNAi by coexpressing Dicer-2 (Dietzl et al. 2007) and found a robust reduction of senseless expression (Supplemental Fig. 2). Taken together, this indicates a role for dTRRAP in dDotCom to mediate the regulation of the Wg target gene senseless. Reduction of the members of dDotCom does not affect the expression of Wingless protein in the wing imaginal discs (Supplemental Fig. 3), although we found that knockdown of dDot1 leads to a small reduction in Wg (Supplemental Fig. 3B–B″). This may be due to a possible role for dDot1 in the regulation of expression of Wg directly or indirectly.

Regulation of senseless expression by dDotCom suggests that this complex might have a broader role in the regulation of Wg signaling. Thus, we investigated the role of individual members of dDotCom on other Wg target genes, frizzled 3 (dfz3) (Sivasankaran et al. 2000), CG5895 (Mosimann et al. 2006), CG6234 (Fang et al. 2006), Notum (Liu et al. 2008), and Homothorax (hth). To analyze the role of dDot1, we chose a hypomorphic allele of dDot1 (gpp1A) that has been shown to enhance the Abdominal-B phenotype (Shanower et al. 2005). We extracted total RNA from third instar wandering larvae and analyzed the expression levels by qRT–PCR. All of the tested genes were down-regulated (Supplemental Fig. 4A). To substantiate our results, we drove the strong dDot1 RNAi line (v16001) in wing discs with A9-GAL4 and analyzed the expression levels of Wg target genes. We observed similar knockdowns of the Wg target genes as in dDot1 (gpp1A) mutant larvae (Supplemental Fig. 4B). We also asked if other putative components of dDotCom would have similar effects on Wg target gene expression. Indeed, it appears that components of DotCom could regulate the expression of some of the Wg target genes, but not as strongly as either dDot1 or dAF10, both of which are required for proper H3K79 methylation (Supplemental Fig. 4C–F). Taken together, a consistent reduction in the expression of most of the Wg target genes was observed upon reduction of dDotCom subunits, with the strongest effects seen when either dDot1 or dAF10, levels were altered. This provides evidence that dDot1 and several of its interacting proteins are novel regulators of Wg signaling. However, extensive global expression and localization analyses under wild-type and different Wnt activation conditions must be performed before a full set of gene targets for Dot1 and member of its complex can be identified.

H2B monoubiquitination by Bre1 links H3K79 trimethylation and not di- or monomethylation to Wingless signaling

Histone H2B is monoubiquitinated at the Lys123 residue (Lys123) in yeast or the corresponding Lys120 in humans (Zhang 2003; Shilatifard 2006). In yeast, Rad6, an E2 ubiquitin-conjugating enzyme, and Bre1, an E3 ubiquitin ligase, are required for monoubiquitination of H2B (Shilatifard 2006). Monoubiquitination of H2B is required for H3K79 trimethylation by Dot1 in yeast (Schneider et al. 2004; Lee et al. 2007; Schulze et al. 2009) and H3K79 methylation in humans. It has also been proposed that monoubiquitination of H2B directly stimulates Dot1 to carry out H3K79 mono- and dimethylation (McGinty et al. 2008). However, our studies in this paper demonstrate that human Dot1 can trimethylate H3K79 and that nucleosomes bearing monoubiquitinated H2B are better substrates for purified human Dot1, thus validating the studies in yeast and confirming conservation of this histone modification pathway from yeast to humans.

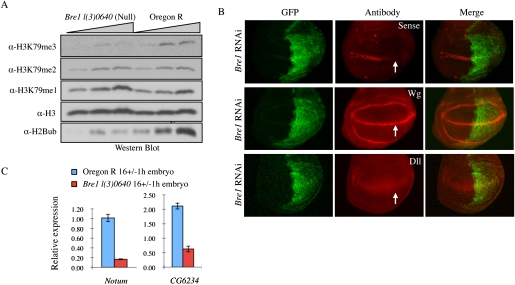

We therefore asked whether H2B monoubiquitination in Drosophila is also required for H3K79 trimethylation. Probing total protein extract from 16 ± 1-h homozygous-null Bre1 [l(3)01640] embryos (Bray et al. 2005) with H3K79 methylation and monoubiquitinated H2B-specific antibodies, we confirm that reduction in H2B monoubiquitination levels results in a specific reduction in H3K79 trimethylation, but not in mono- or dimethylation (Fig. 6A). This observation regarding the role of H2B monoubiquitination and H3K79 trimethylation in Drosophila is similar to our observation of this process in yeast (Schulze et al. 2009). The presence of small amounts of monoubiquitinated H2B in the Bre1 mutant embryos (Fig. 6A) is perhaps the result of the maternal contribution of Bre1 mRNA. Approximately 10% of Bre1 mRNA remained in these embryos, as seen by qRT–PCR (data not shown). Analysis of later stages of null Bre1 embryos was not possible, as the embryos either did not hatch or died soon after hatching.

These data suggest that, in vivo in flies, only trimethylation requires the presence of H2B monoubiquitination, and not mono- or dimethylation. This implies that the sole known H3K79 methyltransferase enzyme in flies, dDot1, is stimulated by the presence of monoubiquitination on H2B to carry out trimethylation of H3K79, thus providing us with a tool to analyze the function of H3K79 trimethylation in gene expression. Using Bre1 RNAi in the posterior half of the wing discs, driven by en-Gal4 coexpressing Dicer 2, we find a strong reduction of the high-threshold Wg target gene senseless (Fig. 6, top panel). However, we did not observe any effect on the expression of either Wg or Dll (Fig. 6B, middle and bottom panels). We then analyzed the expression of other Wg target genes in the 16 ± 1-h Bre1-null l(3)0640 mutant embryos, and could confirm that the expression of Notum and CG6234 was significantly affected (Fig. 6C). The differential effect of Bre1 loss on expression of these Wg target genes suggests that the requirement of H2B monoubiquitination in facilitating the Wg transcriptional program might be dependent on the context. Overall, these studies demonstrate a specific role for H3K79 trimethyation, but not mono- or dimethylation, in Wnt signaling.

A role for human Dot1 in H3K79 trimethylation

Dot1 was initially isolated from yeast, and these studies demonstrated that the enzyme is capable of mono-, di-, and trimethylating H3K79 (Lacoste et al. 2002; Ng et al. 2002a; van Leeuwen et al. 2002). Subsequent molecular and biochemical studies demonstrated that prior H2B monoubiquitination by the Rad6/Bre1 complex is required for proper H3K79 trimethylation by yeast Dot1 (Briggs et al. 2002; Ng et al. 2002b; Wood et al. 2003; Schulze et al. 2009). A recent analysis of the human homolog of Dot1 suggested that its HMTase domain is not capable of trimethylating H3K79, and that this enzyme can only dimethylate its substrate (McGinty et al. 2008). McGinty et al. (2008) also demonstrated that reconstitution of monoubiquitinated H2B into chemically defined nucleosomes, followed by enzymatic treatment with Dot1, resulted only in dimethylation of H3K79. Since these observations are in contrast with the published studies in yeast, we tested the enzymatic activity of our purified human DotCom toward monoubiquitinated and nonmonoubiquitinated nucleosomes. Our studies demonstrate that the human DotCom can indeed trimethylate H3K79 (Fig. 1C,E), and that monoubiquitination of histone H2B enhances this enzymatic property of the human DotCom (Fig. 2A). Since our enzymatic studies employ antibodies generated toward mono-, di-, and trimethylated H3K79 to identify the products of the enzymatic reactions containing human Dot1, we wanted to make certain that our observations are not the result of cross-reactivity between these antibodies. We therefore generated recombinant nucleosomes and treated them with human Dot1 in the presence and absence of SAM, and analyzed the products by MS (Fig. 2C–E). The chemical analysis of the products from this enzymatic reaction confirmed that human Dot1 is capable of trimethylating H3K79 (Fig. 2C–E). We purposely chose to digest our hDot1-treated nucleosome samples with Endoproteinase Arg-C because previous unpublished work on analyzing yeast histone modifications by MudPIT had shown that the trimethylated peptide containing H3K79 was not detected when digesting with trypsin. Notably, McGinty et al. (2008) performed their digestions with trypsin, which might explain their failure to detect this modification by MS.

Components of the human DotCom regulate its H3K79 HMTase activity and the Wnt signaling pathway

Our studies identified several factors—including ENL, AF9, AF17, AF10, SKP1, TRA1/TRAPP, and β-catenin—as components of the human DotCom (Figs. 1, 2, 4). To test the role of these factors in regulating Dot1’s catalytic activity, we reduced their levels via RNAi. These studies demonstrated that AF10 functions with Dot1 to regulate its catalytic properties in vivo (Fig. 4A,B). We are unable to detect significant differences in Dot1’s H3K79 HMTase activity in vivo when reducing the levels of ENL, AF9, and AF17 (Fig. 4A; data not shown). As discussed below, factors that significantly alter the H3K79 methylation pattern by Dot1 are also linked to its transcriptional regulatory functions at Wnt target genes.

Since Dot1 also appears to interact with β-catenin (Fig. 3C), and given the known role for β-catenin, Skp1, and TRRAP in the Wnt signaling pathway, we set out to test the role for Dot1 and the components of its complex in Wnt signaling. Drosophila melanogaster is an outstanding model system for the study of the Wnt signaling pathway. Given the power of genetics and biochemistry in Drosophila, we tested the role of dDot1 and the members of its complex in wingless signaling. From this study, we learned that down-regulation of Drosophila Dot1 and Drosophila AF10 had the most significant effects in the regulation in the expression of the Wg target senseless (Fig. 5). Given the fact that our molecular studies demonstrated that Dot1 and AF10 have the strongest effect in the regulation of H3K79 methylation in vivo (Fig. 4A,B), we wanted to determine whether a specific form of H3K79 methylation is required for Wnt target gene expression.

Histone H2B monoubiquitination is required for proper H3K79 trimethylation (Shilatifard 2006; Schulze et al. 2009). The E2/E3 complex Rad6/Bre1 is required for the proper implementation of H2B monoubiquitination on chromatin, and this complex is highly conserved from yeast to humans. Deletion of the Drosophila homolog of Bre1 results in the loss of H2B monoubiquitination and the specific loss of H3K79 trimethylation (Fig. 6A). Interestingly, reduction in the levels of H3K79 trimethylation results in a defect in expression of one of the Wnt target genes, senseless (Fig. 6B), although the H3K79 mono- and dimethylation in this mutant background appear to be normal (Fig. 6A). In addition to senseless, we tested the role of H3K79 methylation at other Wnt targets and observed the same effect for Notum and CG6234. Overall, these studies demonstrate a link between H3K79 trimethylation by the DotCom and the Wnt signaling pathway.

Wnt/Wg signaling serves a critical role in tissue development, proliferation of progenitor cells, and many human cancers (Reya and Clevers 2005). The key player in the Wnt pathway is β-catenin, which is shuttled into the nucleus at the onset of activation of the pathway. Various proteins that interact with β-catenin in the nucleus—such as CBP/p300, TRRAP, MLL1/MLL2, Brg1, telomerase, Hyrax, Pygopus, and CDK8—modulate the transcriptional output of Wg/Wnt target genes (Willert and Jones 2006; Carrera et al. 2008; Firestein et al. 2008; Park et al. 2009). These proteins probably provide the context specificity to Wnt response directing proliferation or differentiation effects of Wnt signaling. Our finding that dDotCom is required for expression of a subset of Wg targets suggests that dDotCom might also facilitate Wg-regulated programs of transcriptional regulation in specific contexts. As most human cancers have elevated levels of Wnt signaling and require Wnt signaling for continued proliferation, DotCom might play a role in supporting the high rate of expression of Wnt target genes in such cancers.

Several studies have found interactions between Dot1 and many translocation partners of MLL (Okada et al. 2005; Bitoun et al. 2007; Mueller et al. 2007, 2009). While these associations suggest a link between Dot1 methylation and leukemogenesis, it was not clear how Dot1 methylation would participate in this process. Recently, GSK3, a regulator of β-catenin and Wnt signaling, was found to be essential for proliferation of MLL-transformed cells and for progression of a mouse model of MLL-based leukemia (Wang et al. 2008). Our studies linking Dot1 H3K79me3 with Wnt signaling provide insight into the role of Wnt signaling and Dot1 methylation in MLL translocation-based leukemia.

Antibodies and cell lines

Antibodies recognizing the Flag tag were obtained from Sigma; H3, H3K79me1, H3K79me2, and H3K79me3 were obtained from Abcam. Antibodies against monoubiquitinated H2B were from Medimabs, and the β-catenin antibody was from BD Transduction Laboratories. α-Senseless was a kind gift from Hugo Bellen; α-Vestigial and α-Distalless were generously provided to us by Sean B. Carroll. Dot1 cDNA was a kind gift from the Roeder laboratory. Dot1 (1303–1537) and ENL (281–497) were expressed as His tag fusion proteins in PET-16b, purified on a NTA-agarose according to Qiagen's protocol, and sent to Pocono Rabbit Farm and Laboratories for immunization into rabbits. HeLa cell lines were purchased from the American Type Culture Collection. The cDNAs of the human Dot1, AF10, AF9, and ENL genes were cloned into pCDNA5/FRT vectors with an N-terminal Flag tag. The plasmids were then transfected into 293FRT cells and selected by hygromycin. Single clones were picked and cultured into roller bottles. The 293FRT cells were grown in suspension with CD293 medium (Invitrogen) as described by the manufacturer. Nuclear extracts were prepared and subjected to anti-Flag agarose immunoaffinity purification.

siRNA

HeLa cells were treated with siRNA duplex (Dharmacon) using Lipofectamine (Invitrogen) according to the manufacturer's instructions. Total RNA was extracted using Qiagen's RNeasy kit, and DNA was digested before using the RNA in qRT–PCR.

Immunoprecipitation

Approximately 10⁷ cells for each assay were collected, washed with phosphate-buffered saline, and lysed in a high-salt lysis buffer (20 mM HEPES at pH 7.4, 10% glycerol, 0.35 M NaCl, 1 mM MgCl₂, 0.5% Triton X-100, 1 mM dithiothreitol) containing proteinase inhibitors (Sigma). After incubation for 30 min at 4°C, the lysate was centrifuged thoroughly at 4°C twice. The balance buffer (20 mM HEPES at pH 7.4, 1 mM MgCl₂, 10 mM KCl) was added to the resulting supernatant to make the final NaCl concentration 300 mM. The lysate was then mixed with antibodies and protein A beads or with anti-Flag agarose (Sigma). After incubation for 4 h at 4°C, the beads were spun down and washed three times with wash buffer (10 mM HEPES at pH 7.4, 1 mM MgCl₂, 300 mM NaCl, 10 mM KCl, 0.2% Triton X-100) before eluting by boiling in an SDS gel sample buffer.

MudPIT analysis

Trichloroacetic acid-precipitated protein mixtures from purifications were digested with endoproteinase Lys-C and trypsin (Roche) as described previously. Peptide mixtures were loaded onto triphasic 100-mm fused silica microcapillary columns as described previously. Loaded microcapillary columns were placed in-line with a Quaternary Agilent 1100 series high-pressure liquid chromatography pump and a Deca-XP ion trap mass spectrometer (Thermo Fisher) equipped with a nano-LC electrospray ionization source. Fully automated MudPIT runs were carried out on the electrosprayed peptides. Tandem mass spectra were interpreted by using SEQUEST against a database containing Homo sapiens protein sequences downloaded from the National Center for Biotechnology Information. In addition to estimating the false discovery rates, each sequence was randomized (keeping the same amino acid composition and length), and the resulting “shuffled” sequences were added to the “normal” human database and searched at the same time. Peptide/spectrum matches were sorted and selected using DTASelect, keeping false discovery rates at 2% or less, and peptide hits from multiple runs were compared using CONTRAST. To estimate protein levels, spectral counts of nonredundant proteins were normalized by using the in-house-developed script NSAF7.

MudPIT analysis for H3K79 methylation analyses

TCA-precipitated proteins were resuspended in 30 μL of 100 mM Tris-HCl (pH 8.5), 8 M urea, reduced with 5 mM TCEP [Tris(2-carboxylethyl)-phosphine hydrochloride; Pierce], and alkylated with 10 mM CAM (Chloroacetamide; Sigma). Urea was then diluted to 4 M with 100 mM Tris-HCl (pH 8.5), and Endoproteinase Arg-C (Roche) was added to 0.5 μg, overnight at 37°C. The reaction was quenched by adding formic acid to 5%. The peptide mixtures were then loaded onto 250-μm fused silica microcapillary columns packed first with 3 cm of 5-μm Strong Cation Exchange material (Partisphere SCX; Whatman), followed by 1 cm of 5-μm C₁₈ reverse phase (Aqua; Phenomenex). Loaded 250-μm columns were connected using a filtered union (UpChurch) with 100-μm fused silica columns pulled to a 5-μm tip using a P2000 CO₂ laser puller (Sutter Instruments) and packed with 9 cm of reverse-phase material (McDonald et al. 2002).

The loaded microcapillary columns were placed in-line with an Eksigent NanoLC 2D system. The four channels of the nanoLC were filled with 5% acetonitrile, 0.1% formic acid (channels 1A and 2A); 0.5 M ammonium acetate, 5% acetonitrile, 0.1% formic acid (channel 1B); and 80% acetonitrile, 0.1% formic acid (channel 2B). Fully automated 12-step chromatography runs were carried out with a flow rate of 500 nL/min, measured at 250 nL/min at the tip of the column. Peptides were sequentially eluted from the SCX resin to the reverse-phase resin by 10-min-long salt steps of increasing concentrations (0%, 5%, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 100%, and 100% for steps 1–12, respectively), followed by the organic gradient to 75% solvent.

The application of a 2.5-kV distal voltage electrosprayed the eluting peptides directly into a LTQ-Orbitrap hybrid mass spectrometer equipped with a nano-LC electrospray ionization source (ThermoFinnigan). Full MS spectra were recorded on the peptides over a 400–1600 m/z range in the Orbitrap at 60,000 resolution, followed by fragmentation in the ion trap (at 35% collision energy) on the first to fifth most intense ions selected from the full MS spectrum. Dynamic exclusion was enabled for 120 sec (Zhang et al. 2009) with an exclusion window of 0.03–1.03. Mass spectrometer scan functions and HPLC solvent gradients were controlled by the Xcalibur data system (ThermoFinnigan).

MS/MS spectra were first searched using SEQUEST (Eng et al. 1994) with a peptide mass tolerance of 20 ppm, and without specifying differential modifications against a protein database consisting of 27,027 sequences, consisting of human dot1, Saccharomyces cerevisiae histones, and Escherichia coli proteins (downloaded from NCBI on November 14, 2007), as well as 177 usual contaminants such as human keratins, IgGs, and proteolytic enzymes. To estimate false discovery rates, each protein sequence was randomized (keeping the same amino acid composition and length), and the resulting “shuffled” sequences were added to the database used for the SEQUEST searches. To account for alkylation by CAM, +57 Da were added statically to cysteine residues for all searches.

As described in Shi et al. (2009), differential modification searches were set up to query a protein database containing only the sequences for S. cerevisiae histones for peptides containing (1) methylated lysines and arginines (+14.0157) and oxidized methionines (+15.9949); (2) dimethylated lysines and arginines (+28.0314) and oxidized methionines; (3) trimethylated lysines (+42.0470) and oxidized methionines; (4) acetylated lysines, serines, and threonines (+42.0106) and oxidized methionines; (5) phosphorylated lysines, serines, and tyrosines (+79.9663) and oxidized methionines; and (6) ubiquitinated lysines (+114.0429) and oxidized methionines. The maximum number of modified amino acids per differential modification in a peptide was limited to four. After this round of searches, an in-house-developed script, sqt-merge (Zybailov et al. 2005), was used to combine the eight sets of SEQUEST output files (sqt files) generated from the normal search (i.e., without modifications) and post-translational modification (PTM) searches described above into one set. This merging step allowed only the best matches out of n differential SEQUEST queries to be ranked first. For the second round of searches, only spectra matching modified peptides were selected (−m 0 −t 0 DTASelect parameters), and their coordinates were written out into smaller ms2 files using the “−copy” utility of DTASelect (Tabb et al. 2002). These subsetted ms2 files contained at best a few hundred MS/MS spectra and were subjected to the same seven differential searches against the complete database described above (including shuffled sequences). Again, sqt-merge was used to bring together the results generated by these different searches. This step allowed us to check that spectra matching modified peptides from histone sequences did not find a better match against the larger protein database. All spectra matching modified peptides were assessed visually and given an evaluation flag (Y/M/N, for yes/maybe/no). The “no” matches were removed from the final data (−v 2 parameter in DTASelect). Spectra/peptide matches were only retained if they had a DeltCn of at least 0.08, and minimum XCorr of 1.8 for singly, 2.0 for doubly, and 3.0 for triply charged spectra. In addition, the peptides had to comply with the Arg-C enzyme specificity (the preceding and last amino acids were arginines), and be at least seven amino acids long. DTASelect (Tabb et al. 2002) was used to select and sort peptide/spectrum matches passing this criteria set. U_SPC6 software (in-house by Tim Wen) was used to extract total and modified spectral counts for each amino acid within yeast histones and to calculate modification levels based on local spectral counts (Xiang et al. 2007).

Recombinant histone preparation

Recombinantly expressed yeast histones H2A, H2B, H3, and H4 were prepared by the method described previously (Luger et al. 1999). E. coli BL21(DE3)pLysS cells were used for histone protein expression. Transformed cells were grown to mid-log phase in 6 L of LB media at 37°C, followed by induction with 0.4 mM IPTG for 3 h at the same temperature. Cells were harvested and washed in wash buffer (50 mM Tris-HCl at pH 7.5, 100 mM NaCl, 1 mM EDTA, 1mM banzamidine). Cells were disrupted by sonication in wash buffer. Inclusion bodies were then spun down and washed twice with wash buffer containing 1% Triton X-100. Pellets were then soaked in DMSO (500 μL) and incubated for 30 min, followed by extraction in 15–20 mL of extraction buffer (7 M guanidinium chloride, 20 mM Tris-HCl at pH 7.5, 10 mM dithiothreitol [DTT]) for 1 h. After clearing by centrifugation at 23,000g for 10 min, the supernatants were purified using a Sephacryl S-200 column eluting with SAU-1000 buffer (7 M deionized urea, 20 mM sodium acetate at pH 5.2, 1 M NaCl, 5 mM 2-mercaptoethanol, 1 mM EDTA). Peak fractions containing histones were combined and dialyzed in refolding buffer (2 M NaCl, 10 mM tris-HCl at pH 7.5, 1 mM EDTA, 5 mM 2-mercaptoethanol).

Nucleosome assembly

Recombinant yeast histones were denatured in unfolding buffer (6 M guanidinium chloride, 20 mM Tris-HCl at pH 7.5, 5 mM DTT), mixed in equimolar ratio, and dialyzed in refolding buffer. Octamers formed were then purified by size exclusion chromatography. Six-hundred-one targeting sequences were then mixed with octamers in 1:1.5 ratio, followed by a stepwise dilution into low-salt buffer. Nucleosomes thus formed were analyzed by native and SDS-PAGE gels (Supplemental Fig. 1). The native gel was stained with ethidium bromide to show the retarded migration of DNA wrapped around the octamer in a nucleosome. Coomassie staining of SDS-PAGE gels show the presence of all four histones—H2A, H2B, H3, and H4—in equimolar ratio (Supplemental Fig. 1).

Histone lysine methyltransferase assays

For a single HMT assay, nucleosomes (0.88 pmol) were mixed with 1× MAB buffer (50 mM Tris at pH 8.5), 20 mM KCl, 10 mM MgCl₂, 10 mM β-mercaptoethanol, 250 mM sucrose), and enzyme in the presence (0.08 mM) or absence of SAM and incubated overnight at 30°C. In case of radioactive HMT assay, 3H-Sam was used. Mixtures were then resolved by sodium dodecyl sulfate–polyacrylamide gel electrophoresis and Western blotting. For analyzing the H3K79me3 by MS, 44 pmol of nucleosomes were incubated with recombinant human Dot1 (catalytic domain, 1–416 amino acids) overnight and precipitated.

Fly stocks

Dot1 (gpp-v16001), Dot1 (gpp-v47199), and dTRRAP (Nipped-A 40789) were from DGRC; dAF10 (Alh 1070R-1), EAR (4913R-1), and dSkp1 (skpB 8881R-4) were from NIG,. Act5C-Gal4, en-Gal4:GFP, Dicer-2, en-Gal4, and Bre1 (3) 01640 were from Bloomington Stock Center. Bre1-RNAi was generated by cloning Bre1 cDNA cDNA (1037–1580) into Sym-pUAST vector, and fly lines were made by BestGene. All of the RNAi crosses were done at 27°C. Bre1 (3) 01640 was balanced over CyO, twist-Gal4:GFP. Embryos were collected every 2 h and aged for 15 h at 25°C before sorting manually or by using a flow cytometry.
