Abstract
In three dimensional collagen matrices, cell motile activity results in collagen translocation, cell spreading and cell migration. Cells can penetrate into the matrix as well as spread and migrate along its surface. In the current studies, we quantitatively characterize collagen translocation, cell spreading and cell migration in relationship to collagen matrix stiffness and porosity. Collagen matrices prepared with 1 to 4 mg/ml collagen exhibited matrix stiffness (storage modulus measured by oscillating rheometry) increasing from 4 to 60 Pa and matrix porosity (measured by scanning electron microscopy) decreasing from 4 to 1 μm2. Over this collagen concentration range, the consequences of cell motile activity changed markedly. As collagen concentration increased, cells no longer were able to cause translocation of collagen fibrils. Cell migration increased and cell spreading changed from dendritic to more flattened and polarized morphology depending on location of cells within or on the surface of the matrix. Collagen translocation appeared to depend primarily on matrix stiffness, whereas cell spreading and migration were less dependent on matrix stiffness and more dependent on collagen matrix porosity.
Keywords: Extracellular matrix, Matrix stiffness, Matrix porosity, Collagen translocation, Cell migration, Cell spreading, Mechanoregulation
INTRODUCTION
Fibrous connective tissues provide mechanical support and frameworks for the other tissues of the body. Type I collagen is the major protein component of fibrous connective tissues. Fibroblasts are the cell type primarily responsible for collagen biosynthesis and remodeling. Interactions between fibroblasts and the surrounding collagen matrix establish a homeostatic mechanism for tissues to respond to diverse mechanical forces including interstitial fluid flow [1], tissue stretch [2], and tissue loss [3, 4]. Abnormal functioning of tissue mechanical homeostasis contributes to pathological changes in aging [5], fibrotic disease [6, 7] and tumor progression [8, 9].
Three dimensional collagen matrix cultures exhibit structural and mechanical features that resemble fibrous connective tissue [10–12]. These matrices have been used to investigate cell physiology in a tissue-like environment [1, 13–16]. On 2D culture surfaces, cell spreading and migration can be described in terms of a balance between cellular forces of protrusion, contraction, and adhesion [17, 18]. The situation is more complicated in 3D matrices [19]. Matrix porosity makes possible entanglement between the cells and matrix fibrils, and initial cell spreading is typically dendritic [15]. Cells exhibit dual modes of migration -- mesenchymal and amoeboid [20, 21]. In mesenchymal migration, the cells attach to and pull on the matrix. In amoeboid migration, cells protrude through the spaces and push off the matrix. In addition, cells in 3D matrices can remodel matrix topography to produce their own migratory tracks [22–24].
Recently, we reported that fibroblast migration and collagen translocation were coupled in 3D collagen matrices. The balance between the two appeared to depend on how well the matrix resisted tractional force exerted by fibroblasts [25]. The features of matrix biomechanics that regulate cell physiological response are poorly understood. In the current work, we investigate quantitatively the effects of matrix stiffness and porosity on collagen translocation, cell spreading and cell migration
MATERIALS AND METHODS
Materials
Type I rat tail collagen high concentration was purchased from BD Biosciences (Bedford, MA). Dulbecco’s modified Eagle medium (DMEM), CO2-independent DMEM and 0.25% trypsin/EDTA solution were purchased from Invitrogen (Gaithersburg, MD). Fetal bovine serum (FBS) was purchased from Atlanta Biologicals (Lawrenceville, GA). Platelet-derived growth factor BB isotype (PDGF) was obtained from Upstate Biotechnology, Inc. (Lake Placid, NY). Fatty acid-free bovine serum albumin (BSA), Sodium borohydride, and Collagenase A were obtained from Sigma (St. Louis, MO). Alexa Fluor 594 phalloidin and Propidium Iodine (PI) were obtained from Molecular Probes, Inc. (Eugene, OR). RNase (DNase free) was purchased from Roche (Indianapolis, IN). Anti-actin and anti-vinculin antibodies were obtained from Sigma (St. Luis MO). Antibodies to focal adhesion kinase (FAK) were purchased from BD Transduction Laboratories (Franklin Lakes, NJ). Antibodies to phosphor (Y397) FAK were purchased from Biosource International (Camarillo CA). Goat-anti-mouse HP-conjugated was obtained from ICN Biomedicals (Aurora, OH). Goat-anti-rabbit HP-conjugated was purchased from Thermo Fisher Scientific (Rockford, IL). 6 μm Fluoresbrite YG Microspheres were obtained from Polysciences. Inc. (Warrington, PA). Fluoromount G was obtained from Southern Biotechnology Associates (Birmingham, AL).
Cell culture
Use of human foreskin fibroblasts was approved by the University Institutional Review Board (Exemption #4). BR5 human foreskin fibroblasts [26] were cultured in DMEM supplemented with 10% FCS. Cell culture was carried out at 37°C in a 5% CO2 humidified incubator. Experiments were carried out in DMEM (or CO2-independent DMEM for time-lapse studies) containing 5 mg/ml BSA and 50 ng/ml PDGF.
Cell migration and collagen translocation in nested collagen matrices
Preparation of restrained and floating nested collagen matrices and measurement of cell migration and collagen translocation in nested matrices were accomplished as before [25]. Briefly, dermal equivalents were formed by overnight contraction of 200 μl collagen matrices (1.5 mg/ml collagen, 2×105 cells/matrix). Subsequently, dermal equivalents were embedded in 200 μl outer cell-free collagen matrices with collagen concentration in outer matrices ranging from 1 to 4 mg/ml as indicated in the figure legends. A layer of outer matrix underneath the inner matrix prevents any direct interactions between the cells and culture surface. To obtain floating nested matrices, samples were gently released from the culture dishes after 1h polymerization. Restrained and floating nested matrix cultures were incubated 24 h in PDGF-containing medium. Cell Migration Index was determined using propidium iodide-stained samples by counting the average number of cells that migrated out of dermal equivalents in four 10X microscopic fields selected arbitrarily. Each field included the border of the dermal equivalent (detected by dark field microscopy) and the furthest moving cells. In some experiments, 6 μm fluorescent microspheres were added (1:200) to the outer matrices. Collagen translocation was quantified using the Analyze Particle Function of Image J software by measuring bead accumulation at the interface between inner and outer matrices relative to starting conditions.
3D reconstruction of cell migration in nested matrices was carried out using Imaris software (version 5.0 from Bitplane AG). Z stacks images were collected with a Leica TCS SP1 confocal microscope using a 20X/0.75 HC PL APO objective from Leica. Z stack images were taken in steps of 2 μm and usually covered a range of 100 μm from the first cell visualized on the top of the matrix to the last cell visualized in the bottom of the matrix.
Cell spreading, migration and collagen translocation in uniform collagen matrices
For time-lapse analysis of fibroblasts within collagen matrices, neutralized collagen solutions (1 to 4 mg/ml, 200 mu;l) containing cells (103/matrix) were polymerized 1 h and then incubated 4 h in PDGF-containing medium. For time-lapse analysis of fibroblasts on the surface of collagen matrices, matrices were polymerized 1 h after which cells were added and then incubated 4 h. Time-lapse analysis of uniform matrices was accomplished using a Zeiss Axiovert 200M inverted microscope equipped with an A-PLAN 10X/0.25 PH1 Zeiss objective and a Hamamatsu Model Orca 285 CCD camera. Images were acquired at 5 min intervals using Openlab 4.02 (Improvision) software. Collagen translocation was analyzed by measuring the displacement of 6 μm beads (eight/sample) embedded in the matrices. Samples to be analyzed by Immunostaining were prepared as above but contained 104 cells/matrix.
To increase matrix stiffness chemically, polymerized matrices were treated with 0.5% glutaraldehyde for 2 h at room temperature. Subsequently, samples were rinsed twice (5 min) with phosphate buffered saline (PBS) followed by 2 × 2 h incubations in 2% glycine in PBS, 2 × 30 min incubations in 1% sodium borohydride in H20, overnight incubation with 2% glycine in PBS, rinsed twice with PBS, and finally incubated 1 h with DMEM at 37°C. Control matrices were treated identically except with PBS substituted for glutaraldehyde treatment. Time-lapse and immunostaining analyses of cells on the surfaces of glutaraldehyde-treated matrices were carried out as above.
Immunostaining
Immunostaining of fixed and permeabilized cells was accomplished as described previously using Alexa fluor-594 phalloidin to detect for actin, propidium iodide to detect cell nuclei, and anti-vinculin antibodies to detect focal adhesions [26, 27]. Samples were mounted on glass slides with Fluoromount G (Southern Biotechnology Associates, Birmingham, AL). Images were collected with a Nikon Eclipse E600 fluorescence microscope and 10X/0.45 and 20X/0.75 Nikon Plan Apo infinity corrected objectives using a Photometrics SenSys CCD camera and MetaVue imaging software (Molecular Devices). Morphometric measurements were carried out using MetaVue software. Dendritic Cell Index -- cell perimeter2/4π· area (1.0 for a round cell) – was determined using the Integrated Morphometry Analysis function. Data presented for each condition are based on measurement of five cells in three separate experiments.
Immunoblotting
Immunoblotting was accomplished as described previously [26] except that cell lysates were treated with collagenase (10 U/gel) for 10 min at 37° C before adding SDS-PAGE sample buffer. Blots were probed with mouse anti-actin, mouse anti-FAK, and rabbit anti-pFAK antibodies followed by HP-conjugated goat- anti-mouse and anti-rabbit. Without pretreatment of the samples with collagenase, it was difficult to visualize FAK and phospho-FAK in the samples.
Scanning Electron Microscopy and Matrix Porosity
Collagen matrices were polymerized and prepared for scanning electron microscopy (SEM) using a combination of glutaraldehyde and osmium fixation followed by critical-pointed drying and paladium coating as described previously [26]. SEM specimens were analyzed and photographed with a 840A scanning electron microscope (JEOL, Tokyo, Japan). SEM images were subjected to thresholding to convert matrix pores and collagen fibrils to black and white images, adjusting pixel density so that obviously deep collagen fibrils were eliminated. The 2D black and white representation of the matrix was evaluated using the analyze particle function of Image J (particles = black pores) with 100 nm set as the lower limit.
Rheometry
Collagen matrices was measured by oscillation rheometry using an AR-G2 rheometer (TA instruments, New Castle, DE) with parallel plate geometry. 12 mm diameter collagen samples were polymerized in special designed plates that later were mounted to be the base plate of the rheometer. Subsequently a 12 mm diameter plate was lowered onto the sample until filling the gap between both plates. Measurements were carried out in a controlled 21 °C room temperature. To characterize matrix response for the first time, the shear modulus was measured using oscillatory strain and strain sweep at a frequency of 0.1 Hz until sample breaks. Once the linear response of matrices was found, subsequent measurements were performed with an oscillating fixed 0. 5% strain amplitude and at a frequency of 0.1 Hz for 30 min. Storage (G′) modulus was registered for each sample. Data presented for each condition are based on measurement of three samples in two separate experiments
RESULTS
Cell migration and collagen translocation in nested collagen matrices prepared with 1 to 4 mg/ml collagen outer matrices
In nested collagen matrices, fibroblasts migrate out of a cell-containing inner matrix (IM) into a cell-free, outer matrix (OM). Nested matrices can be restrained on an underlying culture dish or floating in medium (Figures 1A and 1B). We compared cell migration in floating and restrained nested matrices as a function of collagen concentration in the outer matrix. Figure 1C shows that in floating nested matrices with 1 mg/ml outer matrices, little cell migration occurred. However, as the collagen concentration in the outer matrix was increased, cell migration increased. With 2 mg/ml collagen in the outer matrix, cell migration in floating nested matrices was equivalent to that observed if the nested matrices were restrained.
Figure 1. Fibroblast migration in nested collagen matrices prepared with 1 to 4 mg/ml collagen outer matrices.
(A) Diagram of nested collagen matrices showing cell containing inner matrix within cell free outer matrix and nested matrices restrained on culture dishes or floating in medium. (B) Restrained nested matrices were incubated 24 h. 3D reconstruction shows pattern of cell migration from the inner matrix (IM) to the outer matrix (OM) with 1.5 and 4 mg/ml outer collagen concentrations. With 1.5 mg/ml outer matrices, the density of migrating cells was higher in regions closer to the underlying culture surface. If the concentration of collagen in the outer matrix was increased to 4 mg/ml, then the distribution of migrating cells was more uniform. (C) Restrained and floating nested matrices were prepared using the outer collagen concentrations indicated and incubated 24 h after which cell migration index was determined. Data shown are the averages +/− SD of cell migration index based on three separate experiments with duplicate matrices at each collagen concentration. In floating nested matrices, cell migration index increased as the outer collagen concentration increased. In restrained nested matrices, cell migration index was similar over the range of outer collagen concentrations tested.
Although the extent of cell migration in restrained nested matrices did not change between 1 to 4 mg/ml collagen, the pattern of migration varied. This variation can be observed in Figure 1B, which shows top and side 3D reconstruction views of the distribution of migrating cells (entire depth of field = ~100 μm). With 1.5 mg/ml outer matrices, the density of migrating cells was higher in regions closer to the underlying culture surface on which the nested matrices were restrained. However, if the concentration of collagen in the outer matrix was increased to 4 mg/ml, then the distribution of migrating cells was more uniform. Time lapse time-lapse videos demonstrated that the trajectory of cell migration was oriented towards the restraining surface with 1.5 mg/ml but not 4 mg/ml outer matrices.
Previously, we showed that collagen translocation was favored over cell migration if nested matrices are were floating rather than restrained [25]. Figure 2 describes experiments with floating nested matrices to measure the dependence of collagen translocation on outer matrix collagen concentration. Collagen translocation was assessed by observing movement of 6 μm fluorescent beads trapped within the outer matrix. Accumulation of beads at the interface between outer and inner matrices was highest with 1 mg/ml outer matrices and decreased as the collagen concentration was increased (Figure 2A). Quantification of bead accumulation relative to the starting distribution showed a progressive decline from a 6 fold increase in bead accumulation with 1 mg/ml outer matrices to no detectable increase with 4 mg/ml outer matrices (Figure 2B).

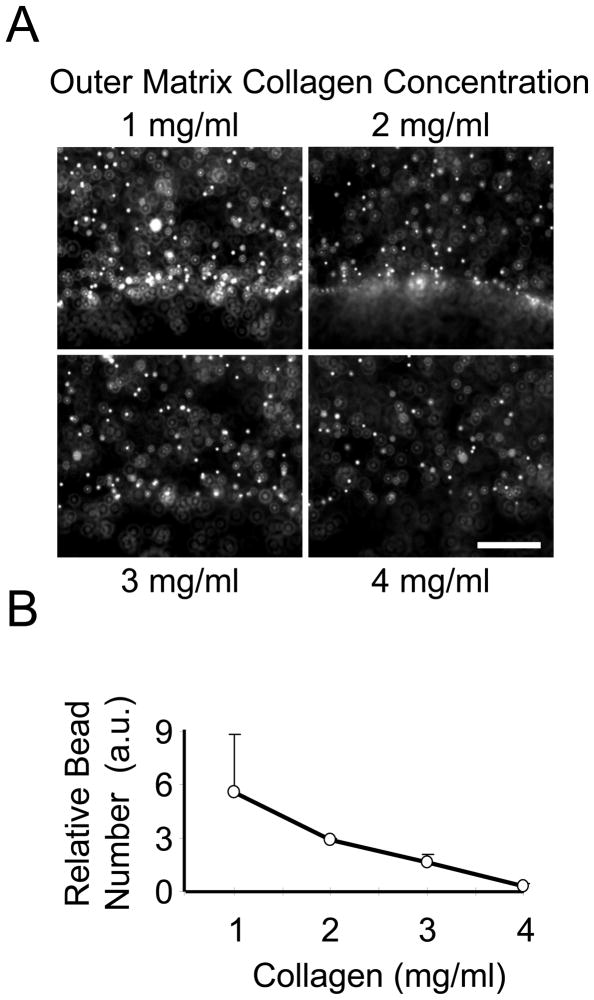

Figure 2. Collagen translocation in nested collagen matrices prepared with 1 to 4 mg/ml collagen outer matrices.
(A) Floating nested matrices were incubated 24 h. Distribution of 6 μm fluorescent microspheres was visualized at the interface between inner and outer matrices. Bar = 200 μm. (B) Bead density at the interface was quantified using Image J software, and the extent of collagen translocation determined as bead # relative to starting conditions. Data shown are averages +/− SD based on two separate experiments with duplicate matrices for each collagen concentration. As the collagen density increased, collagen translocation decreased.
Quantitative measurements on the porosity and stiffness of collagen matrices varying from 1 to 4 mg/ml collagen
Taken together, the findings in Figures 1 and 2 show that the consequences of cell motile activity in nested collagen matrices changed dramatically when the collagen concentration in the outer matrix was increased from 1 to 4 mg/ml. As the collagen density increased, collagen translocation decreased. At higher collagen concentrations, cell migration became independent of the underlying restraining surface. Independence was shown by the increased extent of cell migration in floating nested matrices and the altered trajectory of cell migration in restrained nested matrices.
Experiments were carried out to determine porosity and stiffness of collagen matrices varying from 1 to 4 mg/ml. Figure 3A shows the appearance of collagen matrices ranging from 1 to 4 mg/ml visualized by scanning electron microscopy. To quantify matrix porosity, SEM images were subjected to thresholding using a 0.1 μm lower limit, and average void space between collagen fibers was determined. Figure 3B shows that over the range of 1 to 4 mg/ml, the average pore area decreased from 3.7 μm2 to 0.9 μm2, which corresponds to average pore diameter ranging from 2.2 to 1.1 μm. We also measured stiffness (storage modulus) of the matrices using an oscillating rheometer. Figure 3C shows that as collagen concentration increased from 1 to 4 mg/ml, matrix stiffness increased from 4 to 62 Pa.
Figure 3. Quantitative measurements of porosity and stiffness of collagen matrices varying from 1 to 4 mg/ml collagen.
Collagen matrices prepared at the collagen concentrations indicated were polymerized 1 h. (A) Samples that were fixed, critical point dried, and palladium coated were imaged by scanning electron microscopy. Bar = 5 μm. (B) Fibril spacing was quantified by measuring matrix poor size. Data shown are the averages +/− SD based on two separate experiments with duplicate matrices at each collagen concentration. (C) Freshly polymerized samples were used to measure matrix stiffness (storage modulus) by oscillating rheometry. Data shown are the averages +/− SD based on two separate experiments with triplicate matrices at each collagen concentration. Increasing the collagen concentration resulted in decreased matrix porosity and increased matrix stiffness.
Motile activity of fibroblasts within and on top of collagen matrices
The inner component of nested collagen matrices (Figure 1A) is prepared by overnight contraction of a floating collagen matrix. Volume decreases approximately 90% with no loss off collagen. As a result, the collagen concentration increases from ~1.5 mg/ml to ~15 mg/ml, and the storage modulus overnight contracted matrices was measured to be 855 +/− 93 Pa (SEM?). Therefore, fibroblasts migrating in nested matrices cross an interface changing in stiffness by more than an order of magnitude.
One interpretation of the findings in Figures 1 and 2 was that the outer matrix collagen concentration-dependence of collagen translocation and cell migration were responses to mechanical restraints imposed by the interface. On the other hand, collagen-dependence of collagen translocation and cell migration may have reflected coupling between fibroblast motile activity and matrix mechanical features independent of the interface. Therefore, we also measured individual cell motile behavior using fibroblasts sparsely distributed either within and on the surfaces of uniform collagen matrices.
Figures 4A and 4B present phase-contrast images from time-lapse videos of fibroblasts incubated for 4 h within (Supplemental time-lapse videos 1 and 2) and on the surfaces (Supplemental time-lapse videos 3 and 4) of 1 and 4 mg/ml collagen matrices. Regardless whether cells were within or on the surfaces of the matrices, collagen fibrils translocated towards the cells in 1 mg/ml matrices and remained stationary in 4 mg/ml matrices. Figure 5A shows quantification of collagen translocation towards the cells based on displacement of 6 μm beads trapped within the matrices. The extent of collagen translocation (Bead Trans.) decreased with increasing collagen concentration over the range of 1–4 mg/ml.
Figure 4. Motile activity of fibroblasts within and on top of collagen matrices.
Phase-contrast images showing initial and final frames from time-lapse videos of fibroblasts incubated for 4 h (A) within (Supplemental time-lapse videos 1 and 2) and (B) on top of (Supplemental time-lapse videos 3 and 4) 1 and 4 mg/ml collagen matrices. Polystyrene beads (6 μm) added to the matrices were used to quantify collagen translocation. Bar = 100 μm. Cell spreading was dendritic within or on the surfaces of 1 mg/ml matrices. With 4 mg/ml matrices, cell spreading was dendritic within matrices but flattened and polarized on the surfaces of matrices, and cells on the surfaces of matrices began to migration.

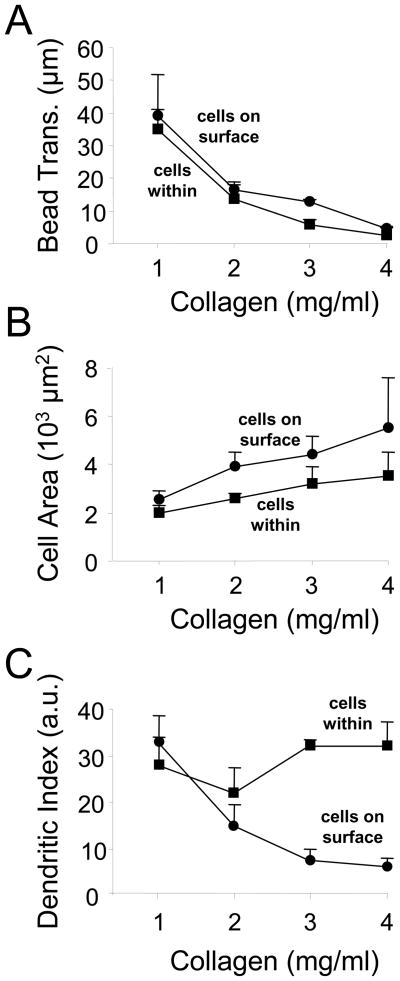

Figure 5. Collagen translocation and cell spreading of fibroblasts within and on top of collagen matrices.
(A) Analysis of collagen translocation from time-lapse videos (Figure 4) as a function of collagen concentration based on displacement of 6 μm beads within the matrices. Data shown are the averages +/− SD based on three separate experiments. As the collagen density increased, collagen translocation decreased. (B & C) Fibroblasts were incubated 4 h within or on top of collagen matrices. At the end of the incubations, the cells were fixed and visualized by immunostaining for actin (c.f. Figure 6). Cell spreading (projected surface area) and cell shape (dendritic index) were determined by morphometric analysis. Data shown are the averages +/− SD of three separate experiments with five cells at each collagen concentration in each experiment. As collagen concentration increased, the extent of cell spreading increased. Fibroblasts on top of matrices became more spread than cells within. Dendritic index was relatively constant for cells within matrices, but decreased as a function of collagen concentration for cells on top of matrices.
During the 4 h incubation period, cell spreading occurred. Spreading of cells within or on the surfaces of 1 mg/ml matrices was dendritic. However, spreading of fibroblasts within 4 mg/ml matrices was dendritic whereas cells became flattened and polarized if they were located on the matrix surface.
Parallel experiments were carried out with fixed and stained cultures (cf. Figure 6A). Figures 5B and 5C show morphometric measurements of fibroblast spreading (projected cell area) and overall cell shape (dendritic index = 1 for a round cell). Over the collagen concentration range of 1 to 4 mg/ml, the extent of cell spreading increased about 50%. In general, fibroblasts within or on the surfaces of matrices showed somewhat greater spreading as the collagen concentration increased. However, the biggest difference was in cell shape as had been observed in the time-lapse videos. That is, dendritic index was similar for cells within matrices or on the surfaces of 1–2 mg/ml matrices. Above 2 mg/ml, dendritic index remained relatively constant for cells within matrices but decreased for fibroblasts on the matrix surfaces.
Figure 6. Actin stress fibers, focal adhesions, and focal adhesion kinase (FAK) Y397 phosphorylation by fibroblasts on top of collagen matrices.
(A) Fibroblasts were incubated 4 h on top of collagen matrices prepared at the collagen concentrations indicated. At the end of the incubations, cells were fixed and visualized by immunostaining for actin and vinculin. As the collagen concentration increased, cell morphology switched from dendritic to flattened and polarized. Actin stress fibers (phalloidin staining) and focal adhesions (vinculin staining) were readily visible in the flattened cell regions. Bar = 50 μm. (B) Fibroblasts were incubated 1 and 4 h on top of collagen matrices prepared with 1 mg/ml collagen (M1) or 4 mg/ml collagen (M4) or on 50 μg/ml collagen-coated coverslips (2D). Cells incubated 1 h on collagen-coated coverslips but not on collagen matrices or trypsinized cells (T) showed FAK phosphorylation. After 4 h, fibroblasts incubated on collagen matrices also showed FAK phosphorylation. Data shown are representative of three independent experiments.
Actin stress fibers, focal adhesions, and focal adhesion kinase (FAK, Y397) phosphorylation
Figure 6A shows the collagen concentration-dependent transition in morphology from dendritic to flattened and polarized of fibroblasts on the surfaces of the matrices. Actin stress fibers (phalloidin-staining) were readily visible in the flattened cell regions. Focal adhesion could be observed by immunostaining for vinculin. To test functionality of focal adhesions, we measured FAK (Y397) phosphorylation. Figure 6B shows that for cells on collagen-coated coverslips (2D), robust FAK phosphorylation could be observed after 1 hr, whereas little FAK phosphorylation was detected at this time in fibroblasts interacting with 1 and 4 mg/ml collagen matrices (M1 & M4) or trypsinized cells (T). However, after 4 h, FAK phosphorylation also could be detected in fibroblasts interacting with 1 and 4 mg/ml collagen matrices.
Cell spreading and migration on glutaraldehyde-treated collagen matrices
The collagen concentration-dependent transition in morphology of fibroblasts on the surfaces of collagen matrices might have occurred because of increased matrix stiffness. To test this possibility, matrices were stiffened by treatment with glutaraldehyde. Figure 7A shows storage modulus vs. collagen concentration for glutaraldehyde-treated (glu-treated) and control matrices. The results are presented on a logarithmic scale to facilitate comparison. Glutaraldehyde treatment increased matrix stiffness as much as 10 fold. Glu-treated 1.75 mg/ml collagen matrices exhibited a storage modulus similar to 4 mg/ml control matrices.
Figure 7. Cell spreading on collagen matrices stiffened chemically by treatment with glutaraldehyde.
(A) Collagen matrices prepared with the collagen concentrations indicated were polymerized 1 h and then subjected to glutaraldehye (glu-treated) or PBS (control) treatment. Matrix stiffness (storage modulus) was measured by oscillating rheometry. Data shown are the averages +/− SD based on two separate experiments with triplicate matrices at each collagen concentration. Glu-treated samples had 5–10 fold increased matrix stiffness. (B&C) Fibroblasts were incubated 4 h on top of glu-treated and control matrices. At the end of the incubations, the cells were fixed and visualized by immunostaining for actin (c.f. Figure 8). Cell spreading (projected surface area) and cell shape (dendritic index) were determined by morphometric analysis. Data shown are the averages +/− SD of three separate experiments with five cells at each collagen concentration. Fibroblast spreading and dendritic index showed similar collagen concentration dependence regardless whether or not the matrices were stiffened by glu-treated.
Motile activity of fibroblasts was compared on control and glu-treated matrices. Figures 7B and 7C present morphometric measurements of fibroblast spreading and dendritic index, and Figure 8 shows the appearance of phalloidin-stained cells. Cell morphology and quantitative measures of fibroblast spreading and dendritic index showed similar collagen concentration dependence over the range of 1 to 4 mg/ml collagen matrices regardless whether or not the matrices had been glu-treated.
Figure 8. Cell morphology and actin stress fibers on collagen matrices stiffened chemically by treatment with glutaraldehyde.
Fibroblasts were incubated 4 h on top of collagen matrices prepared at the collagen concentrations indicated and treated with or without glutaraldehyde as indicated in Figure 7A. At the end of the incubations, cells were visualized by immunostaining for actin. As the collagen concentration increased, cell morphology switched from dendritic to flattened and polarized and actin stress fibers were visible in the flattened cell regions. Increasing matrix stiffness by glu-treatment had no effect on cell morphological appearance. Bar = 50 μm.
Finally, Figure 9A shows phase-contrast images from representative time-lapse videos of fibroblasts on the surfaces of fixed 1 and 4 mg/ml collagen matrices (Supplemental time-lapse videos 5 and 6). In contrast to control matrices (Figures 4 and 5A), little collagen translocation occurred in 1 or 4 mg/ml matrices that were glu-treated. However, fibroblasts on 4 mg/ml but not 1 mg/ml glu-treated matrices began to migrate. Figure 9B shows quantitative data on the extent of cell migration (nuclear displacement). Cell migration was similar on control and glu-treated matrices.
Figure 9. Cell migration on collagen matrices stiffened chemically by treatment with glutaraldehyde.
(A) Phase-contrast images showing initial and final frames from time-lapse videos of fibroblasts incubated for 4 h on the surfaces of glu-treated (see Figure 7A) collagen matrices at the collagen concentrations indicated (Supplemental time-lapse videos 5 and 6). Cells on 4 mg/ml but not 1 mg/ml matrices developed flattened, polarized morphology and began to migrate. (B) Same as (A) except cell migration determined by measuring nuclear displacement. Data are the average +/− S.D of three separate experiments with five different cells for each collagen concentration. The extent of cell migration was similar on control and glu-treated matrices.
DISCUSSION
The features of matrix biomechanics that regulate cell physiological responses are poorly understood. We found that over the collagen concentration range of 1 to 4 mg/ml, the consequences of fibroblast motile activity changed markedly. Collagen fibril translocation decreased and cell spreading and migration increased depending on location of cells within or on the surface of the matrix. As will be discussed, collagen translocation appeared to depend primarily on matrix stiffness, whereas fibroblast spreading and migration were influenced strongly by collagen matrix porosity.
Increasing the collagen concentration of matrices from 1 to 4 mg/ml resulted in an increase in matrix stiffness from 4 to 62 Pa (storage modulus) as measured by an oscillating rheometer. Stiffness measurements were made at low strain (0.5%) and frequency (0.1 Hz). Although collagen matrices have been shown to exhibit linearity up to 10% strain [28], atypical behavior has been reported at low collagen matrix concentrations [29]. We used low strain and frequency to insure a linear response over the range of collagen concentrations that we tested, and our results are similar to those reported by others using rheological methods [28–31]. In the experiments using glutaraldehyde treatment to increase matrix stiffness, glycine and Na borohydride treatments were included to prevent cytotoxic effects of glutaraldehyde [32, 33], and fibroblasts interacting with glutaraldehyde-treated matrices did not show evidence of morphological abnormalities.
Increasing the collagen concentration from 1 to 4 mg/ml also resulted in a decrease in matrix porosity from 3.7 μm2 to 0.9 μm2 -- corresponding to average pore diameter 2.2 to 1.1 μm. Since preparation of the samples for scanning electron microscopy analysis involved a combination of glutaraldehyde and osmium fixation followed by critical-pointed drying and paladium coating, the data likely reflect relative rather than absolute pore sizes. Nevertheless, our findings are in the same size range as reported for native collagen matrices analyzed by 3D reconstruction confocal reflection microscopy [34].
As the collagen concentration in the outer matrix of floating nested matrices was increased from 1 to 4 mg/ml, the ability of cell motile activity to cause collagen translocation decreased, and little collagen translocation occurred with 4 mg/ml outer matrices. Similarly, fibroblasts spreading within or on the surfaces of uniform collagen matrices showed decreased collagen translocation as collagen concentration increased from 1 to 4 mg/ml. After matrix stiffening with glutaraldehyde, translocation of 1 mg/ml collagen matrices no longer occurred. Taken together, these findings suggested that matrix stiffness determined the possibility of collagen translocation independently of cell population or position.
In contrast to collagen translocation, the effects of collagen concentration on cell migration and spreading varied according to cell population and position within the matrix indicating that collagen concentration influenced cell migration and spreading by mechanisms different from collagen translocation. For instance, with floating nested collagen matrices, increasing the collagen concentration from 1 to 2 mg/ml was sufficient for maximal cell migration. On the other hand, differences in spreading and migration of fibroblasts in uniform collagen matrices were not observed in 2 mg/ml collagen matrices, but did become evidence at higher collagen concentrations. Above 2 mg/ml collagen, cells on the surfaces but not within collagen matrices switched from dendritic to flattened and polarized morphology and exhibited migration.
Studies comparing control and glutaraldehyde-treated collagen matrices provided direct evidence that matrix stiffness was not responsible for the switch from dendritic morphology to flattened, polarized and migratory that occurred when fibroblasts were incubated on the surfaces of high concentration collagen matrices. That is, increasing matrix stiffness 3–10 fold by glutaraldehyde treatment had no effect on cell spreading and migration. Surface topography [35] and arrangement of adhesion ligand domains [36–38] have been shown to exert a strong influence on cell morphology and migration on 2D surfaces. Our findings support the idea that closer spacing of collagen fibrils (i.e., decreased matrix porosity) plays a key regulatory role in determining cell spreading and migration in collagen matrices.
To test signaling function of focal adhesions formed by fibroblast on the surfaces of collagen matrices, we measured activation of focal adhesion kinase (FAK), which plays a key role in cell motile function [39]. Most studies on cells interacting with 3D matrices have demonstrated absence of FAK signaling as measured by FAK (Y397) phosphorylation [40–42]. Consistent with previous findings, we also observed a lack of FAK phosphorylation after short incubation periods. However, slow FAK (Y397) phosphorylation occurred and could be detected after 4 h. The biological significance and regulatory mechanism of slow FAK phosphorylation require further investigation.
The collagen-concentration dependent behavior that we observed for fibroblasts interacting with collagen matrices differs markedly from the results of studies on 2D surface biomechanics using ligand-coated polyacrylamide surfaces. The softest polyacrylamide surfaces have stiffness values in the range of 200–1000 Pa [43], and are stiffer than 1–4 mg/ml collagen matrices. Yet, fibroblasts on soft polyacrylamide surfaces tend to remain round and spread poorly [43–45], migrate poorly [Pelham, 1997 #141;Lo, 2000 #287;] and form cell clusters [46].
The difference between our studies on 3D collagen matrices and previous findings with 2D polyacrylamide surfaces may derive in part because of the growth factor environment. The studies with polyacrylamide surfaces were carried out in serum-containing medium, whereas we used medium containing PDGF, which stimulates fibroblast migration in 3D matrices more than other growth factors that we have tested [47]. Indeed, human fibroblasts incubated on the surfaces of 1 to 4 mg/ml collagen matrices in serum-containing medium spread much more slowly that in PDGF-containing medium and contract into clusters rather than migrating as individuals [48]. We speculate that in serum-contain medium, because of the contractile effect of Rho activation [49], fibroblasts require a stiff surface against which to pull in order to overcome the forces of cell membrane tension and tensegrity that tend to impede cell polarization [50, 51]. On the other hand, PDGF-stimulated Rac activation [52] facilitates cell protrusion and dendritic morphology [4, 15]. Understanding the differences in cell behavior on 3D collagen matrices vs. 2D polyacrylamide surfaces is an important topic for future investigation.
CONCLUSIONS
In the current studies, we quantitatively characterize collagen translocation, cell spreading and cell migration in collagen matrices varying in collagen concentration. Collagen translocation appeared to depend primarily on collagen matrix stiffness, whereas cell spreading and migration were less dependent on matrix stiffness and more dependent on collagen matrix porosity.
Supplementary Material
Sup_1. mov. Motile activity of fibroblasts within 1 mg/ml collagen matrix.
Corresponds to text figure 4A. Time of observation was 4 h. Frames were collected every 5 min, and display rate is 10 frames/sec.
Sup_2. mov. Motile activity of fibroblasts within 4 mg/ml collagen matrix.
Corresponds to text figure 4B. Time of observation was 4 h. Frames were collected every 5 min, and display rate is 10 frames/sec.
Sup_3. mov. Motile activity of fibroblasts on top of 1 mg/ml collagen matrix.
Corresponds to text figure 4A. Time of observation was 4 h. Frames were collected every 5 min, and display rate is 10 frames/sec.
Sup_4. mov. Motile activity of fibroblasts on top of 4 mg/ml collagen matrix.
Corresponds to text figure 4B. Time of observation was 4 h. Frames were collected every 5 min, and display rate is 10 frames/sec.
Sup_5. mov. Motile activity of fibroblasts on top of glu-treated 1 mg/ml collagen matrix.
Corresponds to text figure 9A, 1 mg/ml. Time of observation was 4 h. Frames were collected every 5 min, and display rate is 10 frames/sec.
Sup_6. mov. Motile activity of fibroblasts on top of glu-treated 4 mg/ml collagen matrix.
Corresponds to text figure 9A, 4 mg/ml. Time of observation was 4 h. Frames were collected every 5 min, and display rate is 10 frames/sec.
