Synaptic and non-synaptic localization of protocadherin-γC5 in the rat brain

Animals

All the animal protocols have been approved by the Institutional Animal Care and Use Committee of the University of Connecticut and followed the National Institutes of Health guidelines.

Antibodies and antibody characterization

Table I summarizes the primary antibodies used in this communication.

A novel rabbit (Rb) antibody was raised to a synthetic peptide of the deduced amino acid sequence of the rat Pcdh-γC5 (GenBank accession number GQ131870). The antibody Pcdh-γC5 to amino acids 1–14 (QLRYSVVEESEPGT-C) of the extracellular variable region recognizes a peptide unique to Pcdh-γC5. The synthetic peptide was covalently coupled via cysteine, to keyhole limpet hemocyanin and injected into a New Zealand rabbit in complete Freund’s adjuvant for the first immunization and incomplete Freund’s adjuvant for all subsequent immunizations. Sera were collected after four months of immunizations and the Pcdh-γC5 antibody was affinity-purified on the immobilized antigenic peptide. For all light and electron microscopy (EM) immunocytochemistry, immunoblot and immunofluorescence experiments we used the antibody affinity-purified on immobilized antigenic peptide. Antibody specificity was determined by i) sequence specificity as determined from Entrez protein database; ii) ELISA, showing binding to the antigenic peptide; iii) immunobloting of brain tissue, showing specific immunoreactivity with a 120kD peptide band; iv) displacement of immunoreactivity by antigenic peptide in both immunoblots and light microscopy immunocytochemistry; v) the presence of very strong Pcdh-γC5 immunofluorescence in HEK293 cells transfected with non-tagged Pcdh-γC5 or with Pcdh-γC5 tagged at the C-terminus with EGFP in comparison with the background immunofluorescence of the non-transfected cells; vi) the absence of significant Pcdh-γC5 immunofluorescence of HEK293 cells transfected with Pcdh-γC3-EGFP or Pcdh-α4–EGFP over the background fluorescence of non-transfected cells; vii) in cultured hippocampal neurons, the anti-Pcdh-γC5 immunofluorescent clusters are also immunopositive with a mouse (Ms) mAb anti-Pan-Pcdh-γ antibody in double-label experiments (Supplementary Fig. S3); viii) the distribution of the immunoreactivity in various brain regions is consistent with the distribution of Pcdh-γC5 mRNA revealed by in situ hybridization (see below); and ix) the reported postnatal developmental expression of Pcdh-γC5 mRNA, which is unique among Pcdhs, corresponds to the postnatal development of the immunoreactivity in the brain (see below).

The guinea pig (GP) anti-rat γ2 (to amino acids 1–15 QKSDDDYEDYASNKT) GABA_AR subunit antibody was raised in our laboratory and affinity-purified on the corresponding immobilized peptide antigen. Triple-label immunofluorescence in cultured hippocampal neurons with this antibody shows clusters that are highly colocalized with the clusters immunolabeled with antibodies to other GABA_AR subunits such as Rb anti-γ2, Rb anti-α1, Rb anti–α2 and Ms monoclonal antibody (mAb) anti-β2/3. Immunofluorescence is blocked by the antigenic peptide. In addition, the clusters show apposition to GABAergic presynaptic glutamate decarboxylase (GAD)-containing terminals (Christie et al., 2002a, 2002b; Christie and De Blas, 2003; Charych et al., 2004a, 2004b; Li et al., 2005a; Serwanski et al., 2006; Li et al., 2007; Yu and De Blas, 2008; Yu et al. 2008; Li et al., 2009).

The Ms mAb anti-β_2/3 GABA_AR subunit (clone 62-3G1) was also raised in our laboratory to the affinity-purified bovine GABA_AR (De Blas et al., 1988; Vitorica et al., 1988). This mAb recognizes an N-terminal epitope that is common to the rat β2 and β3 subunits but not present in the β1 subunit (Ewert et al., 1992). In immunoblots of rat brain membranes or affinity-purified GABA_ARs, this antibody specifically recognizes a 55–57 kD protein band corresponding to the β2/β3 GABA_AR subunits (Vitorica et al., 1988; Moreno et al., 1994; Miralles et al., 1999). Immunoreactivity in immunoblots and immunocytochemistry was blocked by affinity-purified GABA_ARs (De Blas et al., 1988; Vitorica et al., 1988) Triple-label immunofluorescence of cultured hippocampal neurons shows high colocalization of immunolabeled β2/3 clusters with that of other GABA_AR subunits in apposition to GAD-containing GABAergic presynaptic terminals (Christie et al., 2002a, 2002b; Riquelme et al., 2002; Christie and De Blas, 2003; Serwanski et al., 2006; Yu et al., 2007).

The monoclonal mouse anti-gephyrin (mAb 7a) to affinity-purified rat glycine receptor protein complex (Pfeiffer et al., 1984) was purchased from Synaptic Systems (Gottingen, Germany, Catalog number 147011, clone mAb7a, Lot 147011/14). In immunoblots of purified glycine receptor, this mAb binds to a 93 kD protein band and, to a lesser extent, to a 48 kD protein band (Pfeiffer et al., 1984). Immunoreactivity is absent in a gephyrin knockout mouse but not in the wild-type mouse (Feng et al., 1998). This antibody has been thoroughly characterized and widely used in the literature to localize gephyrin by light microscopy and EM immunocytochemistry in the rat brain and in neuronal cultures (Kirsch and Betz, 1993, 1995; Giustetto et al., 1998; Kneussel et al., 1999; Christie et al., 2002a; Christie and De Blas, 2003; Christie et al., 2006).

The GP anti-vGlut1 (to synthetic peptide GATHSTVQPPRPPPPVRDY of rat vGLUT1) was from Chemicon (Temecula, CA; catalog number AB5905; Lot number 24080852). In immunoblots of a synaptic membrane fraction from rat cerebral cortex, this antiserum recognizes a ~60 kD protein band corresponding to vGlut1, which is a marker for glutamatergic nerve terminals (Melone et al., 2005; Panzanelli et al., 2007). Double-label immunofluorescence tests done in our laboratory have shown identical labeling in both rat brain sections and cultured hippocampal neurons of this antibody and a Rb anti-vGlut1 (Synaptic system, catalogue 135002).

The Ms mAb to the GluR2 subunit of the AMPA receptor (to amino acids 175–430, catalog number MAB397, clone 6C4, lot number 19090047) was from Chemicon. This antibody specifically recognizes a 102 kD protein in immunoblots of rat brain and HEK293 cells transfected with GluR2 but not other AMPA/kainate GluR receptor subunits (Vissavajjhala et al., 1996). In the wild-type mouse, this antibody specifically reacts with the GluR2 protein band in immunoblots and shows immunoreactivity in brain tissue by immunocytochemistry. The GluR2 knockout mouse shows no reactivity in the same assays (Sans et al., 2003, Medvedev et al., 2008).

The sheep anti-GAD (lot number 1440-4) was a gift of Dr. Irwin J. Kopin (NINDS, Bethesda). This antibody to purified rat GAD recognizes a 65 kDa protein in rat brain immunoblots. The antibody precipitated GAD from rat brain and detected purified GAD in crossed immunoelectrophoresis (Oertel et al., 1981a, 1981b). The GP anti-vGAT (vesicular GABA transporter) antiserum to the synthetic peptide SLEGLIEAYRTNAED of rat vGAT was from Chemicon (catalog number AB5855, lot number 24030142). The specificity has been tested by immunofluorescence in brain sections and in culture showing a staining pattern similar to that of other vGAT antisera and by adsorption of the antiserum with the immunogen peptide. (Li et al., 2005b; Panzanelli et al., 2007). We have previously shown that the aforementioned anti-GAD and anti-vGAT immunoreactivities specifically colocalize at GABAergic presynaptic terminals (Li et al., 2005b) and that the immunoreactivity is apposed to that of postsynaptic GABA_ARs and gephyrin (Christie et al., 2002a, 2002b; Christie and De Blas, 2003).

The Ms mAb to recombinant rat PSD-95 protein was from Millipore (Billerica, MA; catalog number MAB1596, clone 6G6-1C9, Lot LV1453199). This antibody reacts with a 95 kDa protein in immunoblots of rat brain (Su et al., 2007). In cultured hippocampal neurons this antibody reacts with a protein that colocalizes with NR1 and NR2A (Fong et al., 2002). The chicken anti-PSD-95 antibody (antiserum UCT-C1, to the GST fusion protein encoding the full-length rat PSD-95) was a gift from Dr. Randall Walikonis from our department. The chicken anti-PSD antibody specifically reacts with a 95kD protein in rat brain immunoblots. In cultured hippocampal neurons, the immunoreactivity localizes at glutamatergic synapses (Tyndall and Walikonis, 2006; Moon et al., 2009). We did specificity tests of the chicken anti-PSD in hippocampal cultures by triple-label immunofluorescence with the aforementioned Ms mAb anti-PSD-95 antibody and the GP anti-vGlut1 (see below). The Ms and chicken anti-PSD-95 antibodies gave identical labeling of PSD-95 clusters apposed to vGlut1 puncta.

The Ms mAb to Pan-Pcdh-γ (Clone N159/5, to amino acids 808–931 of the constant cytoplasmic domain of mouse Pcdh-γA1 that is shared by all 22 Pcdh-γs) and the Ms mAb to Pan-Pcdh-γA (clone N144/32, to amino acids 720–804 of the variable cytoplasmic domain of mouse Pcdh-γA3), were from NeuroMab (Davis, CA). In immunoblots, both antibodies recognize a 100kD protein band in rat and mouse brain but not in the Pcdh-γ knockout mouse. The specificity of the antibodies was also tested by showing specific immunoreactivity with the corresponding protein bands in immunoblots of COS cells transfected with i) GFP-tagged Pcdh-γA3, Pcdh-γB2 or Pcdh-γC4 constructs, for mAb Pan-Pcdh-γ antibody, and ii) GFP-tagged Pcdh-γA3 or Pcdh-γA4, for mAb Pan-Pcdh-γA antibody (manufacturer’s technical information).

The Ms mAb anti-glial fibrillary acidic protein (GFAP) was from Pharmingen (to a bovine spinal cord homogenate, San Diego, CA; catalog number 60311D, lot number MO50728; clone 4A11). This antibody specifically recognizes a 50kD protein in immunoblots of extract from mixed glial-neuronal cultures but not from pure neuronal cultures. This antibody has been used for the identification of astrocytes (Fried et al., 2004).

The Ms mAb anti-S-100 (β-subunit) to a purified bovine brain S-100β preparation, was from Sigma (St. Louis, MO; catalog number S2532, clone SH-B1). It recognizes specifically a 10kD protein band in immunoblots of lumbar spinal cord from rat or wild-type mouse but not from a S-100β knockout mouse (Tanga et al., 2006). This antibody shows immunolabeling of spinal cord sections of the wild-type but not the knockout mouse.

The GP anti-glial glutamate transporter (GLAST) to the synthetic peptide QLIAQDNEPEKPVADSETKM of the carboxy-terminus of rat GLAST was from Millipore (catalog number AB1782; lot number 22061280). In immunoblots of glial cultures from rat cortex (Figiel and Engele, 2000) or from rat brain striatum (Chung et al., 2008), this antibody specifically recognizes a 65 kD protein band

The chicken anti-MAP2 (to recombinant MAP2 protein) was from Novus Biologicals (Littleton, CO; catalog number NB300-213). The specificity of this antibody has been tested using immunofluorescence with mixed glia-neuron cultures. The perikarya and dendrites of neurons are strongly and specifically labeled with the MAP2 antibody, while the axons of the neurons and the processes of all other cell types in these cultures (astrocytes, oligodendrocytes, microglia, endothelia and fibroblasts) are not labeled (manufacturer’s technical information). In addition, we have tested the specificity of this antibody by showing in double-label experiments, identical immunofluorescence to that of Ms mAb to MAP2 (Sigma. St. Louis, MO; catalog number M9942, clone HM-2, lot number 037K4805).

Fluorophore-labeled fluorescein isothiocyanate (FITC), Texas Red or aminomethylcoumarin (AMCA) species-specific anti-IgG antibodies were made in donkey (Jackson ImmunoResearch Laboratories, West Grove, PA) and used for immunofluorescence in cell cultures. For confocal microscopy the secondary antibodies were made in donkey (labeled with Cy3 or Cy5 from Jackson ImmunoResearch Laboratories) or in goat (labeled with Alexa 488 from MP Biomedicals, Solon, OH). The colloidal gold-labeled (10 nm diameter) goat anti-mouse secondary antibody was from ICN (Irvine, CA) and the colloidal gold-labeled, goat anti-Rb IgG (18 nm diameter) secondary antibody was from Jackson ImmunoResearch Laboratories.

Preparation of rat brain subcellular fractions

All steps for preparation of various rat brain fractions were performed at 4°C. For homogenate preparation, forebrains (including the telencephalon but not the diencephalon) from Sprague Dawley (SD) female rats of various ages were homogenized with a glass/Teflon homogenizer (1g of tissue/10ml of 10% sucrose, 50mM Tris-HCl, 1mM phenylmethylsulfonyl fluoride, pH 7.4) containing a protease inhibitor cocktail (Roche, Indianapolis, IN). The homogenate was centrifuged for 10 min at 1,000×g to eliminate nuclei and cell debris and the supernatant was used for immunobloting to investigate Pcdh-γC5 expression during rat brain development.

For brain membrane preparation, homogenates from the forebrain (telencephalon) of adult female rats were centrifuged for 10 min at 1,000×g and the supernatant was centrifuged at 100,000×g for 1hr. The pellet was suspended in 5mM Tris-HCl pH 7.4 and subjected to homogenization in a glass Dounce homogenizer, followed by centrifugation at 12,000×g for 30 min and suspension of the pellet in 50mM Tris-HCl, pH 7.4.

The preparation of crude synaptosomal (P2), purified synaptosomal (P2B) and “one triton” postsynaptic density (PSD), type-I PSD glutamatergic and type-II PSD GABAergic fractions was described elsewhere (Li et al., 2007). The “one triton” PSD fraction was prepared from purified synaptosomes as described elsewhere (Li et al., 2007). For the preparation of type-I and type-II PSD fractions, the “One Triton PSD” pellet was suspended in 0.32 M sucrose, centrifuged at 201,800× g for 16 hours through a continuous sucrose gradient (0.32–2.0 M) and fractionated as described elsewhere (Li et al., 2007). Sucrose fraction #6 (ρ = 1.10 g/ml) is enriched in GABAergic type-II PSDs whereas sucrose #10 (ρ = 1.20 g/ml) is enriched in glutamatergic type-I PSDs (Li et al., 2007). The protein concentrations of different brain fractions were measured by using Micro BCA Protein Assay Reagent Kit (Pierce, Rockford, IL).

Immunoblots for Figure 1K were done according to the procedure of De Blas and Cherwinski (1983). For Figs 1L and 2A the immunoreactive protein bands were visualized with a peroxidase-conjugated secondary antibody followed by a chemiluminiscence reaction (SuperSignal West Pico Trial Kit, Thermo Scientific, Rockford, IL) and exposure to CL-Xposure Film (Pierce, Rockford, IL). Quantification of the intensity of the bands was done with Quantity One software (Bio-Rad, Hercules, CA).

Immunocytochemistry of rat brain sections

This procedure has be described elsewhere (De Blas, 1984; Charych et al., 2004a, 2004b). Briefly SD rats of the specified ages were anesthetized (with 60 mg/kg ketamine-HCl, 8mg/kg xylazine, 2mg/kg acepromazine maleate) followed by perfusion through the ascending aorta with PB (27mM NaH₂PO₄, 92mM Na₂HPO₄, pH 7.4) and 4% PLP fixative (4% paraformaldehyde, 1.37% lysine, 0.21% sodium periodate in 0.1M phosphate buffer, pH 7.4). Brains were cryoprotected, frozen and sectioned with a freezing microtome. Parasagittal brain sections (thickness: 70μm thick for P0 and P7, 40μm thick for P14 and P21 and 25μm for other ages) were incubated with the anti-Pcdh-γC5 antibody in 0.3% Triton X-100 in PB at 4°C overnight. The washed sections were incubated with biotinylated anti-rabbit IgG and avidin-biotin-horseradish peroxidase complex (ABC procedure, Vectastain Elite ABC Kit, Vector Laboratories, Burlingame, CA) in 1% normal goat serum. To visualize the reaction, sections were incubated with 3-3′ diaminobenzidine tetrahydrochloride (DAB) in the presence of 0.03% cobalt chloride, 0.03% nickel ammonium sulfate and 0.01% H₂O₂. Sections were then washed and mounted on gelatin-coated glass slides. No tissue immunolabelling was detected when the primary antibody was incubated with 25 μg/ml of antigenic peptide or when the primary antibody was omitted.

Cell cultures

Hippocampal neuronal cultures were prepared according to Goslin et al. 1998 as described elsewhere (Christie et al., 2002a, 2002b; Christie and De Blas, 2003). Briefly, dissociated neurons from embryonic day 18 (E18) Sprague-Dawley (SD) rat hippocampi were plated at low density (3000–8000 cells per 18mm diameter coverslip) and maintained in glial cell conditioned medium up to 21 days. Astrocytes are seldom found in these neuronal cultures (Supplementary Fig. S2).

Astrocyte cultures were prepared from the cerebral cortex of postnatal day 0 (P0) SD rats as described by Goslin et al. (1998). Briefly, glial cells were plated in glial culture medium (DMEM with 0.6% D-glucose, 26 mM NaHCO3, and 10% horse serum) in a 5% CO₂ atmosphere, at 37°C for about 9 days until confluent. Cells were harvested after treatment with trypsin/EDTA followed by incubation with horse serum. Cells were collected after centrifugation and stored in liquid nitrogen in 10% DMSO/glial culture medium. After thawing, cells were plated on poly-L-lysine coated glass coverslips and maintained on glial culture medium for four days followed by immunofluorescence.

In utero electroporation

Embryonic rat brain gene transfer using in utero electroporation was done as described by Li et al. (2005b). Briefly, pregnant Wistar rats at 14 daygestationwere anesthetized as described above and a laparotomy was performed. The uterine horns were gently pulled out and 1–3 μl of a sterile mixture of 0.5 μg /μl of pLZRS-CA-gapEGFP plasmid (gift from Drs. A. Okada and S. K. McConnell, Stanford University, Stanford) and Fast Green (2 mg/ml; Sigma, St. Louis) were microinjected by pressure with a picospritzer through the uterine wall into the lateral ventricles of the embryos with a sterile glass capillary pipette. Electroporation was carried out by a brief (1–2 msec) discharge of a 500-μF capacitor charged to 50–100 V with a power supply. The voltage pulse was discharged with a pair of sterile gold/copper alloy oval plates (1×0.5 cm) after gently pinching the head of each embryo through the uterus. After electroporation, the uterus was returned to the body cavity and the incision was closed sewing it up with sterile surgical suture. The pups were sacrificed at 35 days after birth.

Immunofluorescence

Immunofluorescence of fixed hippocampal and glial cultures was done as described elsewhere (Christie et al., 2002a, 2002b; Christie et al., 2006). Briefly, cells on glass coverslips were fixed in 4% paraformaldehyde, 4% sucrose in PBS (all the reagents were prepared in PBS) for 15 minutes. The free aldehyde groups were quenched with 50mM NH₄Cl in PBS for 10min. Permeabilization was done with 0.25% Triton X-100 for 5 minutes followed by incubation with 5% normal donkey serum (NDS) in 0.25% Triton X-100 for 30 min. The coverslips were incubated overnight at 4°C with a mixture of primary antibodies raised in different species, in the presence of 0.25% Triton X-100, followed by incubation with a mixture of species-specific secondary anti-IgG antibodies raised in donkey and conjugated to Texas Red, FITC or AMCA fluorophores in 0.25% Triton X-100 at room temperature for 1 hr. The coverslips were mounted on glass slides with Prolong Gold anti-fade mounting solution (Invitrogen, Eugene, OR)

For immunofluorescence of brain slices, free-floating sections from P83 rat brains (or P35 for brains subjected to in utero electroporation), were prepared as described above for immunocytochemistry. Brain sections were incubated with 2% normal goat serum (NGS), 0.3% Triton X-100 in PB for 1hr at RT followed by incubation with a mixture of primary antibodies raised in different species in 1% NGS, 0.3% Triton X-100 in PB at 4°C overnight. After washes with PB, the sections were incubated with a mixture of Cy3-labeled donkey anti-Rb, Alexa Fluor 488-labeled goat anti-Ms (or anti-chicken) and Cy5-labeled donkey anti-GP (or anti-Ms) IgG secondary antibodies for 1.5hrs at RT. After washes with PB the sections were mounted on gelatin-coated glass slides with Prolong Gold anti-fade mounting solution and analyzed by laser confocal microscopy. Pepsin treatment of the fixed free floating sections (0.15 mg/ml in 0.2N HCl at 37 °C for 10 min) prior to the aforementioned treatment with NGS and Triton X-100, aiming to facilitate the access of the antibody to the antigen, did not affect the localization of Pcdh-γC5 immunoreactivity in the brain when compared with sections not treated with pepsin.

Image acquisition, analysis and quantification

Fluorescence images of neuronal cultures were collected using a Nikon Plan Apo 60×/1.40 objective (a Nikon Plan Fluor 20×/0.45 objective was used for Fig.S2 A and B) on a Nikon Eclipse T300 microscope with a Photometrics CoolSNAP HQ2 CCD camera, driven by IPLab 4.0 (Scanalytics, Rockville, MD) acquisition software. Brain section immunofluorescence images were acquired on a Leica TCS SP2 laser confocal microscope using a HCX PL Apo 100×/1.40-0.7 oil CS objective lens and a pinhole set at 1Airy unit. Figures 8 and 9 show single optical sections (0.1 μm thick) and Fig. 7 shows maximal projections of stacks of 10 consecutive images (each 0.1 μm thick). For qualitative analysis, images were processed and merged for color colocalization using Photoshop 7.0 (Adobe, San Jose, CA) adjusting brightness and contrast as described elsewhere (Christie et al., 2002).

For quantification in hippocampal cultures of cluster density (Pcdh-γC5, nonsynapticγ2, PSD95 and vGlut1) and colocalization, three independent immunofluorescence experiments were performed for each combination of antibodies. A total of 60 dendritic fields (86μm² average) were analyzed from 30 neurons (10 randomly selected pyramidal neurons in each experiment). The maximum intensities of the fluorophore channel were normalized and the low intensity and diffuse non-clustered background fluorescence signal seen in the dendrites was subtracted. The total number of clusters counted was 2275 for Pcdh-γC5, 1092 for nonsynaptic γ2, 1267 for PSD-95 and 1263 for vGlut1. Cluster density was calculated as number of clusters per 100 μm² of dendritic surface. In these low density cultures, neurons have relatively low GABAergic innervation. For the quantification of the percentage of GABAergic synapses that have associated Pcdh-γC5 clusters, 30 randomly selected neurons (3 independent experiments, 10 neurons per experiment) were analyzed. In each neuron, 15 GABAergic synapses (GAD puncta+ andγ2 cluster+) were randomly selected and analyzed for the association of Pcdh-γC5 clusters. Thus, a total of 450 GABAergic synapses (GAD+ andγ2+) were analyzed. A cluster in a fluorescence channel was considered to co-localize with a cluster in the other channel when >66% of surface of one of the clusters overlapped with the other cluster. For the quantification of Pcdh-γC5 cluster size, 30 dendrites from 15 randomly selected neurons (2 dendrites/neuron, 5 neurons per experiment, 3 independent experiments) were analyzed. The size of 914 Pcdh-γC5 clusters was measured with IPLab 4.0 software. All the values were reported as mean ± standard error of the mean (SEM).

Preembedding EM immunocytochemistry

This procedure has been described elsewhere (Charych et al., 2004a, 2004b; Li et al., 2009). Briefly, 45-day-old SD female rats were anesthetized as described above and perfused through the aorta with PB followed by either 4% paraformaldehyde, 0.1% glutaraldehyde in PB, pH 7.4, fixative or PLP fixative (periodate/lysine/4% paraformaldehyde fixative, McLean and Nakane, 1974) as indicated above. 50μm thick parasagittal vibratome (Leica VT1000S, Vienna, Austria) sections were incubated with 3% normal goat serum in PBS at RT for 1 hr and then incubated with the Pcdh-γC5 antibody in PBS overnight at 4 °C followed by the ABC procedure described above. After development of the DAB reaction and washes, the tissue was incubated with 1% osmium tetroxide in PB at room temperature for 45 minutes and dehydrated by sequential incubations in 50%, 70%, 85%, and 95% ethanol 3 times each for 5min and in 100% ethanol 3 times for 15min at 4°C. The dehydrated sections were embedded in Embed 812 resin (Electron Microscopy Sciences, Hatfield, PA) between two aclar strips and polymerized at 60°C for 48hrs. Ultrathin sections (70–80 nm thick) were cut on a Leica Ultracut UCT (Leica Mikrosysteme GmbH, Wien, Austria). Sections were counterstained at RT with 2% uranyl acetate for 1 min and with lead citrate for 1 min.

Postembedding EM immunogold labeling and quantification

For all panels of Fig. 10, except G, the tissue preparation, freeze substitution and postembedding immunogold labeling were done as reported previously (Rubio and Wenthold, 1997; Riquelme et al., 2002; Charych et al., 2004a, 2004b; Li et al., 2005a; Serwanski et al., 2006; Rubio et al., 2008). Briefly, 70-day old SD female rats were anesthetized as described above and perfused with Ringer’s solution, pH 6.9 at room temperature quickly followed by 4% paraformaldehyde, 0.5% glutaraldehyde in 0.1M PB, pH 7.4. Vibratome sections (300–500μm thick) were cryoprotected with 2M sucrose in PB and plunge-frozen in liquid propane cooled by liquid nitrogen (−186 °C). Sections were incubated with 1.5% uranyl acetate in anhydrous methanol at −90°C for 30hrs and infiltrated with Lowicryl HM20 resin (Polysciences, Warrington, PA, USA) followed by polymerization with UV light for 72hrs in a freeze substitution instrument (Leica AFS, Vienna, Austria) in a temperature gradient (−45°C to 0°C). Sections (70–80 nm thick) were cut from the embedded tissue block and collected on 400-mesh gold-gilded nickel grids coated with a Coat-Quick ‘G’ pen (Daido Sangyo, Japan). Immunogold labeling was performed according to a double-sided immunoreaction procedure as described elsewhere (Riquelme et al., 2002). The tissue sections were incubated with either Rb Pcdh-γC5 antibody alone or a mixture of Rb Pcdh-γC5 and mouse mAb to β2/3 GABA_AR subunit or to GluR2 AMPA receptor subunit, followed by incubation with a mixture of goat anti-rabbit and goat anti-mouse species-specific anti-IgG secondary antibodies labeled with colloidal gold particles of 18 and 10 nm diameter respectively. The tissue sections were counterstained with 2% uranyl acetate and then with 2% lead citrate. No immunolabeling was observed when the primary antibody was omitted. For panel G of figure 10 the Lowicryl-embedded tissue blocks were a generous gift of Drs. Peter Somogyi (MRC Anatomical Neuropharmacology Unit, Oxford, UK) and Zoltan Nusser (Institute of Experimental Medicine, Budapest, Hungary), who have described the preparation of the blocks elsewhere (Nusser et al., 1998). These tissue blocks were sectioned in our laboratory and the ultrathin sections were subjected to the same immunogold labeling procedure described above. All sections were visualized with a Tecnai Biotwin 12KV transmission electron microscope (FEI Corporations, Eindhoven, Holland). EM images were stored in Adobe Photoshop 7.0 and contrast/brightness was adjusted.

We used the method of Valtschanoff and Weinberg (2001) for the quantification of the distribution of the Pcdh-γC5 gold particles at the synapse as we have described elsewhere (Serwanski et al., 2006). The axodendritic distance of each gold particle to the middle of the synaptic cleft was measured as a perpendicular line between the center of the gold particle and the midline of the synaptic cleft. The distances of the particles were sorted into 5 nm bins for plotting particle density. A negative or positive number indicates that the particle was located on the presynaptic or postsynaptic side of the midline, respectively. Binned data were smoothed with a six-point weighted running average using SigmaPlot 10.01 (Systat Software Inc., Chicago, IL).

Generation of a specific anti-Pcdh-γC5 antibody and immunocytochemical localization of Pcdh-γC5 in the rat brain

We have developed a novel rabbit antibody to the N-terminus of the rat Pcdh-γC5 that specifically recognizes Pcdh-γC5 but not other members of the Pcdh-γ family. The epitope recognized by this antibody is identical in rat, mouse and human. In immunoblots of a rat brain membrane fraction, the affinity-purified antibody specifically recognized a single 120,000 Mr polypeptide (Fig. 1K). The immunoreactivity was blocked by the antigenic peptide (Fig. 1K). This Mr is in agreement with the reported ~120,000 Mr of the Pcdh-γ family (Frank et al., 2005). Other specificity tests were described in Materials and Methods.

Light microscopy immunocytochemistry of P30 rat brain parasagittal sections showed that Pcdh-γC5 is highly expressed in the olfactory bulb (OB), cerebral cortex (CC), corpus striatum (St), olfactory tubercle (Tu), dentate gyrus (DG), hippocampus (HP), cerebellum (CB) in this order of intensity (Fig. 1A). Lower levels of expression were found in the substantia nigra, reticulata (SNR), pontine nuclei (Pn) and the medial cerebellar nucleus (Med). The immunoreactivity was particularly high in the external plexiform layer (EP) and granule cell layer (GR) of the olfactory bulb (Fig. 1B), and in layers I to III of the cerebral cortex (Fig.1C). There was also high immunoreactivity in the corpus striatum (Fig. 1D). In the hippocampus, the CA1 region had the highest while the CA3 region had the lowest immunoreactivity (Fig. 1F–H). In the hippocampus there was immunoreactivity in the soma of the pyramidal cells of the stratum pyramidale (SP, Fig. 1G and 1H) as well as in the synaptic layers. Thus in the CA1 region (Fig. 1H) there was strong punctate staining in the stratum radiatum (SR), as shown at high magnification (Fig. 1I, arrows). The presence of these Pcdh-γC5 granules in the neuropil and their size (0.2–1.5 μm in diameter) is consistent with the notion that they are synaptic. However, confocal studies shown below, indicate that many of these granules (clusters) are not synaptically localized. Note that the Fig. 1I panel is showing structures at considerably higher magnification than in the other panels, as indicated in the figure legend. Immunoreactivity was also strong in the molecular layer (ML) of the dentate gyrus (Fig. 1J). In the cerebellum (Fig.1E), the immunoreactivity was high in the soma and dendrites of the Purkinje cells (PK) and in the molecular layer (ML). Our immunocytochemistry data on the distribution of the Pcdh-γC5 protein in the rat brain are consistent with the in situ hybridization data on the distribution of Pcdh-γC5 mRNA in the rat brain (Zou et al., 2007) and mouse brain (Allen Brain Atlas http://www.brain-map.org, Entrez Gene ID 93708, http://mouse.brain-map.org/brain/Pcdhgc5.html?ispopup=true).

Subcellular fractionation of the rat brain (Fig. 1L) shows that there is an enrichment of Pcdh-γC5 in the postsynaptic density fractions such as i) the “one triton” PSD fraction (PSD), which is enriched in both GABAergic and glutamatergic postsynaptic densities; ii) the type-II PSD fraction, which is enriched in GABAergic postsynaptic densities and iii) the type-I PSD fraction, which is enriched in glutamatergic postsynaptic densities, when compared with the crude synaptosomal P2, microsomal P3 and synaptosomal P2B fractions. The characterization of the type-I PSD and type-II PSD postsynaptic density fractions has been reported elsewhere (Li et al., 2007). These results support the notion that Pcdh-γC5 is present in glutamatergic and GABAergic synapses.

Pcdh-γC5 is not expressed until the second postnatal week of the rat brain development

Immunoblots with rat forebrain (telencephalon) homogenates of various ages, from embryonic day 18 (E18) to postnatal day 90 (P90) showed that the 120kD Pcdh-γC5 protein band (Fig. 2A, arrow), whose immunoreaction was blocked by the antigenic peptide, is not significantly expressed until the second postnatal week, reaching a peak by P21 followed by a slight decrease in expression (Fig. 2A and B). There were also two immunoreactive protein bands of higher Mr that were present between P0 and P7, but the corresponding immunoreactivity was not displaceable by the antigenic peptide (Fig. 2A, arrowhead), indicating that the immunoreactivity was non-specific. These non-specific immunoreactive protein bands disappeared after P7.

Light microscopy immunocytochemistry experiments (Fig. 2C) show that the developmental expression of Pcdh-γC5 immunoreactivity in the rat brain agrees with that of the immunoblots. There was little or no specific immunoreactivity at P0 and P7. At P14 there was immunoreactivity in the regions that showed immunoreactivity in the adult. The typical pattern of expression in the adult was fully developed by P21. At all ages in which Pcdh-γC5 was clearly expressed (P14–P90), the immunoreactivity was displaced by the antigenic peptide, (shown in Fig. 2C for P30).

In the cerebellum, the time-course of the expression of the Pcdh-γC5 immunoreactivity largely coincided with that of the development of GABAergic synapses. Thus, specific Pcdh-γC5 immunoreactivity in Purkinje cells, molecular layer and deep cerebellar nuclei is absent at P0 and P7, but is well developed in these structures at P14 and fully developed at P21 (Fig. 2 D–G). We consider non-specific the immunoreactivity not displaced by the peptide antigen. Thus, the weak immunoreactivity observed at P0 and P7 in the cerebellum is non-specific, since is not displaced by the peptide antigen (shown for P7 in Fig 2D and H), while the immunoreactivity at P14 and onwards is displaceable by the peptide. At P14 there is some immunoreactivity in the Purkinje cells that is not displaced by the antigenic peptide (Fig. 2I, arrow). The presence of non-specific immunoreactivity at the earlier postnatal ages coincided with the presence of non-specific protein bands in the immunoblots from P0 to P7, whose immunoreactivity is not displaceable by the antigenic peptide (Fig. 2A, arrowheads).

It has been shown that GABAergic synapses on Purkinje cells start appearing at P7–P10 in the soma followed by a large increase in the number of GABAergic synapses in the Purkinje cell dendrites at P14 and P21 (Altman, 1972; Takayama, 2005; Viltono et al., 2008). This time-course coincides with the increase in specific Pcdh-γC5 immunoreactivity at P14 and P21 in the molecular layer and Purkinje cells (Fig 2D–G, single asterisk and arrow respectively). Also the formation of the glutamatergic synapses from parallel fibers on Purkinje cell dendrites and the ensheathment of the Purkinje cells by the Bergmann glia occurs during the same time-frame (Altman, 1972). In the deep cerebellar nuclei, some GABAergic synaptic activity from the Purkinje cells is recorded at P9 but it highly increases at P14 (Gambino et al., 2009), also coinciding with the time-course of specific Pcdh-γC5 immunoreactivity (Fig. 2 D and E, double asterisks). These results are consistent with the hypotheses that Pcdh-γC5 plays a role in synaptogenesis and that glial cells are involved in this process, since Pcdh-γC5 is expressed by both neurons and astrocytes as shown below.

In the olfactory bulb (OB), significant Pcdh-γC5 immunoreactivity develops between P7 and P14, being fully developed by P21 (Fig. 2L–O). At P0, there is no specific immunoreactivity displaceable by the antigenic peptide while at P7, very low levels of immunoreactivity displaceable by the antigenic peptide might be present in the external plexiform layer (EP) (Fig. 2L and P, arrowhead). If any, the specific signal is so weak that it is not detected by the immunoblots at P7 (Fig. 2A, arrows). At P14 and later, the highest levels of expression of Pcdh-γC5 in the OB (and in the brain) occurs in the EP (Fig. 2C, M–O). At these ages the immunoreactivity is displaced by the peptide antigen (Fig. 2Q–S). Specific Pcdh-γC5 immunoreactivity in the glomeruli and in the granule cell layer also shows at P14 but not at P7 (Fig. 2 L–O). It has been shown that high density levels of granule to mitral (GR/M) GABAergic synapses in the EP is reached by P15-P20 followed by a slight increase up to P44 (Hinds and Hinds, 1976). Nevertheless, a significant number of GABAergic GR/M synapses in the EP are present at P5 and P7, age at which very little, if any, specific Pcdh-γC5 immunoreactivity in the EP is detected (Fig. 2L, arrowhead). Glutamatergic mitral to granule (M/GR) synapses in the EP develop earlier, showing a very high density by P5 and P7. The glutamatergic synapses in the glomeruli from the olfactory receptor axons develop even earlier showing a significant number of these synapses at birth (Hins and Hinds, 1976). Therefore, in the OB there is a closer correlation between the time-course of Pcdh-γC5 expression and the development of GABAergic synapses in the EP than with that of glutamatergic synapses. Nevertheless, the appearance of clear Pcdh-γC5 immunoreactivity at P14 shows a delay with respect to the formation of significant number of the GABAergic synapses at P7.

The time-course of the Pcdh-γC5 protein expression in the rat brain shown by immunobloting and immunocytochemistry is identical to that of the Pcdh-γC5 mRNA expression in the mouse brain, as revealed by Northern blot analysis (Frank et al., 2005).

In cultured hippocampal neurons Pcdh-γC5 forms clusters, which are localized in a subset of GABAergic and glutamatergic synapses and also extrasynaptically

We have studied the expression and localization of Pcdh-γC5 in cultured hippocampal neurons (21DIV). At this age, the majority of pyramidal cells and interneurons show Pcdh-γC5 clusters both in dendrites and soma as shown by immunofluorescence with anti-Pcdh-γC5 (Fig. 3). In dendrites, Pcdh-γC5 clusters were found at a density of 38.4±1.4 (mean± SEM) clusters/100 μm², n=2275, with an average size of 0.06±0.01μm², n=914 (Fig. 3A and B, arrowheads). Some larger (and brighter) Pcdh-γC5 clusters (0.14±0.1 μm², n=714, p<0.001) were also present in the soma and in the proximal segment of 5 % of the neurons (Fig. 3A and B, arrows), likely representing neurons with high levels of expression of Pcdh-γC5. This might be a reflection of the higher levels of Pcdh-γC5 expression in CA1 over CA3 as shown above (Fig. 1A and F). The larger and brighter Pcdh-γC5 clusters were found in some neurons regardless of whether they were pyramidal cells or interneurons. In 14 DIV or younger cultures, the majority of neurons showed few or no Pcdh-γC5 clusters, in agreement with the development of Pcdh-γC5 expression in the rat brain during the second and third postnatal weeks.

A significant number of GABAergic synapses had associated Pcdh-γC5 clusters as shown by triple-label immunofluorescence with anti-GAD and anti-γ2 GABA_AR subunit antibodies (Fig. 3C–F arrows, and Fig. 3ZZ). We have previously shown that these GAD⁺ and γ2⁺ contacts correspond to synapses with actively recycling synaptic vesicles (Christie et al. 2002b). We found that 45±5% of the GABAergic synapses (GAD⁺ and γ2⁺) had associated Pcdh-γC5 clusters. In 29±3% of the GABAergic synapses, the synaptic γ2 clusters and Pcdh-γC5 clusters colocalized (>66% of the surface of the Pcdh-γC5 cluster had overlap with γ2cluster, as shown in Fig. 3K–N, arrows). In 12±2% of the GABAergic synapses, the Pcdh-γC5 clusters were in contact or partially overlapping (between 1% to 66%) with the synaptic γ2 clusters (Fig. 3O and P, crossed arrows). In 4±2% of the GABAergic synapses, the Pcdh-γC5 clusters were associated, with partial or complete overlap, with the GAD terminal but had no overlap with the postsynaptic γ2clusters of these synapses (Fig. 3O–R, arrowheads).

Some non-synaptic (GAD⁻) γ2 clusters (22±1%) also showed colocalizing Pcdh-γC5 clusters, indicating that the colocalization of γ2 and Pcdh-γC5 clusters does not require the presence of presynaptic GAD-containing terminal. Nevertheless, the presence of a GAD-containing terminal in a GABAergic synapse significantly increased the colocalization of synaptic γ2 clusters with Pcdh-γC5 clusters, as shown above (29±3% vs. 22±1%, p=0.034).

A significantly smaller percentage (33±4%, p=0.023) of glutamatergic synapses (Glut1⁺ and PSD-95⁺), compared with GABAergic synapses (45±5%), had associated Pcdh-γC5 clusters (Fig. 3G–J, arrows and Fig. 3ZZ). In 17±3% of the glutamatergic synapses, the synaptic PSD-95and Pcdh-γC5 clusters colocalized (Fig. 3S–V, arrows). In 13±2% of the glutamatergic synapses, the Pcdh-γC5 clusters were in contact or partially overlapping with the synaptic PSD-95clusters (Fig. 3X and Y, crossed arrows). In 2±1% of the glutamatergic synapses, the Pcdh-γC5 clusters were associated with vGlut1⁺ terminal but had no overlap with the postsynaptic PSD-95 clusters of the same synapses (Fig. 3W, X and Z, arrowheads).

Nevertheless, the majority of the Pcdh-γC5 clusters (63±4%) were not associated with GABAergic or glutamatergic synaptic markers. Thus, only a subset of Pcdh-γC5 clusters are synaptic and only a subset of synapses (GABAergic and glutamatergic) have associated Pcdh-γC5 clusters. The aforementioned large and very bright Pcdh-γC5 clusters that are present in the soma and proximal dendrites of some neurons were not associated with synapses. The majority of Pcdh-γC5 clusters associated with synapses were localized in dendrites.

It is worth mentioning that astrocytes are largely absent from these cultures. In these hippocampal neuronal cultures, the Pcdh-γC5 clusters are expressed in neurons as determined by the colocalization of Pcdh-γC5 immunofluorescence with MAP⁺ neurons and the absence of GFAP immunofluorescence in these cells (supplementary Fig. S2 A, C and D). A few isolated GFAP⁺ astrocytes (6±2% of the cells) are present in these cultures (supplementary Fig. S2 B). The Pcdh-γC5 clusters associated with synapses in these hippocampal cultures are of neuronal origin.

We have also investigated the clustering of Pcdh-γC5 in relationship with that of other Pcdh-γs in double-labeling experiments by using the Rb Ab to Pcdh-γC5 in combination with i) a Pan-Pcdh-γ Ms mAb, which recognizes all the members in Pcdh-γ family, or ii) a Pan-Pcdh-γA, which recognize all Pcdh-γA members of the Pcdh-γ family (Supplementary Fig. S3). In 21 DIV hippocampal neurons, the majority (91±2%) of Pcdh-γC5 clusters were also immunoreactive with the Pan-Pcdh-γ antibody and 74±3% of Pan-Pcdh-γ clusters were immunoreactive with the Pcdh-γC5 antibody. Fewer Pcdh-γC5 clusters (54±3%) were Pan-Pcdh-γA positive. Also 53±4% of Pan-Pcdh-γA clusters were Pcdh-γC5 positive. These results indicate that: i) some Pcdh-γC5 clusters contain other Pcdh-γs, such as Pcdh-γAs; ii) that there are neuronal clusters that contain Pcdh-γC5 but do not contain Pcdh-γAs; and iii) that there are neuronal Pcdh-γ clusters that contain Pcdh-γAs but do not contain Pcdh-γC5. This difference in Pcdh-γs cluster composition is consistent with the existence of a neuronal Pcdh-γ recognition code.

Some GABAergic axons have Pcdh-γC5 in the majority of their synapses

Also consistent with a role of Pcdh-γC5 in synaptic specificity, is that although 45±5% of the GABAergic synapses (GAD⁺ and γ2⁺) had associated Pcdh-γC5 clusters, the majority of the GABAergic synapses made by some axons had associated Pcdh-γC5. Fig. 4A shows a GABAergic axon that innervates two different neurons. The majority of the GABAergic synapses made by this axon on neurons 1 and 2 (GAD⁺ and γ2⁺) have associated Pcdh-γC5 clusters (Fig. 4B–I, arrows). Alternatively, two GABAergic axons, presumably from two different GABAergic cells that innervated the same pyramidal cell, showed clear differences in the percentage of GABAergic synapses having associated Pcdh-γC5 clusters (Fig. 5). In this example, most GABAergic synapses from axon 1 (Fig. 5B–E, arrows) and some GABAergic synapses from axon 2 (Fig. 5F–I, arrows) had associated Pcdh-γC5 clusters. Nevertheless, several GABAergic synapses from axon 2 did not have associated Pcdh-γC5 clusters (Fig. 5F–I, arrowheads). Moreover, some Pcdh-γC5 clusters associated with GABAergic synapses from axon 2 are very small. There are also axons whose GABAergic synapses seldom show associated Pcdh-γC5. These results indicate that GABAergic synapses from different axons show differential association with Pcdh-γC5 clusters, supporting the notion that Pcdh-γC5 plays a role in neuronal recognition and connectivity.

Pcdh-γC5 is also expressed by cultured astrocytes

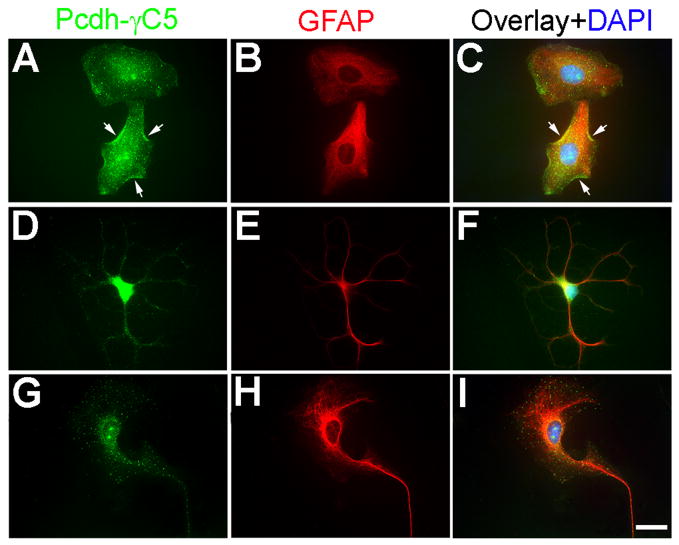

We have investigated whether Pcdh-γC5 is also expressed by cultured astrocytes identified by glial fibrillary acidic protein (GFAP) immunoreactivity. All the GFAP⁺ cells, regardless of their morphology, had Pcdh-γC5 clusters, as shown in (Fig. 6). The astrocytes GFAP⁺ cells (Fig. 6B, E and H, red) showed Pcdh-γC5 clusters in the cell body and processes (Fig. 6A, D and G, green). Some of the clusters were associated with the plasma membrane (Fig. 6A and C, arrows). Thus, Pcdh-γC5 is expressed by both neurons and astrocytes, forming clusters in both cell types.

In the intact brain Pcdh-γC5 forms clusters both in neurons and astrocytes, often in contact points between neurons and astrocytes

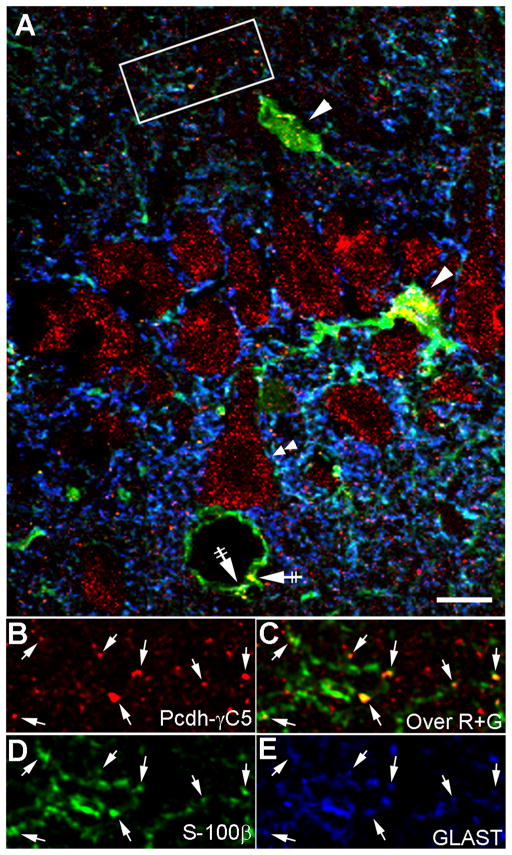

Laser confocal microscopy of adult brain sections (Fig. 7 and 8) showed that, like in cultures, neurons and astrocytes have Pcdh-γC5 clusters. These clusters are similar to the granular staining observed by immunocytochemistry in brain sections (Fig. 1I). Some Pcdh-γC5 clusters were bright and abundant in the perikaryon of some neurons (Fig. 7A, the double arrowhead points to Pcdh-γC5 clusters in the soma of a pyramidal cell in hippocampal CA1). Triple label immunofluorescence with the astrocytic markers S-100β and GLAST shows that in the brain, there are Pcdh-γC5 clusters localized in the cell body of astrocytes (Fig. 7A arrowheads) and in the astrocytic end-feet contacting blood vessels (Fig. 7A, crossed arrows). The Pcdh-γC5 clusters frequently colocalized with astrocytic processes, which were labeled with S-100β and GLAST (Fig. 7B–E, arrows). These results show that Pcdh-γC5 clusters are present in the cell body and processes of astrocytes.

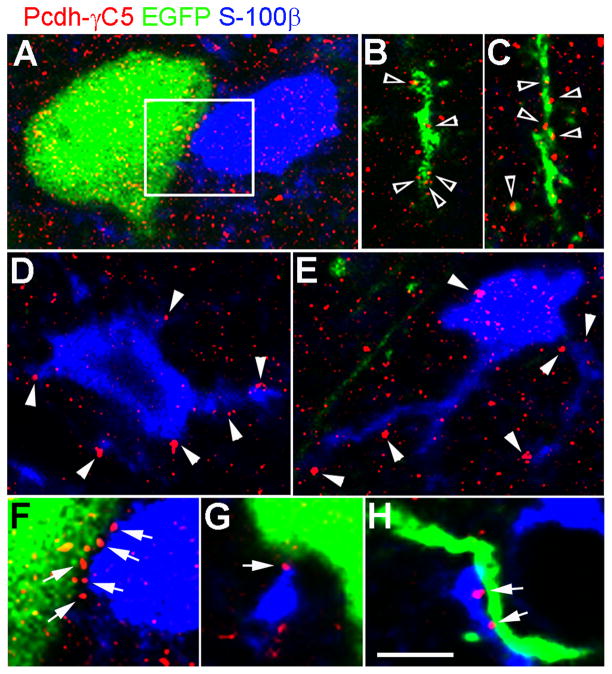

To investigate whether some Pcdh-γC5 clusters were associated with contact points between astrocytes and neurons, we studied the brain of rats that have been subjected to in utero electroporation with an EGFP plasmid. The EGFP labeling, limited to a relatively small population of transfected neurons, allowed us to identify individual neurons and processes, which is an advantage over using an antibody to a general neuronal marker. Figure 8 combines the transgenic expression of EGFP (green) in the soma and dendrites of some neurons of the cerebral cortex with the immunolabeling of astrocytes (blue) and Pcdh-γC5 clusters (red). These single optical sections showed the presence of Pcdh-γC5 clusters in the cell body of neurons (green) and astrocytes (blue) as shown in Fig. 8A, D and E. Pcdh-γC5 clusters were also present in neuronal dendrites (green, Fig. 8B and C, empty arrowheads) and astrocytic processes (blue, Fig. 8D, E). There were Pcdh-γC5 clusters associated with the edge of the astrocyte at both the cell body and processes (Fig. 8D and E, arrowheads). Some of these clusters were clearly located at points of contacts between neurons and astrocytes. Sometimes the contact points were between the cell body of the neuron and the cell body of the astrocyte (Fig. 8A and F, arrows; panel F shows at higher magnification the boxed area in A). Sometimes the contact points were between astrocyte processes and neuronal soma (Fig. 8G, arrow) and sometimes between neuronal dendrites and glial processes (Fig. 8H, arrows).

In single optical sections, some GABAergic and glutamatergic synapses had associated Pcdh-γC5 clusters. These clusters sometimes colocalized with both vGAT and gephyrin (Fig 9A and B, arrows) or with both vGlut1 and PSD-95 (Fig. 9E and F, arrows). Sometimes the Pcdh-γC5 clusters were perisynaptic (arrows Fig. 9C, D, G and H), being adjacent to the GABAergic (Fig. 9C and D, arrowheads) or glutamatergic (Fig. 9G and H, arrowheads) synapses. Triple-label immunofluorescence combining a synaptic marker and an astrocytic marker, showed that some perisynaptic Pcdh-γC5 clusters were on astrocytic (S-100β⁺, green) processes (arrows, Fig. 9I, J, M and N) that were adjacent to GABAergic (Fig. 9I and J, arrowheads) or glutamatergic (Fig. 9M and N, arrowheads) synaptic markers. However, other Pcdh-γC5 clusters (arrows, Fig. 9K, L) coinciding (Fig. 9K) or being adjacent to the GABAergic synaptic marker vGAT (Fig. 9L, arrowhead) or coinciding (Fig. 9O) or being adjacent to the glutamatergic synaptic marker PSD-95 (Fig. 9P, arrowhead) were not in astrocytic processes, as shown by the absence of S-100β immunoreactivity. These results show that some perisynaptic Pcdh-γC5 clusters are on astrocyte processes but that other synaptic and perisynaptic Pcdh-γC5 clusters are not on astrocyte processes, in agreement with the aforementioned results on cultured hippocampal neurons, which also show synaptic and perisynaptic Pcdh-γC5 clusters in the absence of astrocytes.

Postembedding EM immunogold

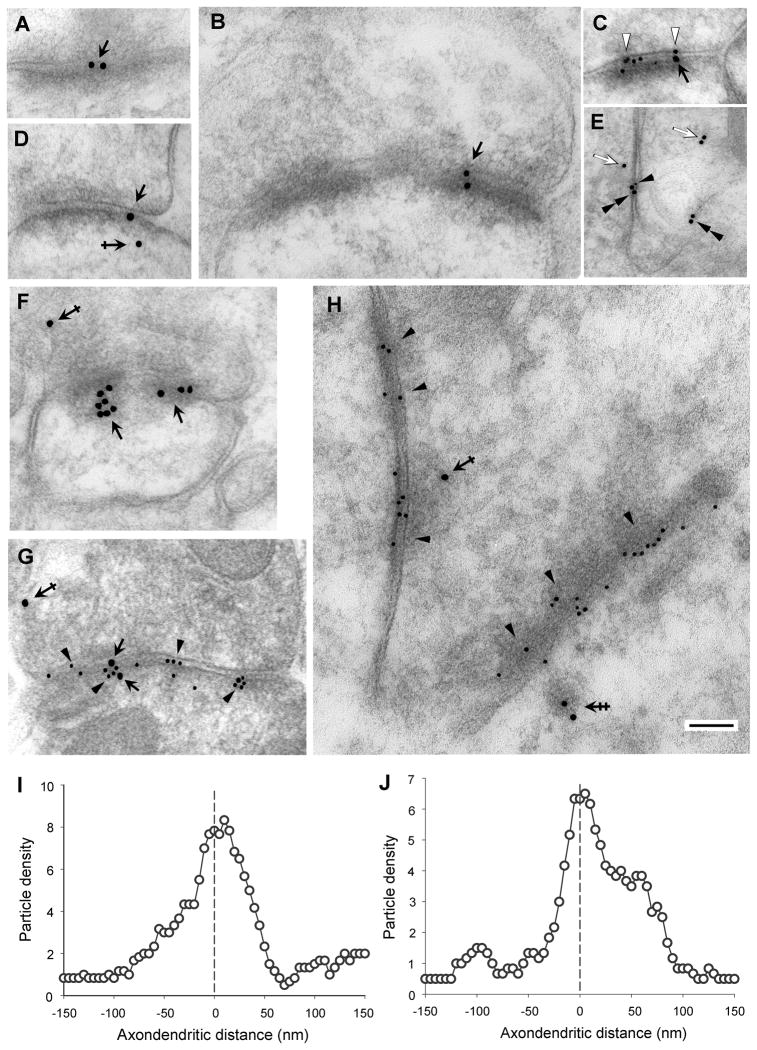

Single-label (Fig. 10A, B, D and F) or double-label (Fig. 10C, E, G and H) postembedding EM immunogold showed that a significant number of gold particles corresponding to Rb anti-Pcdh-γC5 immunoreactivity were associated with the synaptic complex (Fig. 10A, B, C, D, F and G, black arrows) but not exclusively, since Pcdh-γC5 gold particles were also associated with the plasma membrane of the presynaptic terminals and the presynaptic cytoplasm (Fig. 10F, G and H, single crossed arrow) as well as with the postsynaptic cytoplasm (Fig. 10D, single crossed arrow) in dendrites and dendritic spines, vesicular structures in the postsynaptic cytoplasm (Fig. 10H, double crossed arrow), non-synaptic membranes (Fig. 10E, double arrowheads) and the cytoplasm not associated with synapses (Fig. 10E, white arrows). Quantification showed that 27% of the Pcdh-γC5 gold particles (n=918) were associated with synapses (within 200 nm from the synaptic cleft), 20% were associated with non-synaptic plasma membranes including neuron/astrocyte membrane contacts and 53% were intracellular, not associated with synapses and present in both neurons and astrocytes.

Some of the labeled synapses had morphology corresponding to asymmetrical Gray’s type-I glutamatergic synapses (Fig. 10A, B, C, D and F). Double-label immunogold with mouse anti-GluR2 subunit of the AMPA receptor showed that some type-I synapses had both GluR2 (Fig. 10C, white arrowheads) and Pcdh-γC5 immunoreactivity (Fig. 10C black arrow). Other synapses labeled with Pcdh-γC5 gold particles had symmetrical type-II morphology corresponding to GABAergic synapses. This was confirmed by double-label postembedding EM immunogold with anti-β2/3 GABA_AR antibody. Figure 10G shows a GABAergic synapse labeled with both anti-Pcdh-γC5 (arrows, large gold particles) and anti-β2/3 GABA_AR (arrowheads, small particles). A crossed arrow in Fig. 10G shows a Pcdh-γC5 particle in the presynaptic terminal. Fig. 10H shows two GABAergic synapses from the same terminal labeled with anti-β2/3 GABA_AR (small particles, arrowheads). A Pcdh-γC5 large gold particle is localized in the presynaptic terminal (Fig. 10H, single crossed arrow) while two Pcdh-γC5 large gold particles are in the postsynaptic cytoplasm associated with a vesicular structure (Fig. 10H, double crossed arrow). Although synaptic labeling was clearly shown in some synapses, the Pcdh-γC5 immunolabeling showed considerably fewer gold particles than that of β2/3 GABA_ARs, the latter showing many gold particles decorating GABAergic synapses (Fig. 10G and H). This could be in part due to the Pcdh-γC5 epitope being sensitive to the fixation and postembedding procedures, which might partially denature the epitope. We have found that the presence of glutaraldehyde in the fixative, required in the postembedding procedure to reasonably preserve the structure of the tissue, lowers the intensity of the Pcdh-γC5 immunoreactivity in the brain sections.

The localization of an individual gold particle might not correspond to the exact localization of the antigen. For an 18 nm gold particle, the antigen could be located up to 32 nm respectively, from the center of the gold particle (Kellenberger and Hayat, 1991). This is due to the combined size of the primary and secondary antibodies plus the size of the gold particle. This consideration is particularly important when determining the localization of an antigen in the pre- vs. post-synaptic membrane, since the distance between the pre- and post-synaptic membrane (~20 nm) is smaller than the theoretical maximal distance (32 nm) between the actual location of the Pcdh-γC5 epitope and the center of the 18 nm gold particle. Therefore, quantitative analysis of the distribution of gold particles is necessary to ascertain the pre- or post-synaptic localization of Pcdh-γC5. The axodendritic distribution of Pcdh-γC5 immunogold particles (n=167) in GABAergic synapses, identified by double labeling with the anti-β2/3 mAb (Fig. 10G), showed that the Pcdh-γC5 particle density was highest at 10–15 nm from the middle line of the synaptic cleft coinciding with the postsynaptic membrane (Fig. 10I). Moreover, 74% of all gold particles located within 50nm on each side of the synaptic cleft midline (n=117) were within the range expected for an antigen localized at the postsynaptic membrane and 64% of the particles were within the range expected for an antigen localized in the presynaptic membrane (±32 nm from the postsynaptic or presynaptic membrane respectively).

Similarly, the axodendritic distribution of Pcdh-γC5 gold particles in Gray’s type-I glutamatergic synapses identified by either double labeling with anti-GluR2 or by their Gray’s type-I morphology (n= 133, Fig. 10J) showed that the Pcdh-γC5 particle density was highest at 5–10 nm from the middle line of the synaptic cleft coinciding with the postsynaptic membrane. Moreover, of all the gold particles located within 50nm on each side of the synaptic cleft midline (n=71) of glutamatergic synapses, 97% were within the range expected for an antigen localized at the postsynaptic membrane and 83% within the range expected for an antigen localized in the presynaptic membrane. In GABAergic and glutamatergic synapses there were a significant number of gold particles in both the presynaptic and the postsynaptic cytoplasm, beyond the 32 nm from the pre- or the postsynaptic membrane respectively, which are likely due to the presence of Pcdh-γC5 in pre and postsynaptic organelles. Some could represent Pcdh-γC5 located on exo- or endocytic vesicles (i.e. Fig. 10H, double crossed arrow).

Therefore, although the particle distribution in both GABAergic and glutamatergic synapses is biased towards the postsynaptic membrane, the data are consistent with the presence of Pcdh-γC5 in both presynaptic and postsynaptic membranes.

Preembedding EM immunocytochemistry

We have also done preembedding EM immunocytochemistry (Fig. 11). This is not the technique of choice for localizing protein epitopes facing the synaptic cleft, like the N-terminus of Pcdh-γC5, since in the absence of detergents, the antibody penetration into the tightly packed cleft structure is very poor. Detergents that facilitate the antibody penetration, like Triton X-100, are incompatible with the preservation of the tissue morphology at the EM level. However, EM preembedding immunocytochemistry in the absence of detergents can efficiently be used to label Pcdh-γC5 localized in cytoplasmic organelles. We have done the pre-embedding technique by fixing the brain with two different fixatives, one containing glutaraldehyde (and paraformaldehyde) as in Fig. 11A, C, F and G, and another fixative (PLP) that contains no glutaraldehyde (but contains paraformaldehyde) as in Fig. 11B, D and E. Preembedding EM immunocytochemistry shows the presence of Pcdh-γC5 immunoreactivity in intracellular organelles such as the endoplasmic reticulum of some neurons (Fig. 11A, arrows) and the cisternae of the Purkinje cells in the cerebellum (Fig. 11B, arrows). Immunoreactivity was also found in some synapses with type-I morphology presumably glutamatergic (Fig. 11C and D, crossed arrows), some synapses with type-II morphology, presumably GABAergic (Fig. 11E, arrow) and some glial processes adjacent to some synapses (Fig. 11F and G double crossed arrows). Note that not all synapses show immunoreactivity. Thus in Fig. 11D one synapse (crossed arrow) had immunoreactivity while two others (arrows) did not. As indicated above, this technique does not label well antigens present in the synaptic cleft. Nevertheless, some labeling in the cleft and synaptic membranes (pre and postsynaptic) is present (Fig. 11C and E). These experiments also show the presence of a significant amount of Pcdh-γC5 immunoreactivity in the postsynaptic cytoplasm not associated with the postsynaptic density (Fig. 11C and D, arrowheads). This immunoreactivity might represent a subsynaptic intracellular pool of Pcdh-γC5. Fig. 11F and G also show that strong Pcdh-γC5 immunoreactivity (double crossed arrows) is present in some glial processes adjacent to synapses that don’t show obvious Pcdh-γC5 immunoreactivity (Fig. 11F and G single arrowheads). Thus these EM results show the presence of Pcdh-γC5 in a subset of GABAergic and glutamatergic synapses and also in some perisynaptic astrocytic processes, which is consistent with the Pcdh-γC5 immunofluorescence results in culture and in brain sections, which also show labeling in these structures.
