STRUCTURAL BASIS OF STEROL BINDING BY NPC2, A LYSOSOMAL PROTEIN DEFICIENT IN NIEMANN-PICK TYPE C2 DISEASE^*

Sterol Binding Analysis

Delipidated Endo-H-deglycosylated bovine NPC2 was prepared as previously described (7, 12). For each analysis, 68 μM NPC2 in 12.5 mM ammonium acetate, pH 4.5 was incubated with 1.5 mol eq of the indicated sterol (addition of 4.8% vol of 2.5 mM sterol dissolved in dimethyl sulfoxide) for 30 min at 20 °C. For competition assays, NPC2 was incubated with cholesterol for 30 min, cholesterol sulfate was added and incubation was continued an additional 30 min. Sterol binding was assessed by shifts in retention time of NPC2 during cation exchange chromatography on a Mono S column (GE Healthcare) as previously described (12) using 3.4 nmol (50 μg) NPC2 per injection.

Protein Complex Preparation and Crystallization

Deglycosylated NPC2 in 10 mM ammonium acetate, pH 5.0 was concentrated to 5 mg/mL and 1.2 mol eq of cholesterol sulfate (1.2 mg/mL in dimethyl sulfoxide) was added. After 10 min at 20 °C, the mixture was filtered (0.2 μm) and applied to a Mono S 5/50 GL column (GE Healthcare) and the complex was eluted using a linear 60-column volume gradient of 0.01 M to 0.5 M ammonium acetate, pH 5.0. The complex was concentrated to 10–15 mg/mL and buffer exchanged into 10 mM ammonium acetate, pH 5.0. Crystals were grown using hanging drop vapor diffusion with equal volumes of protein complex and reservoir (2.0 M ammonium sulfate, 0.1 M sodium acetate, pH 5.0, 1 mM cetyltrimethylammonium bromide). Rod-shaped crystals with a width of ~0.1 mm appeared in 1 week.

Data Collection and Structure Determination

A crystal was cryoprotected in 1.7 M ammonium sulfate, 85 mM sodium acetate, pH 5.0, 15% glycerol and frozen in a 100 K nitrogen stream. A complete dataset at 1.81 Å resolution was collected from a single crystal at beam line X29C at the National Synchrotron Light Source at Brookhaven National Laboratory. Data were processed using the HKL Suite (13). The structure was solved by molecular replacement using PHASER (14) with the structure of apo NPC2 (PDB code 1NEP) as a search model. Three protein molecules (A, B, and C) were found in the asymmetric unit. Subsequent rigid-body refinement using CNS (15) gave an R factor of 43.6% using 20–2.5 Å data. Strong electron density was observed in 2F_o−F_c and F_o−F_c maps at the predicted sterol binding sites in molecules B and C, but not in molecule A. Two cholesterol sulfate molecules were added to the model and it was subjected to multiple rounds of manual rebuilding using XtalView (16) and refinement using CNS with 5% of the data reserved for calculation of R_free. The final model includes residues 1–130 of NPC2 molecules A, B, and C with N-acetylglucosamine modification at Asn39, 2 cholesterol sulfate, 6 acetate, 3 sulfate, 2 glycerol, and 371 water molecules. The final model has good stereochemistry, with 89.9% of the residues in the most favored regions of the Ramachandran plot and none in the disallowed regions. Data collection and refinement statistics are summarized in Table 1. Figure 3A was generated using MolScript (17); all other structural images were generated using PyMOL (http//pymolsourceforge.net).

Cholesterol Sulfate Binding to NPC2

Numerous attempts to crystallize bovine NPC2 bound to cholesterol were unsuccessful. NPC2 formed a stable 1:1 complex with cholesterol that showed no detectable loss of ligand over several weeks (data not shown). Crystals were readily obtained under a variety of conditions, but all crystals had cubic morphology similar to apoNPC2 crystals (7), and upon structure determination, all were found to lack cholesterol. Thus it appeared that this crystal lattice selectively favored apoNPC2.

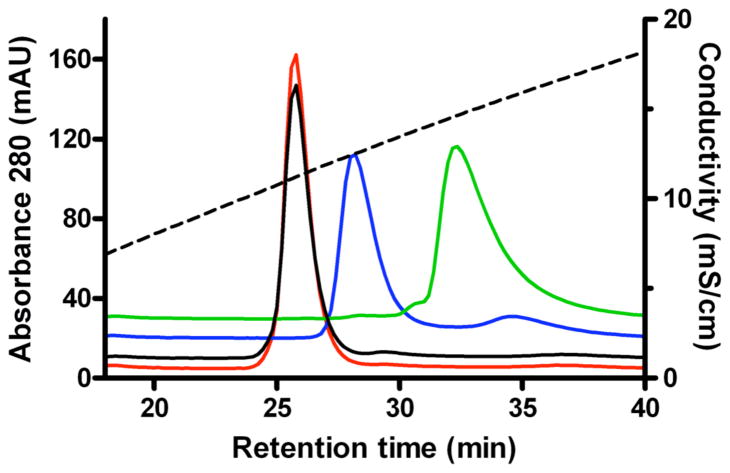

Human and bovine NPC2 bind a variety of cholesterol derivatives, including cholesterol-3-O-sulfate (12, Fig. 1). Cholesterol sulfate binds tightly, with an apparent affinity greater than that of cholesterol. NPC2 selectively binds cholesterol sulfate from an equimolar mixture of the two sterols (data not shown) and cholesterol sulfate can completely displace previously bound cholesterol from NPC2 (Fig. 1).

Crystallization of a cholesterol sulfate-NPC2 complex produced primarily cubic crystals that, as before, were ascertained to lack sterol. Under similar conditions, crystals of a different morphology were occasionally obtained. A single dataset to 1.81 Å resolution was collected from a rare rod-like crystal that was subsequently found to represent a new crystal form. Using the structure of apoNPC2 as a search model, the structure was solved by molecular replacement methods. Crystallographic data and refinement statistics are summarized in Table 1. The asymmetric unit contained three molecules of NPC2 (MolA, B, and C). Difference electron density maps revealed strong density compatible with cholesterol sulfate located within the proposed ligand binding sites of two NPC2 protomers (MolB and C) but not in the third (MolA) (Fig. 2). The lack of ligand in MolA can be rationalized by inspection of crystal packing. The protruding sulfate of a bound cholesterol sulfate ligand in Mol A cannot be accommodated within the crystal lattice due to steric collisions with symmetry-related NPC2 protomers.

Apo- and Sterol-Bound States of NPC2

Both apo and sterol-bound structures exhibit the same 7-stranded β-sandwich fold, stabilized by three disulfide bonds connecting residues Cys8-Cys121, Cys23-Cys28 and Cys74-Cys80 (Fig. 3A). An N-acetylglucosmine moiety, the residual of EndoH_f deglycosylation, modifies Asn39, the single site of glycosylation in bovine NPC2. Cholesterol sulfate binds as previously postulated in a deep hydrophobic tunnel that penetrates into the protein core from an opening rimmed by βD and the βE-βF loop with only the sulfate substituent at the 3-hydroxyl of the sterol exposed to solvent.

The conformation of apoNPC2 (MolA) is distinct from that of sterol-bound NPC2 and also different than the previously determined structure of apoNPC2 (7). The conformations of the two NPC2 proteins with bound sterol are very similar, with an rmsd of 0.37 Å for all 130 aligned Cα atoms. Henceforth, MolB will be used as a representative of cholesterol sulfate-bound NPC2. Pair-wise alignment of the two apoNPC2 structures and cholesterol sulfate-bound NPC2 in all combinations yielded rmsds of 0.8–1.1 Å for all Cα atoms. Superpositioning of the three structures reveals that substantial backbone displacements (rmsd > 0.4 Å) are localized to a small region near the sterol-binding pocket, corresponding to portions of βB (residues 31–37), βD (residues 61–70), βE (residues 93–102) and adjacent loops (Fig. 3B). Within this region, the two apoNPC2 structures are more “closed” than sterol-bound NPC2 with a closer positioning of the β strands from opposing β sheets. The apoNPC2 structure observed in MolA is intermediate between the fully “closed” previously described apoNPC2 structure (7) and the fully “open” structure exhibited by sterol-bound NPC2. Surface residues near the binding pocket of MolA make several intermolecular contacts with a symmetry related MolB, raising the possibility that the crystal lattice stabilizes the intermediate conformation of MolA.

The Sterol-Binding Pocket

Comparison of surfaces and volumes of the binding pockets in the different apoNPC2 and sterol-bound NPC2 structures indicates that the pocket is fully formed only in the presence of bound ligand (Fig. 4). The incipient binding site in closed apoNPC2 contains only a cluster of small cavities with a total volume of 180 ų, while the intermediate conformation of apoNPC2 contains an almost continuous cavity with a total volume of 310 ų, calculated using the CASTp web server (18). The cavity in sterol-bound NPC2 is 720 ų, just large enough to accommodate the hydrophobic portion of cholesterol, which occupies a total volume of 740 ų. The cavity is nearly identical in both sterol-bound NPC2 molecules, with similar conformations of cholesterol sulfate (rmsd of 0.13 Å for all sterol atoms) and tunnels that are molded tightly around the hydrophobic portion of the ligand. The creation of a molded-to-fit hydrophobic tunnel by expansion of a minimal incipient cavity has been previously observed in a glycosphingolipid transfer protein (GLTP), which binds the lipid chains of lactosylceramide in a tunnel sandwiched between two α-helical layers (19). However, this mode of interaction is relatively rare among lipid binding proteins which typically contain large preformed cavities that have volumes substantially greater than the ligands and can often accommodate a variety of lipids and different binding orientations (8–10, 20–25).

The tunnel in NPC2 is almost exclusively hydrophobic, formed primarily by the side chains of residues V20, L30, Y36, V38, V55, G57, V59, V64, F66, L94, P95, V96, Y100, P101, I103, V105, V107, W109, W122, I124, I126, and V128. Approximately half of these residues are positioned differently in the closed and open tunnels, either as a result of backbone displacements alone or in combination with side chain reorientations. The other residues occupy similar positions in both structures. Interestingly, with only two exceptions (V20 and F66), these two classes of static and displaced residues are segregated onto different faces of the β sandwich (Fig. 5A). Thus, the tunnel appears to be constructed from one fixed and one mobile wall.

Cholesterol sulfate is positioned in the tunnel with the iso-octyl chain deeply buried at the base of the tunnel and curved slightly toward the face of the tetracyclic rings from which the two methyl groups protrude. The sulfate moiety sits at the mouth of the tunnel, fully accessible to solvent. It is presumed that cholesterol binds in an analogous manner with the 3β-hydroxyl group exposed. The oxygen of cholesterol sulfate that corresponds to the hydroxyl of cholesterol forms no hydrogen bonds with the protein. Notably, there are no interactions with the side chain of K97, which was previously postulated to interact with the hydroxyl group of bound sterol (6) by analogy with hydrogen bonds between the hydroxyl groups and basic side chains in other sterol-binding proteins (22, 26). In NPC2, the lysine side chain is oriented away from the tunnel entrance with the side chain of Y100 blocking its access to the ligand (Fig. 6). This is consistent with the observation that substitution of alanine for K97 has little effect on sterol binding (6).

Likewise, the sulfate makes no contacts with the protein. Thus, unlike the case of the retinoic acid-related orphan receptor α (RORα) ligand binding domain, for which increased affinity for cholesterol sulfate relative to cholesterol was attributed to three additional hydrogen bonds between the protein and the sulfate (27), the crystal structure of NPC2 provides no structural rationale for the apparent higher affinity for cholesterol sulfate. It therefore seems likely that the higher apparent affinity of cholesterol sulfate relative to cholesterol reflects its greater solubility, providing a higher concentration of non-micellar ligand available for binding to the protein (12, 28).

Gating of the Sterol-Binding Pocket

In the absence of ligand, the mouth of the hydrophobic tunnel is essentially closed, with only a small pore leading into the loosely packed hydrophobic interior (Fig. 6). Upon sterol binding, the aperture opens to a diameter of ~8 Å. Six hydrophobic amino acids, V59, V64, F66, Y100, P101, and I103 form an apolar rim at the tunnel entrance in both the closed and open states. The opening of the mouth is achieved primarily by the repositioning of residues F66, Y100, P101, and I103, a consequence of the wider spacing of βD and the βE-βF loop and the flipping of side chains of F66 and I103 from inward to outward orientations.

It seems unlikely that sterol binding occurs via iso-octyl tail-first insertion into the incipient cavity, with the ligand drilling its way into the hydrophobic interior of the protein. Furthermore, given the low solubility of cholesterol (critical micelle concentration ~25 nM, 28), it can be assumed that ligands do not bind directly from solution but rather are transferred between NPC2 and membranes or other proteins. The orientation of sterols in bilayers, with the 3β-hydroxyl at the membrane surface, is opposite that which would be most amenable to tail-first transfer into the binding tunnel of an NPC2 molecule docked at the membrane surface. However, alternative lipid aggregates such as hexagonal phases in which polar head groups are clustered at the center with hydrophobic regions extending outward would present lipids for binding in a tail-first orientation. Such an orientation, if accessible to cholesterol, might facilitate transfer. Indeed, formation of lipid hexagonal phases is promoted by low pH, as exists in lysosomes where NPC2 resides (29).

It is most likely that ligand binding occurs via lengthwise insertion of the sterol into a cleft formed by separation of βD and βE, the edge strands of the two β sheets, followed by closure of the cleft that becomes molded around the ligand to create a perfectly fitting tunnel. An open cleft is presumably among the dynamic conformational repertoire sampled by NPC2 in solution. However, it is possible that cleft opening might be facilitated by association of this surface of NPC2 with a hydrophobic environment such as could be provided by interaction with another protein, membrane or lipid aggregate. Indeed, it has been shown that NPC2 interacts with membranes and that negatively charged phospholipid vesicles greatly enhance the rate of cholesterol transfer from NPC2 in vitro, leading to the conclusion that cholesterol transfer involves NPC2-membrane collisions (30).

One of the most noticeable differences between NPC2 and many other lipid transfer proteins is the absence of a “lid” that in different conformational states might either close the ligand-binding cavity or promote interactions with membranes. Such lids, which vary greatly in size and structure, are very common among lipid transfer proteins. In the structurally related GM2 activator protein, the lid is formed by a large apolar loop that in its extended form is proposed to dip into the hydrophobic region of membranes to facilitate lipid extraction (31, 32). A similar “bulldozer” mechanism for lipid extraction has been proposed for the helical lid of yeast phosphatidylinositol-transfer protein Sec14 (33). In other proteins, lid regions are proposed to promote interactions with membrane surfaces. The oxysterol-binding protein-related protein Osh4 contains an N-terminal lid rich in lysine residues that closes the cavity in the ligand-bound state and is hypothesized to spring open upon interaction with phospholipid phosphate groups at the membrane surface to facilitate cargo transfer. The cavity in fatty acid-binding proteins (FABPs) is capped by a helix-turn-helix motif that has been shown to be critical for membrane-protein interactions (34).

The absence of a preformed binding cavity in NPC2 perhaps correlates with the absence of a lid-like structure formed by large loops or terminal extensions. However, the lack of a lid also precludes the role of such an appendage in facilitating interactions with membrane surfaces or interiors. The fairly even distribution of charged and hydrophobic residues on the surface of NPC2 provides no obvious clue to alternative mechanisms for interaction of the protein with membranes.

Malleability of the Sterol-Binding Pocket

The molded-to-fit nature of the sterol-binding pocket implies malleability. This is supported by the documented tolerance of sterol-binding function to variations in both the protein and the ligand. Within the protein, evolutionary divergence and both engineered and naturally occurring mutations have established that some substitutions in binding-site residues can be accommodated without loss of function. Only 15 of the 22 residues that form the binding tunnel are invariant among 16 sequenced mammalian NPC2 proteins. Variation of hydrophobic residues (that appears to be uncompensated) occurs at 7 positions (V38, V59, V64, I103, V105, I126, V128) (Fig. 5B). Additional data are provided by mutagenesis studies that have probed the importance of several highly conserved binding-site residues. While substitution of alanine for F66 or Y100, the two aromatic residues at the tunnel entrance, or substitution of phenylalanine for V96, midway within the tunnel, severely compromised cholesterol binding and NPC2 function in cultured cells, substitution of phenylalanine for V64 or alanine for W122 had little effect (6). Additionally, a mutation encoding replacement of V20 with methionine has been identified in a patient with late-onset disease (11), indicating a partial loss of function when this longer chain residue is substituted at the base of the tunnel. Given the tight fit of the tunnel to ligand, remodeling of the tunnel must be invoked to explain retention of ligand binding in the presence of many of these substitutions. Indeed, direct evidence of malleability is provided by the occurrence of different rotameric states of V38 in the two cholesterol sulfate NPC2 complexes, resulting in minor alterations in the contours of the binding tunnels and corresponding small differences in the curvature of the iso-octyl chains of the bound ligands.

Recent investigations of ligand binding to NPC2 have revealed a fairly broad specificity for sterols and derivatives (12). Direct evidence of binding was obtained for a variety of animal and plant sterols, indicating tolerance for the degree and placement of double bonds and/or alkyl substituents on the tetracyclic rings and/or hydrocarbon tails (e.g. 5α-cholestan-3-β-ol, dehydroergosterol, desmosterol, lathosterol, β-sitosterol, and stigmasterol). Binding of oxysterols (e.g. 24-hydroxycholesterol) was also observed, indicating some tolerance for polar substituents within the hydrophobic tunnel. However, substantially more polar ligands (e.g. bile acids) failed to bind. Substitutions at the 3-hydroxyl had various effects (e.g. cholesteryl sulfate, cholesteryl acetate, and 5α-cholestan-3-one bound, while thiocholesterol, cholesteryl bromide, and longer chain cholesteryl esters did not). The latter cannot be rationalized by the crystal structure, which shows no specific contacts between NPC2 and the 3-hydroxyl. It should be noted that binding of sterols to proteins reflects the relative preference of the sterol for association with the protein compared to association with itself to form micelles (28). Thus it is possible that lack of binding of some ligands might reflect the solubility of the ligands rather than discrimination by the binding site of the protein. NPC2 appears to be relatively specific for sterols, as no binding of fatty acids or glycosphingolipids was observed (12).

The accommodation of substitutions in protein residues and ligands requires substantial remodeling of the static tunnel observed in the crystal structure. This is not difficult to envision if the protein and hydrophobic portion of the ligand are considered in continuum to comprise the hydrophobic core of the protein. Protein interiors display substantial tolerance to substitution of hydrophobic residues, utilizing minor positional adjustments of residues within the core to optimize packing interactions (35). There are no hydrogen bonds formed between the sterol and NPC2 that might constrain specific geometries or chemical composition, thus enabling a substantial degree of malleability in packing arrangements. Clearly, there are limits to the variations that can be accommodated, and the mutagenesis and binding studies performed to date have begun to define the allowable range. We conclude that the physiologically relevant ligands bound by NPC2 are likely to be dictated by the specific subcellular repertoire of sterols available for binding rather than by stringent selectivity of the binding cavity.
