A Comparison of Electrospun Polymers Reveals Poly(3-Hydroxybutyrate) Fiber as a Superior Scaffold for Cardiac Repair

Electrospinning and scanning electron microscopy

Polymers were electrospun as previously reported [21], but in each case electrospinning parameters were determined empirically. PHB (400,000 g/mol) was dissolved in CHCl₃ at 60°C and electrospun using a Nanospider instrument (Elmarco). NaCl (0.2 wt%) was added to the solution in order to increase the conductivity. Polymer solution (7 wt%) was loaded into a Nanospider sink and connected to a high-voltage supply. The voltage used for electrospinning was 81 kV and the collection distance was fixed at 11 cm. Poly(e-caprolactone) (PCL), poly-lactic acid (PLA), silk, and polyamide (PA) were electrospun using a hand-made laboratory electrospinning apparatus consisting of a high-voltage power supply (Spellman), syringe pump (Kd Scientific), 5 mL syringe (BD Plastipak), 0.6-mm needle (BD Microlance), and a grounded metal collector covered by a paper/nonwoven sheet. Polymer solutions were electrospun at room temperature. Polymer concentrations, solvents used, and electrospinning conditions are listed in Table 1. Silk fibroin was obtained from silkworm cocoons as described previously [22]. Polymer meshes (PHB, PCL, PLA, and PA) were washed with deionized water to remove organic solvents. Silk meshes were crosslinked by washing with methanol. After drying at room temperature, nanofiber meshes were activated with N2 plasma for 20 s to introduce polar groups onto the surface and increase the surface hydrophilicity [23]. Electrospun sheets were sterilized by UV radiation for 60 min before cell culture and in vivo applications. The diameter of fibers was determined by scanning electron microscopy (SEM) imaging. Briefly, electrospun scaffolds were coated with gold (Polaron SC7620 “Mini” Sputter Coater) and fiber structures were examined with a microscope (FEI Company) at an accelerating voltage of 25 kV. Average fiber diameter and size distributions were determined by measuring >100 fibers selected randomly from the SEM images, using ImageJ analysis software. Bovine-derived collagen type-I (Viscofan SA), at a thickness of 20 μm, was used as a control scaffold for all experimental procedures. Features of this material have been reported previously [24].

Cell culture and polymer mesh seeding

The mouse cardiac HL-1 cell line [25] was grown in Claycomb medium (Sigma) supplemented with 10% fetal bovine serum, 2% L-glutamine, and 1% penicillin/streptomycin. Cardiac fibroblasts were obtained from digestion of neonatal hearts from 1–3-day-old pups. Briefly, hearts were excised and digested as described previously [26]. Briefly, hearts were excised, auricles were removed, and ventricles were minced and digested with collagenase type II (4 mg/mL) in DMEM supplemented with 10% fetal calf and horse serum (4:1), for 1 h with gentle shaking. After centrifugation at 800 g, the pellet was recovered in HBSS and digested with Dispase II (2.4 U/mL; Roche) and DNAase I (1,000 U/mL; Roche) for 20 min at 37°C. Cells were collected by centrifugation and seeded at 100,000 cells/cm² and cultured for 60 min to recover fibroblasts, which were used before passage 3. Mesenchymal stem cells (MSCs) from dental pulp were purchased from Inbiomed (Inbiobank) and cultured in DMEM supplemented with 10% fetal calf serum. To visualize cell spreading, 20 μL of cell suspension was pipetted onto the dry surface of polymer meshes and cells were allowed to adhere for 20 min. Thereafter, meshes were placed into 24-well plates filled with culture media, and incubated for a further 48 h. Next, medium was then removed and meshes were washed with phosphate-buffered saline (PBS), fixed with 2% paraformaldehyde (PFA), washed again with PBS, labeled with 4′,6-diamidino-2-phenylindole (DAPI), and visualized with a fluorescent microscope.

Cell-seeding assay

To measure cell attachment to electrospun sheets, HL-1 cells, cardiac fibroblasts, and MSCs (10⁵ cells/mL) were added to wells containing 1 cm² BM sheets. Cells were allowed to attach to polymeric meshes for 1 h. Thereafter, sheets were thoroughly washed with PBS, fixed with 2% PFA, washed again with PBS, and stained with DAPI, and cells were counted under a microscope at 200× magnification. The experiment was performed four times.

MTT proliferation assay

HL-1 cells, cardiac fibroblasts, and MSCs were plated at 5×10⁴, 6×10⁴, and 3×10⁴ cells/cm², respectively, onto polymeric sheets in the appropriate medium. Proliferation was measured after 96 h using thiazolyl blue tetrazolium bromide (MTT assay; Sigma-Aldrich), following the manufacturer's instructions. Absorbance was measured at 550 nm using a microplate reader (Victor3 1420 Multilabel Counter; PerkinElmer, Inc.). The experiment was performed three times.

Pyrogen test and real-time polymerase chain reaction

Blood from healthy donors was obtained from the Valencian Blood Tissue Bank, after informed consent. Peripheral blood mononuclear cells (PBMNCs) were isolated by Ficoll density gradient centrifugation, and incubated with polymeric scaffolds (1 cm² patches), at 1×10⁶ cells/mL for 5 h. To measure pro-inflammatory cytokine gene expression following attachment to scaffolds, PBMNCs were washed with PBS, and RNA was extracted using TRIzol Reagent (Invitrogen). Purification of RNA was carried out with the RNeasy Plus Mini Kit (Qiagen). RNA was quantified by spectrometry (NanoDrop ND-1000; NanoDrop Technologies), and integrity/purity was assessed by agarose gel electrophoresis and the 260/280 nm absorbance ratio. Complementary DNA was synthesized using M-MLV Reverse Transcriptase (Invitrogen). Real-time polymerase chain reaction (PCR) cycling was carried out on a LightCycler 480 (Roche), using LightCycler 480 SYBR Green I Master (Roche Molecular Biochemical). Quantitative PCR was performed under the following conditions: 95°C at 10 min, 40 cycles at 95°C, 15 s; 58°C, 10 s; and 72°C, 20 s. Specificity of the primers was tested by melting-curve analysis using the following conditions: 95°C, 5 s; 60°C, 15 s; and 97°C continuous, one cycle. Primers used to analyze the expression of common pro-inflammatory cytokines were designed using the Primer-Blast online tool oligonucleotide: IL-β (forward AGGCACAAGGCACAACAGGCT; reverse AACAACTGACGCGGCCTGCC, 277-bp amplicon), IL-4 (forward TCTGTGCACCGAGTTGACCGT; reverse TGCTGTGCAGTCGCACCCAG, 150-bp amplicon), IL-6 (forward CATTCTGCCCTCGAGCCCACC; reverse GGCAGCAGGCAACACCAGGA, 139-bp amplicon), IL-10 (forward AGACCCAGACATCAAGGCGCA; reverse TCGATGACAGCGCCGTAGCC, 82-bp amplicon), IL-13 (forward GGCATGTACTGTGCAGCCCTGG; reverse GTGCGGGCAGAATCCGCTCA, 96-bp amplicon), and IFN-γ (forward GAGTGTGGAGACCATCAAGGA; reverse CTGTTTTAGCTGCTGGCGAC, 176-bp amplicon). Actin B (ACT-β; forward AGAGCCTCGCCTTTGCCGATCC; reverse CATGCCGGAGCCGTTGTCGAC, 101-bp amplicon) was used as a housekeeping gene for internal normalization.

Animal model

Adult male Wistar rats (Charles River Laboratories, Inc.) weighing 200–250 g were maintained under standard laboratory conditions. The number of animals used in the study was 95. Mortality rate due to surgical procedures was about 10% in all groups. All procedures were approved by institutional ethical and animal care committees.

MI and surgical procedures

Permanent ligation of the left anterior coronary artery was performed as described previously [27]. Immediately after ligation, 1 cm² of acellular UV-sterilized patches was attached to the epicardial surface with two points of suture (polybrene 6.0). Infarcted animals without patch implantation were used as the control group. Patches were also sutured to the epicardial surface of noninfarcted animals to study host body response.

Morphometric analysis

Infarct size was measured in 8–12 transverse sections of 7 μm (one slice in each 200 μm section of tissue), from apex to base. Sections were fixed with 2% PFA and stained with Masson's trichrome. Fibrotic area was determined by computer planimetry of photo-images corresponding to entire sections (Image Proplus 7.1 software). Infarct size was expressed as the percentage of total LV area and as a mean of all slices from each heart.

Echocardiography

To evaluate heart function, transthoracic echocardiography was performed in rats under inhalatory anesthesia (Sevorane) using an echocardiographic system (Vivid 5; General Electrics) equipped with a 10-MHz linear-array transducer, as previously reported [27]. Measurements were taken in infarcted rats, with or without epicardial implantation of BMs (n=6 in each group), at baseline and 2 weeks post-transplantation. LV dimensions in end diastole (LVDd) and end systole (LVDs), anterior and posterior wall (AW and PW) thickness in diastole and systole, and end-diastolic area (EDA) and end-systolic area (ESA) were measured. Fractional area change (FAC) was calculated as [(EDA – ESA)/EDA]×100. Fractional shortening (FS) was calculated as [(LVDd – LVDs)/LVDd]×100. Changes in AW were calculated as (AWs – AWd/AWd)×100.

Immunohistochemistry

Immunohistochemical analysis was performed 4 weeks after implantation. Animals were euthanized and the hearts were removed, washed with PBS, and fixed in 2% PFA. Heart tissue sections were prepared for immunohistochemistry as described previously [28].

Analysis of vascular density

Immunohistochemical detection of vessels was performed with anti-rat caveolin (Chemicon International). Vessels were counted inside each polymeric patch (three random sections of each patch) implanted on the epicardial surface of healthy or infarcted rats, 2 weeks after BM implantation (n=4 animals in each group). Vessels were counted in four random fields of each section under ×200 magnification (12 photos per animal), and the number of vessels per area unit (mm²) was scored using a light microscope and Image Proplus 7.1 software.

Analysis of macrophage M1/M2 inflammatory response

Heart sections were stained for CD68, CCR7, and CD163 to quantify the macrophage phenotype surrounding the implant site. Immunolabeling was performed with antibodies against CD68 (1:200 dilution; Serotec) and CD163 (1:100 dilution; Serotec), followed by detection with an Alexa 594-conjugated secondary antibody (1:200 dilution; Invitrogen); and against CCR7 (1:1000 dilution; Epitomics) followed by detection with an FITC-conjugated secondary antibody (1:200 dilution; Jackson Immunology). Quantification was performed in healthy and infarcted rats sacrificed at 2 weeks post-transplantation. A total of six serial heart sections were prepared and two images of the zone surrounding the implant were taken per section with a 20× objective. Immunofluorescent images were acquired with an MR3 AxioCam camera (Zeiss) adapted to the M1 AxioImager Zeiss microscope (Zeiss). Immunopositive cells were quantified using ImageJ software. The ratio of M1 and M2 macrophages was calculated by quantifying the number of CCR7⁺/CD68⁺ cells (M1) and CD163⁺/CD68⁺ cells (M2) in each field.

Statistical analysis

Data are expressed as mean±SEM (standard, error of measurement). Comparisons between control and experimental groups were performed with the Wilcoxon W test or the Kruskal–Wallis test, as appropriate. Analyses were conducted with SPSS and GraphPad Prism 5 software. Differences were considered statistically significant at P<0.05 with a 95% confidence interval.

Characterization of electrospun meshes and cell-spreading profile

Polymer substrates were electrospun under similar conditions of voltage, flow rate, and concentration, and the nanometric fibers were collected as a heterogeneous mesh and examined by SEM. Bovine-derived nonporous collagen (Col) was used as a control scaffold to compare to the electrospun polymer scaffolds. These scaffolds are biocompatible, support cell growth, and have been validated in cardiac regenerative therapies [24]. The relative frequencies of fiber diameter are shown in Supplementary Figure S1 (Supplementary Data are available online at www.liebertpub.com/scd). All BMs were composed of a dense network of randomly interwoven fibers that formed highly porous three-dimensional structures (Fig. 1A, top). Among the scaffolds tested, PCL and PA were more manageable, whereas silk was rather fragile and showed limited deformation capacity. To monitor cell compatibility with scaffolds, cardiac fibroblasts were seeded onto dry polymer meshes, followed by culture for 4 days. As visualized by nuclear staining, fibroblasts displayed a spreading behavior that was dependent on the polymer substrate. Whereas seeding onto Col, PCL, and PLA allowed extensive and homogeneous cell growth, fibroblasts seeded onto PHB, silk, and PA displayed a limited cell-spreading phenotype (Fig. 1A, bottom).

Attachment, viability, and inflammatory response of cells cultured on electrospun meshes

MSCs, cardiac fibroblasts, and HL-1 myocytes were incubated with polymer sheets, and attachment was evaluated after 60 min by nuclear (DAPI) staining of PFA-fixed cells. Whereas attachment of MSCs and fibroblasts to silk, PLA, and PA polymers was comparable to the control Col substrate, PHB and PCL polymers contained significantly greater numbers of both cell types (Fig. 1B). A similar result was noted with HL-1 cells, which also attached in greater numbers to PLA polymers (Fig. 1B). This result was not surprising as nonporous sheets have, in general, a limited surface area in comparison to porous sheets generated by electrospinning (Fig. 1A). After an extended culture of 4 days, PCL polymer sheets contained significantly greater numbers of all three cell types compared to Col, whereas silk supported greater growth of MSCs only (Fig. 1C).

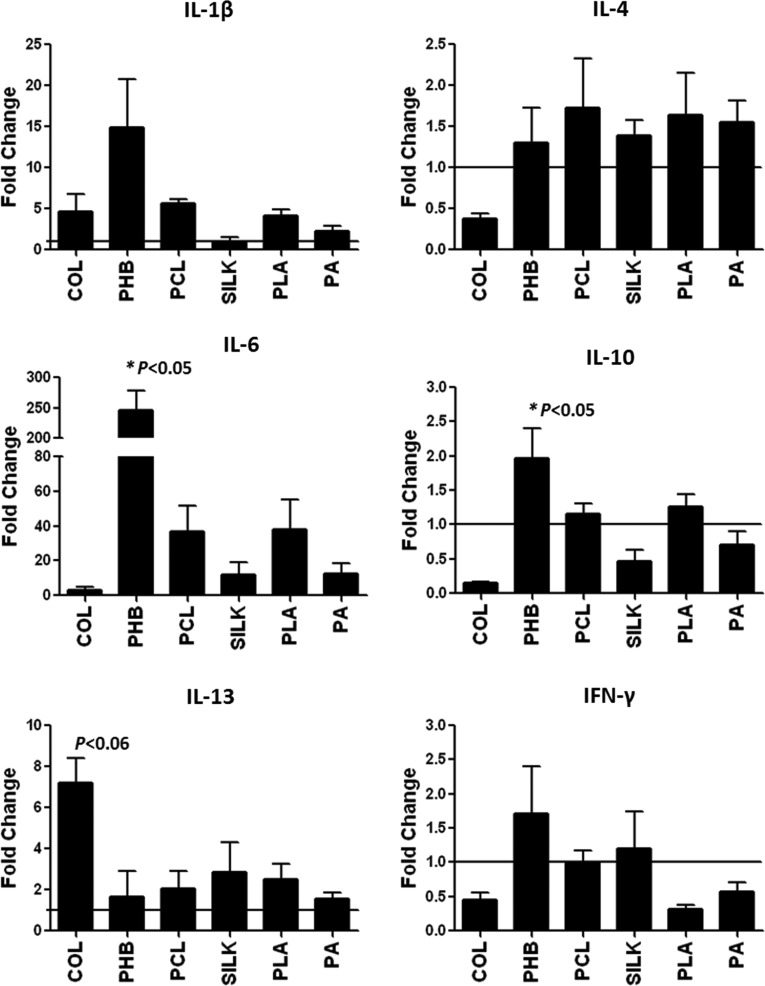

To examine the acute inflammatory response induced by electrospun meshes, freshly isolated PBMNCs from healthy subjects were cultured with polymeric scaffolds for 5 h and RNA was extracted for gene expression analysis. Results showed that IL-1β expression was induced to similar levels in PBMNCs after culture with Col, PHB, PCL, PLA, and PA polymers, but not silk, while expression levels of IL-4 were unaffected by any polymer substrate (Fig. 2 and Supplementary Table S1). Additionally, IL-6 expression was induced after cell contact with Col (3.00±1.69-fold), PCL (36.71±14.77-fold), silk (11.86±7.07-fold), PLA (37.79±17.43-fold), PA (12.29±6.36-fold), and significantly with PHB (246.0±32.15-fold; P<0.05 in PHB vs. Col, PCL, silk, PLA, and PA). Notably, PHB alone significantly induced IL-10 expression (P<0.05 in PHB vs. Col). Moreover, IL-13 expression was induced significantly by collagen (P<0.06 in Col vs. PHB). Collectively, these results reveal a complex pattern of cytokine expression that is dependent on the scaffold material.

Cardiac biocompatibility of polymer meshes

We evaluated degradation of scaffold materials 2 and 8 weeks after implantation onto the epicardial surface of healthy rats, and analyzed the foreign body response with respect to inflammation, granulomatous reaction, vascular congestion, hemorrhage, and epicardial fibrosis (Table 2). All implanted materials were visible at 8 weeks postimplantation, with partial degradation of Col and PHB patches, and no macroscopic degradation observed with PCL, PA, PLA, and silk patches (Fig. 3A). Degradation of Col patches was more rapid than PHB, as deduced both by the absence of large fragments of polymer at 2 weeks, and the absence of phagocytic multinucleated giant cells (Supplementary Fig. S1). Additionally, PLA scaffolds displayed a prominent increase in volume shortly after implantation that persisted throughout the time period analyzed. This event was accompanied by exacerbated cell infiltration, composed predominantly of mononuclear cells (Fig. 3B and Supplementary Fig. S2). In contrast, PCL, silk, and PA patches were quickly encapsulated and degraded following a pattern of foreign body reaction, with the accumulation of multinucleated giant cells (Supplementary Fig. S1). Further, PBH sheets and collagen control membranes provoked a mild inflammatory response that was mostly resolved at 8 weeks, consistent with graft acceptance (Table 1). Of note, vascular congestion induced by sheet implantation (indicative of angiogenesis) was particularly evident in PHB-implanted animals (Table 1).

Neoangiogenesis in the border zone of implanted patches

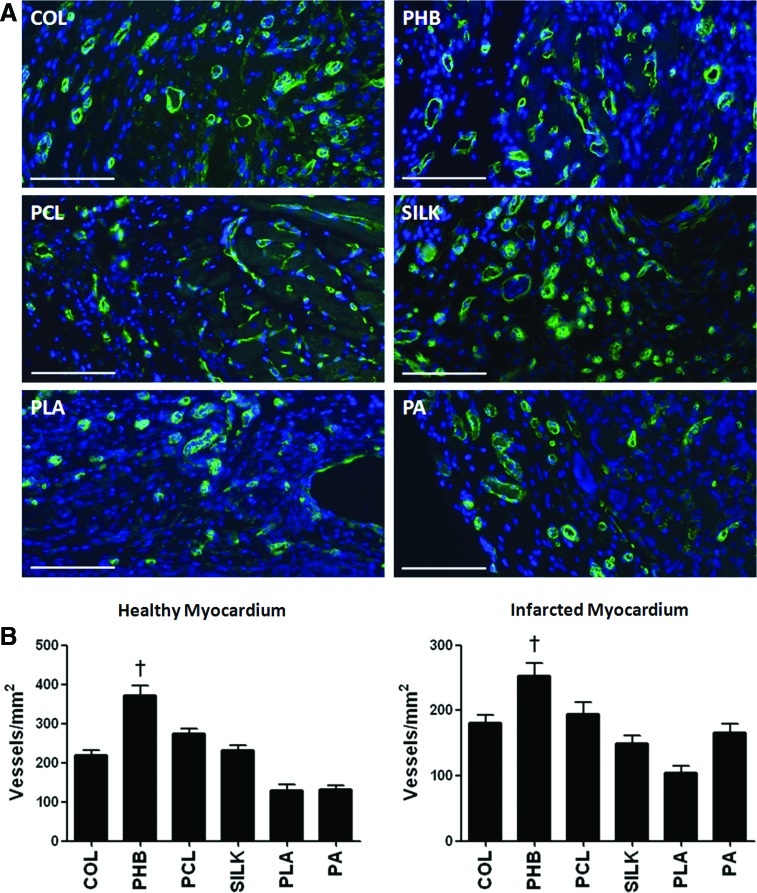

Two weeks after implantation, angiogenesis in scaffolds was quantified by scoring the number of capillaries and arterioles with an antibody to caveolin (Fig. 4A). When scaffolds were implanted in healthy rats, vessel density in tissue sections of implanted materials was 219.8±12.39 for Col, 372.4±24.90 for PHB, 275.2±10.63 for PCL, 230.6±12.75 for silk, 129.2±14.32 for PLA, and 131.1±9.52 for PA (P<0.05 for PHB vs. Col, PCL, silk, PLA, and PA; Fig. 4B). When scaffolds were implanted in rats with permanent LDA occlusion, vessel density within implanted materials was 181.4±11.56 for Col, 253.4±18.73 for PHB, 194.8±17.11 for PCL, 149.4±12.15 for silk, 105.1±9.5 for PLA, and 166.0±12.95 for PA (P<0.05 for PHB vs. Col, PCL, silk, PLA, and PA; Fig. 4B). Thus, implantation of PHB scaffold resulted in significantly increased neoangiogenesis, in both healthy and infarcted myocardium.

LV remodeling and cardiac function

Having shown that polymer scaffolds could modify the inflammatory response of host tissue, and direct angiogenesis, we next questioned whether this could lead to improved heart function after MI. Interestingly, epicardial implantation of Col, PHB, and PCL sheets, but not silk, PLA, and PA, significantly reduced scar tissue and prevented negative remodeling after MI (Fig. 5A). Percentage of scar tissue was 27.84%±1.55% in control group (n=9), 16.93%±1.80% in Col group (n=7), 17.47%±2.26% in PHB group (n=6), 13.86%±1.09% in PCL group (n=4), 19.14%±1.27% in silk group (n=4), 24.31%±5.24% in PLA group (n=4), and 22.39%±4.11% in PA group (n=4) (P<0.01 in Col and PCL, vs. control group; P<0.05 in PHB vs. control group).

To determine whether polymer implantation improved cardiac function in infarcted animals, noninvasive echocardiography was performed 2 weeks after transplantation. None of the polymers implanted resulted in a significant recovery of systolic function in rats, as calculated by percentage of FAC (36.52%±0.79% in control group, 44.45%±4.18% in Col, 39.83%±9.20% in PHB, 44.62%±4.00% in PCL, 40.11±9.64 in silk, 42.68±7.21 in PLA, and 44.42±2.84 in PA), FS (24.82%±3.49% in control group, 25.72%±3.26% in Col, 25.80±2.00 in PHB, 28.14±3.11 in PCL, 26.61±0.18 in silk, 25.65%±3.59% in PLA, and 27.71±2.69 in PA), and anterior wall thickening (AWT: 25.41%±3.27% in control group, 38.06%±1.33% in Col, 32.33±1.87 in PHB, 31.54±2.14 in PCL, 34.64±1.44 in silk, 30.05%±1.50% in PLA, and 30.54±1.06 in PA) (Fig. 5B). These results are in agreement with a previous report [29] and indicate that although implantation of naked polymer meshes does not improve cardiac function, they appear not to be detrimental for cardiac performance when applied to the epicardial surface of infarcted hearts. Indeed, implantation of polymer meshes in noninfarcted rats was similarly not deleterious for cardiac wall motion.

Analysis of M1/M2 inflammatory response

Finally, given their importance as modulators of post-MI wound healing, including angiogenesis [30], we analyzed the polarization profile of infiltrating macrophages in response to scaffold implantation. M1 macrophages, characterized by the cell surface markers CD68 and CD80, and M2 macrophages, characterized by CD163 in rats, were measured by immunohistochemistry of inflammatory infiltrates at the border zone with implanted materials (Fig. 6A). Quantitative analysis of the macrophage phenotype in noninfarcted rats at 2 weeks postimplantation showed that whereas PCL, silk, and PA implantation triggered an M1 macrophage infiltration, Col, PHB, and PLA implantation led to the infiltration of M2 macrophages (Fig. 6B). With the exception of silk polymer, a similar pattern of polarization was found in the infarcted-rat group (Fig. 6C). Indeed, this M2 phenotype was in agreement with the finding of increased vessel formation with PBH scaffolds (Fig. 4), and is a desirable attribute of BMs with tissue-regenerative potential.
