Bioluminescent Cell-Based NAD(P)/NAD(P)H Assays for Rapid Dinucleotide Measurement and Inhibitor Screening

Materials

All cell lines were from ATCC. A549 lung carcinoma cells and HepG2 hepatocarcinoma cells were cultured in F-12K and EMEM media, respectively (ATCC). Jurkat cells, derived from T-cell lymphocytes, and MDA-MB-231 breast adenocarcinoma cells were cultured in RPMI and DMEM media, respectively (Gibco). All media were supplemented with 10% fetal bovine serum (HyClone). The dinucleotides NAD, NADP, NADH, NADPH, and FK866 and raloxifene hydrochloride were purchased from Sigma. NAD/NADH-Glo™, NADP/NADPH-Glo™, CellTiter-Glo^®, and CellTiter-Fluor™ were from Promega Corporation. White 384-well assay plates were from Corning, Inc.

Dinucleotide Detection Assay Conditions

The linearity, sensitivity, and specificity of bioluminescent nicotinamide adenine detection assays were determined using NAD, NADH, NADP, and NADPH standards. NAD and NADP standards were premade as 2 mM stocks in water, aliquoted, and stored at −20°C. NADH and NADPH standards were prepared fresh from powder as 250 μM stock solutions in 50 mM Tris, pH 7.5 buffer at the time of the experiment. All assay characterization experiments were performed in 384-well plates. Twofold serial dilutions of dinucleotide standards were prepared in phosphate-buffered saline (PBS) or medium (without serum). Twenty-five microliters of dinucleotide standards were transferred into white 384-well plates. To start the reactions, 25 μL of dinucleotide detection reagent was added. The plates were incubated at room temperature, and at indicated time points, luminescence output was recorded using a Tecan Infinite M1000 Pro reader. The data presented in the figure are shown as relative light units (RLU), and each point represents average luminescence of quadruplicate reactions.

Assay linearity with respect to dinucleotide concentration was determined based on the initial reaction rate at each concentration. The dinucleotide detection reactions were initiated, and luminescence readings were taken every 10 min. At each time point, the background (sample in the absence of dinucleotides) was subtracted and a linear regression line was plotted at each NAD or NADP concentration. The rates of luminescence increase were calculated as the slopes of the linear regression lines (ΔRLU/min) and were plotted against dinucleotide concentrations.

Signal-to-noise (S/N) and signal-to-background (S/B) were calculated as a function of nucleotide concentration in 60 min reactions. The S/N was calculated using the equation: S/N=(mean signal−mean background)/standard deviation of background. The S/B was calculated as the ratio between RLU at defined dinucleotide concentration (sample) and background (negative) control.²⁸

Dinucleotide Detection in Cells

To test the assay performance with different cell lines, A549, HepG2, Jurkat, and MDA-MB-231 cells grown in flasks were collected, spun down, and resuspended at 2×10⁵ cells/mL in fresh F-12K, EMEM, RPMI, and DMEM complete media, respectively. Twofold serial dilutions of cells were prepared in the same media, and 25 μL was transferred into white 384-well assay plates. For NAD+NADH detection, 25 μL of NAD/NADH detection reagent was added to the cells. For NADP+NADPH detection, 25 μL of NADP/NADPH detection reagent was added to the cells. The detection reagent contains detergent for cell lysis making an additional lysis step unnecessary. The plates were incubated at room temperature, and luminescence was read after 60 min incubation.

Recovery of Externally Added Dinucleotides

To determine the effectiveness of the assays at preserving the dinucleotide levels in cells at the time of lysis, the recovery of externally added (spiked) dinucleotides was determined. Known amounts of dinucleotides were added to Jurkat cells plated in complete RPMI media at 40,000 cells/mL. To validate quantitative and specific recovery of spiked dinucleotides, the experiments were setup with all four dinucleotides (NAD, NADH, NADP, and NADPH) at increasing dinucleotide concentrations. Since dinucleotides are rapidly degraded in serum containing media, twofold serial dilutions of NAD, NADH, NADP, and NADPH standards were prepared in PBS at 10× final concentration starting from 2.5 μM and were added to the samples immediately after addition of dinucleotide detection reagents. Briefly, 25 μL of Jurkat cells or complete media was transferred in 96-well plates. Twenty-five microliters of dinucleotide detection reagent was added to the samples followed by immediate addition of 2.5 μL of dinucleotide standards prepared as described above. The plates were incubated for 45 min at room temperature and luminescence was read. The percent recovery of spiked dinucleotide was calculated using the equation: % Recovery=((RLU _{spike in cells}−RLU_cells)/RLU_{spike in media})×100.

Inhibitor IC₅₀ Determination

FK866 and raloxifene inhibitor titrations were performed with A549 cells in 384-well plates. For an FK866 titration, 25 μL of A549 cells was plated and 10 μL of FK866 prepared in the same medium at 1:3 serial dilutions starting at 1.5 μM concentration was added to the cells. For a raloxifene titration, 20 μL of A549 cells was plated and 5 μL of raloxifene hydrochloride prepared at 1:2 serial dilutions starting at 125 μM concentration was added to the cells. Viability, ATP, total NAD+NADH, and total NADP+NADPH were determined at different time points. The cell viability was determined using CellTiter-Fluor. Total NAD+NADH and total NADP+NADPH levels were measured using NAD/NADH and NADP/NADPH bioluminescence assays.

Briefly, 6 μL of 5×CellTiter-Fluor Reagent (15 μL GF-AFC Substrate +3 mL Assay Buffer) was added to each well. After a brief shake, the plate was returned to 37°C for 30 min. Fluorescence was measured using a Tecan Infinite M1000 Pro at 380 nm_EX/505 nm_EM. After the fluorescence was read, 36 μL/well of either NAD/NADH or NADP/NADPH detection reagents was added directly to the wells. The luminescence was read after 45 min incubation at room temperature.

CellTiter-Glo Reagent was used in a separate set of wells for measuring changes in ATP. An equal volume of CellTiter-Glo Reagent was added to each well. After a brief shake and 10 min at room temperature, luminescence was measured.

The percent inhibition was calculated relative to control cells without inhibitor. Data were plotted using a sigmoidal dose–response, variable slope model supplied with SigmaPlot 12.0 software.

Evaluation for HTS

The robustness of bioluminescence nicotinamide adenine dinucleotide detection assays for HTS screening was evaluated by determining Z′ value and performing plate uniformity and signal variability assessment as recommended by HTS assay validation guidance.²⁹

Z′ was determined at three different cell densities using A549 and Jurkat cells. The cells or media were dispensed at 25 μL/well into 384-well plates. An equal volume of NAD/NADH or NADP/NADPH detection reagent was added to the wells. The plates were incubated at room temperature for 60 min and luminescence was read.

Plate uniformity test was performed with A549 cells plated at 2,000 cells/well in 25 μL and treated with FK866 inhibitor. The experiments were set up on 2 different days with three 384-well plates following the recommended plate layout.²⁹ Forty-eight hours after the treatment, 25 μL of appropriate dinucleotide detection reagent was added. Plates were incubated for 60 min and luminescence was read.

HI signal corresponds to control untreated cells. MID and LO signals were generated with cells treated with FK866 inhibitor at high (200 nM) or close to IC₅₀ concentrations (2 nM for NAD+NADH detection and 4 nM for NADP+NADPH detection). The Excel templates provided with the HTS assay validation guidance were used for data analysis.²⁹

FIMM Compound Collection

The FIMM internal oncology compound collection consists of 304 active compounds, including 136 FDA/EMA approved anticancer drugs and 170 emerging investigational and preclinical compounds, covering a wide range of molecular targets (Supplementary Table S1; Supplementary Data are available online at www.liebertpub.com/adt). The compounds were obtained from the National Cancer Institute Drug Testing Program (NCI DTP) and commercial chemical vendors: Active Biochem, Axon Medchem, Cayman Chemical Company, ChemieTek, Enzo Life Sciences, LC Laboratories, Merck, Santa Cruz Biotechnology, Selleck, Sequoia Research Products, SGC, Sigma-Aldrich, and Tocris Biosciences.

Drug Sensitivity and Resistance Testing

Depending on the compounds, they were either dissolved in 100% dimethyl sulfoxide (DMSO) or Milli-Q water and dispensed in tissue culture-treated 384-well plates (Corning) using an acoustic liquid handling device, Echo 550 (Labcyte, Inc.). The compounds were plated at five different concentrations in 10-fold dilutions covering a 10,000-fold concentration range (e.g., 1–10,000 nM). The compounds were dispensed in 2.5 or 25 nL volume per well to keep the final DMSO concentration no higher than 0.1% in the cell culture medium. As the negative and positive control, 100% DMSO and 100 mM benzethonium chloride (BzCl), respectively, were added to the wells to give final concentrations of 0.1% DMSO and 100 μM benzethonium chloride. The presence of DMSO in the samples up to 1% has no effect on the performance of NAD(P)/NAD(P)H detection assays (data not shown). In addition, to confirm no effect of DMSO on cell culture or readout assay chemistries, no DMSO control samples with or without cells were tested and showed no significant difference compared to negative and positive controls used in the screen.

The library was screened with A549 cells using the protocol described in Table 1. Two separate sets of the library were used for total NAD+NADH or NADP+NADPH detection. Two independent screens were performed with each assay.

All the reagents were dispensed using MultidropCombi™ (Thermo Scientific). Fluorescence readings were taken using a Safire2 microplate reader. Luminescence measurements were done using a Tecan Infinite M1000 PRO plate reader.

Data Analysis, Scoring, and Clustering of Drug Sensitivity and Resistance Testing Data

The data obtained from plate reader were uploaded and analyzed in Dotmatics Browser/Studies software (Dotmatics Ltd.), as described previously.^30,31

For data analysis, we have employed a methodology that has been described elsewhere and is freely available.³¹ The method integrates the multiparameter analysis (potency [EC₅₀], slope of dose–response curve, the area under the curve, and the maximum effect) of dose–response relationships into a quantitative scoring approach, drug sensitivity score (DSS). Selected examples of dose–response curves representing different types of variation in dose–response relationships and corresponding DSS are illustrated in Supplementary Figure S1. The figure visually illustrates how the model-based drug sensitivity quantitation captures and integrates information from dose–response curves (EC₅₀, slope, maximum response, and other parameters) into a single metric. Based on their DSS, compounds can be divided into five groups: inactive (DSS=0), low active (DSS >0 up to 5), semi-active (DSS >5 up to 10), active (DSS >10 up to 20), and very active (DSS >20).

To evaluate the effect of library compounds on cell viability, NAD+NADH and NADP+NADPH levels, DSSs were calculated for each compound for each individual assay for two independent screens. Data from one representative screen of cell viability/NAD+NADH detection (Supplementary Table S2) and cell viability/NADP+NADPH detection (Supplementary Table S3) of dose–response curves, EC₅₀ values, and calculated DSS are included in Supplementary Data. Compounds with DSS <5 had no or very slight effect on measured responses and are not included in the tables.

A single metric approach can be particular useful for determining selective response for different readouts or the same readout in different samples. The data between two experimental sets, for example, cell viability readouts for screen 1 in comparison to screen 2, can be compared by calculating selective DSS (sDSS) to evaluate reproducibility of two screens. Theoretically, the sDSS score should equal 0 when the same readout is compared. But more importantly, it is valuable tool for identifying compounds with selective effect on one readout, for example, drug-induced decrease in dinucleotide levels, compared to another readout, for example, drug-induced decrease in cell viability.

To determine reproducibility of each assay and to validate DSS scoring approach, we calculated sDSS for each assay (cell viability, NAD+NADH, and NADP+NADPH assays) using two independent screens. sDSS were calculated for each compound in each assay by subtracting DSS values of run 1 from run 2. The average sDSS varied from −0.4 to 0.1 depending on the assay with standard deviation equal to 1 for all three assays, indicating good reproducibility of the assays and DSS scoring approach.

To identify selective drug response effects on changes in dinucleotide levels (NAD+NADH or NADP+NADPH) in comparison to cell viability response, the sDSS was calculated. sDSS was calculated by subtracting average viability readout (CellTiter-Fluor) DSS from the average of dinucleotide DSS values from NAD(P)/NAD(P)H detection assays obtained from two independent screens. To identify compounds with selective effect on dinucleotide levels, we used a cutoff of −5≥sDSS ≥5. The cutoff was determined as two standard deviations above the average sDSS of all compounds. Positive sDSS values indicate selective drug effect on dinucleotide levels in live cells, whereas the impact of the drugs with negative sDSS is likely influenced by cell death. One compound tosedostat had sDSS=−21.25. Tosedostat is aminopeptidase inhibitor and was confirmed to have a direct effect on the cell viability detection system, which is based on protease activity measurement.

Assay Principle and Formats

Bioluminescent NAD(P)/NAD(P)H detection assays are based on a proluciferin substrate.³² In the presence of NADH or NADPH, the proluciferin is converted to luciferin by a reductase enzyme and the luciferin is used by luciferase to produce light in proportion to the amount of NADH or NADPH. To measure an oxidized dinucleotide, or total dinucleotide in a mixed pool of reduced and oxidized forms, the oxidized form is first reduced by a dehydrogenase enzyme/substrate pair with selectivity for either NAD or NADP (Fig. 1). The dehydrogenase serves as a cycling enzyme that amplifies assay sensitivity. In this mode, the alternating activities of reductase and dehydrogenase drive a dinucleotide-dependent proluciferin conversion rate that produces luciferin for as long as the proluciferin reductase substrate remains nonlimiting. Consequently, the sensitivity of the detection system increases with time and an optimal assay window is determined by taking multiple reads at different time points. The assays are adaptable to different plate formats and are performed simply by adding the detection reagents directly to cells in medium at 1:1 volume ratios.

Linearity, Sensitivity, and Specificity of Cycling Reactions

The linearity and sensitivity of nicotinamide adenine dinucleotide detection assays were determined using purified dinucleotide standards. NAD and NADP titration curves were set up in 384-well plates in PBS and different media. The luminescence readings were taken every 10 min for up to 1 h. Figure 2 shows initial velocities of NAD (Fig. 2A) and NADP (Fig. 2B) cycling reactions that were calculated from the slopes of the linear regression lines at each NAD and NADP concentration. In both cases, the rates of cycling reactions varied in different media (without serum). However, under all tested conditions, a linear increase in reaction rate was measured with increasing NAD and NADP concentrations. Similar data were obtained with reduced forms of NADH and NADPH (data not shown). The reaction rates remained linear (R² values >0.99) for up to 1 h with starting NAD concentrations ranging from 1 to 500 nM and NADP from 1 to 250 nM.

The assay sensitivities and assay window were determined by calculating S/N and S/B ratios (data not shown). The sensitivity of the assays increased with time and under all tested conditions reached the low nM range (limit of detection ∼0.5 nM or below) after 60 min incubation (Fig. 2C, D). Both assays showed wide assay windows with maximum S/B ratios above 250-fold making them well suited for high-throughput applications.

To determine the specificity of cycling reactions within the linear range of the assays, we compared the performance of both assays with NAD, NADH, NADP, and NADPH dinucleotide standards. As shown in Figure 2E and F, both cycling enzymes showed high specificity for appropriate dinucleotides. No significant increase in light output above background was detected with oxidized forms of nonspecific dinucleotides. With reduced forms, due to the direct reductase activity, a slight increase in nonspecific signal was detected at higher dinucleotide concentrations (>50 nM). However, even under those conditions, more than 50-fold higher signals were generated with specific dinucleotides.

Dinucleotide Detection in Cells

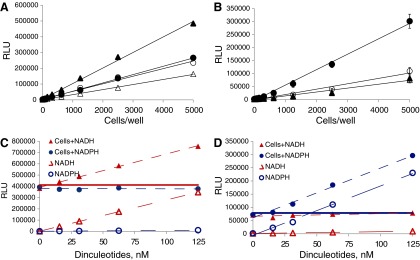

To test the performance of bioluminescent NAD(P)/NAD(P)H detection assays in cell lysates, we set up cell titration experiments in 384-well plates. As shown in Figure 3A and B, a linear increase in light output was measured with increasing amount of cells. The sensitivity of the assays allowed robust detection (S/B>3 with coefficient of variation (CV) values ranging from 2% to 7.5%) of total amounts of NAD+NADH and NADP+NADPH in as low as 300 or 600 cells/well, respectively. The signal remained linear up to 5,000 cells/well with the maximum S/B ratios ranging from 100 to 200 for NAD+NADH and from 50 to 100 for NADP+NADPH detection.

To confirm the ability of assays to provide quantitative and specific detection of cellular dinucleotides, we set up a “spike” recovery experiment. Increasing concentrations of NADH and NADPH dinucleotides ranging from 0 to 125 nM were added to the cells or medium alone. As shown in Figure 3C and D, no increase in light output was measured with increasing concentrations of nonspecific dinucleotides added to the medium or cells. In contrast, specific dinucleotides added to the cells caused concentration-dependent increases in luminescence. Using the NAD/NADH detection assay, the increase in signal was measured when NADH but not NADPH was added to the cells, while using the NADP/NADPH assay, the increase in light correlated with NADPH addition. More importantly, the increase in signal directly corresponded to the signal obtained at the same dinucleotide concentrations in medium without cells indicating quantitative recovery of exogenously added dinucleotides. The calculated recovery was >95% with both assays.

Inhibitor IC₅₀ Determination

To validate bioluminescent NAD(P)/NAD(P)H detection assays for small-molecule inhibitor screening and profiling, the performance of the assays was tested with a known NAD biosynthetic pathway inhibitor, FK866.

FK866 is a highly specific noncompetitive inhibitor of nicotinamide phosphoribosyltransferase (NAPRT or NAMPT), a key enzyme in the regulation of NAD biosynthesis. Initial studies in cancer cell lines indicated that exposure to FK866 with an IC₅₀ of ∼1 nM leads to slow depletion of intracellular NAD pools followed by cell death.³³ It has also been suggested that the inhibition of NAMPT by FK866 can affect other pathways deregulated in cancer cells, such as glycolysis, the pentose phosphate pathway, serine biosynthesis, and the TCA cycle.^34,35

To confirm the ability of the assays to detect changes in nicotinamide adenine dinucleotide levels directly in cell lysates in 384-well plates, we set up a time course study using A549 lung carcinoma cells (Fig. 4). The cells were plated in 384-well plates and treated with increasing concentrations of FK866 for 16, 24, 41, and 71 h and the effect of FK866 on total NAD+NADH, NADP+NADPH, ATP, and cell viability was evaluated. To assess the changes in cell viability, we used a cell viability assay that is based on measuring the activity of a nonmetabolic marker, a live cell protease. A fluorogenic, cell-permeant live cell protease substrate was added to the cells directly in 384-well plates and a fluorescent signal proportional to the number of living cells was determined. To detect total NAD+NADH and NADP+NADPH levels, an equal volume of appropriate detection reagent was added to the same samples. A separate set of wells was used for ATP detection.

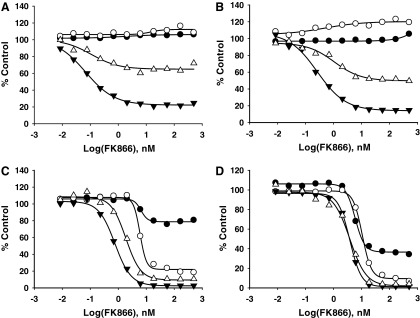

As shown in Figure 4, the FK866 concentration-dependent decrease in total NAD+NADH levels was detected as early as 16 h. In addition to the decrease in nonphosphorylated dinucleotides, a decrease in total amount of phosphorylated forms was measured after 16 h treatment with FK866. The total NAD+NADH and NADP+NADPH levels further decreased with longer incubation time resulting in more than 80% depletion after 41 h treatment. The calculated IC₅₀ values for NAD+NADH and NADP+NADPH, 0.75 and 1.9 nM, respectively, at 24 h, are in a close agreement with previously reported values.³³ Interestingly, in A549 cells, the dramatic decrease in NAD+NADH levels (>80%) was measured under conditions where no significant change in ATP, another major energy metabolite in cells, was detected. In addition, no significant change in cell viability was measured until later time points (>41 h). These data are consistent with a direct effect of FK866 on the NAD biosynthetic pathway.

Statistical Validation for HTS Applications

To determine the robustness of NAD(P)/NAD(P)H detection assays for HTS screens, we evaluated the statistical parameters of both assays at different cell densities using A549 and Jurkat cells in 384-well plates. The statistical data are summarized in Table 2. Both assays had high S/N values with acceptable replicate variability (% CV values less than 10%) and Z′ factor values between 0.64 and 0.82. In addition, both assays showed good linear response with large assay windows within the broad range of cell densities. S/B ratios ranged from 8.4 at lower cell densities (500 cells/well) to more than 300 at higher cell densities (5,000 cells/well) for the NAD+NADH detection and from 11 to more than 100 for NADP+NADPH detection.

The applicability of the assays for HTS was further confirmed by performing plate uniformity and signal variability assessment as recommended by NIH HTS guidelines.²⁹ The test was performed with A549 cells over 2 days following the recommended plate layout. HI, MID, and LO signals were generated with untreated cells, cells treated with FK866 at the concentration corresponding to IC₅₀ values, and cells treated at the high FK866 concentrations corresponding to >90% inhibition, respectively.

The data were analyzed using a provided template.²⁹ As shown in Table 3, both bioluminescent NAD(P)/NAD(P)H detection assays met all the acceptance criteria confirming that both assays are well suited for HTS small-molecule screening.

Oncology Library Screening

Next, we used the FIMM internal oncology compound collection consisting of 304 active compounds covering a broad range of oncology targets (Supplementary Table S1) to evaluate the drug effect on nicotinamide adenine dinucleotide levels in A549 cancer cells. Each drug was tested over a 10,000-fold concentration range and drug effect was evaluated by calculating a DSS, as described previously.^30,31 The standard approaches for large-scale analysis of drug responses are based on comparing maximum responses at high drug concentrations or determining the changes in drug potency, such as IC₅₀ or EC₅₀ values (half-maximum inhibitory/effective concentration). However, the multiparameter approaches involving analysis of the slope of the dose–response curves, the area under the curve, and the maximum effect have been shown to be powerful methods of describing and quantifying dose responses within different data sets.^31,36

Here, we applied the multiparameter-based DSS scoring approach to compare drug-induced changes in cell viability, total NAD+NADH, and total NADP+NADPH levels.

A549 cells were plated into 384-well plates containing the predispensed compound library. Each set of experiments consisted of five plates with 304 compounds in each plate starting with the highest compound concentration in plate 1 and going to the lowest compound concentration in plate 5. After 46 h of treatment, cell viability reagent was added to the plates to determine compound-induced changes in cell viability. Following viability measurement, NAD/NADH detection reagent was added to one set of plates to determine the changes in NAD+NADH levels and NADP/NADPH detection reagent was added to another set of plates to determine the changes in NADP+NADPH levels. Each of the screens was repeated twice.

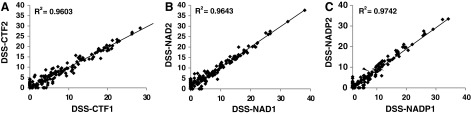

To determine the drug-induced effect on cell viability, total NAD+NADH, and total NADP+NADPH levels, the DSS was calculated for each measurement. Figure 5A–C shows the comparison of the DSS for each individual assay from two independent screens. As shown here, the DSS are in a good agreement between two screens with R² values above 0.96.

The responses of individual compounds in each assay ranged from DSS=0 (no effect on cells) to DSS >20 (very active compounds with high potency and efficacy). 24.7%, 25.3%, and 21.7% of all library compounds had DSS >5 for cell viability, NAD/NADH, and NADP/NADPH assays, respectively. All those compounds showed dose-depended decrease in measured response (Supplementary Tables S2 and S3) and are qualified as hit compounds.

We also were interested in testing if sDSS calculated by subtracting cell viability responses (DSS-cell viability) from NAD(P)/NAD(P)H responses (DSS-NAD+NADH and DSS- NADP+NADPH) would reveal novel compounds with selective effect on intracellular dinucleotide levels. In comparing the dinucleotide responses with cell viability responses, as shown in Figure 6A, the majority of compounds clustered between sDSS from −5 to 5. The compounds that had sDSS higher than 5 or lower than −5 are depicted in Figure 6B.

Three compounds, FK866, entinostat, and topotecan, clearly stood out as having significantly stronger effect on dinucleotide levels compared to changes in viability. One of the identified compounds with sDSS=20.3 for NAD+NADH and sDSS=15.4 for NADP+NADPH is FK866, a known NAD biosynthesis inhibitor (Fig. 4).³³ Two other compounds identified from the screen were entinostat (HDAC inhibitor) with sDSS=14.3 for NAD+NADH and sDSS=10.5 for NADP+NADPH and topotecan (topoisomerase I inhibitor) with sDSS=7.6 for NAD+NADH and sDSS=6.6 for NADP+NADPH. The effect of those drugs on nicotinamide adenine dinucleotide levels has not been reported previously. As shown in Figure 6C and D, both compounds decreased dinucleotide levels to a greater extent than cell viability.

In addition to compounds that decrease in NAD+NADH and NADP+NADPH levels, we identified a compound, raloxifene hydrochloride, that increased dinucleotide levels, especially NAD+NADH. NAD+NADH levels in cells treated with raloxifene were about 200% of control cells. To further evaluate this effect, A549 cells were treated with increasing concentrations of raloxifene. The changes in cell viability, ATP, NAD+NADH, and NADP+NADPH levels were determined after 24 and 46 h of treatment. As shown in Figure 7, although raloxifene showed toxicity at higher concentration (>10 μM), no significant effect on cell viability or ATP levels was detected at lower concentrations. On the contrary, a significant increase in total NAD+NADH and a slight increase in NADP+NADPH levels were measured after 24 h of treatment. The apparent EC₅₀ value for NAD+NADH was ∼700 nM at 24 h and decreased to 30 nM after 46 h of treatment.
