Peripheral PDGFRα⁺gp38⁺ mesenchymal cells support the differentiation of fetal liver–derived ILC2

Different concentrations of IL-7 optimize the cell fate of T cell, B cell, and ILC lineages

IL-7 is a critical cytokine for most lymphocytes, and previous research has shown that IL-7 concentration affects T cell differentiation (Ikawa et al., 2010). To determine whether IL-7 concentration also affects the differentiation of other lymphocytes, we cocultured E15 FL CLP with TSt4–Delta-like (DLL)–1 stromal cells, which express the Notch ligand DLL1, in the presence of different concentrations of IL-7. After 10 d of coculture, we found that low concentrations of IL-7 promoted CD4⁺CD8α⁺ double-positive (DP) T cell differentiation as previously reported (Fig. 1, A and B; Ikawa et al., 2010). However, high concentrations of IL-7 promoted the differentiation of GATA3^hi ILC2 (Fig. 1, A and B; and not depicted). A STAT5 inhibitor that blocks IL-7 signaling (Rochman et al., 2009) inhibited ILC2 differentiation, whereas T cell differentiation was only affected by high concentrations of the inhibitor (Fig. 1, C and D). These data indicate that both T cells and ILC2 require IL-7 but that the concentration of IL-7 differentially determines the commitment to T cells or ILC2. We also examined the differentiation of B cells, NK/ILC1, and ILC3 in different concentrations of IL-7. Lymphoid tissue inducer (LTi) cells are able to develop without Notch signaling (Possot et al., 2011), and ILC3s express low levels of GATA3 (Serafini et al., 2014). We therefore defined RORγt⁺GATA3^lo cells as LTi-like cells and RORγt⁺GATA3^mid cells as ILC3-like cells in the TSt4 and TSt4-DLL1 culture systems, respectively. Although LTi cell differentiation required high concentrations of IL-7, ILC3 differentiated efficiently at low concentrations of IL-7, as did T cells (Fig. 1, E and F). In this culture system, it is difficult to clearly distinguish between NK cells and ILC1. High concentrations of IL-7 promoted NK1.1⁺ cell (NK/ILC1) differentiation in both the TSt4 and TSt4-DLL1 culture systems, whereas B cell differentiation was unaffected by the concentration of IL-7 in the TSt4 culture system (Fig. 1, G–I).

The strength of Notch signaling differentially regulates lymphocyte lineage commitment

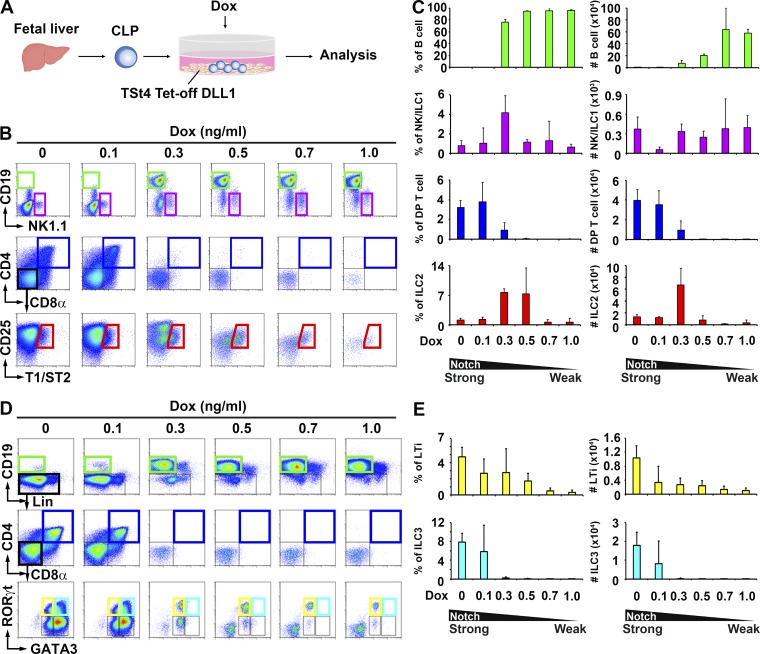

Given that Notch signaling supports the commitment to T cell differentiation (Washburn et al., 1997; Han et al., 2002; De Smedt et al., 2005), we investigated the influence of Notch signal strength on lymphocyte commitment using newly established TSt4-based cell lines (TSt4 Tet-off DLL stromal cell system). Although both DLL1 and DLL4 can induce T cell differentiation, their efficiencies are quite different (Besseyrias et al., 2007; Mohtashami et al., 2010; Andrawes et al., 2013). Therefore, in this study, we used both TSt4 Tet-off DLL1 and DLL4 stromal cells. In these cell lines, DLL1 (Fig. 2) or DLL4 (Fig. 3) is expressed on TSt4 cells in the absence of doxycycline (Dox), and DLL expression can be down-regulated by Dox in a dose-dependent manner. CLPs were cocultured with these stromal cells with 10 ng/ml IL-7 and different concentrations of Dox (Figs. 2 A and 3 A). B cell differentiation from CLP was preferentially induced by coculture with both TSt4 Tet-off DLL1 and DLL4 stromal cells at high concentrations of Dox, which indicates weak Notch signaling (Fig. 2, B and C; and Fig. 3, B and C). In contrast, low concentrations of Dox, which provide strong Notch signaling, predominantly induced T cell differentiation, and interestingly, intermediate concentrations of Dox elicited the differentiation of ILC2 and NK/ILC1 (Fig. 2, B and C; and Fig. 3, B and C). Strong Notch signaling also promoted the differentiation of both LTi cells and ILC3 (Fig. 2, D and E; and Fig. 3, D and E). Coculture with both TSt4 Tet-off DLL1 and DLL4 produced similar results (Fig. 2, B–E; and Fig. 3, B–E), suggesting that both DLL1 and DLL4 signaling have the potential to induce ILC differentiation in a dose-dependent manner. We also confirmed the expression of Notch receptors on progenitor populations. Hematopoietic stem cells (HSCs), lymphoid-primed multipotent progenitors, and CLPs express both Notch1 and Notch2, but Notch1 expression disappears after the CHILP stage (Fig. 3 F). Although the strength of Notch signaling seems to affect lymphocyte development in the CLP stage in the FL, further experiments are necessary to determine which Notch–DLL interaction is essential for ILC lineage commitment. To confirm whether both IL-7 and Notch signaling cooperatively regulate lymphocyte lineage differentiation, CLPs were cocultured with TSt4 Tet-off DLL1 under different concentrations of IL-7 and Dox. The differentiation of each type of lymphocyte lineage was observed much more clearly when we simultaneously controlled both the concentration of IL-7 and Notch signal strength (Fig. 4, A and B).

Lymphocyte commitment depends on the duration of Notch signaling

We next assessed the effect of the duration of Notch signaling on lymphocyte commitment by adding a high concentration of Dox at different time points (day 1–9) during the coculture of CLP and TSt4 Tet-off DLL1 cells (Fig. 5 A). The presence of Dox from the initiation of coculture (days 0–1 of coculture) predominantly induced B cell differentiation (Fig. 5, B and C). In contrast, when Dox was added later (days 7–8 of coculture), CLP differentiated predominantly into T cells (Fig. 5, B and C). The differentiation of ILC2 and NK/ILC1 was clearly observed when Dox was added on days 2–4 of coculture (Fig. 5, B and C). The differentiation of both LTi cells and ILC3 was enhanced by a longer duration of Notch signaling, which also favors T cell differentiation (Fig. 5, D and E). Similar results were obtained using TSt4 Tet-off DLL4 stromal cells (Fig. S1, A–D). Our data collectively demonstrate that the concentration of IL-7 combined with the strength and duration of Notch signaling determine CLP commitment to the lymphocyte lineage.

CLPs are thought to comprise a heterogeneous population (Mansson et al., 2010) of cell types, including T- and B-committed progenitors with myeloid potential (Masuda et al., 2005). It is thus possible that the CLP fraction contains ILC2-committed progenitors. In fact, α4β7⁺ ILCPs in the FL have been shown to be a heterogeneous population in a single cell-based analysis (Ishizuka et al., 2016). However, the Lin⁻c-Kit⁺IL-7Rα⁺Flt3⁺ CLP fraction used in this study did not contain the Lin⁻c-Kit⁺IL-7Rα⁺Flt3⁻ CHILP population that can differentiate into all ILC subsets (Fig. S2). We also confirmed that these CLPs did not express α4β7 (unpublished data). Thus, ILC-committed progenitors were not present in the CLP fraction used in this study.

Deletion of DLL4 on thymic epithelial cells induces abnormal expansion of ILC2 in the thymus

To determine the importance of Notch signaling for commitment to T cell and ILC2 differentiation in vivo, we examined the thymus of FoxN1-Cre-Dll4^flox/flox mice, which lack DLL4 expression on thymic epithelial cells. As expected, T cell development was impaired in these mice (Fig. 6, A and B). However, we observed substantial numbers of both B cells and GATA3⁺ ILC2s (Fig. 6, A–C). The GATA3⁺ ILC2s were capable of producing IL-5 and IL-13 in response to IL-2 + IL-25, IL-33, and IL-7 + IL-33, but not IL-25 alone (Fig. 6 D), which are the typical ILC2 cytokine responses. DLL4 is expressed at high levels on not only epithelial cells (FoxN1⁺ cells) but also nonepithelial cells (FoxN1⁻ cells), including fibroblasts and endothelial cells in the thymus. It is thus likely that thymocytes in FoxN1-Cre-Dll4^flox/flox mice were exposed to weak Notch signaling, resulting in differentiation to B cells and ILC2 but not T cells. These results indicate that the extent and magnitude of Notch signaling play a crucial role in the differentiation of ILC2 in vivo as well.

KLRG1⁻ immature ILC2s exist in the fetal mesentery

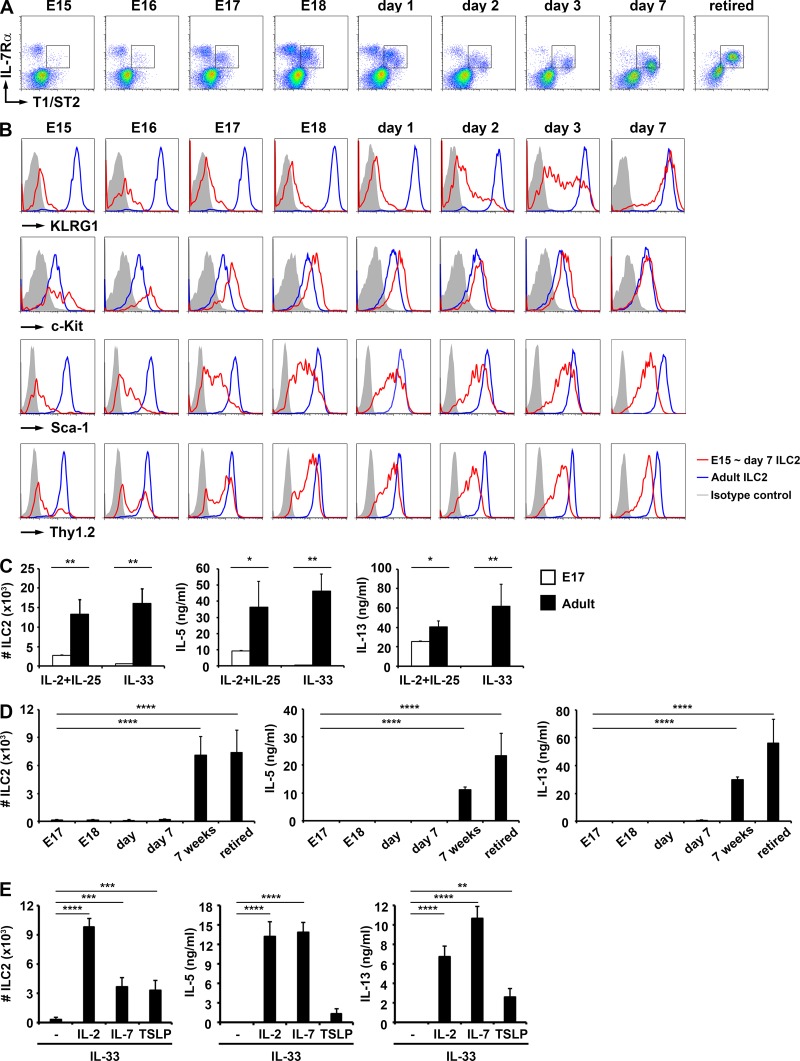

Parabiosis studies have suggested that ILC2s are derived from CLPs in the FL but not adult BM in normal, healthy mice, leading to a question about the site of ILC2 differentiation after the FL stage. We therefore focused on the differentiation of ILC2s in the mesentery during the fetal stage because the mesentery contains a large number of ILC2s (Moro et al., 2010). We observed a GATA3⁺ ILC2 population expressing IL-7Rα and IL-33R (T1/ST2) as early as E15 (Fig. 7 A and not depicted). Compared with ILC2 in the adult mesentery, ILC2 in the fetal mesentery expressed higher levels of c-Kit and lower levels of Sca-1 and Thy1.2 and were negative for KLRG1, a maturation marker for ILC2 and NK cells (Fig. 7 B; Robbins et al., 2002; Huntington et al., 2007). Although adult ILC2s proliferated and produced IL-5 and IL-13 in response to a combination of IL-2 + IL-25 or IL-33 (Moro et al., 2010), fetal ILC2s were insensitive to IL-33 (Fig. 7 C), and acquired IL-33 responsiveness after birth (Fig. 7 D). Interestingly, fetal ILC2s proliferated and produced IL-5 and IL-13 in response to IL-33 in combination with STAT5 activators such as IL-2, IL-7, and TSLP (Fig. 7 E), positive regulators for ILC2 functions (Mjösberg et al., 2012; Kabata et al., 2013). These results suggest that the STAT5 pathway is involved in the maturation of ILC2 and that ILC2s undergo maturation in vivo in the peripheral tissue.

ILCPs and immature ILCs exist in the fetal periphery

Unlike most CD45⁺Lin⁻ cells in the adult mesentery, which are mature IL-7Rα⁺T1/ST2⁺ ILC2s (Fig. 8 A, red frame), large numbers of CD45⁺Lin⁻ cells in the fetal mesentery express IL-7Rα but not T1/ST2 (Fig. 8 A, blue frame). These Lin⁻IL-7Rα⁺T1/ST2⁻ cells in the fetal mesentery express α4β7 and low levels of CD25 and are negative for Flt3 (Fig. 8 B and not depicted). These characteristics are similar to those of CHILP or ILCP in the BM and FL (Constantinides et al., 2014; Klose et al., 2014). Interestingly, the majority of Lin⁻IL-7Rα⁺T1/ST2⁻ cells were RORγt⁺PLZF^loGATA3^loT-bet⁻, and only a small number of RORγt⁻PLZF^hiGATA3^hiT-bet⁻ or RORγt⁻GATA3^loT-bet⁺ cells were present (Fig. 8 C). Although RORγt⁺PLZF^loGATA3^loT-bet⁻ cells comprised a dominant population in the fetal mesentery, their numbers were drastically reduced in the adult mesentery (Fig. 8 D). Lin⁻IL-7Rα⁺T1/ST2⁻ cells in the fetal mesentery could be divided into four populations based on RORγt and CCR9 expression (Fig. 8 E). None of these four populations produced IFNγ, but RORγt⁺CCR9⁻ cells had the potential to produce low levels of IL-17A (Fig. 8 F). RORγt⁺CCR9⁺, RORγt⁻CCR9⁺, and RORγt⁻CCR9⁻ cells were IL-13^low/− cells (Fig. 8 F), suggesting that Lin⁻IL-7Rα⁺T1/ST2⁻ cells contain immature ILCs. When we cocultured the CCR9⁻ or CCR9⁺ fraction of Lin⁻IL-7Rα⁺T1/ST2⁻ cells with TSt4-DLL1 (Fig. 8 G), T-bet⁺ ILC1s (Fig. 8 H, pink frame), GATA3⁺ ILC2s (Fig. 8 H, red frame), and RORγt⁺ ILC3s (Fig. 8 H, blue frame) but not T cells or B cells were observed (not depicted), indicating that the Lin⁻IL-7Rα⁺T1/ST2⁻ fraction contains committed ILCP. The CCR9⁻ fraction dominantly differentiated to ILC1s and ILC3s, but the CCR9⁺ fraction expressed both GATA3 and PLZF (not depicted) and preferentially differentiated to ILC2s (Fig. 8, H and I), suggesting that Lin⁻IL-7Rα⁺T1/ST2⁻CCR9⁺ cells are committed to ILC2. The CCR9⁻ fraction could be divided into RORγt⁺ and RORγt⁻ cells (Fig. 8 E). Although RORγt⁺CCR9⁻ cells seemed to be immature ILC3s based on their IL-17A expression (Fig. 8 F), it is likely that RORγt⁻CCR9⁻ cells were ILCPs. To confirm this possibility, RORγt⁻CCR9⁻ cells from RORγt^GFP/+ mice were sorted and cocultured with TSt4-DLL1. After 10 d, RORγt⁻CCR9⁻ cells had differentiated into all ILCs, including ILC1s (Fig. 8 J, pink frame), ILC2s (Fig. 8 J, red frame), and ILC3s (Fig. 8 J, blue frame). These data collectively indicate that Lin⁻IL-7Rα⁺T1/ST2⁻ cells are heterogeneous populations that include ILC-committed progenitors and immature ILCs. Similar ILCP populations and immature ILC2s requiring STAT5 stimulation for maturation were also detected in the fetal intestine and lung (Fig. S3, A and B). It is likely that CLPs differentiate into CHILP/ILCP in the FL, and CHILP/ILCP then migrate to the peripheral tissues and change their phenotype to Lin⁻IL-7Rα⁺T1/ST2⁻ cells. Our data suggest that CCR9⁺ cells in the Lin⁻IL-7Rα⁺T1/ST2⁻ fraction are ILC2-committed cells, and it is possible that they arise from the CCR9⁻ population in the mesentery.

CD45⁻CD31⁻ stromal cells support ILC2 differentiation

Tissue-specific stromal cells in the thymus or BM control T or B cell development, respectively, demonstrating the importance of stromal cells in the differentiation of lymphocytes. However, which stromal cells, if any, support ILC2 differentiation in vivo is as yet unknown. To identify these stromal cells, total mesenteric cells were isolated, and single-cell RNA-sequence (scRNA-Seq) analysis was performed. Mesenteric cells were divided into 20 clusters based on a two-dimensional t-distributed stochastic neighbor embedding projection on duplicate samples (Fig. 9 A). We found two clusters (C16 and C17) that express Gata3 (GATA3), the first of which did not express Cd3e (CD3ε), suggesting that cluster 16 is the likely candidate of the ILC2 cluster (Fig. 9 B). We also found clusters that did not express Ptprc (CD45; i.e., nonimmune cells) that are candidates for stromal cells: fraction 1 (F1, containing C2 to C4), fraction 2 (F2, containing C6 to C9), and C5. Specifically, cells in F1 expressed Pecam1 (CD31), which is a general marker for endothelial cells (Fig. 9 C). By flow-cytometric analysis, mesentery cells were separated into four populations based on their CD45 and CD31 expression, namely CD45^hiCD31⁻ (CD45^hi), CD45^loCD31⁻ (CD45^lo), CD45⁻CD31⁻ (CD45⁻), and CD45⁻CD31⁺ (CD31⁺; Fig. 9 D). To determine the potential of each population to support ILC2 differentiation, we cocultured Lin⁻IL-7Rα⁺T1/ST2⁻ ILCP from the fetal mesentery of WT mice with these four mesenteric populations from Il2rg^−/−Rag2^−/− mice to eliminate lymphocyte contamination. All samples, with or without stromal cells, displayed low numbers of T-bet⁺ cells and abundant RORγt⁺ cells (Fig. 9, E and F). GATA3⁺ ILC2s were observed only in cocultures containing CD45⁻CD31⁻ cells (Fig. 9, E and F), suggesting that the differentiation of ILC2 is supported by the C5 or F2 population.

CD45⁻CD31⁻PDGFRα⁺gp38⁺ mesenchymal cells support ILC2 differentiation and maturation

We next aimed to identify cluster-specific surface markers to enable separation of the C5 and F2 populations by flow-cytometric analysis. Based on the scRNA-Seq data, we first determined that Pdpn (gp38), which is a lymphatic endothelial cell marker known to be expressed by IL-33–expressing cells in adipose tissue (Jackson-Jones et al., 2016), was specific to C5 and F2 cells (Fig. 10, A and B). Furthermore, we identified Pdgfra (PDGFRα), which is a specific marker for adipocyte precursors and mesenchymal cells (Lee et al., 2012), to be specific to F2 cells (Fig. 10, A and B). Therefore, using gp38 and PDGFRα, the CD45⁻CD31⁻ fraction could be further subdivided into three fractions: PDGFRα⁺gp38⁺ (PDGFRα⁺), PDGFRα⁻gp38^hi (gp38^hi), and PDGFRα⁻gp38⁻ (double negative [DN]; Fig. 10 C). Lin⁻IL-7Rα⁺T1/ST2⁻ ILCPs from the fetal mesentery were cocultured with these subpopulations from Il2rg^−/−Rag2^−/− mice, and we found that GATA3⁺ ILC2 differentiation was specifically induced through the support of PDGFRα⁺ cells (Fig. 10, D and E). Similar results were observed in cocultures using fetal PDGFRα⁺ cells derived from WT mice (Fig. S4, A–C).

When we examined the gene expression of the four clusters in F2 (Fig. 9 A), 196, 81, 32, and 44 genes were specifically expressed in C6, C7, C8, and C9 clusters, respectively (Fig. 10 F). Among these genes, Cxcl12 (CXCL12) was highly expressed in C9, which is a critical factor for B cell differentiation and is provided by CXCL12-abundant reticular cells in the BM. A fraction of PDGFRα⁺ cells in the adult mesentery expressed CXCL12 as determined by flow-cytometric analysis (Fig. 10 G). However, both CXCL12⁺PDGFRα⁺ cells and CXCL12⁻PDGFRα⁺ cells supported ILC2 differentiation (unpublished data), indicating that, unlike B cells, CXCL12 is not involved in the differentiation of ILC2. We investigated whether PDGFRα⁺ cells in the mesentery are capable of supporting ILC2 differentiation from CLP. In coculture experiments, GATA3⁺ ILC2s were induced from CHILPs but not CLPs, strongly suggesting that CLPs require environmental factors in the FL and that the terminal differentiation of ILC2s from CHILP/ILCP occurs with the support of PDGFRα⁺ cells in the mesentery (Fig. 10 H). Finally, we determined whether PDGFRα⁺ cells are also able to support ILC2 maturation. Immature ILC2 in the fetal mesentery were cocultured with three stromal cell fractions in the adult mesentery, and their cytokine production abilities in response to IL-33 alone were assessed as a marker of maturation. As expected, PDGFRα⁺ cells induced IL-5 and IL-13 production from fetal ILC2s (Fig. 10 I), and interestingly, gp38^hi cells also induced cytokine production from fetal ILC2s (Fig. 10 I). ILC2 development occurred even in IL-33–deficient mice, indicating that IL-33 signaling is not necessary for ILC2 development (unpublished data). However, the high expression level of IL-33 in both PDGFRα⁺ cells and gp38^hi cells suggests that IL-33 might be a candidate for an accelerator of ILC2 maturation (Fig. 10 J; Jackson-Jones et al., 2016).

Mice

WT C57BL/6N, retired C57BL/6N, and pregnant C57BL/6J mice were purchased from Charles River Laboratories Japan or CLEA Japan and maintained under specific pathogen-free conditions in the animal facility at the RIKEN Center for Integrative Medical Sciences, Yokohama, Japan. Retired mice are defined as mice older than 4 mo of age that have been retired from breeding. Il2rg^−/−Rag2^−/− mice (stock 4111) were purchased from Taconic Farms. FoxN1-Cre mice were previously described (Hozumi et al., 2008). In brief, the P1 artificial chromosome was used to generate these transgenic mice (clone RPCI21-436p24; Roswell Park Cancer Institute). FoxN1-Cre-Dll4^flox/flox mice on a mixed background (129/Sv × C57BL/6) were obtained by crossing FoxN1-Cre and Dll4^flox/flox mice (Hozumi et al., 2008). CXCL12-GFP knock-in mice on a C57BL/6 background were previously described (Nagasawa et al., 1996). RORγt^GFP/+ mice on a C57BL/6 background (Eberl et al., 2004) were provided by D. Littman of New York University, New York, NY, and S. Fagarasan of the RIKEN Center for Integrative Medical Sciences. Il33^GFP/+ mice on a C57BL/6 background (Oboki et al., 2010) were provided by S. Nakae (University of Tokyo, Tokyo, Japan). All experiments were approved by the Institutional Animal Care and Use Committees of the RIKEN Center for Integrative Medical Sciences and Tokai University (Tokyo, Japan) and were performed in accordance with institutional guidelines.

Antibodies and reagents

For flow-cytometric analyses, mAbs specific for mouse CD3ε (145-2C11), CD8α (53–6.7), CD19 (1D3), B220 (RA3-6B2), NK1.1 (PK136), CD11b (M1/70), CD11c (HL3), Gr-1 (RB6-8C5), TER119 (TER119), CD45.1 (A20), CD45.2 (2F1), Sca-1 (E13-161.7), CD25 (PC61), Thy1.2 (53–2.1), Flt3 (A2F10), α4β7 (DATK32), KLRG1 (2F1), CCR9 (CW-1.2), CD31 (MEC13.3), GATA3 (L50-823), T-bet (O4-46), RORγt (Q31-378), IFN-γ (XMG1.2), IL-17A (TC11-18H10), and fluorochrome-conjugated streptavidin were purchased from BD. mAbs against mouse Notch1 (HMN1-12), Notch2 (HMN2-35), CD4 (GK1.5), PDGFRα (ATA5), gp38 (8.1.1), and PLZF (9E12) were purchased from BioLegend. mAbs against c-Kit (2B8), FcεRIα (MAR-1), IL-7Rα (A7R34), and IL-13 (eBio13A) were purchased from eBioscience. Anti-T1/ST2 (DJ8) was purchased from MD Biosciences. mAb against mouse CD16/CD32 (2.4G2) was purified from hybridoma culture supernatants in our laboratory.

Recombinant mIL-2, mIL-7, mIL-25, mIL-33, and mTSLP were purchased from R&D Systems. A STAT5 inhibitor (CAS 285986–31-4) was purchased from Calbiochem, and Dox was purchased from Clontech.

Preparation of cell suspensions

FL and thymus samples were mechanically dissociated by passage through 70-µm filters. Cells were suspended in HBSS (Thermo Fisher Scientific) containing 2% FBS (Japan Bioserum) and 0.1% NaHCO₃. Adult ILC2 and stromal cells were isolated from the mesentery as previously described (Moro et al., 2015). To isolate Lin⁻IL-7Rα⁺T1/ST2⁻ cells, ILC2, and stromal cells from the fetal mesentery, fetal mesenteries were harvested using fine-tipped tweezers under a stereomicroscope, and cells were isolated using a method similar to that used for the ILC2 in the adult mesentery. Fetal intestine and lung cells were isolated using Liberase high dispase (Roche) and Liberase thermolysin (Roche), respectively.

Flow-cytometric analysis

Cells were isolated as described above and suspended in HBSS containing 2% FBS and 0.2% sodium azide. Cell suspensions were incubated with 50 µl of purified mAbs against mouse CD16/CD32 (2 µg/ml) and fluorochrome-conjugated antibodies for 20 min on ice. Before flow-cytometric analysis, cells were suspended in 0.5 µg/ml propidium iodide solution to distinguish between live and dead cells. For intracellular staining, cells were fixed and permeabilized with a Foxp3 Staining Set (eBioscience) or IntraPrep Permeabilization Reagent (Beckman Coulter) according to the manufacturer’s protocols. Cells were analyzed using a FACSCalibur, FACSAria IIu, or FACSAria III (BD) and sorted using a FACSAria IIu or FACSAria III. All data were analyzed using FlowJo software (TreeStar). Within each experiment, we used several types of lineage markers. To clearly present the gating strategies, the lineage markers and pregating lists are provided in Table S1.

Sorting of progenitors

E15 FL cells were isolated as described above and incubated with 500 µl purified mAb against mouse CD16/CD32 (2 µg/ml) and appropriate concentrations of biotin-conjugated mAbs against CD3ε, B220, CD11b, Gr-1, and TER119 for 20 min. Cells were then washed and incubated with 100–500 µl streptavidin microbeads (Miltenyi Biotec) for 20 min, and lineage-negative cells were enriched using autoMACS (Miltenyi Biotec). For the detection of CLP and CHILP, cells were stained with 500 µl of a solution containing appropriate concentrations of mAbs against Sca-1, c-Kit, IL-7Rα, Flt3, α4β7, and CD25 followed by incubation with 500 µl streptavidin. The gating strategies for Lin⁻Sca-1^lowc-Kit⁺IL-7Rα⁺Flt3⁺ CLP and Lin⁻c-Kit⁺IL-7Rα⁺α4β7⁺Flt3⁻CD25⁻ CHILP are provided in Fig. S2. To sort Lin⁻IL-7Rα⁺T1/ST2⁻ ILCP or ILC2 from the fetal mesentery, E18 fetal mesenteric cells were isolated as described above and stained with mAbs against the lineage markers, T1/ST2, IL-7Rα, and streptavidin.

In vitro differentiation assays

TSt4 and TSt4-DLL1 stromal cells were provided by H. Kawamoto (Kyoto University, Kyoto, Japan) and were described previously (Watanabe et al., 1992; Miyazaki et al., 2005). To establish the TSt4 Tet-off DLL1 and TSt4 Tet-off DLL4 systems, the DLL1 or DLL4 gene under the control of a TetO-CMV promoter in a modified TetR expression vector was transfected into TSt4 stromal cells using a lentiviral vector. GFP⁺ transfected cells were sorted and cultured in 24-well plates for 2 d before the coculture experiments were initiated, and when used, Dox was added 1 d before the initiation of cocultures. FL-derived CLP cells (100 cells) were seeded in the presence of TSt4, TSt4-DLL1, TSt4 Tet-off DLL1, or TSt4 Tet-off DLL4 cells with various IL-7 concentrations or 10 ng/ml IL-7 with various concentrations of Dox for 9–10 d. Fetal mesentery–derived Lin⁻IL-7Rα⁺T1/ST2⁻CCR9⁺ or Lin⁻IL-7Rα⁺T1/ST2⁻CCR9^– cells (80 cells) and Lin⁻IL-7Rα⁺T1/ST2⁻RORγt⁻CCR9⁻ cells (150–500 cells) were cocultured with TSt4 or TSt4-DLL1 cells in the presence of 10 ng/ml IL-7 for 10 d.

FL-derived CLP (100–200 cells), CHILP (200–300 cells), fetal mesentery–derived Lin⁻IL-7Rα⁺T1/ST2⁻ ILCP (150–300 cells), and fetal mesentery–derived Lin⁻IL-7Rα⁺T1/ST2⁺ ILC2 (150–300 cells) were also cocultured with fetal or adult mesentery–derived primary cells (5,000-25,000 cells) in the presence of 10 ng/ml IL-7 for 9–12 d or 10 ng/ml IL-33 for 4–6 d in 96-well flat-bottom plates. Cells were cultured in RPMI-1640 (Sigma-Aldrich) containing 10% FBS (Japan Bioserum), 10 mM Hepes (Sigma-Aldrich), 100 µM nonessential amino acids (Sigma-Aldrich), 1 mM sodium pyruvate (Gibco), 100 U/ml penicillin (Gibco), 100 µg/ml streptomycin (Gibco), and 50 µM 2-mercaptoethanol (Gibco) at 37°C under 5% CO₂.

ILC2 proliferation and cytokine production assays

Purified fetal ILC2 or adult ILC2 from mesenteries and adult ILC2 from thymus were cultured at 500 and 3,000 cells per well, respectively, in 96-well round-bottom plates. The culture medium used was 200 µl RPMI-1640 containing 10% FBS, 10 mM Hepes, 100 µM nonessential amino acids, 1 mM sodium pyruvate, 100 U/ml penicillin, 100 µg/ml streptomycin, and 50 µM 2-mercaptoethanol, and the cells were cultured at 37°C under 5% CO_2. We added 10 ng/ml mIL-2, mIL-7, mTSLP, mIL-25, or mIL-33 to the medium. After 6 d, supernatants were collected, and the amounts of IL-5 and IL-13 were measured using Quantikine ELISA kits or DuoSet ELISA Development kits (R&D Systems) according to the manufacturer’s protocols. The total numbers of cells were counted using a hemocytometer. The cytokine production of total cells was expressed as the concentration (ng/ml) and, for a single cell, as the absolute amount (pg cytokine/cell). To determine the potential for cytokine production, cells were cultured at 5 × 10⁵ cells per well in 24-well flat-bottom plates with 50 ng/ml PMA (Sigma-Aldrich), 1 µg/ml ionomycin (Sigma-Aldrich), and 3 µg/ml brefeldin A solution (eBioscience). After 3 h of culture, we collected each cell, performed intracellular staining, and analyzed by flow cytometry.

Single-cell library construction, sequencing, and analyses

Single-cell encapsulation and library construction were performed with the Chromium Controller with the Chromium Single Cell 3′ v2 Reagents kit (10× Genomics) according to the manufacturer’s protocols. Cells were loaded onto the Chromium Controller in 10% FCS RPMI Complete medium. Libraries were sequenced on a HiSeq 2,500 instrument (Illumina) and processed with Cell Ranger. An advanced clustering algorithm was performed using Seurat (Satija et al., 2015) on the duplicate samples, which contained 1,516 and 1,679 cells, respectively. Violin plots were generated to determine clear outliers noted by their high gene numbers (unpublished data), which were treated as multiplets and excluded from further analysis. Specifically, cells with 200–3,000 genes with <8,000 total transcripts were selected as single cells. Potential dead cells (cells with >0.5% mitochondrial genes) were further filtered out. PCA analysis on combined replicates showed very good clustering overlap (unpublished data). Therefore, these were treated as one sample in all other analyses. Highly variable genes were detected using the MeanVarplot command in Seurat. These analyses resulted in 2,475 cells containing at least one highly expressed gene. Twenty PCs were generated from these selected cells and then used to project each individual cell onto a single two-dimensional map using t-distributed stochastic neighbor embedding (Macosko et al., 2015), which resulted in 20 distinct clusters. A highly expressed marker specific for each cluster was then identified.

Data accession

The scRNA-Seq data were deposited in NCBI GEO with the accession no. GSE102665.

Statistical analysis

Data presented as the means ± SD were analyzed using Prism 6 (GraphPad Software). A Student’s t test was used to determine statistically significant differences between two groups. One-way ANOVA with the Holm-Sidak post hoc test or one-way ANOVA with the Tukey-Kramer post hoc test was used to determine statistically significant differences between two or more groups. All reported p-values were calculated using parametric two-tailed tests unless otherwise stated.

Online supplemental material

Fig. S1 shows differentiated T cells, B cells, and ILCs after coculture of CLP with TSt4 and TSt4-DLL4 cells under different durations of Notch signaling. Fig. S2 presents the gating strategy for the detection of CLP and CHILP. Fig. S3 describes distribution and cytokine production of ILCP and ILC2 in the fetal intestine and lung. Fig. S4 presents ILC2 differentiation from Lin⁻IL-7Rα⁺T1/ST2⁻ cells cocultured with PDGFRα⁺gp38⁺ mesenchymal cells in the fetal mesentery. Table S1 shows list of lineage markers of each figure.
