αβ T-cell receptor recognition of CD1a presenting self-lipid antigens

BK6 TCR autoreactivity towards CD1a self-Ags

Most studies on CD1-restricted immunity have focussed on foreign lipid Ag presentation. However, the first report of a CD1-mediated T-cell response, two decades ago, defined the concept of CD1 autoreactivity through the study of a T-cell clone, termed BK6, isolated from a Systemic lupus erythematosus patient, which recognized cellular CD1a in the absence of any added lipid¹². CD1a is highly expressed on Ag-presenting cells including Langerhans cells in skin, and autoreactive CD1arestricted T-cells represent an abundant component of the αβ T-cell repertoire, comprising up to 0.1 to 10% of T-cells in the blood^{13, 14}. The molecular basis underpinning CD1a autoreactivity remains unresolved, but in most cases is thought to result from presentation of activating self-ligands. However, development of a new human CD1a tetramer assay¹⁰ provided an unexpected result that pointed towards a different mode of Ag recognition. After sequencing the BK6 TCR (TRAV123*01-TRBV6–2*01) and transducing it into a Jurkat cell line (Jurkat.BK6) (Fig. 1a & Supplementary Fig. 1a), we noted bright staining of these cells by CD1a tetramers that were not loaded with any defined Ag, and thus were likely pre-loaded with an array of endogenous (endo) self-Ags (Fig. 1a). This was surprising because tetramers of MHC, MR1 or CD1 do not typically bind to TCRs until defined Ags have been loaded within the Ag-binding cleft, which alters the surface of the Ag-presenting molecule to generate complexes that exceed an avidity threshold needed for clear staining ^{15, 16, 17, 18}. Control experiments indicated that CD1a-tetramer staining was not due to TCR overexpression or non-specific interactions, as CD1a-endo tetramers did not bind to Jurkat cells expressing an irrelevant TCR derived from a human MR1-restricted mucosal-associated invariant T (MAIT) cell (Fig. 1a)¹⁹. Thus, the mechanism of CD1a recognition by the BK6 TCR was likely to be different to that of other αβTCRs recognizing Ag complexes of CD1d, MHC and MR1 proteins.

Mass spectrometric analysis of TCR-CD1a-lipid complexes

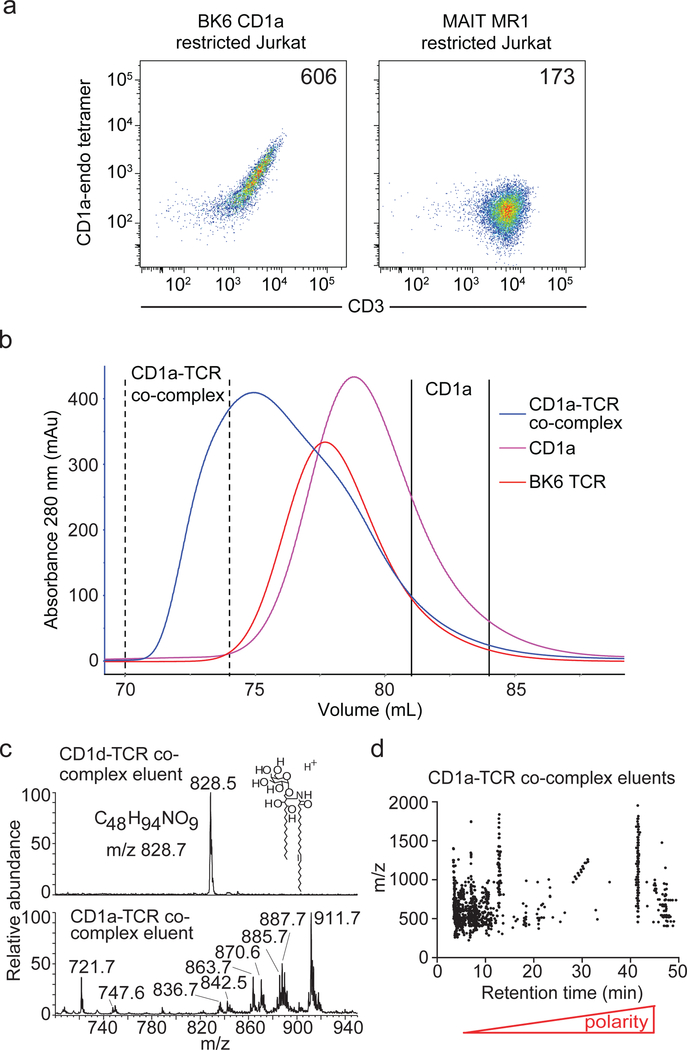

One possibility is that tetrameric CD1a proteins were pre-loaded with one or many endogenous (CD1a-endo) ligands derived from the cells in which CD1a was expressed, which influenced TCR binding (Fig. 1a). To measure the number and polarity of CD1a ligands, we treated CD1a proteins with organic solvents and subjected eluents to high performance liquid chromatography-mass spectrometry (HPLC-MS). Normal phase chromatography separates lipids into classes, such that their polarity is directly related to retention time, and individual ions with distinct retention times and mass values can be counted. Similar to recent studies^{10, 20}, lipidomics analysis of CD1a monomers from HEK293 cells detected many hundreds of lipids with diverse retention times that ranged from those characteristic of extreme hydrophobes (3–4 min) to polar phosphoglycolipids (>10 min) (Supplementary Fig. 2a) ²¹. Statistically, it is unlikely that any one of these lipids would occupy two or more CD1a proteins in a tetramer. However polymeric binding of CD1a to TCRs (Fig. 1a) could be explained if the BK6 TCR was permissive for binding CD1a complexes formed of many different self-lipids. Within this general scenario, interactions might be influenced by a specific subset of the detected endogenous self-lipids or instead be independent of all lipids. We favoured the former hypothesis, as recent data showed that certain autoreactive T-cells are activated by CD1a-self lipid complexes in preference to CD1a proteins stripped of lipid¹⁰.

Therefore, to identify the self-lipids that influence TCR binding, we used the soluble recombinant BK6 TCR as bait by mixing it with soluble CD1a-endo, thereby allowing binding to occur only when CD1a molecules were carrying permissive Ags. This mixture was then fractionated with size exclusion chromatography, separating larger TCR-CD1a-lipid ternary complexes from CD1a-lipid binary complexes that did not bind to the TCR (Fig. 1b, Supplementary Fig. 1b). This technique results in earlier elution of TCR-CD1a-lipid ternary complex due a larger hydrodynamic volume compared with CD1a-lipid binary or non-liganded TCR molecules. Next, the number and chemical diversity of CD1-TCR ligands (Fig. 1c–d) was measured by HPLC-MS. A control study of solvent-treated NKT TCR-CD1d-α-galactosylceramide (α-GalCer) complexes readily detected α-GalCer (m/z 828.5) without interfering signals, demonstrating the sensitive detection of a known groove occupying ligand that promotes TCR binding (Fig. 1c). Turning to TCR-CD1a-lipid complexes carrying unknown ligands, we detected many ions (Fig. 1c) with distinct retention time values (Fig. 1d). Thus, the mechanism of TCR-CD1a-lipid binding appeared permissive for many self-ligands, rather than a single type of lipid auto-Ag.

Identification of permissive and non-permissive ligands

Among the many unknown ligands, we focused on MS signals: corresponding to molecular ions of carbon-rich molecules; with high intensity (Fig. 1c–d) and mass values that matches those of known membrane lipids from human cells (Fig. 2). Next we compared ions with the same m/z and retention time values in BK6 TCR-CD1a-lipid complexes versus compared to CD1a-lipid (Fig. 2a). Among the many molecules eluted from TCR-CD1a-lipid, signals at m/z 747.52 and 10.1 min showed a similar intensity in both preparations, suggesting that it was permissive for BK6 TCR binding. Based on co-elution with standards (Fig. 2b) and CID-MS (Fig. 2c), this lipid was identified as phosphatidylglycerol (PG). Using the same approach, two signals (m/z 880.61, 45.2 min; m/z 911.57, 27.4 min) preferentially detected in TCR-CD1a-lipid complex, were identified as phosphatidylcholine (PC) and phosphatidylinositol (PI). Thus, these common membrane phospholipids were candidate ligands for permitting or promoting TCR binding. Thus, whereas we initially sought to discover ‘the’ self- lipid Ag for the BK6 TCR, experiments instead detected many permissive lipid ligands in the TCR-CD1a-lipid ternary complex. Conversely, one signal (m/z 857.67) was seen only in unbound CD1a-lipid, suggesting the presence of a non-permissive ligand, which was identified as sphingomyelin (SM) by CID-MS and comparison to authentic standards (Fig. 2b–c).

After identifying these ligands in high throughput screens, we next tested their functions using targeted experiments. First, we loaded CD1a tetramers with chemically defined standards corresponding to the identified permissive (PC) and non-permissive (SM) ligands and stained the Jurkat.BK6 cells. Control experiments with an exogenous labelled lipid that could be distinguished from self lipids based on its mass (m/z 1230.7) showed that phosphatidylethanolamine (PE)-rhodamine largely or completely displaced the broad spectrum of self-ligands (Supplementary Fig. 2b & c). CD1a tetramer loaded with PC showed comparable staining compared to CD1a-endo, consistent with its proposed role as “permissive” Ag. Lysophosphatidylcholine (LPC) was not detected in CD1a eluents (Fig. 2), but was chosen as a candidate ligand because it is a single chain version of PC that can be generated through the action of phospholipases ²² and also a known antigen for other CD1 proteins ^{23, 24}. We found that LPC increased Jurkat.BK6 staining so can be considered a permissive ligand with an enhancing effect (Fig. 3a). In contrast, CD1a tetramer loaded with the candidate non-permissive ligand by MS, showed reduced binding to Jurkat.BK6 cells (Fig. 3a), further defining SM as a non-permissive ligand. These CD1a-Ag tetramers did not bind the MAIT TCR (Fig. 3a). These initial CD1a-tetramer staining experiments involved loading a defined ratio of lipid to CD1a, so it was possible that some CD1a molecules within the tetramer retained their endogenous lipid Ags, thus influencing the staining intensity, as suggested by control experiments (Supplementary Fig. 2b–c). Therefore, we next carried out experiments using LPC and SM as representative permissive and non-permissive Ags at varied doses (Fig. 3b) and found opposite dose-dependent effects of SM and LPC. Thus, whereas CD1a-endo contains a mixture of permissive and non-permissive lipid Ags, individual lipid Ags can clearly influence binding of the BK6 TCR to the CD1a-lipid complex.

BK6 TCR-CD1a-Ag interaction

To measure the BK6 TCR’s affinity towards CD1a-endo, we expressed and refolded this TCR and conducted surface plasmon resonance (SPR) studies. The BK6 TCR bound to mammalian CD1a-endo with an affinity (K_d) of 29μM (Fig. 3c–e), and a similar value was obtained for insect-derived CD1a-endo (data not shown). This value was comparable or moderately stronger than previously reported CD1a-restricted TCR interactions^{10, 18}. For these experiments approximately 3000 response units (RU) of CD1a-endo was coupled to the streptavidin SPR chip via the C-terminal biotin tag on CD1a and the maximal response achieved was 1100 RU (40% of maximal predicted RU). Thus, the BK6 TCR was selectively binding a large fraction, though clearly not all, of the endogenous repertoire of lipids bound to CD1a, consistent with the MS and tetramer-based data.

To address the molecular basis for the BK6 TCR-CD1a-Ag interaction we solved the structure of the BK6 TCR unliganded to 2.1Å resolution, as well as the ternary structures of TCR-CD1a-endo and TCR-CD1a-LPC to 3.0Å and 2.8Å, respectively (Table 1, Fig. 4a–f, Fig. 5a–f). The electron density at the BK6 TCR-CD1a interface was well defined, thereby enabling clear insight into CD1a-mediated recognition by the BK6 TCR (Supplementary Table 1). To engage CD1a, the BK6 TCR did not have to change conformation appreciably, with only the conformation of the CDR3β loop altering (root mean square deviation (r.m.s.d.) of 0.67 Å) to avoid steric clashes and promote favourable interactions with residues located on the A’-roof of CD1a (Fig. 4g).

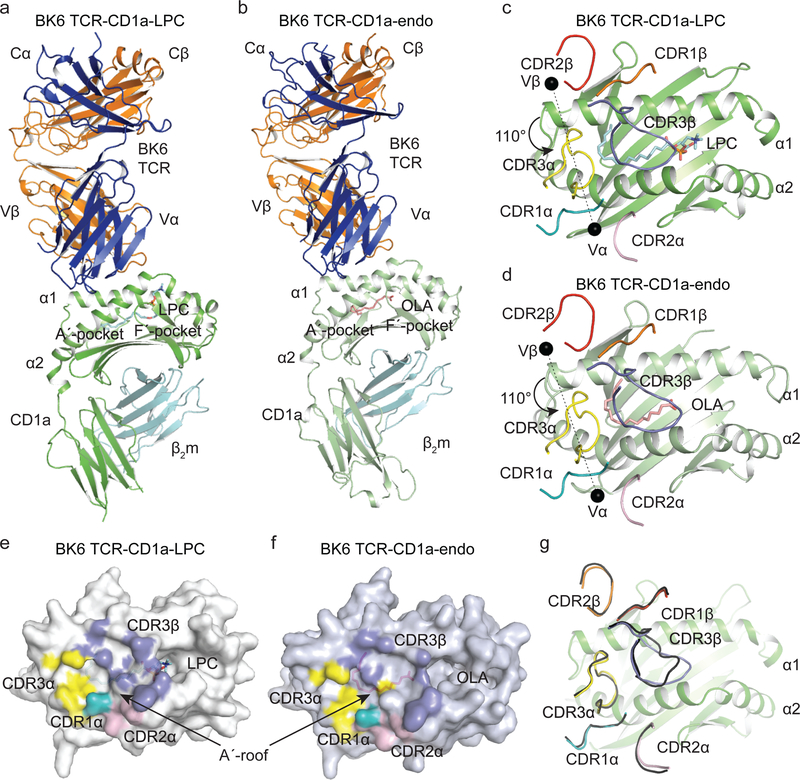

The structure of the BK6 TCR bound to CD1a-endo and CD1a-LPC was essentially identical, revealing that a common docking mode underpinned BK6 TCR autoreactivity (Fig. 4). The BK6 TCR docked orthogonally (110°) across the long axis of the CD1a Ag-binding cleft (Fig. 4c & d). Unlike MR1 and MHC, the α1 and α2 helices of CD1 proteins are connected by interdomain tethers located above the A’-pocket, which form a roof-like structure that separates the exterior of CD1 from the interior of the hydrophobic A’-pocket^{25, 26}. The BK6 TCR bound over the A’-roof of CD1a-Ag, with the α- and β-chains of the TCR positioned over the α2- and α1-helices respectively (Fig. 4a–d). By virtue of the location of the BK6 TCR footprint on the A’-roof, the BK6 TCR exclusively contacted the CD1a protein itself and did not directly interact with the Ag (Fig. 4a–f). The buried surface area (BSA) of the interaction was 830 Ų, of which the TCR α- and β-chains contributed approximately equally (54% and 46% respectively). In considering how an αβTCR can generate a footprint of this size without contacting Ag, it is notable that CD1a presented Ags protruding from the F’-portal, which has an ectopic location on the outer surface of CD1a. Near the opposite edge of the exposed surface of CD1a, the A’-roof provides a particularly large ‘Ag-free’ landing platform, with this feature being moderately larger than the CD1d A’-roof ²⁷. An equivalently large Ag-free platform is lacking in MR1, MHC-I and MHC-II³. Furthermore, among all human CD1 isoforms, the site of Ag-protrusion from the F’-portal of CD1a is in a particularly ectopic position, thereby creating a larger surface on CD1a that is not contacting Ag.

TCR-CD1a interactions

The germline-encoded regions of the BK6 TCR mostly played a minor role in enabling CD1a restriction (Supplementary Tables 1–2). These germline contacts were principally derived from the BK6 TCR α-chain through bulky tyrosine residues in the CDR1α, CDR2α and framework residues (Tyr38α, Tyr57α and Tyr55α, respectively), contributing to 4%, 13% and 3% of the BSA, respectively (Fig. 4e–f & Fig. 5a). Here, the three tyrosine residues from the TCR α-chain converged to form a focussed interaction site with the α2-helix of CD1a (residues 153–160), where Tyr38α and Tyr57α pointed towards CD1a, with their hydroxyl groups hydrogen-bonding to Asn160 and His159 respectively, while the framework Tyr55a formed van der Waals (vdw) contacts with His153 of CD1a (Fig. 5a). As such the non-germline encoded CDR3α and CDR3β loops (BSA of 34% and 44% respectively) dominated the interactions with CD1a (Fig. 4e–f & Fig. 5b–c). The CDR3α loop was positioned at the extremity of the A’-roof, forming a large number of contacts with residues that emanated from both the a1- and a2-helices of CD1a (Fig. 5b). The tip of the CDR3a loop possessed residues with small sidechains, which enabled the loop to wedge deeply between the helical jaws of CD1a and form a number of hydrogen bonds mediated via the main chain of the CDR3α loop. Central to these interactions were Leu110α and Pro111α, which were situated in distinct shallow hydrophobic pockets within the A’-roof (Fig. 5b). Namely, Pro111a was nestled between Leu66, the aliphatic moiety of Phe58, Glu62 and Glu65 from CD1a; while Leu110α packed against Ile157, Asn160, Thr165 and Arg168, with its main chain hydrogen bonded to Asn160, Thr165 and Arg168 (Fig. 5b & Supplementary Table 1). These interactions were complemented by Ser109α hydrogen bonding to Asp164 and packing against Asn160, while the main chain of Asn112α and Ala113α hydrogen bonded to Glu65 from CD1a (Fig. 5b & Supplementary Table 1). The CDR3β loop was more centrally disposed above the A’-roof of CD1a, slotting between the α1- and α2-helices of CD1a (Fig. 4c–f & 5c). These CDR3β loop-CD1a interactions were predominantly hydrophobic, with Phe109β and Leu110β seated snugly within a hydrophobic crevice lined by Leu69, Ile157 and the aliphatic regions of Thr68 and Glu65 from CD1a (Fig. 5c). Of interest, two recently isolated CD1a-autoreactive TCRs share some sequence similarities with the BK6 TCR, namely the presence of germline-encoded Tyr residues in the CDR1α and CDR2α loops, small residues within the CDR3a loop, and hydrophobic residues within the CDR3b loop, thereby suggesting plausible commonalities in the autoreactive TCR-CD1a-lipid docking mode (Supplementary Table 2).

We further assessed the functional basis of the BK6 TCR-CD1a-Ag interaction by transducing CD1a, and 12 single site mutants thereof, into C1R cells and assessing their impact on activation of Jurkat.BK6 cells. Mutations around the F’-pocket, including Arg83Ala, Lys146Ala, Gln150Ala, His153Ala had a minimal impact in Jurkat.BK6 cell activation; mutations closer to the A’-roof, namely Glu61Ala, Glu62Ala, Arg76Ala, Asn160Ala and Asp164Ala, had a moderate impact on Jurkat.BK6 cell activation; while the Glu65Ala and Leu69Ala mutants, located in the centre of the A’-roof, effectively abrogated Jurkat.BK6 cell activation (Fig. 6a). Mapping the effect of these mutants onto the BK6 TCR-CD1a-Ag structure revealed that the key “hot spot” residues related to the CDR3 loop-CD1a mediated interactions (Fig. 6b), thereby underscoring the importance of this intermolecular contact zone and making clear that the TCR is recognizing the surface of CD1a. Moreover, the majority of the CD1a residues mediating contacts with the BK6 TCR were not shared in α1 and α2 helices of CD1b, CD1c, and CD1d, thereby providing an understanding of why the BK6 TCR was restricted to CD1a.

No TCR contact with the permissive Ags

Throughout the refinement of the BK6 TCR-CD1a-endo structure, there was clear unbiased electron density within the A’-pocket (Supplementary Fig. 3a & e), whereas there was no unaccounted electron density within the more solvent exposed F’-pocket, suggesting that either no ligands were present or that a heterogeneous population of ligands occupied this F’-pocket. In CD1b, the A’-pocket is a circular structure that connects to other pockets, forming a maze for alkyl chains⁶. In contrast, the A’-pocket of CD1a is abruptly terminated, creating a tube with only one entrance. The finite length of this tube was proposed to act as a “molecular ruler” for acyl chains, favouring those between C_18-20 in length⁷. In CD1a-endo, the electron density in the constricted A’-pocket was consistent a C_16–18 fatty acyl chain (Supplementary Fig. 3a & e). Further, MS analyses of stringently washed crystals of the BK6 TCR-CD1a-endo ternary complex revealed lipids with C18:1 acyl chains (Supplementary Fig. 4a). Notably, the independent MS analyses from chromatography purified BK6 TCR-CD1a-endo and the purified crystallized BK6 TCR-CD1a-endo showed both C18 free fatty acids (Supplementary Fig. 4b) and diacylglycerols carrying C18 fatty acyl units. Thus, distinct structural and chemical approaches indicated that phospholipids with C₁₆18 acyl chains represented a suite of endogenous Ags that were permissive for BK6 TCR engagement to CD1a.

Regarding the BK6 TCR-CD1a-LPC structure, while there was no electron density within the F’-pocket of CD1a, clear density was observed for LPC within the A’-pocket (Supplementary Fig. 3b & f). The conformation of the acyl chain within the A’-pocket in TCR-CD1a-endo and TCR-CD1aLPC ternary complexes matched closely to that of the corresponding lipid tails in the CD1a binary structures bound to LPC, sphingomyelin (SM) (see below and Table 1) and with the previously reported sulfatide (SLF) (Fig. 7a–e) ^{7, 25}. Here, the acyl chain snaked round the A’-pocket, making a large number of vdw contacts along the entire length of the lipid tail. The distal end of the tail abutted against Phe70 and Val28, which terminates the A’-tube, thereby limiting the extent to which lipid moieties can penetrate into the A’-pocket (Fig. 5d & e). The polar head group of LPC, whilst showing some mobility, was clearly observed to be distant from the BK6 TCR (Fig. 5e–f). Further, a central CD1a salt bridging network prevented interaction between the BK6 TCR, making clear the lack of direct interactions of the TCR with the permissive lipid. Here, Arg73 of CD1a reached across the Ag-binding cleft and formed polar contacts with Thr158 and a salt bridge with Glu154, which in turn formed a salt bridge with Arg76 (Fig. 5d–f). Accordingly the BK6 TCR does not directly contact the permissive Ags bound within the cleft of CD1a, and as such its autoreactivity is determined solely by contacts with CD1a.

Non-permissive Ags disrupt the TCR-CD1a binding site

Next, by comparing previous binary CD1a structures to the new ternary or binary structures (Fig. 7), we found several lines of evidence that certain CD1a ligands can disrupt the A’-roof of CD1a. For example, in the CD1a-sulfatide complex, the galactosyl sulfate head group disrupted the Arg7–6Glu154 interaction, causing both these residues to reorientate, and further impact on the conformation of Asn151 and His153 on CD1a (Fig. 7d). Such conformational readjustments on CD1a, together with the presence of the charged sulfate head group and uncompensated charged Glu154, could hinder engagement of the hydrophobic CDR3β loop of the BK6 TCR with CD1a, which supports the observation that CD1a-sulfatide tetramers have a reduced Jurkat.BK6 staining (Supplementary Fig. 5). An analogous disruption of the Arg76-Glu154 salt bridge was observed in the CD1a-synthetic mycobactin peptide (DDM) complex, with DDM representing a defined Ag for some mycobacteria specific CD1a-restricted T cell clones²⁵ (Fig. 7f).

We then determined the binary structures of CD1a-LPC and CD1a-SM, permissive and nonpermissive ligands respectively (Table 1 & Supplementary Fig. 3). Notably, while SM and LPC possess the same polar head group, the longer C24 acyl chain of SM (LPC, C18 acyl chain) caused the polar headgroup of SM to protrude further from the F’-portal of CD1a, which subsequently impacted on the architecture and electrostatic properties of the A’-roof (Fig. 7a, c & e). Moreover, in comparing the structure of the CD1a-LPC compared to BK6 TCR-CD1a-LPC (Fig. 7a & c), a modest pinching together of the α₁ and α₂ helices around the region of the Arg76 to Glu154 salt bridge was observed. We suggest that the CD1a-SM complex (Fig. 7e), with the more exposed headgroup, hinders this conformational flexibility of the CD1a A’-roof. Thus we propose that nonpermissive Ags, such as SM and sulfatide, disrupt the properties of the A’-roof, thereby affecting BK6 TCR-CD1a interactions. The cluster of charged residues on the A’-roof of CD1a is not present in other CD1 family members, and therefore represents a unique feature of CD1a that effectively mediates BK6 TCR autoreactivity.

BK6 TCR and CD1a expression and purification

CD1a was expressed by recombinant methods in both Baculovirus-mediated insect cell and transfection in mammalian expression systems. Insect cell expression was performed by cloning the extracellular region of CD1a with a C-terminal BirA-His₆ fusion (amino acid sequence GSGLNDIFEAQKIEWHEHHHHHH) and β₂m into the pFastBac Dual (Invitrogen) transfer plasmid and expressed as previously described in insect sf9 cells³³. Mammalian expression was achieved by cloning CD1a and β₂m constructs into a pHLsec vector³⁴ as C-terminal fusions with the leucine-zippers Jun and Fos (CD1a and β₂m respectively) and a post zipper BirA-His₆ tag for CD1a. Fusion proteins were expressed by co-transfection of HEK293S GnTI⁻ cells with the pHLsec-CD1a-Jun-BirA-His₆ and pHLsec-β₂m-Fos plasmids³⁴. Purification of CD1a-β₂m heterodimers from both systems was achieved by immobilized nickel affinity followed by size exclusion chromatography.

Extracellular truncations of human TRAV12–3*01 and TRBV6–2*01 genes, which constitute the BK6 TCR, were expressed as insoluble inclusions in BL21 Escherichia coli by recombinant methods. Inclusion bodies were purified from the bacterial cells and solubilised in 6 M guanidine-HCl, 20 mM tris (pH 8) 0.5 mM EDTA and 1mM DTT. The soluble BK6 TCR was produced by oxidative refolding and purified using size exclusion and ion exchange chromatography as previously described³⁵.

Isolation of CD1a-BK6 TCR co-complex, unbound CD1a and NKT TCR-CD1d complex.

Soluble CD1a expressed in HEK293S GnTI⁻ cells was treated with endoglycosidase H (New England Biolabs) and thrombin (Sigma) to remove N-linked sugars and C-terminal leucine-zippers, respectively. Soluble BK6 TCR and enzyme cleaved (endoglycosidase H and thrombin) CD1a were purified separately using a Superdex-200 16/60 (GE Healthcare) size exclusion column. CD1a-BK6 TCR co-complex and unbound CD1a was purified by mixing equal amounts of soluble CD1a and BK6 TCR (24.5μM) and by passage over Superdex-200 16/60 size exclusion column (flow rate 0.5ml/min). Fractions that eluted at volumes earlier than soluble TCR alone and CD1a alone were deemed to contain CD1a-BK6 TCR co-complex whereas fractions that eluted at the same volume as TCR and CD1a alone were regarded as unbound CD1a. Mouse NKT CD1d-α-GalCer-Vα14Jα18-Vβ6/Vβ8.2 hybrid TCR has been previously reported ³⁶ and the co-complex of this TCR with α-GalCer-CD1d was purified in an identical manner to that of the CD1a-BK6 TCR co-complex. α-GalCer (C24:1, PBS44) was generously provided by Prof. Paul Savage, Brigham Young University, UT, USA).

Loading of CD1a and production of CD1a-tetramers

Soluble mammalian CD1a samples were enzymatically biotinylated using BirA biotin ligase. Endogenous CD1a tetramers were prepared by mixing Streptavidin-PE (BD-biosciences) with biotinylated CD1a in a 1:4 molar ratio. Phosphatidylcholine (PC) (1-stearoyl-2-oleoyl-sn-glycero-3-phosphocholine), sphingomyelin (SM) (N-nervonoyl-D-erythro-sphingosylphosphorylcholine), sulfatide (3-O-sulfo-D-galactosyl-ß1–1’-N-nervonoyl-D-erythro-sphingosine) and lysophosphatidylcholine (LPC) (1-oleoyl-2-hydroxy-sn-glycero-3-phosphocholine) were all purchased from Avanti Polar Lipids. PC, SM and sulfatide were prepared in 0.5% tyloxapol (Sigma) tris buffered saline (TBS) pH 8.0. LPC was prepared in aqueous solution or aqueous 0.5% tyloxapol. Prior to the production of lipid-loaded tetramers, biotinylated CD1a was loaded overnight with PC (1:6 molar ratio), LPC (1:5, 1:25, 1:50, 1:150 and 1:450 molar ratio) or SM (1:3, 1:6, 1:12 and 1:24 molar ratio). CD1a tetramer positive cells were co-stained with CD3 (clone UCHT1, BD biosciences) and analysed using a LSR Fortessa (BD sciences). Data was processed using FlowJo software (Tree Star Inc.). Loading of CD1a with LPC for crystallographic studies was performed by mixing CD1a with LPC in a 1:60 molar ratio, incubating overnight at room temperature and excess lipid and detergent removed using a HiTrap Q FF column (GE healthcare).

Production of CD1a expressing C1R cells and Jurkat cell lines

Gene segments encoding wild type CD1a or CD1a mutants (E61A, E62A, E65A, L69A, I72A, R76A, R83A, K146A, Q150A, H153A, N160A and D164A) were purchased from Life Technologies. Full-length CD1a gene segments were cloned into pMIG retroviral vector, transfected into HEK293T cells to produce retrovirus and C1R cells transduced with retroviral supernatant, as previously described ¹⁹. These have not been recently authenticated or tested for Mycoplasma. CD1a wild type or mutant cell lines were stained with a CD1a reactive antibody (clone HI149) and FACS sorted using a BD FACSAria™ III Cell Sorter (BD Biosciences) to ensure each line expressed similar levels of CD1a. CD1a-restricted BK6 Jurkat cells and MR1-restricted Jurkat cells were generated essentially as previously described ³⁷.

Activation assay of human BK6 Jurkat cell line

CD1a-restricted BK6 Jurkat cells were generated as previously described³⁷. 1×10⁴ C1R CD1a cells (wild type or mutant) were mixed with 2×10⁴ BK6 Jurkat cells and cultured overnight. Following overnight culture, cells were stained with CD3 (clone UCHT1, BD biosciences), CD69 (clone FN50, BD biosciences) and CD19 (clone H1B19, Biolegend) and activation of CD3⁺ BK6 Jurkat cells assessed by CD69 up-regulation. Cells were analysed using a LSR Fortessa (BD sciences) and data processed using FlowJo software (Tree Star Inc.).

Lipid elution, mass spectrometry, and identification of self lipids of CD1a proteins by HPLCMS and ESI-MS.

Mammalian CD1a proteins form HEK293 cells were extracted with chloroform, methanol, and water according to a modified Bligh & Dyer method as described¹⁰. The lipid containing organic phase was separated from the aqueous phase and collected for the further analysis. HPLC-MS and lipidomics analysis of CD1a eluted lipids were performed as previously described^{10, 18}. Briefly, extracted lipids were analyzed with an Agilent Technologies 6520 Accurate-Mass Q-TOF coupled with an Agilent 1200 series HPLC system controlled by MassHunter software. The concentration of the extracted lipids was normalized to the input proteins. Using insect-derived BK6 TCR-CD1aendo complex crystals were separated from mother liquor from approximately 50 crystallisation drops and washed with 6× 400μL crystallisation well solution using a 0.2 μm centrifugal filter at 500g. The harvested crystals were dissolved in 10 mM tris pH 8, 150 mM sodium chloride prior to mass spectrometry as described above.

Lipid identification by CID-MS

Known lipid standards were purchased from commercial sources. Fatty acids (FA: oleic acid; stearic acid, and palmitoleic acid) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Phosphatidylglycerol (PG), phosphatidylethanolamine (PE), phosphatidylserine (PS), phosphatidylinositol (PI), sphingomyelin (SM), and phosphatidylcholine (PC) were purchased from Avanti polar lipids (Alabaster, AL, USA). All standards were mixed and run in the same solvent system to serve as external standards and found to nearly co-elute with identified lipids. For nanoelectrospray analysis, the eluents were loaded onto an in-house made glass nanospray tip for negative-mode electrospray ionization mass spectrometry (ESI-MS). The ESI-MS and collision induced dissociation (CID-MS/MS) were performed on LCQ Advantage or LXQ (Thermo Finnigan, Ringoes, NJ), 2 dimensional ion-trap mass spectrometers. The spray voltage and capillary temperature were set to 0.8 kV and 200 °C, respectively. Collision energy was 30 – 40 % of maximum and the trapping of product ions were carried out with a q value of 0.25. Lipid identifications were based on co-elution of unknowns as with standards, matching to the m/z values reported in the literature and by detection of component structures in CID-MS/MS as described¹³.

Derivation of CD1a autoreactive clones and TCR sequencing.

CD1a-autroeactive T-cell clones were generated from peripheral blood as described previously¹³. Briefly, CD1a-autoreactive T-cell clones were derived through ex vivo limiting dilution, either directly ex vivo or from CD1a-autoreactive polyclonal cultures. For ex-vivo limiting dilution, 96-well round-bottom plates were seeded with 100 autologous DCs per well and 100 non-adherent cells per well. After 24 h, autologous irradiated PBMCs were added (1 × 10⁵ cells per well) in complete medium containing IL-2 (0.5 nM) and IL-15 (2 ng/ml). From polyclonal cultures, CD1a-autoreactive T cell clones were derived by seeding T cells at a density of one cell per well in 96-well plates in 100 μl cell suspension containing irradiated transformed B cells (1 × 10⁵ cells per well), PBMCs (1 × 10⁶ cells per well) and K562-CD1a cells (5 × 10⁵ cells per well), IL-2 (0.5 nM) and IL-15 (2 ng/ml) and phytohemagglutinin (0.5 μg/ml; Sigma-Aldrich). Plates were screened for clones after 14 d and all clones were tested for reactivity to CD1a, using CD1a expressing- and control-K562 cells as APC, and IL-2 bioassay or IFN-γ ELISPOT for readout. The clonality of cell cultures was determined by PCR for TCR α- and β-chains with a primer panel covering the TCR V regions (International Immunogenetics Primer Database) combined with constant-region primers.

Surface plasmon resonance

Prior to experiments, mammalian CD1a samples were enzymatically deglycosylated by endoglycosidase H (New England Biolabs) to correlate with the structural and SEC analyses, and biotinylated by the BirA biotin ligase. All surface plasmon resonance experiments were conducted in duplicate using a BIAcore 3000 instrument in 10 mM HEPES-HCl (pH 7.5), 150 mM NaCl at 25°C. The buffer was supplemented with 0.5% bovine serum albumin (Sigma) to prevent nonspecific interaction with the chip and fluidics according to previously published protocols ^{10, 18, 33}, this was in place of detergents which would strip lipids from CD1a complexes. Biotinylated, deglycosylated CD1a-jun-BirA-His₆-β₂m-Fos proteins were immobilized onto a SA-Chip (GE Healthcare) with a surface density of approximately 3000 response units (RU). Various concentrations of BK6 TCR (between 0.4 to 500 μM) were injected over the captured CD1a-Ag-SA surface at 5 μl/min. The final response was calculated by subtracting the response of a biotin labelled flow cell alone from the TCR-CD1a-Ag complex, followed by a subsequent subtraction of buffer alone. The equilibrium data were analysed using BIAevaluation and GraphPad Prism to determine affinity constants.

Crystallization, structure determination and analysis

Prior to crystallization experiments CD1a protein expressed in the mammalian system was cleaved with thrombin (Sigma) and endoglycosidase H to remove the zipper fusion and N-linked glycosylation sites respectively. All crystals were obtained using the hanging drop vapour diffusion protocol. Crystals of the BK6 apo TCR structure were obtained with a BK6 TCR concentration between 5–10 mg/mL with a precipitant solution consisting 0.1 M bicine pH 9, 20% PEG 6000. Crystals of the CD1a-SM and CD1a-LPC binary complexes (mammalian CD1a) were obtained with a CD1a concentration between 5–10 mg/mL with a precipitant solution consisting 10% MMT (20 mM DL-malic acid, 40 mM MES, 40 mM tris) buffer screening pH values between 5–6 and 20–28% PEG 1500. Crystals of the soluble BK6 TCR-CD1a complexes from both mammalian (BK6 TCRCD1a-LPC) and insect (BK6 TCR-CD1a-endo) systems were obtained using the hanging drop vapour diffusion method. The BK6 TCR and CD1a were concentrated to between 2–6 mg/ml, mixed in a 1:1 molar ratio, then added to a precipitant solution consisting of 0.2 M sodium citrate, 0.1 M bis-tris propane ranging pH between 6–6.7, and varying concentrations of PEG 3350 between 10–22% w/v depending upon the complex. Crystals were observed after incubation at 20 °C for 24 h. All crystals were cryoprotected prior to diffraction experiments by soaking in the crystallisation condition modified with between 10–15% v/v glycerol for CD1a binary and ternary crystals or by increasing the PEG 6000 to 30% for the BK6 TCR apo crystals before cooling to 100 K in liquid nitrogen. All diffraction experiments were performed at the Australian Synchrotron, with the BK6 TCR apo dataset collected on the MX1 beamline with crystals diffracting in the P2₁ spacegroup and BK6 TCR-CD1a ternary and CD1a binary datasets collected on the MX2 beamline crystals diffracting in the P2₁2₁2₁ spacegroup. The diffraction images were integrated in XDS or iMosflm^{38, 39}, scaled in Aimless using Blend to merge multiple datasets and intensities converted to structure factors by cTruncate from the CCP4 Suite. The phase problem was solved by molecular replacement using PHASER⁴⁰, using the CD1a binary complex (PDB code 1ONQ)⁷ and MAIT TCR (PDB code 4PJ5⁴¹) structures as search models. To avoid model bias CDR loops and ligands were removed prior to molecular replacement. The initial solution was refined using simulated annealing refinement in phenix, followed by density modification in phenix.autosol and refinement in phenix.rosetta_refine from the Phenix suite for the CD1a ternary complexes only, followed by maximum likelihood refinement using either phenix refine or buster for the BK6 TCR apo structure^{42, 43}. All model building steps were performed in COOT using MolProbity for validation and molecular graphics were made with PyMOL⁴⁴. The electron density in the A’-pocket for the BK6 TCR-CD1a-endo structure was modelled with oleic acid (OLA) due to evidence from mass spectrometry indicating multiple lipids with C18:1 lipid tails and consistency with observed electron density. The buried surface area was calculated with Areaimol and RMSD values and surface electrostatic potentials calculated using the align function respectively in PyMOL^{45, 46}. The refined 2Fo-Fc maps shown were produced in phenix using the feature-enhanced map function for the BK6 TCR-CD1a-LPC and BK6 TCR-CD1a-endo ternary structures. Unbiased electron density omit maps were created with phenix.refine using the simulated annealing refinement function (independent torsion angle and Cartesian methods) in the absence of lipid, with the lipid binding cleft randomly filled with coordinate restrained zero occupancy atoms.
